Adaptive Consensus Quantized Control for a Class of High-Order Nonlinear Multi-Agent Systems With Input Hysteresis and Full State Constraints

doi: 10.1109/JAS.2022.105800
  • 1.

    School of Automation Engineering, Northeast Electric Power University, Jilin 132012, and also with the Jilin Province International Research Center of Precision Drive and Intelligent Control, Jilin 132012, China

  • 2.

    School of Automation Science and Electrical Engineering, Beihang University, Beijing 100191, China

  • 3.

    Department of Mechanical and Industrial Engineering, Concordia University, QC, Montreal, H3B 1R6, Canada

  • 4.

    School of Automation Engineering, University of Electronic Science and Technology of China, Chengdu 611731, China

Funds:  This work was supported in part by the National Natural Science Foundation of China (61673101, 61973131, 61733006, U1813201), the Science and Technology Project of Jilin Province (20210509053RQ), and the Fourteenth Five Year Science Research Plan of Jilin Province (JJKH20220115KJ)
More Information
    Abstract

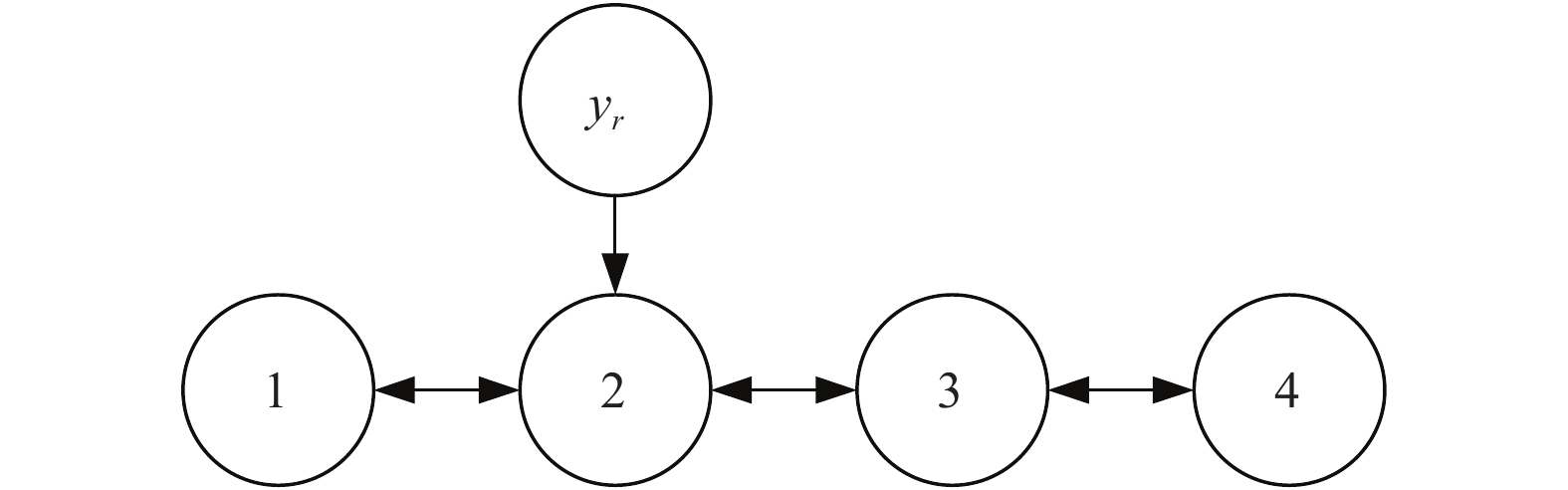

  • For a class of high-order nonlinear multi-agent systems with input hysteresis, an adaptive consensus output-feedback quantized control scheme with full state constraints is investigated. The major properties of the proposed control scheme are: 1) According to the different hysteresis input characteristics of each agent in the multi-agent system, a hysteresis quantization inverse compensator is designed to eliminate the influence of hysteresis characteristics on the system while ensuring that the quantized signal maintains the desired value. 2) A barrier Lyapunov function is introduced for the first time in the hysteretic multi-agent system. By constructing state constraint control strategy for the hysteretic multi-agent system, it ensures that all the states of the system are always maintained within a predetermined range. 3) The designed adaptive consensus output-feedback quantization control scheme allows the hysteretic system to have unknown parameters and unknown disturbance, and ensures that the input signal transmitted between agents is the quantization value, and the introduced quantizer is implemented under the condition that only its sector bound property is required. The stability analysis has proved that all signals of the closed-loop are semi-globally uniformly bounded. The StarSim hardware-in-the-loop simulation certificates the effectiveness of the proposed adaptive quantized control scheme.



    • FullText(HTML)
  • loading
    • References(59)
  • [1]
    Y. Hong, J. Hu, and L. Gao, “Tracking control for multi-agent consensus with an active leader and variable topology,” Automatica, vol. 42, no. 7, pp. 1177–1182, Jul. 2006. doi: 10.1016/j.automatica.2006.02.013
    [2]
    H. Su, X. Wang, and Z. Lin, “Flocking of multi-agents with a virtual leader,” IEEE Trans. Automatic Control, vol. 54, no. 2, pp. 293–307, Feb. 2009. doi: 10.1109/TAC.2008.2010897
    [3]
    Y. Wang, Y. Liu, and Z. Zhang, “Theory and experiments on enclosing control of multi-agent systems,” IEEE/CAA J. Autom. Sinica, vol. 8, no. 10, pp. 1677–1685, Oct. 2021. doi: 10.1109/JAS.2021.1004138
    [4]
    P. Lin, K. Qin, H. Zhao, and M. Sun, “A new approach to average consensus problems with multiple time-delays and jointly-connected topologies,” Journal of the Franklin Institute, vol. 349, no. 1, pp. 293–304, Feb. 2012. doi: 10.1016/j.jfranklin.2011.11.002
    [5]
    Y. Cao and W. Ren, “Distributed coordinated tracking with reduced interaction via a variable structure approach,” IEEE Trans. Automatic Control, vol. 57, no. 1, pp. 33–48, Jan. 2012. doi: 10.1109/TAC.2011.2146830
    [6]
    H. Li, G. Chen, T. Huang, Z. Dong, W. Zhu, and L. Gao, “Event-triggered distributed average consensus over directed digital networks with limited communication bandwidth,” IEEE Trans. Cybernetics, vol. 46, no. 12, pp. 3098–3110, Dec. 2016. doi: 10.1109/TCYB.2015.2496977
    [7]
    M. Krstic, I. Kanellakopoulos, and P. V. Kokotovic, “Adaptive nonlinear control without overparametrization,” Systems and Control Letters, vol. 19, no. 3, pp. 177–185, Sep. 1992. doi: 10.1016/0167-6911(92)90111-5
    [8]
    H. Liang, G. Liu, H. Zhang, and T. Huang, “Neural-network-based event-triggered adaptive control of nonaffine nonlinear multiagent systems with dynamic uncertainties,” IEEE Trans. Neural Networks and Learning Systems, vol. 32, no. 5, pp. 2239–2250, May 2021. doi: 10.1109/TNNLS.2020.3003950
    [9]
    J. Mei, W. Ren, J. Chen, and G. Ma, “Distributed adaptive coordination for multiple lagrangian systems under a directed graph without using neighbors’ velocity information,” Automatica, vol. 49, no. 6, pp. 1723–1731, Jun. 2013. doi: 10.1016/j.automatica.2013.02.058
    [10]
    J. Li and J. Li, “Adaptive iterative learning control for coordination of second-order multi-agent systems,” Int. Journal of Robust and Nonlinear Control, vol. 24, no. 18, pp. 3282–3299, Jul. 2014. doi: 10.1002/rnc.3055
    [11]
    W. Chen, X. Li, W. Ren, and C. Wen, “Adaptive consensus of multi-agent systems with unknown identical control directions based on a novel nussbaum-type function,” IEEE Trans. Automatic Control, vol. 59, no. 7, pp. 1887–1892, Jul. 2014. doi: 10.1109/TAC.2013.2293452
    [12]
    J. Huang, C. Wen, W. Wang, and Y. D. Song, “Adaptive finite-time consensus control of a group of uncertain nonlinear mechanical systems,” Automatica, vol. 51, pp. 292–301, Jan. 2015. doi: 10.1016/j.automatica.2014.10.093
    [13]
    Z. Liu, Y. Li, F. Wang, and Z. Chen, “Reduced-order observer-based leader-following formation control for discrete-time linear multi-agent systems,” IEEE/CAA J. Autom. Sinica, vol. 8, no. 10, pp. 1715–1723, Oct. 2021. doi: 10.1109/JAS.2020.1003441
    [14]
    J. Sung, “Distributed adaptive containment control of uncertain nonlinear multi-agent systems in strict-feedback form,” Automatica, vol. 49, no. 7, pp. 2145–2153, Jul. 2013. doi: 10.1016/j.automatica.2013.03.007
    [15]
    W. Wang, J. Huang, C. Wen, and H. Fan, “Distributed adaptive control for consensus tracking with application to formation control of nonholonomic mobile robots,” Automatica, vol. 50, no. 4, pp. 1254–1263, Apr. 2014. doi: 10.1016/j.automatica.2014.02.028
    [16]
    Q. Shen and P. Shi, “Distributed command filtered backstepping consensus tracking control of nonlinear multiple-agent systems in strict-feedback form,” Automatica, vol. 53, pp. 120–124, Mar. 2015. doi: 10.1016/j.automatica.2014.12.046
    [17]
    C. Sun, G. Hu, and L. Xie, “Robust consensus tracking for a class of high-order multi-agent systems,” Int. Journal of Robust and Nonlinear Control, vol. 26, no. 3, pp. 578–598, Feb. 2016. doi: 10.1002/rnc.3326
    [18]
    H. Liang, X. Guo, Y. Pan, and T. Huang, “Event-triggered fuzzy bipartite tracking control for network systems based on distributed reduced-order observers,” IEEE Trans. Fuzzy Systems, vol. 29, no. 6, pp. 1601–1614, Jun. 2021. doi: 10.1109/TFUZZ.2020.2982618
    [19]
    Z. Ding, “Adaptive consensus output regulation of a class of nonlinear systems with unknown high-frequency gain,” Automatica, vol. 51, pp. 348–355, Jan. 2015. doi: 10.1016/j.automatica.2014.10.079
    [20]
    C. Wang, C. Wen, W. Wang, and Q. Hu, “Output-feedback adaptive consensus tracking control for a class of high-order nonlinear multi-agent systems,” Int. Journal of Robust and Nonlinear Control, vol. 27, no. 18, pp. 4931–4948, Apr. 2017. doi: 10.1002/rnc.3837
    [21]
    Z. Li, J. Liu, Z. Huang, Y. Peng, H. Pu, and L. Ding, “Adaptive impedance control of human-robot cooperation using reinforcement learning,” IEEE Trans. Industrial Electronics, vol. 64, no. 10, pp. 8013–8022, Oct. 2017. doi: 10.1109/TIE.2017.2694391
    [22]
    W. Zhao, Y. Liu, and L. Liu, “Observer-based adaptive fuzzy tracking control using integral barrier lyapunov functionals for a nonlinear system with full state constraints,” IEEE/CAA J. Autom. Sinica, vol. 8, no. 3, pp. 617–627, Mar. 2021. doi: 10.1109/JAS.2021.1003877
    [23]
    D. Huang, C. Yang, Y. Pan, and L. Cheng, “Composite learning enhanced neural control for robot manipulator with output error constraints,” IEEE Trans. Industrial Informatics, vol. 17, no. 1, pp. 209–218, Jan. 2019.
    [24]
    Y. Liu and S. Tong, “Barrier lyapunov functions-based adaptive control for a class of nonlinear pure-feedback systems with full state constraints,” Automatica, vol. 64, pp. 70–75, Feb. 2016. doi: 10.1016/j.automatica.2015.10.034
    [25]
    Y. Liu and S. Tong, “Barrier Lyapunov functions for nussbaum gain adaptive control of full state constrained nonlinear systems,” Automatica, vol. 76, pp. 143–152, Feb. 2017. doi: 10.1016/j.automatica.2016.10.011
    [26]
    F. Qu, S. Tong, and Y. Li, “Observer-based adaptive fuzzy output constrained control for uncertain nonlinear multi-agent systems,” Information Sciences, vol. 467, pp. 446–463, Oct. 2018. doi: 10.1016/j.ins.2018.08.025
    [27]
    J. Sun and C. Liu, “Distributed zero-sum differential game for multi-agent systems in strict-feedback form with input saturation and output constraint,” Neural Networks, vol. 106, pp. 8–19, Oct. 2018. doi: 10.1016/j.neunet.2018.06.007
    [28]
    L. Wang, J. Dong, and C. Xi, “Event-triggered adaptive consensus for fuzzy output-constrained multi-agent systems with observers,” Journal of the Franklin Institute, vol. 357, no. 1, pp. 82–105, Jan. 2020. doi: 10.1016/j.jfranklin.2019.09.033
    [29]
    M. Shahvali, A. Azarbahram, M. B. Naghibi-Sistani, and J. Askari, “Bipartite consensus control for fractional-order nonlinear multi-agent systems: An output constraint approach,” Neurocomputing, vol. 397, pp. 212–223, Jul. 2020. doi: 10.1016/j.neucom.2020.02.036
    [30]
    Y. Zhang, H. Liang, H. Ma, Q. Zhou, and Z. Yu, “Distributed adaptive consensus tracking control for nonlinear multi-agent systems with state constraints,” Applied Mathematics and Computation, vol. 326, pp. 16–32, Jun. 2018. doi: 10.1016/j.amc.2017.12.038
    [31]
    S. Casoria, G. Sybille, and P. Brunelle, “Hysteresis modeling in the Matlab/power system blockset,” Mathematics and Computers in Simulation, vol. 63, no. 3–5, pp. 237–248, Nov. 2003. doi: 10.1016/S0378-4754(03)00070-3
    [32]
    X. Zhao and R. A. de Callafon, “Modeling of battery dynamics and hysteresis for power delivery prediction and SOC estimation,” Applied Energy, vol. 180, pp. 823–833, Oct. 2016. doi: 10.1016/j.apenergy.2016.08.044
    [33]
    F. Al-Bender, W. Symens, J. Swevers, and H. Van Brussel, “Theoretical analysis of the dynamic behavior of hysteresis elements in mechanical systems,” Int. Journal of Non-Linear Mechanics, vol. 39, no. 10, pp. 1721–1735, Dec. 2004. doi: 10.1016/j.ijnonlinmec.2004.04.005
    [34]
    S. Kamali, S. M. Tabatabaei, M. M. Arefi, and S. Yin, “Prescribed performance quantized tracking control for a class of delayed switched nonlinear systems with actuator hysteresis using a filter-connected switched hysteretic quantizer,” IEEE Trans. Neural Networks and Learning Systems, pp. 1–14, Jan. 2020.
    [35]
    H. Wu, Z. Liu, Y. Zhang, and C. L. P. Chen, “Adaptive fuzzy quantized control for nonlinear systems with hysteretic actuator using a new filter-connected quantizer,” IEEE Trans. Cybernetics, vol. 50, no. 3, pp. 876–889, Mar. 2020. doi: 10.1109/TCYB.2018.2864166
    [36]
    X. Zhang, Y. Wang, C. Wang, C.-Y. Su, Z. Li, and X. Chen, “Adaptive estimated inverse output-feedback quantized control for piezoelectric positioning stage,” IEEE Trans. Cybernetics, vol. 49, no. 6, pp. 2106–2118, Jun. 2019. doi: 10.1109/TCYB.2018.2826519
    [37]
    X. Zhang, R. Jing, Z. Li, Z. Li, X. Chen, and C.-Y. Su, “Adaptive pseudo inverse control for a class of nonlinear asymmetric and saturated nonlinear hysteretic systems,” IEEE/CAA J. Autom. Sinica, vol. 8, no. 4, pp. 916–928, Apr. 2021. doi: 10.1109/JAS.2020.1003435
    [38]
    Y. Yu, C. Zhang, Y. Wang, and M. Zhou, “Neural network-based iterative learning control for hysteresis in magnetic shape memory alloy actuator,” IEEE/ASME Trans. Mechatronics, vol. 27, no. 2, pp. 928–939, 2021.
    [39]
    M. Zhou, Y. Wang, Y. Zhang, and W. Gao, “Hysteresis inverse compensation-based model reference adaptive control for a piezoelectric micro-positioning platform,” Smart Materials and Structures, vol. 30, no. 1, p. 015019, Dec. 2020.
    [40]
    X. Zhang, X. Chen, G. Zhu, and C. Su, “Output feedback adaptive motion control and its experimental verification for time-delay nonlinear systems with asymmetric hysteresis,” IEEE Trans. Industrial Electronics, vol. 67, no. 8, pp. 6824–6834, Aug. 2020. doi: 10.1109/TIE.2019.2938460
    [41]
    X. Zhang, B. Li, C. Yang, X. Chen, and C. Su, “Adaptive neural digital control of hysteretic systems with implicit inverse compensator and its application on magnetostrictive actuator,” IEEE Trans. Neural Networks and Learning Systems, vol. 33, no. 2, pp. 667–680, 2020.
    [42]
    Y. Wen, “Method for random vibration of hysteretic systems,” Journal of the Engineering Mechanics Division, vol. 102, no. 2, pp. 249–263, Apr. 1976. doi: 10.1061/JMCEA3.0002106
    [43]
    J. Zhou, C. Wen, and T. Li, “Adaptive output feedback control of uncertain nonlinear systems with hysteresis nonlinearity,” IEEE Trans. Automatic Control, vol. 57, no. 10, pp. 2627–2633, Oct. 2012. doi: 10.1109/TAC.2012.2190208
    [44]
    J. Wang, K. Chen, Q. Liu, and Q. Ma, “Observer-based adaptive consensus tracking control for nonlinear multi-agent systems with actuator hysteresis,” Nonlinear Dynamics, vol. 95, no. 3, pp. 2181–2195, Feb. 2019. doi: 10.1007/s11071-018-4684-1
    [45]
    T. Hayakawa, H. Ishii, and K. Tsumura, “Adaptive quantized control for linear uncertain discrete-time systems,” Automatica, vol. 45, no. 3, pp. 692–700, Mar. 2009. doi: 10.1016/j.automatica.2008.07.005
    [46]
    Y. Li and F. Yang, “Robust adaptive attitude control for non-rigid spacecraft with quantized control input,” IEEE/CAA J. Autom. Sinica, vol. 7, no. 2, pp. 472–481, Mar. 2020. doi: 10.1109/JAS.2020.1003000
    [47]
    W. Chen, X. Li, and L. C. Jiao, “Quantized consensus of second-order continuous-time multi-agent systems with a directed topology via sampled data,” Automatica, vol. 49, no. 7, pp. 2236–2242, Jul. 2013. doi: 10.1016/j.automatica.2013.04.002
    [48]
    M. Guo and D. V. Dimarogonas, “Consensus with quantized relative state measurements,” Automatica, vol. 49, no. 8, pp. 2531–2537, Aug. 2013. doi: 10.1016/j.automatica.2013.05.001
    [49]
    X. Zhang, Y. Wang, G. Zhu, X. Chen, Z. Li, C. Wang, and C.-Y. Su, “Compound adaptive fuzzy quantized control for quadrotor and its experimental verification,” IEEE Trans. Cybernetics, vol. 51, no. 3, pp. 1121–1133, Mar. 2021. doi: 10.1109/TCYB.2020.2987811
    [50]
    Y. Liu, X. Liu, Y. Jing, X. Chen, and J. Qiu, “Direct adaptive preassigned finite-time control with time-delay and quantized input using neural network,” IEEE Trans. Neural Networks and Learning Systems, vol. 31, no. 4, pp. 1222–1231, Apr. 2019.
    [51]
    M. Lv, W. Yu, J. Cao, and S. Baldi, “Consensus in high-power multiagent systems with mixed unknown control directions via hybrid nussbaum-based control,” IEEE Trans. Cybernetics, vol. 52, no. 6, pp. 5184–5196, 2020.
    [52]
    H. Liang, Y. Zhang, T. Huang, and H. Ma, “Prescribed performance cooperative control for multiagent systems with input quantization,” IEEE Trans. Cybernetics, vol. 50, no. 5, pp. 1810–1819, May 2020. doi: 10.1109/TCYB.2019.2893645
    [53]
    T. Hayakawa, H. Ishii, and K. Tsumura, “Adaptive quantized control for nonlinear uncertain systems,” Systems &Control Letters, vol. 58, no. 9, pp. 625–632, Sep. 2009.
    [54]
    T. Liu, Z.-P. Jiang, and D. J. Hill, “A sector bound approach to feedback control of nonlinear systems with state quantization,” Automatica, vol. 48, no. 1, pp. 145–152, Jan. 2012. doi: 10.1016/j.automatica.2011.09.041
    [55]
    J. Zhou, C. Wen, and G. Yang, “Adaptive backstepping stabilization of nonlinear uncertain systems with quantized input signal,” IEEE Trans. Automatic Control, vol. 59, no. 2, pp. 460–464, Feb. 2014. doi: 10.1109/TAC.2013.2270870
    [56]
    M. Krstic and P. Kokotovic, “Adaptive nonlinear output-feedback schemes with marino-tomei controller,” IEEE Trans. Automatic Control, vol. 41, no. 2, pp. 274–280, Feb. 1996. doi: 10.1109/9.481547
    [57]
    Y. J. Liu, D. J. Li, and S. Tong, “Adaptive output feedback control for a class of nonlinear systems with full-state constraints,” Int. Journal of Control, vol. 87, no. 2, pp. 281–290, Sep. 2013.
    [58]
    M. Lv, W. Yu, J. Cao, and S. Baldi, “A separation-based methodology to consensus tracking of switched high-order nonlinear multiagent systems,” IEEE Trans. Neural Networks and Learning Systems, 2021. DOI: 10.1109/TNNLS.2021.3070824.
    [59]
    J. Liu, Radial Basis Function (RBF) Neural Network Control for Mechanical Systems: Design, Analysis and Matlab Simulation. Springer Science & Business Media, Jan. 2013.
    • Related Articles
    • Supplements(0)

Catalog

    通讯作者: 陈斌, bchen63@163.com
    • 1.

      沈阳化工大学材料科学与工程学院 沈阳 110142

    1. 本站搜索
    2. 百度学术搜索
    3. 万方数据库搜索
    4. CNKI搜索

    Figures(20)  / Tables(1)

    Get Citation
    PDF
    XML

    Article Metrics

    Article views (800) PDF downloads(172) Cited by()

    Highlights

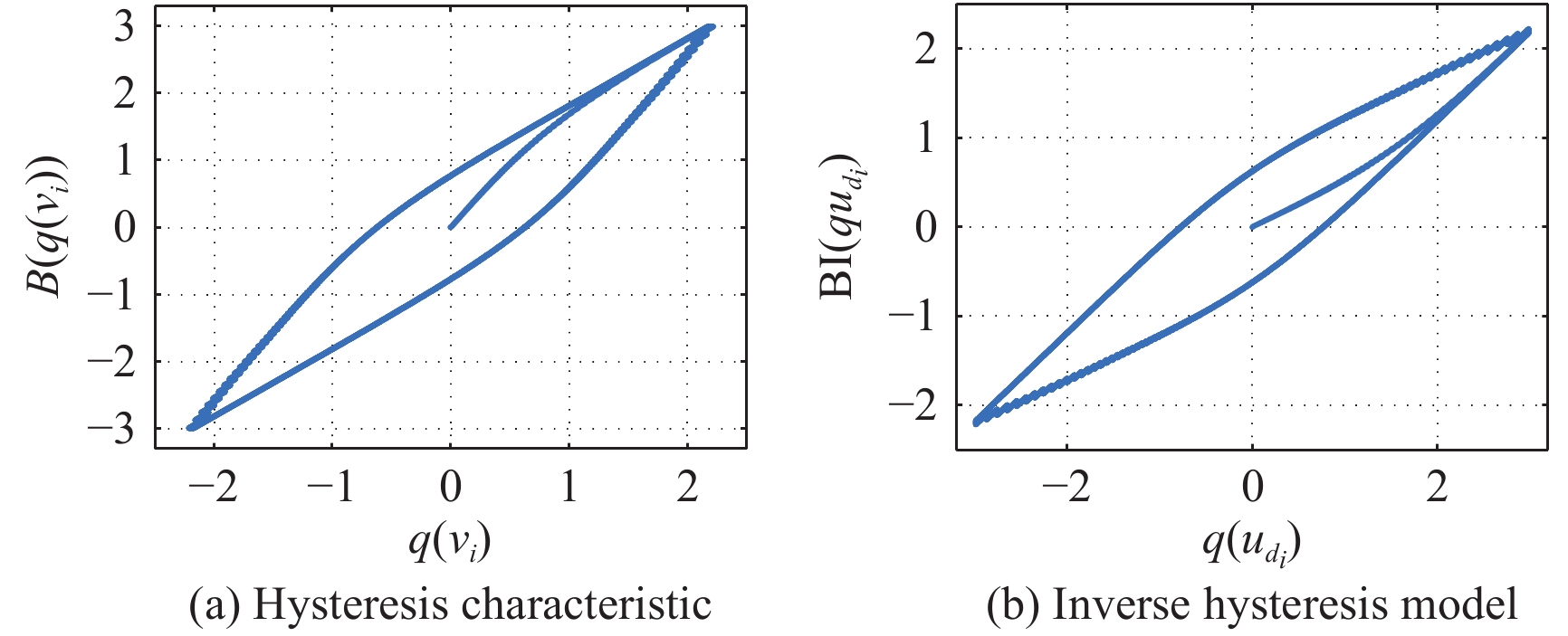

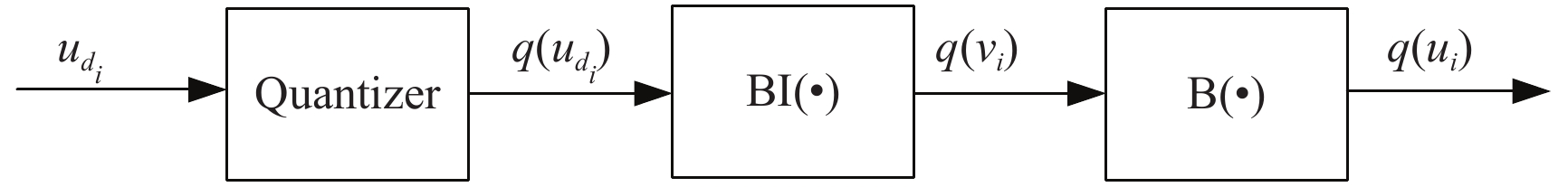

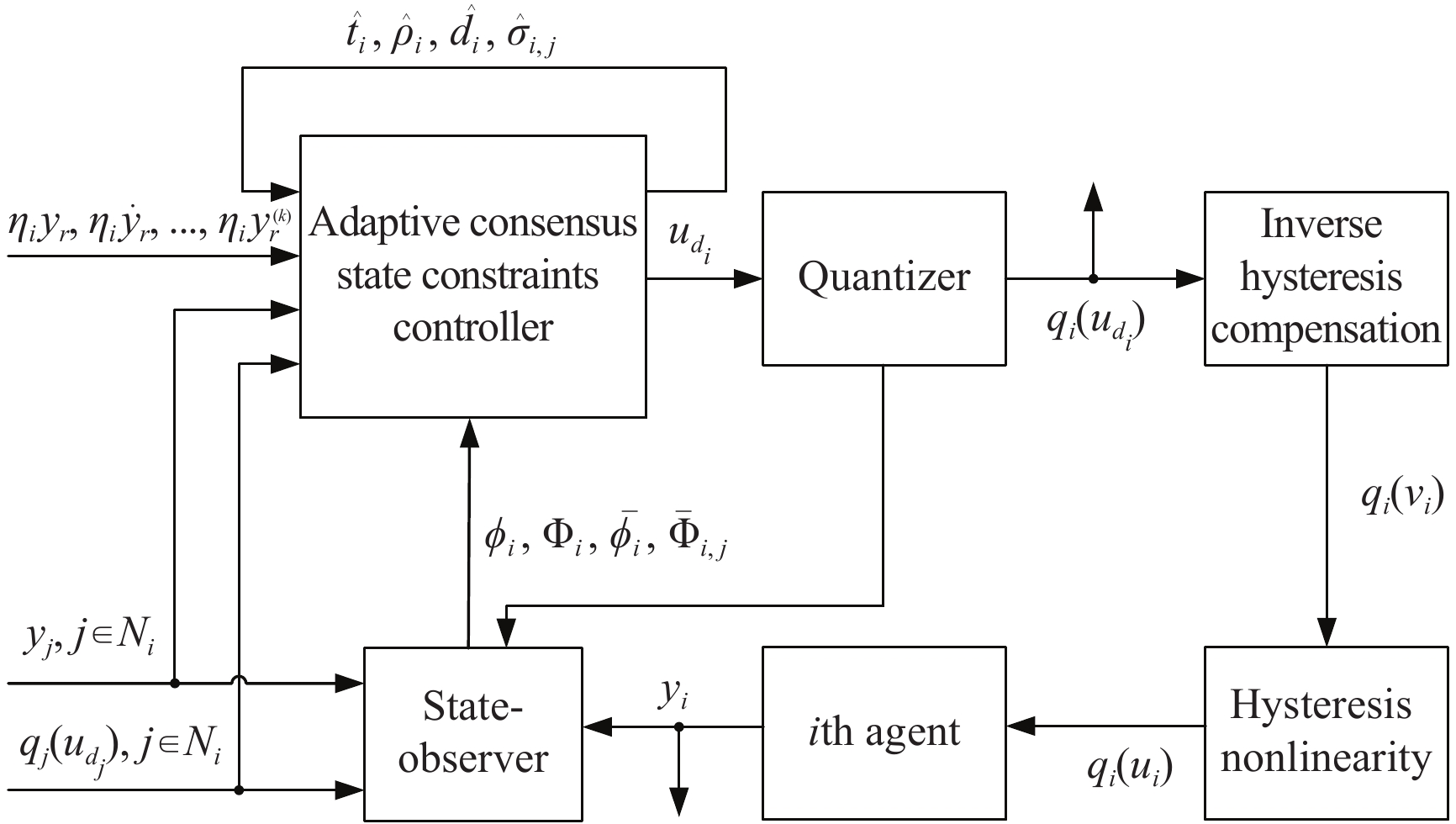

    • The quantized control method of the hysteretic multi-agent systems is considered and a hysteresis quantization inverse compensator is established

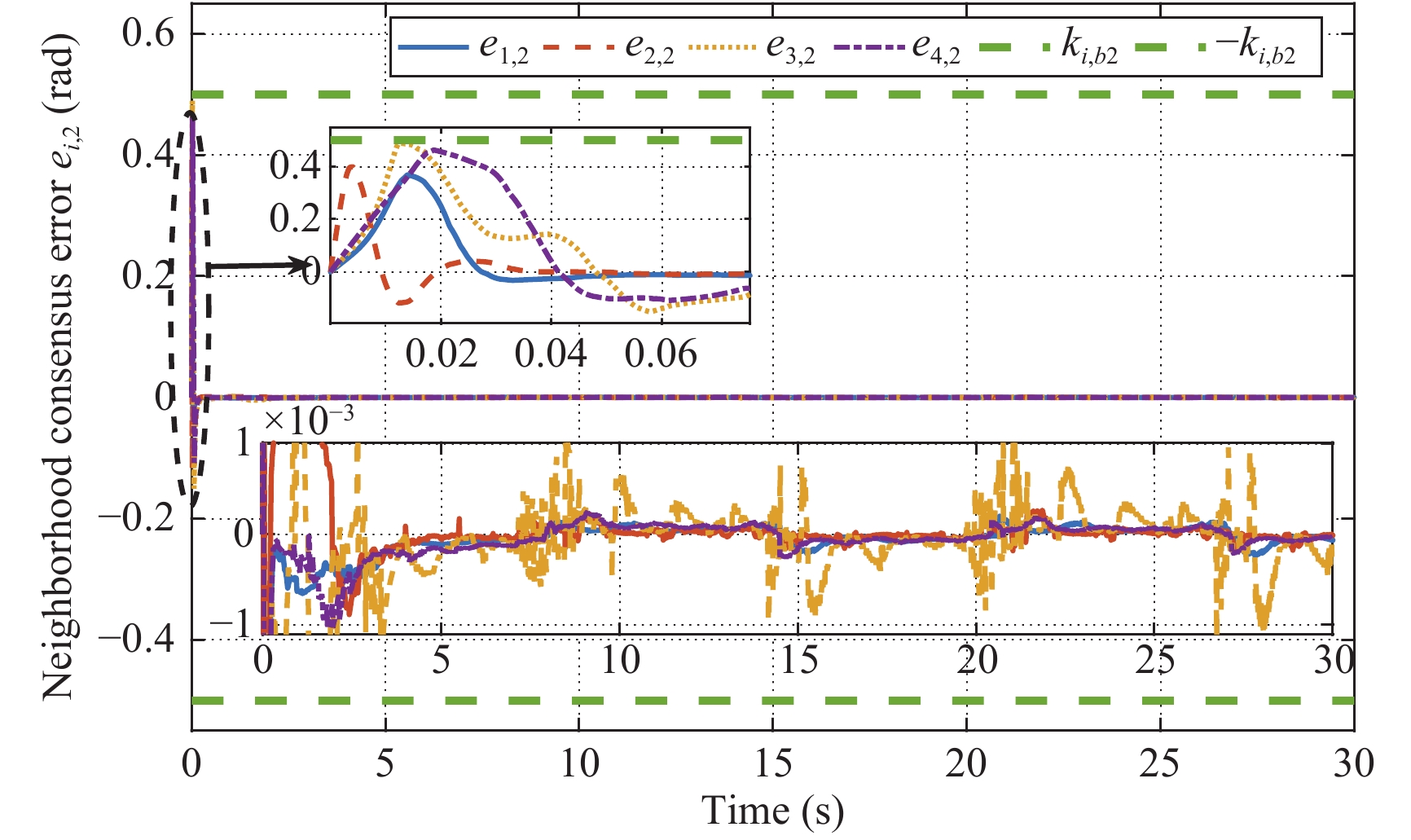

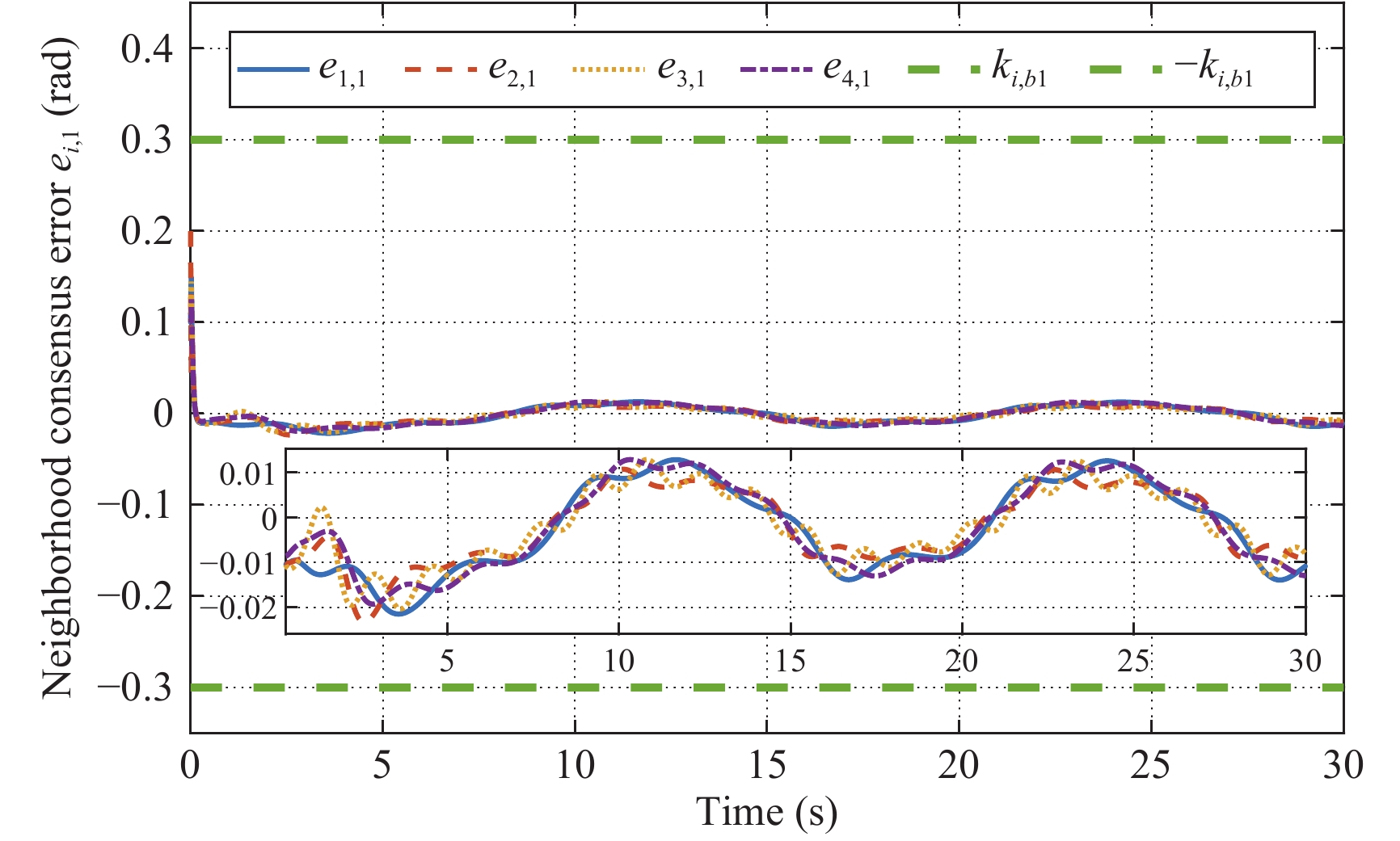

    • The first study to apply the barrier Lyapunov function to the hysteretic multi-agent systems

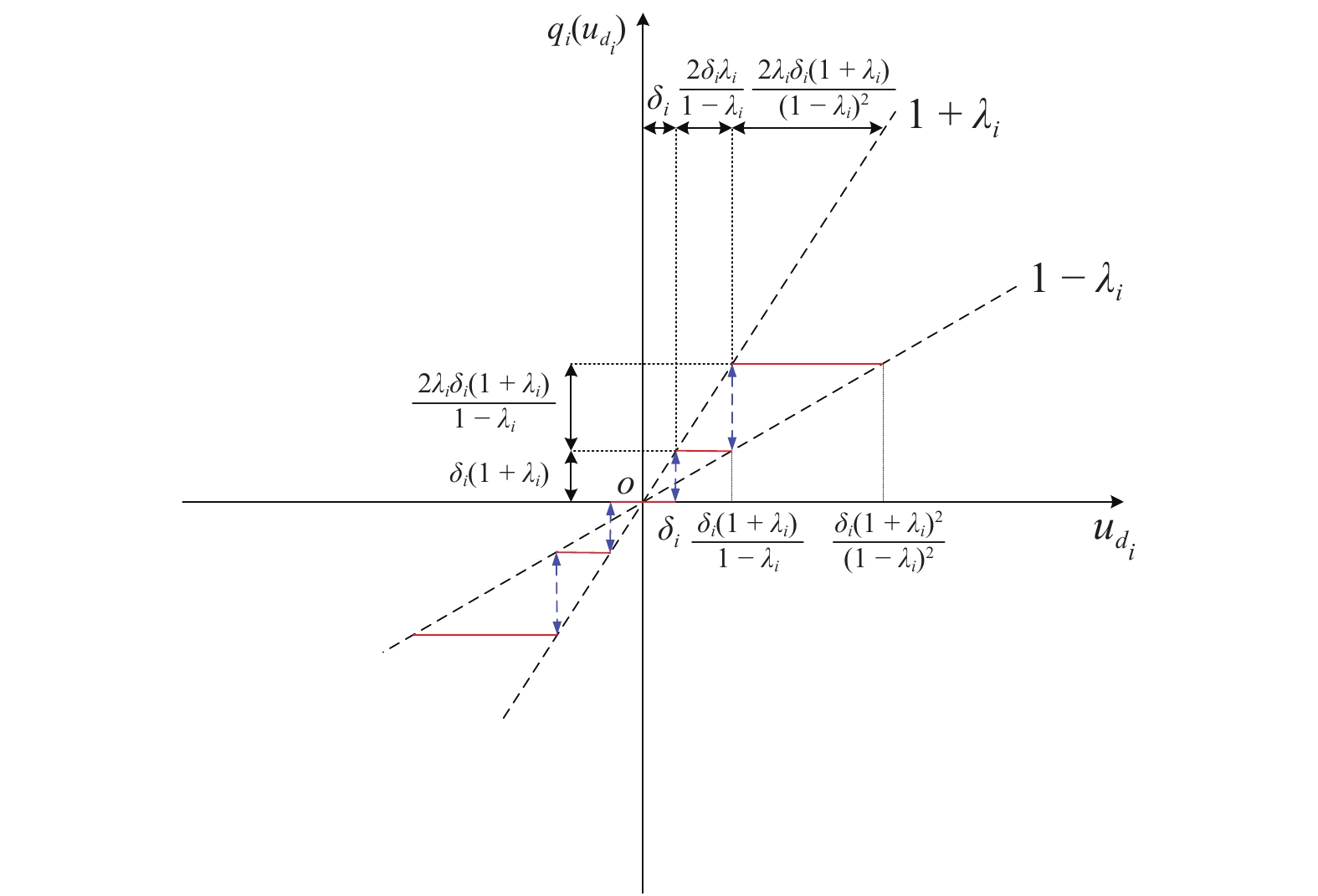

    • The quantized control strategy constructed only requires quantizer to have sector bounded property

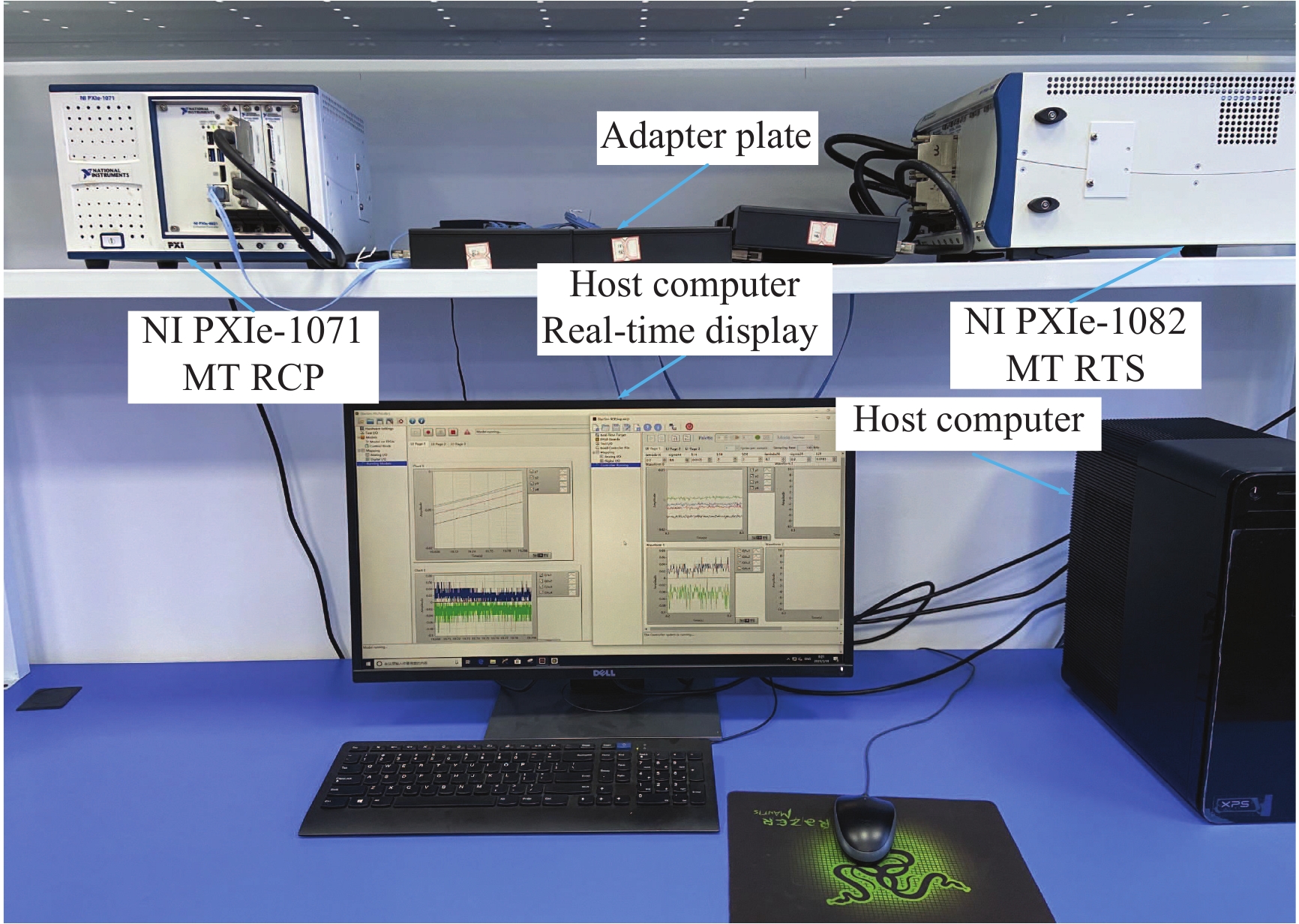

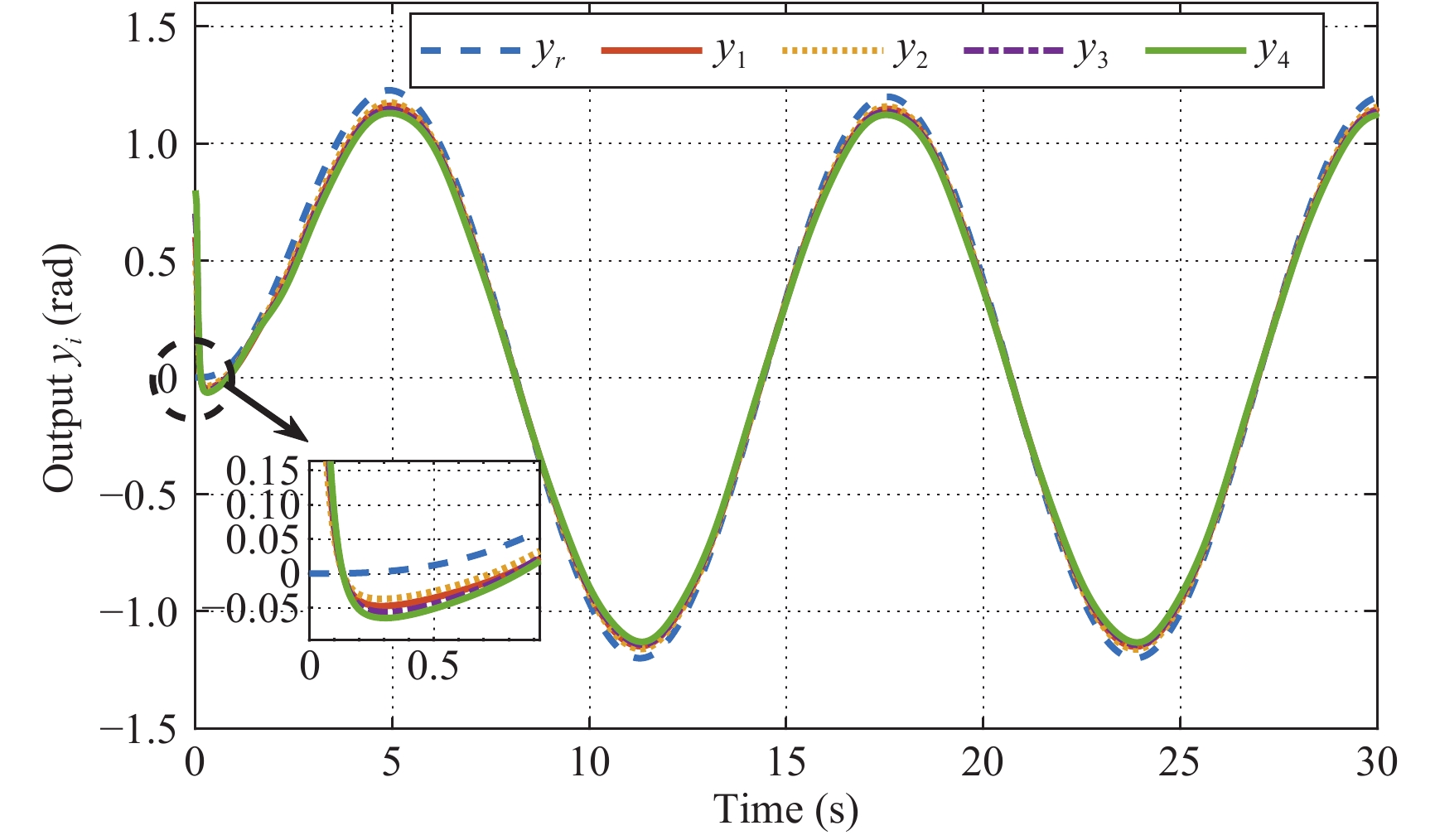

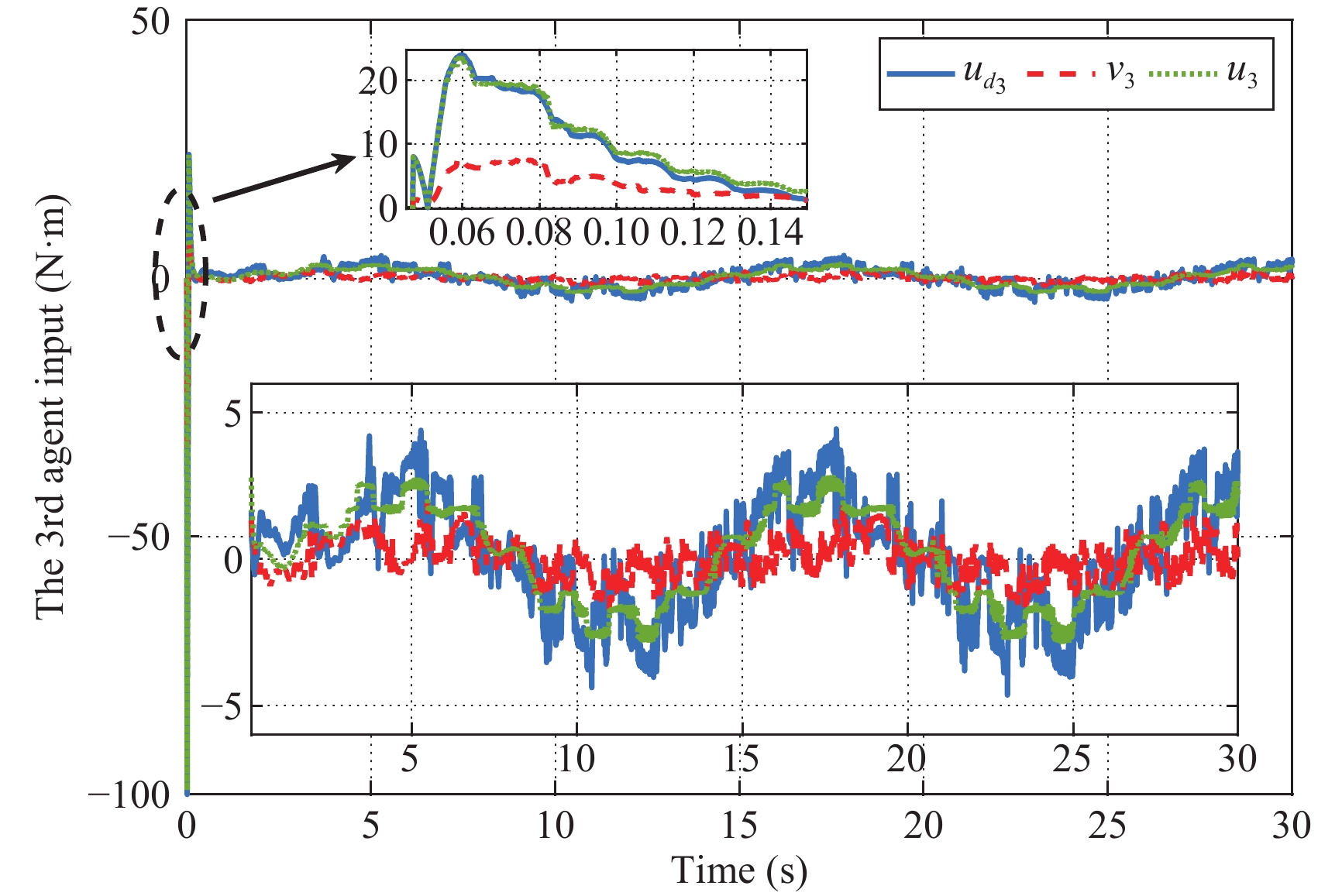

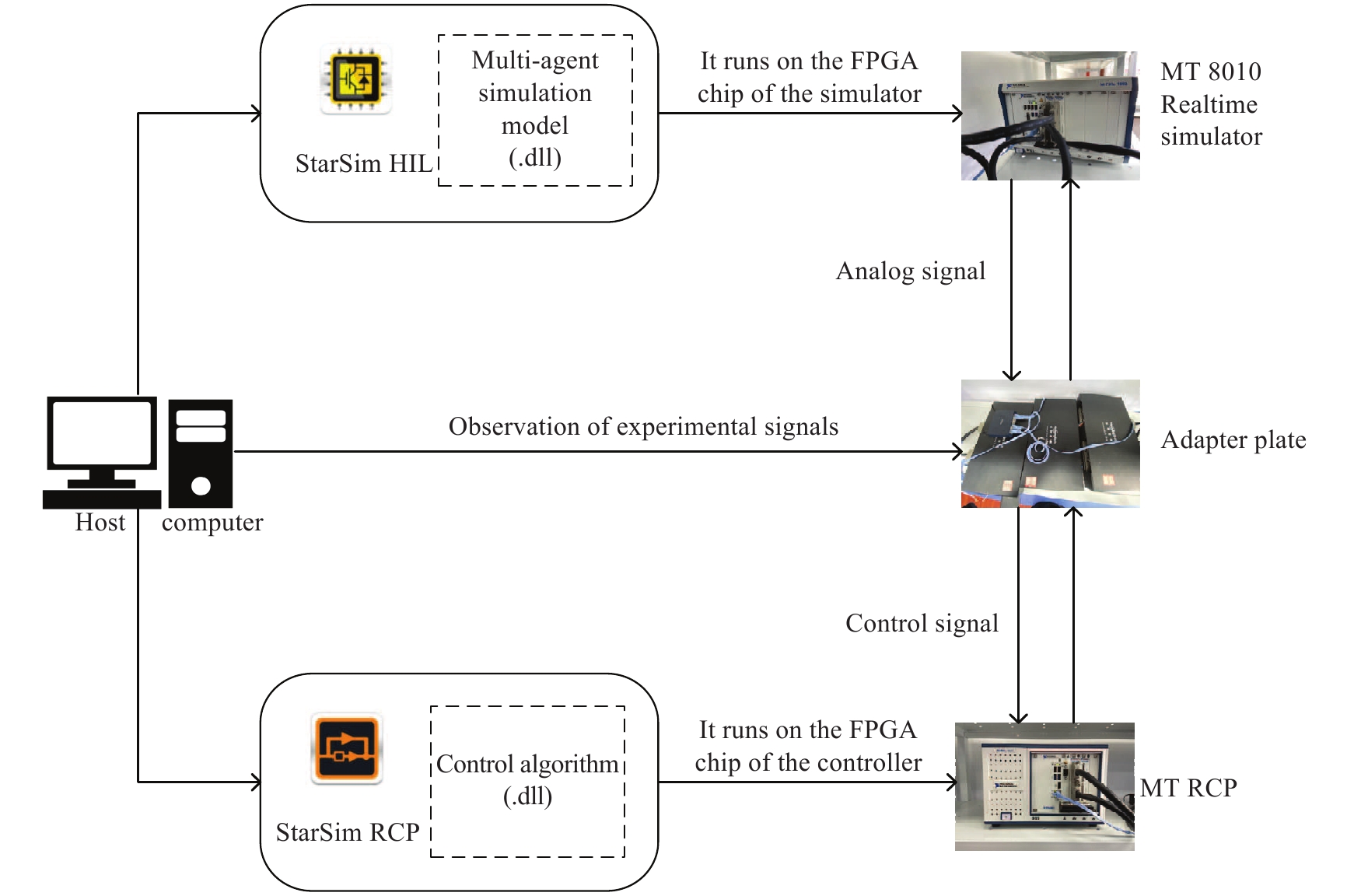

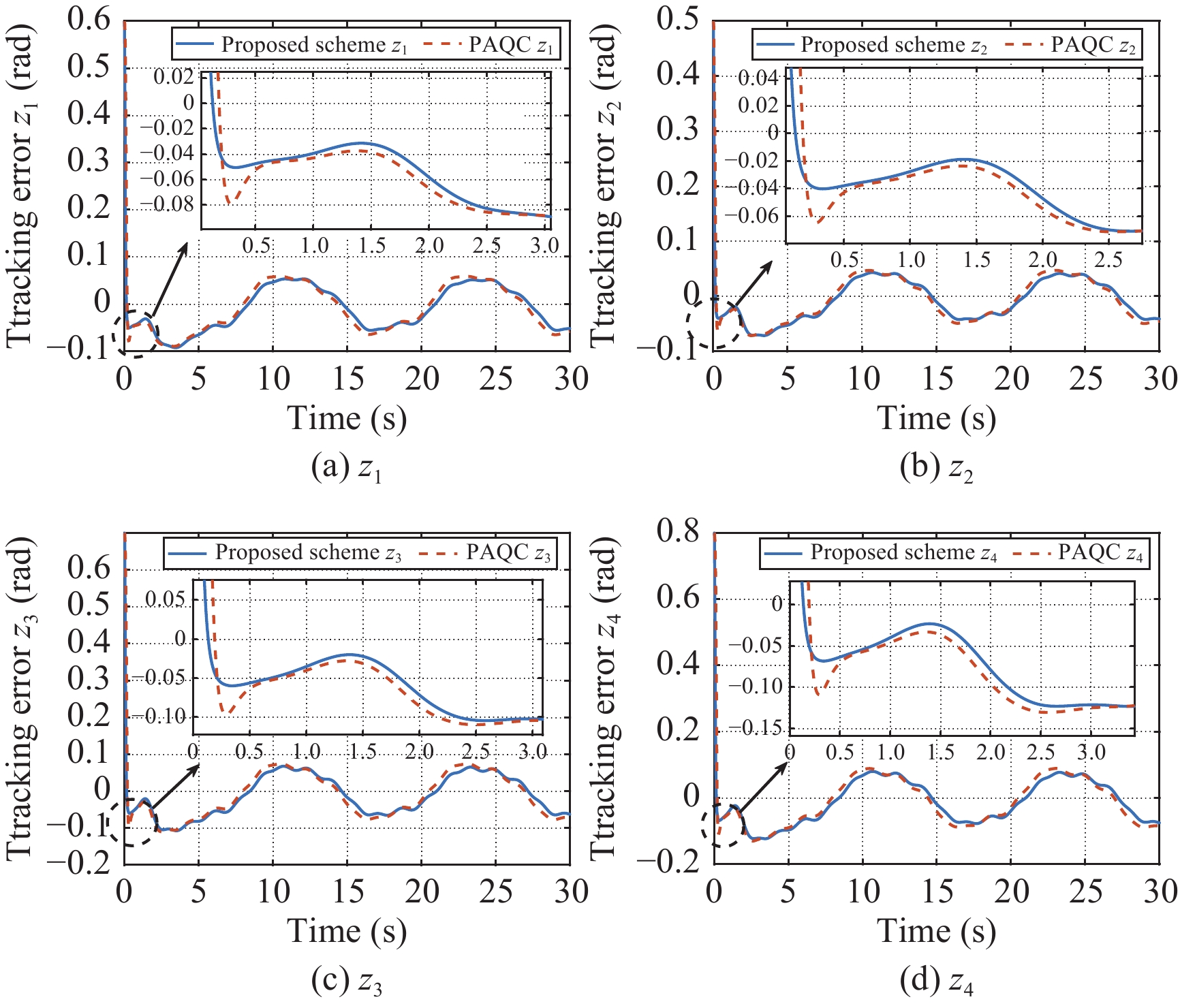

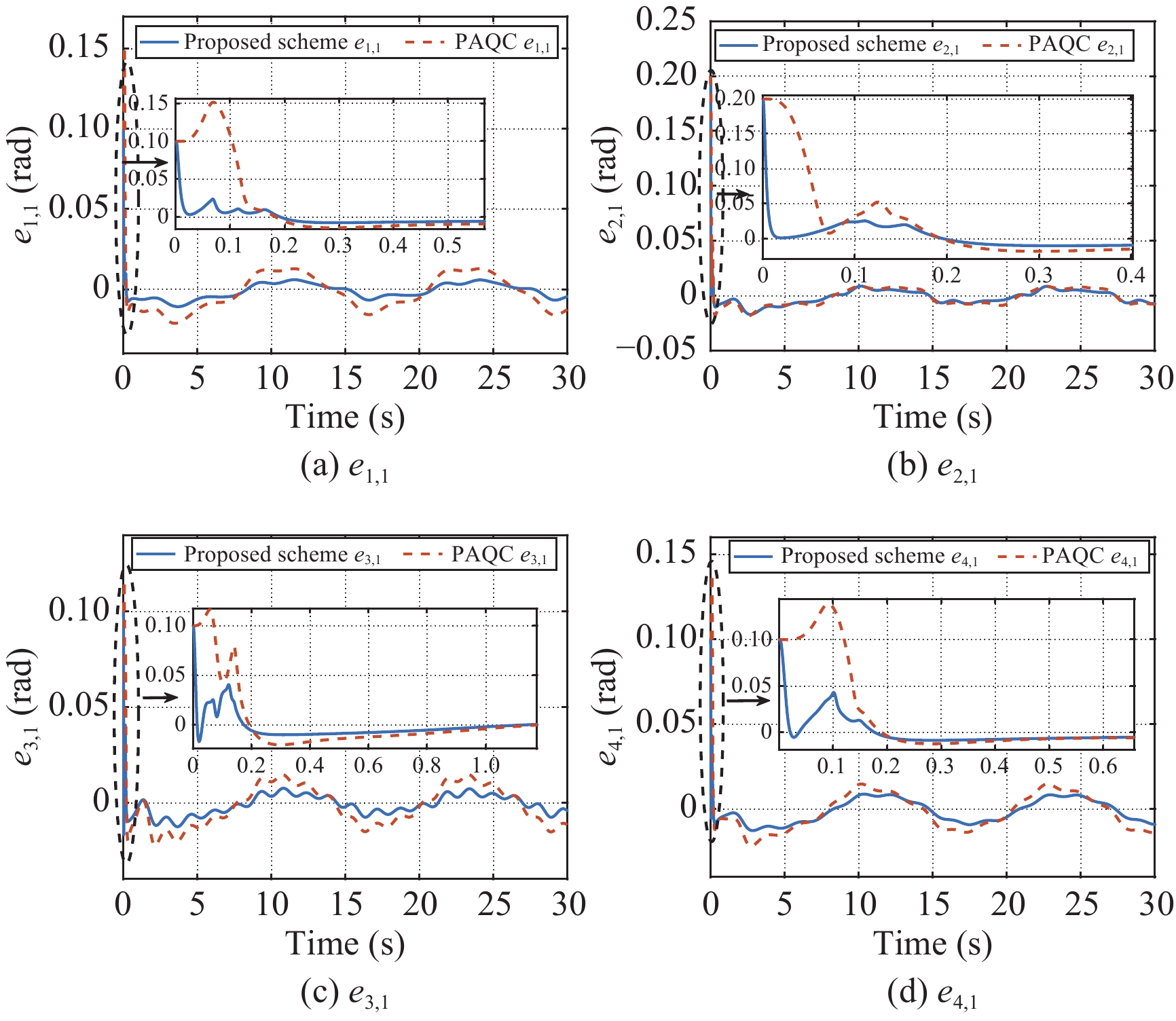

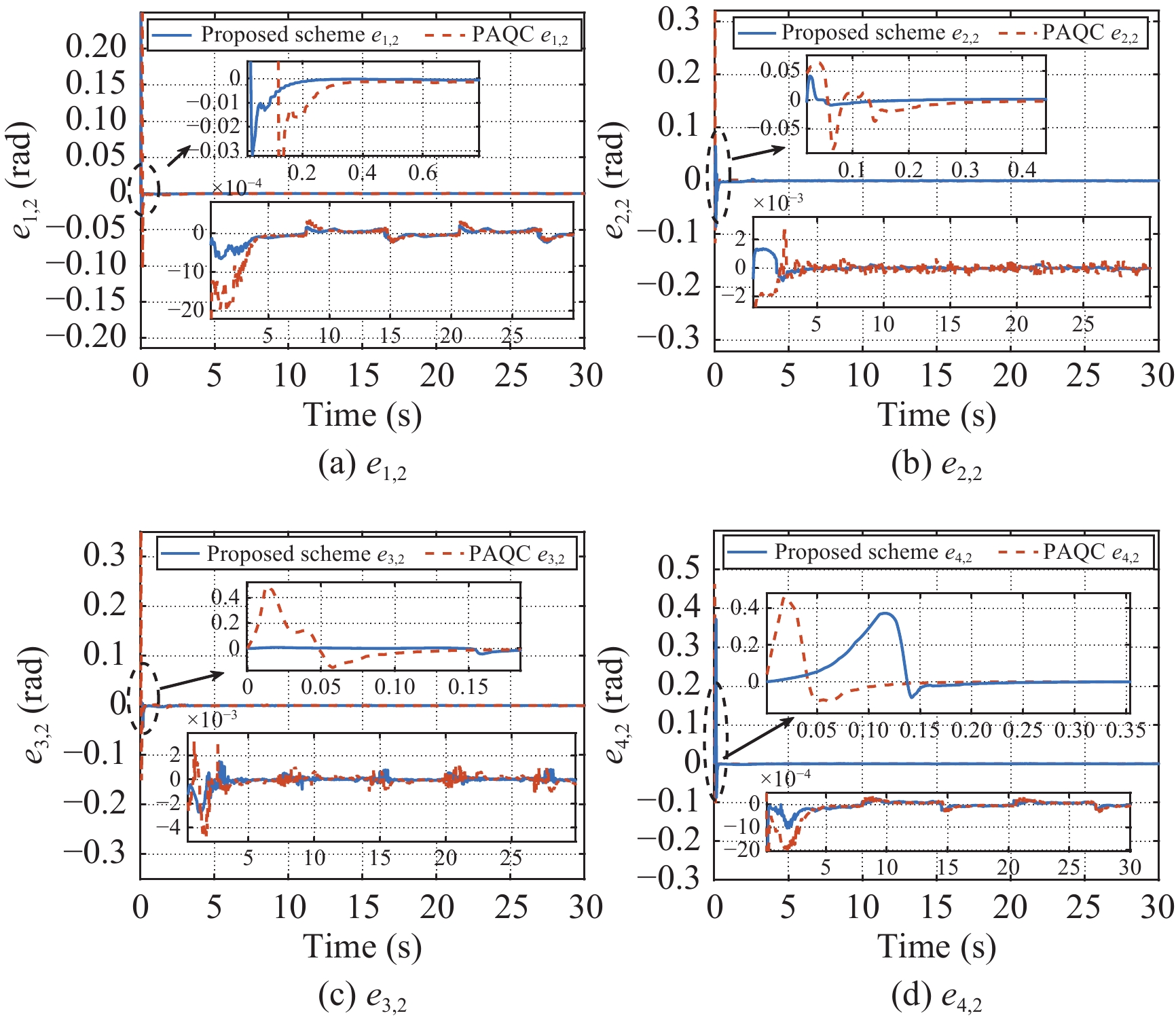

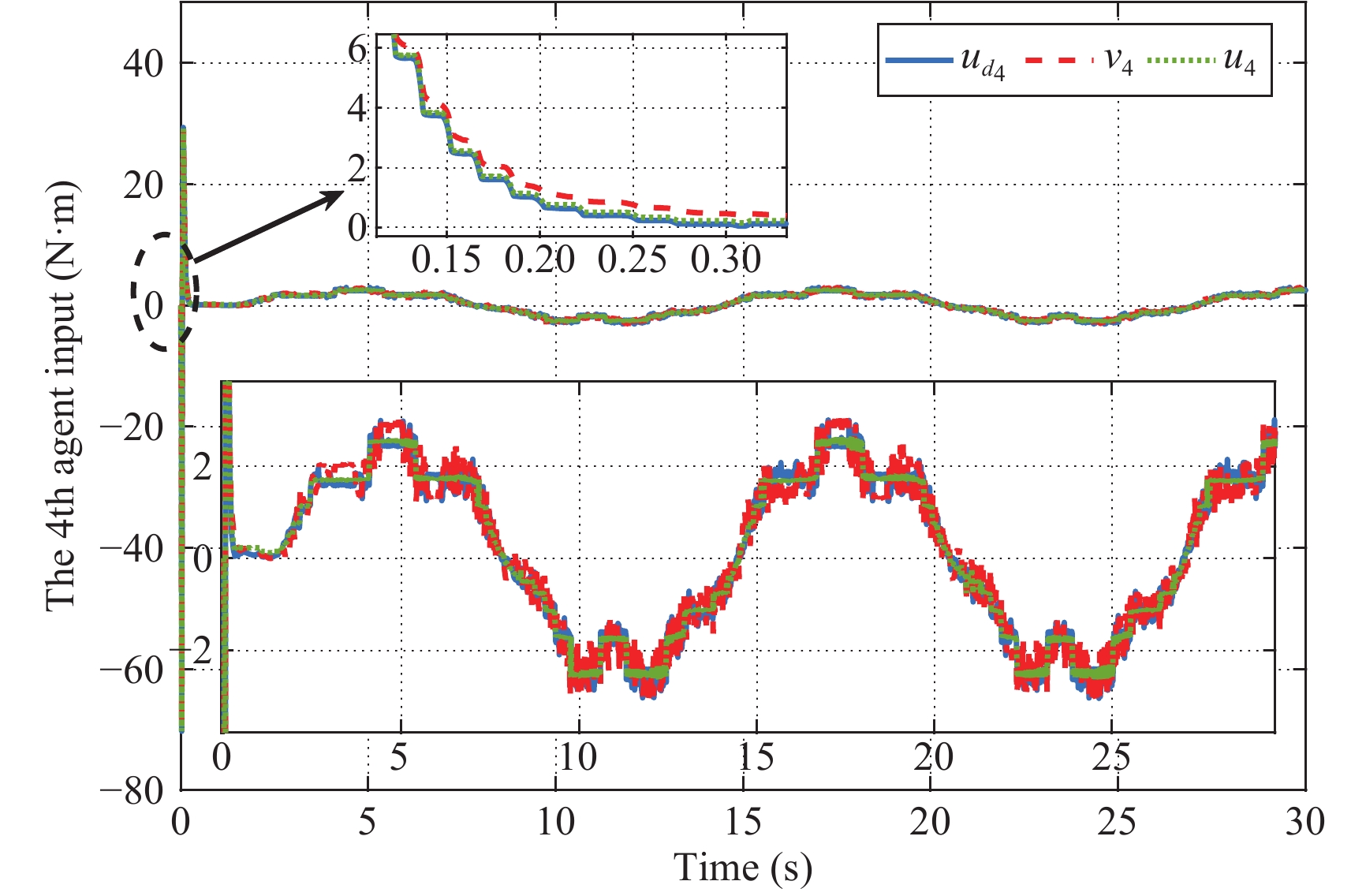

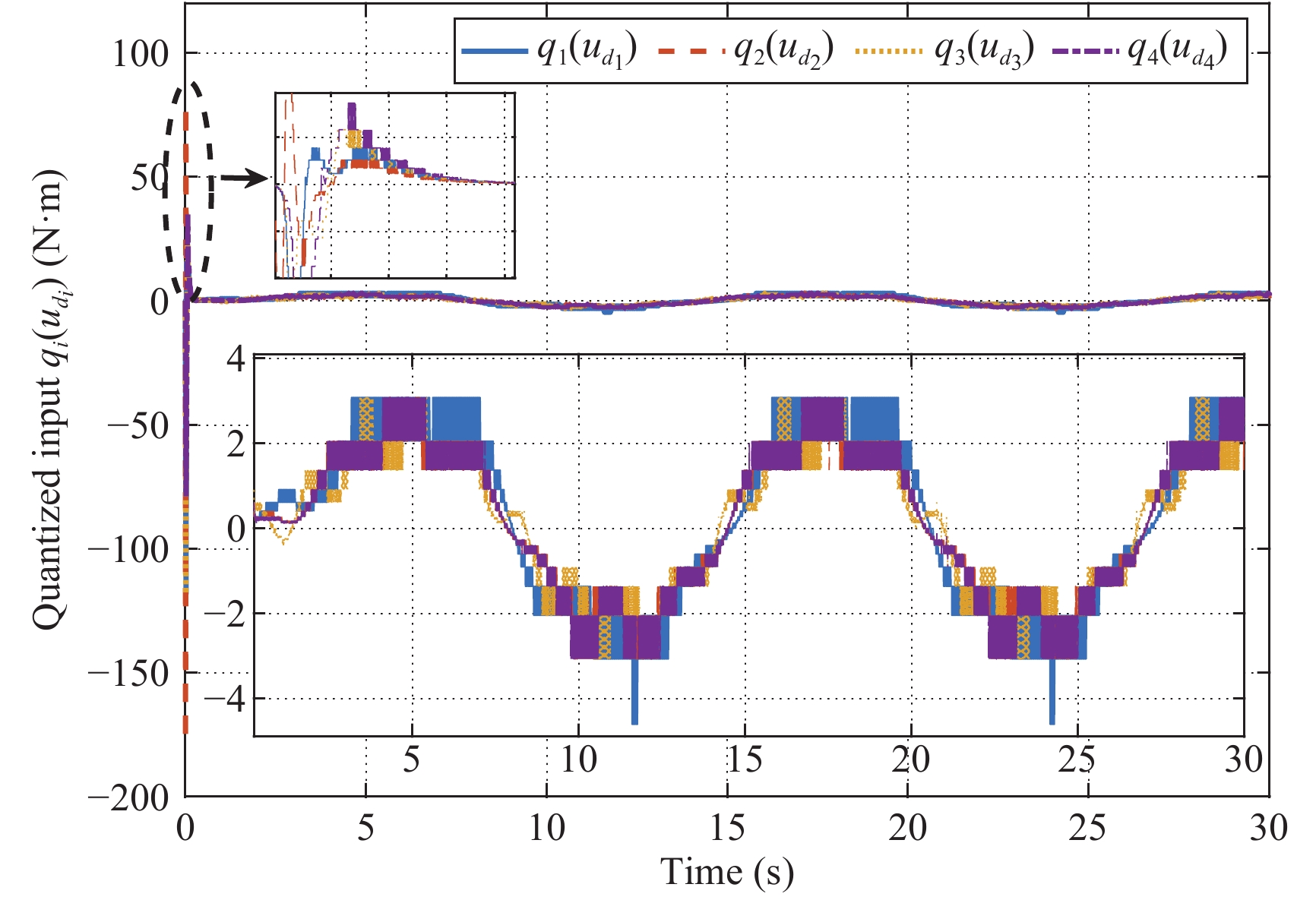

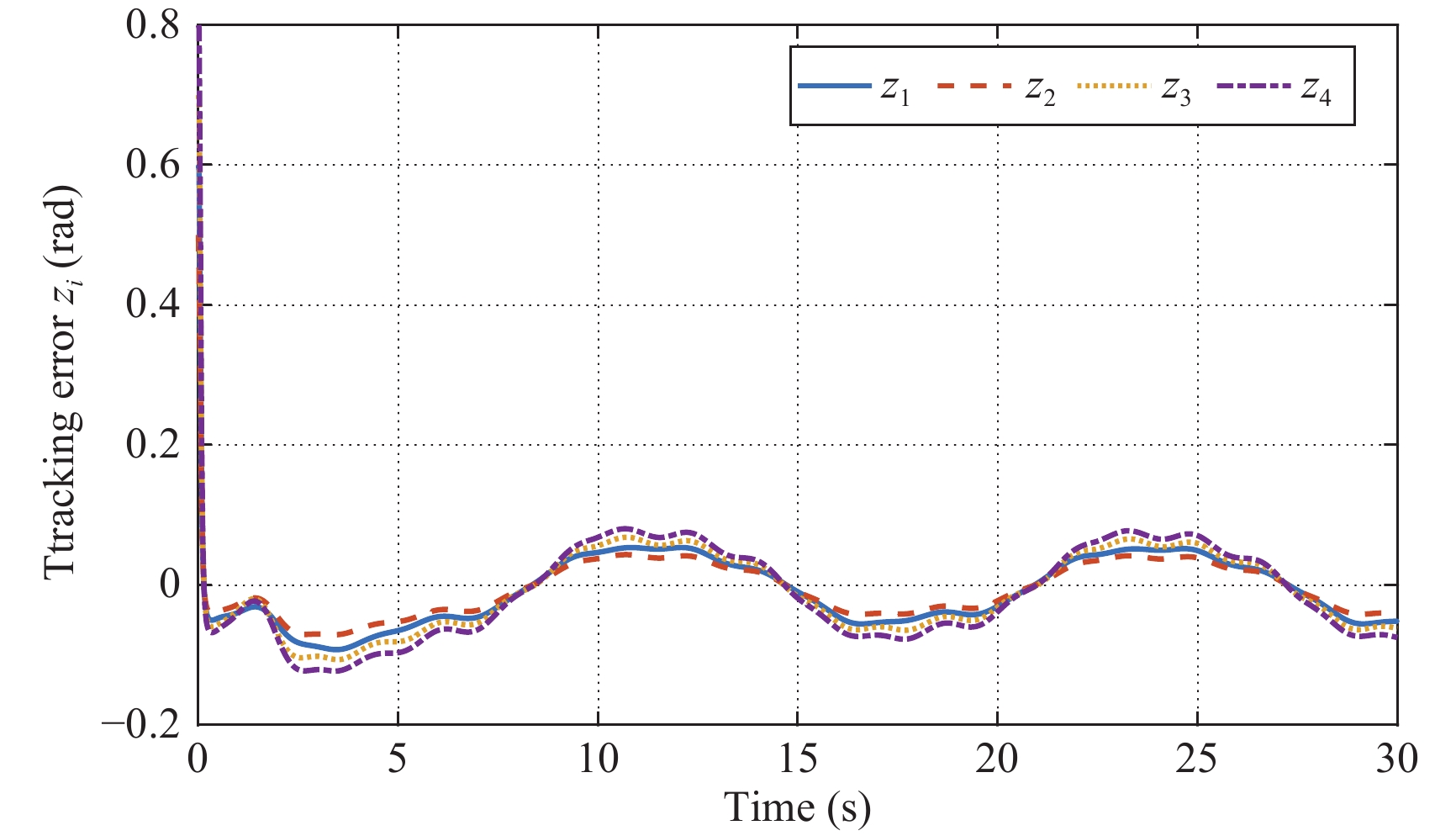

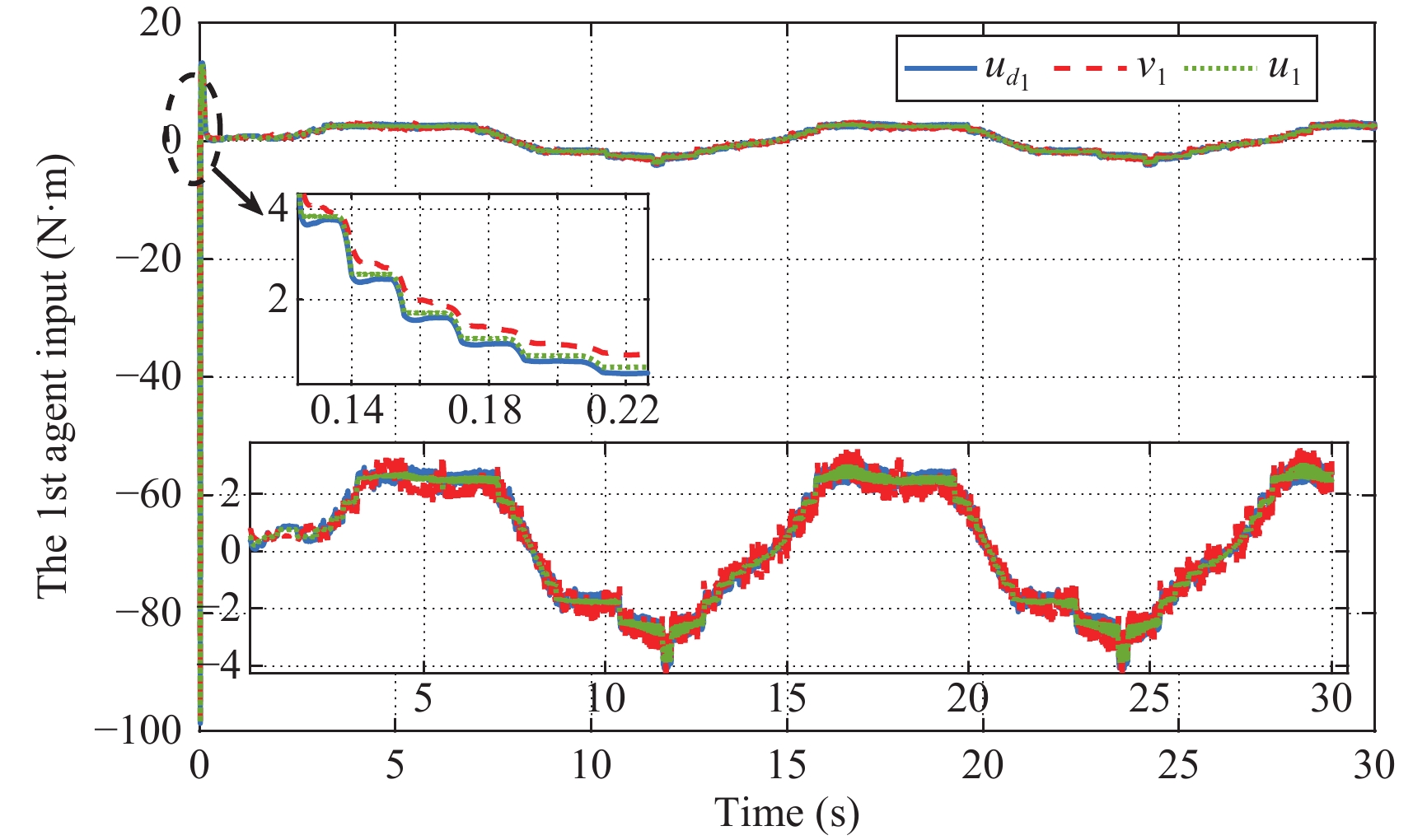

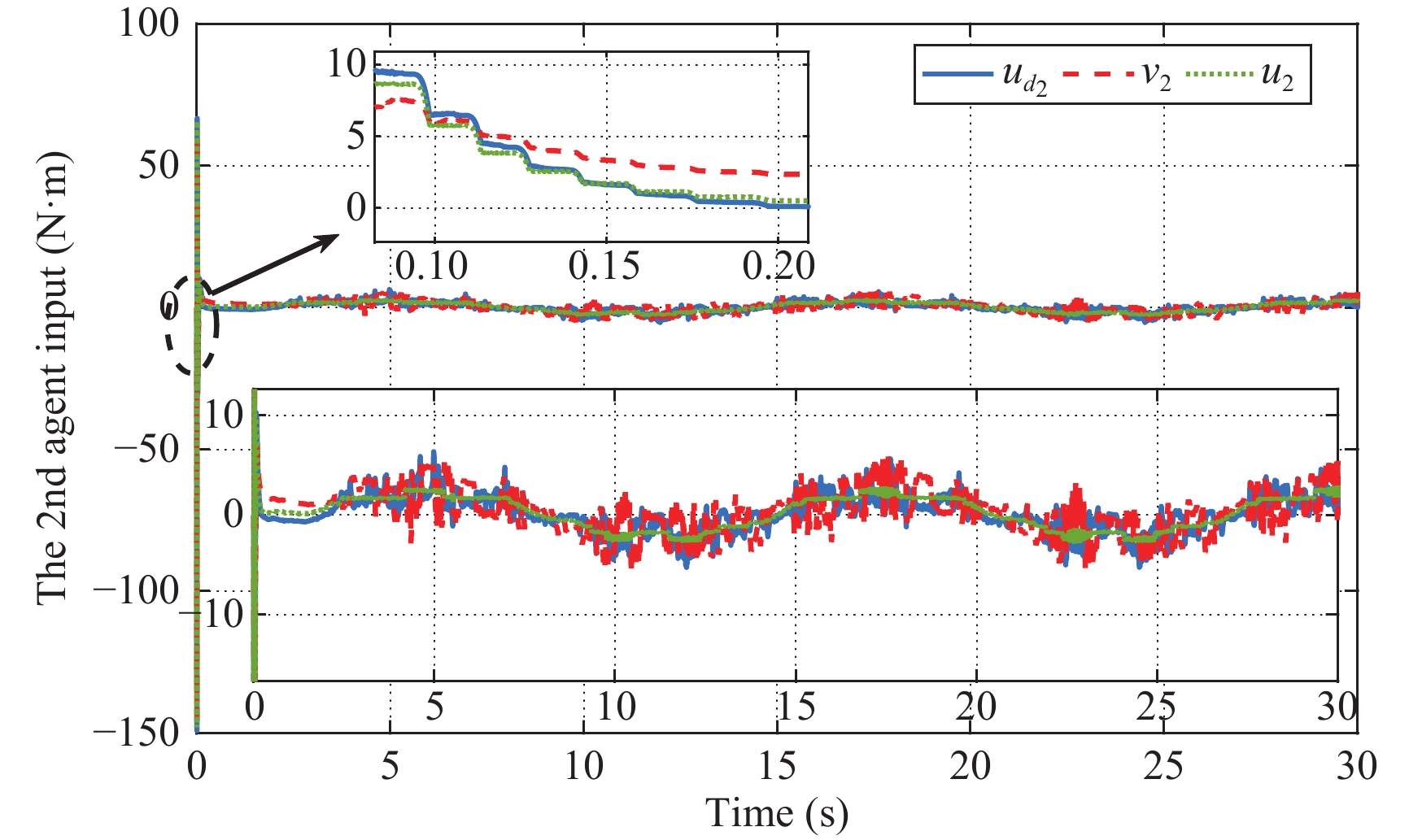

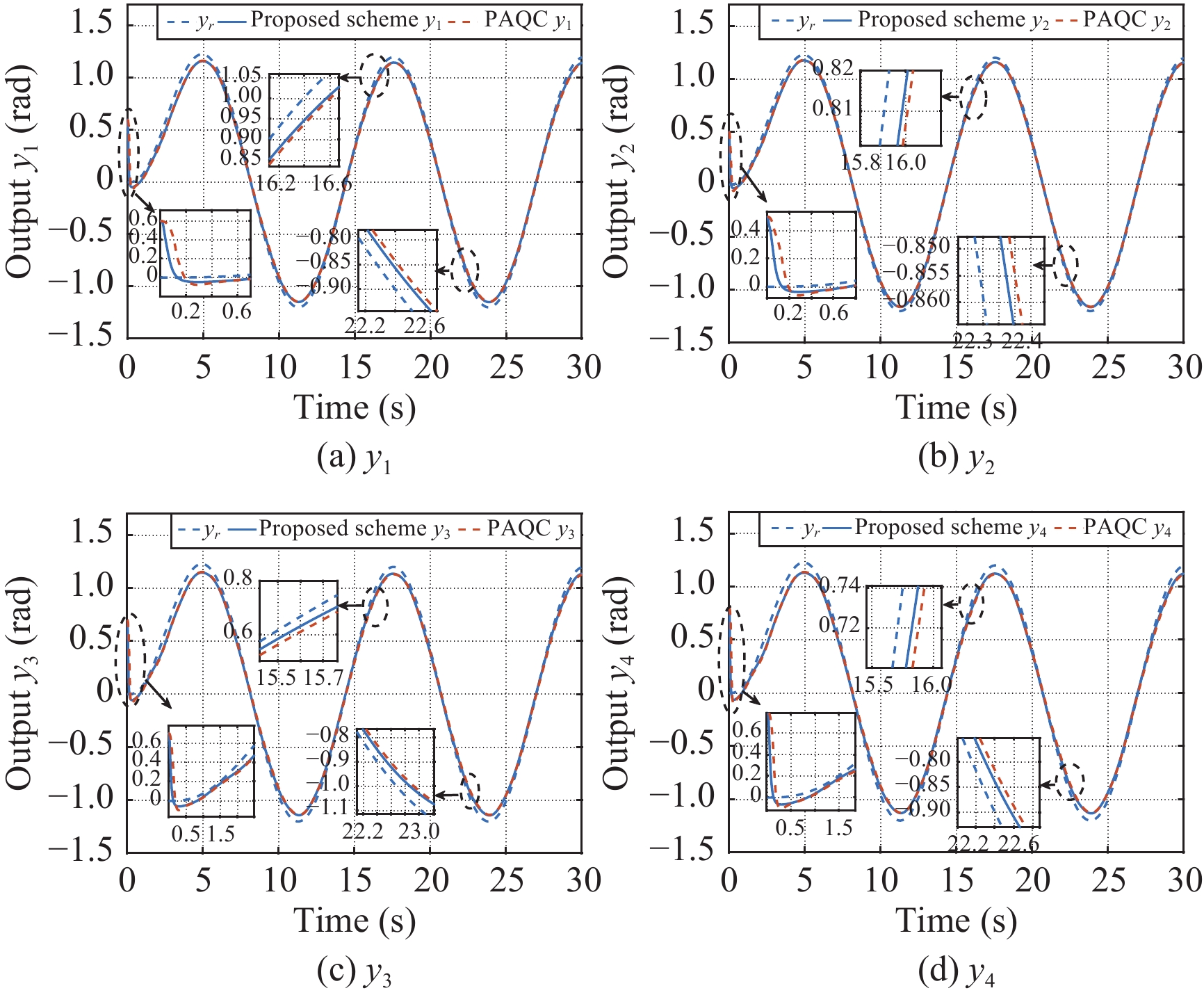

    • Hardware-in-the-loop simulation is implemented to verify the effectiveness and real-time tracking capability of the proposed control scheme

    /
