C-Vine Pair Copula Based Wind Power Correlation Modelling in Probabilistic Small Signal Stability Analysis

Jin Xu; Wei Wu; Keyou Wang; Guojie Li

doi:10.1109/JAS.2020.1003267

Volume 7 Issue 4

Jun. 2020

IEEE/CAA Journal of Automatica Sinica

JCR Impact Factor: 15.3, Top 1 (SCI Q1)

CiteScore: 23.5, Top 2% (Q1)
Google Scholar h5-index: 77， TOP 5

Turn off MathJax

Article Contents

Article Navigation > IEEE/CAA Journal of Automatica Sinica > 2020 > 7(4): 1154-1160

Jin Xu, Wei Wu, Keyou Wang and Guojie Li, "C-Vine Pair Copula Based Wind Power Correlation Modelling in Probabilistic Small Signal Stability Analysis," IEEE/CAA J. Autom. Sinica, vol. 7, no. 4, pp. 1154-1160, July 2020. doi: 10.1109/JAS.2020.1003267

Citation:

Jin Xu, Wei Wu, Keyou Wang and Guojie Li, "C-Vine Pair Copula Based Wind Power Correlation Modelling in Probabilistic Small Signal Stability Analysis," IEEE/CAA J. Autom. Sinica, vol. 7, no. 4, pp. 1154-1160, July 2020. doi: 10.1109/JAS.2020.1003267

Citation:

PDF( 9786 KB)

C-Vine Pair Copula Based Wind Power Correlation Modelling in Probabilistic Small Signal Stability Analysis

doi: 10.1109/JAS.2020.1003267

the Key Laboratory of Control of Power Transmission and Conversion, Ministry of Education, Department of Electrical Engineering, Shanghai Jiao Tong University, Shanghai 200240, China

Funds:

the National Natural Science Foundation of China 51307107

the National Natural Science Foundation of China 51477098

the National Natural Science Foundation of China 51877133

SRFDP 20130073120034

State Grid Corporation of China Science and Technology Project Hybrid AC/DC Power Grid Planning and Optimization Study Under the Framework of GE

More Information

Author Bio:

Jin Xu (M'20) received the B.S. degree in electrical engineering from Sichuan University, China, in 2013, and received the Ph.D. degree in electrical engineering from Shanghai Jiao Tong University, China, in 2019. He is currently a postdoctor at Shanghai Jiao Tong University. His research interests include power system stability analysis and real-time simulation. e-mail: xujin20506@foxmail.com

Wei Wu received the B.S. degree in electrical engineering from Huazhong University of Science and Technology, China, in 2012, and received the Ph.D. degree in electrical engineering from Shanghai Jiao Tong University, China, in 2017. His research interests include power system stability analysis and operation optimization.e-mail:wuweiceee@gmail.com

Keyou Wang(S'05-M'09) received the B.S. and M.S. degrees in electrical engineering from Shanghai Jiao Tong University, China, in 2001 and 2004, respectively, and the Ph.D. degree in electrical engineering from Missouri University of Science and Technology (formerly University of Missouri-Rolla), USA, in 2008. He is currently a Professor and Deputy Department Head of Electrical Engineering with Shanghai Jiao Tong University. His research interests include power system dynamics and stability, and renewable energy integration.e-mail:wangkeyou@sjtu.edu.cn

Guojie Li(M'09-SM'12) received the B.Eng. and M.E. degrees in electrical engineering from Tsinghua University, China, in 1989 and 1993, respectively, and the Ph.D. degree in electrical engineering from Nanyang Technological University, Singapore, in 1999. He was an Associate Professor with the Department of Electrical Engineering, Tsinghua University. He is currently a Professor with the Department of Electrical Engineering, Shanghai Jiao Tong University, China. His research interests include power system analysis and control, wind and PV power control and integration, and microgrid.e-mail:liguojie@sjtu.edu.cn
Corresponding author:
Keyou Wang, e-mail:wangkeyou@sjtu.edu.cn
Recommended by Associate Editor Changshui Zhang.

Abstract

Abstract

The increasing integration of wind power generation brings more uncertainty into the power system. Since the correlation may have a notable influence on the power system, the output powers of wind farms are generally considered as correlated random variables in uncertainty analysis. In this paper, the C-vine pair copula theory is introduced to describe the complicated dependence of multidimensional wind power injection, and samples obeying this dependence structure are generated. Monte Carlo simulation is performed to analyze the small signal stability of a test system. The probabilistic stability under different correlation models and different operating conditions scenarios is investigated. The results indicate that the probabilistic small signal stability analysis adopting pair copula model is more accurate and stable than other dependence models under different conditions.
- Monte Carlo simulation,
- pair copula,
- small signal stability,
- wind power correlation

FullText(HTML)

Recommended by Associate Editor Changshui Zhang.

References(30)

References

[1]	J. L. Rueda, D. G. Colome, and I. Erlich, "Assessment and enhancement of small signal stability considering uncertainties, " IEEE Trans. Power Syst., vol. 24, no. 1, pp. 198-207, Feb. 2009. http://www.researchgate.net/publication/224371184_Assessment_and_Enhancement_of_Small_Signal_Stability_Considering_Uncertainties
[2]	J. L. Rueda and D. G. Colom, "Probabilistic performance indexes for small signal stability enhancement in weak wind-hydro-thermal power systems, " IET Gen., Trans. Dis., vol. 3, no. 8, pp. 733-747, Aug. 2009. http://www.researchgate.net/publication/201536840_Probabilistic_performance_indexes_for_small_signal_stability_enhancement_in_weak_wind-hydro-thermal_power_systems
[3]	H. Z. Huang, C. Y. Chung, K. W. Chan, and H. Y. Chen, "Quasi-monte carlo based probabilistic small signal stability analysis for power systems with plug-in electric vehicle and wind power integration, " IEEE Trans. Power Syst., vol. 28, no. 3, pp. 3335-3343, Aug. 2013. http://www.researchgate.net/publication/260509337_Quasi-Monte_Carlo_Based_Probabilistic_Small_Signal_Stability_Analysis_for_Power_Systems_With_Plug-In_Electric_Vehicle_and_Wind_Power_Integration
[4]	H. Q. Yi, Y. H. Hou, S. J. Cheng, H. Zhou, and G. G. Chen, "Power system probabilistic small signal stability analysis using two point estimation method, " in Proc. 42nd Int. Universities Power Engineering Conf., Brighton, UK, 2007, pp. 402-407. http://ieeexplore.ieee.org/document/4468981/
[5]	J. M. Morales, L. Baringo, A. J. Conejo, and R. Minguez, "Probabilistic power flow with correlated wind sources, " IET Gen., Trans. Dis., vol. 4, no. 5, pp. 641-651, May 2010. http://www.researchgate.net/publication/224137231_Probabilistic_power_flow_with_correlated_wind_sources
[6]	S. Q. Bu, W. Du, H. F. Wang, Z. Chen, L. Y. Xiao, and H. F. Li, "Probabilistic analysis of small-signal stability of large-scale power systems as affected by penetration of wind generation, " IEEE Trans. Power Syst., vol. 27, no. 2, pp. 762-770, May 2012. http://openurl.ebscohost.com/linksvc/linking.aspx?stitle=IEEE%20Transactions%20on%20Power%20Systems&volume=27&issue=2&spage=762
[7]	S. Q. Bu, W. Du, and H. F. Wang, "Probabilistic analysis of small-signal rotor angle/voltage stability of large-scale AC/DC power systems as affected by grid-connected offshore wind generation, " IEEE Trans. Power Syst., vol. 28, no. 4, pp. 3712-3719, Nov. 2013.
[8]	K. Sooraj Narayan and A. Kumar, "Impact of wind correlation and load correlation on probabilistic load flow of radial distribution systems, in Proc. IEEE Int. Conf. on Signal Processing, Informatics, Communication and Energy Systems, Kozhikode, India, 2015, pp. 1-5.
[9]	K. Xie, Y. Li, and W. Li, "Modelling wind speed dependence in system reliability assessment using copulas, " IET Renew. Power Gen., vol. 6, no. 6, pp. 392-399, Nov. 2012. http://www.researchgate.net/publication/260633493_Modelling_wind_speed_dependence_in_system_reliability_assessment_using_copulas
[10]	G. Papaefthymiou and D. Kurowicka, "Using copulas for modeling stochastic dependence in power system uncertainty analysis, " IEEE Trans. Power Syst., vol. 24, no. 1, pp. 40-49, Feb. 2009.
[11]	A. Lojowska, D. Kurowicka, D. Papaefthymiou, and L. van der Sluis, "Stochastic modeling of power demand due to EVs using copula, " IEEE Trans. Power Syst., vol. 27, no. 4, pp. 1960-1968, Nov. 2012.
[12]	H. V. Haghi, M. T. Bina, and M. A. Golkar, "Nonlinear modeling of temporal wind power variations, " IEEE Trans. Sustain. Energy, vol. 4, no. 4, pp. 838-848, Oct. 2013. http://www.researchgate.net/publication/260650469_Nonlinear_Modeling_of_Temporal_Wind_Power_Variations
[13]	N. Zhang, C. Q. Kang, Q. Xia, and J. Liang, "Modeling conditional forecast error for wind power in generation scheduling, " IEEE Trans. Power Syst., vol. 29, no. 3, pp. 1316-1324, May 2014. http://www.researchgate.net/publication/259497254_Modeling_Conditional_Forecast_Error_for_Wind_Power_in_Generation_Scheduling
[14]	Y. Pan, L. Shi, and Y. Ni, "Modelling of multiple wind farms output correlation based on copula theory, " J. Eng., vol. 2017, no. 13, pp. 2303-2308, 2017.
[15]	Y. R. Wang and Y. N. Luo, "Research of wind power correlation with three different data types based on mixed copula, " IEEE Access, vol. 6, 77986-77995, Dec. 2018.
[16]	Z. Q. Xie, T. Y. Ji, M. S. Li, and Q. H. Wu, "Quasi-monte carlo based probabilistic optimal power flow considering the correlation of wind speeds using copula function, " IEEE Trans. Power Syst., vol. 33, no. 2, pp. 2239-2247, Mar. 2018. http://ieeexplore.ieee.org/document/8004519/
[17]	M. J. Cui, V. Krishnan, B. M. Hodge, and J. Zhang, "A copula-based conditional probabilistic forecast model for wind power ramps, " IEEE Trans. Smart Grid, vol. 10, no. 4, pp. 3870-3882, Jul. 2019. http://ieeexplore.ieee.org/document/8368287/
[18]	Q. Y. Lu, W. Hu, Y. Min, F. Yuan, and Z. H. Gao, "Wind power uncertainty modeling considering spatial dependence based on pair-copula theory, " in Proc. IEEE PES General MeetingjConf. & Expo., National Harbor, USA, 2014, pp. 1-5.
[19]	W. Wu, K. Y. Wang, B. Han, G. J. Li, X. C. Jiang, and M. L. Crow, "A versatile probability model of photovoltaic generation using pair copula construction, " IEEE Trans. Sustain. Energy, vol. 6, no. 4, pp. 1337-1345, Oct. 2015.
[20]	H. V. Haghi and S. Lotfifard, "Spatiotemporal modeling of wind generation for optimal energy storage sizing, " IEEE Trans. Sustain. Energy, vol. 6, no. 1, pp. 113-121, Jan. 2015.
[21]	R. Becker, "Generation of time-coupled wind power Infeed scenarios using pair-copula construction, " IEEE Trans. Sustain. Energy, vol. 9, no. 3, pp. 1298-1306, Jul. 2018. http://www.researchgate.net/publication/321734718_Generation_of_time-coupled_wind_power_infeed_scenarios_using_pair-copula_construction
[22]	Z. Wang, W. S. Wang, C. Liu, Z. Wang, and Y. H. Hou, "Probabilistic forecast for multiple wind farms based on regular vine copulas, " IEEE Trans. Power Syst., vol. 33, no. 1, pp. 578-589, Jan. 2018. http://www.researchgate.net/publication/316443703_Probabilistic_Forecast_for_Multiple_Wind_Farms_Based_on_Regular_Vine_Copulas
[23]	S. R. Khuntia, J. L. Rueda, and M. A. M. M. van der Meijden, "Risk-based security assessment of transmission line overloading considering spatio-temporal dependence of load and wind power using vine copula, " IET Renew. Power Gen., vol. 13, no. 10, pp. 1770-1779, Jul. 2019.
[24]	R. B. Nelsen, An Introduction to Copulas. New York, USA: Springer, 2006, pp. 17-23.
[25]	K. Aas and D. Berg, "Models for construction of multivariate dependence- a comparison study, " Eur. J. Finance, vol. 15, no. 7-8, pp. 639-659, Oct. 2009. http://www.researchgate.net/publication/46528942_Models_for_construction_of_multivariate_dependence
[26]	E. C. Brechmann, C. Czado, and K. Aas, "Truncated regular vines in high dimensions with application to financial data, " Can. J. Stat., vol. 40, no. 1, pp. 68-85, 2012. doi: 10.1002/cjs.10141
[27]	J. Wu, "Copula theory and dependence analysis, " Ph.D. dissertation, Huazhong University of Science and Technology, China, 2009.
[28]	P. Kundur, Power System Stability and Control. New York, USA: McGraw-Hill, 1994.
[29]	National Renewable Energy Laboratory: Eastern wind dataset[Online]. Available: http://www.nrel.gov/electricity/transmission/easternwinddataset.html, October 20, 2015.
[30]	J. Chow and G. Rogers. Power system toolbox version 3.0[Online]. Available: https://www.academia.edu/35553929/Power_System_Toolbox_Version_3.0, October 20, 2015.

Supplements(0)

Cited By

Proportional views

Proportional views

通讯作者: 陈斌, bchen63@163.com

1.
沈阳化工大学材料科学与工程学院沈阳 110142

Figures(12) / Tables(3)

Get Citation

PDF

XML

Article Metrics

Article views (772) PDF downloads(22)

Highlights

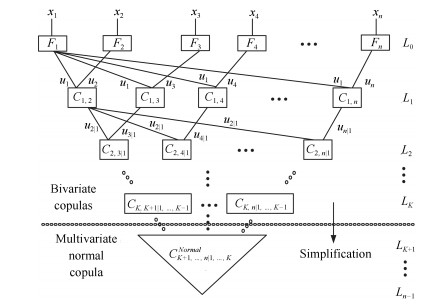

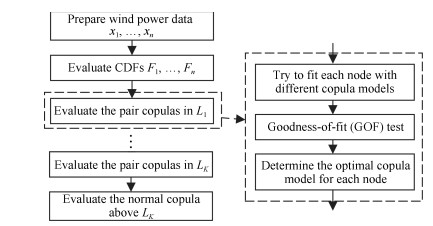

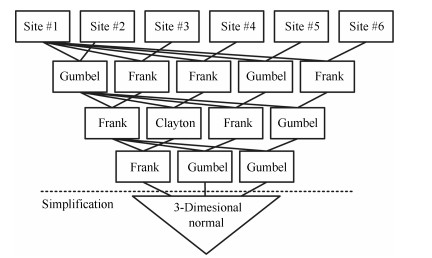

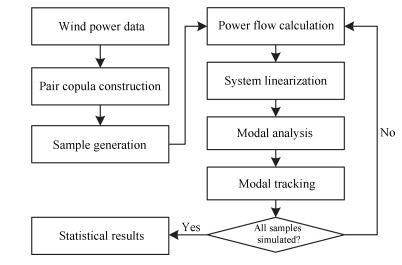

In this paper, the C-vine pair copula theory is introduced to describe the complicated dependence of multidimensional wind power injection, and samples obeying this dependence structure are generated.

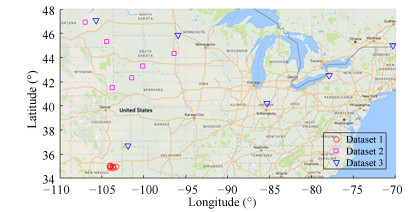

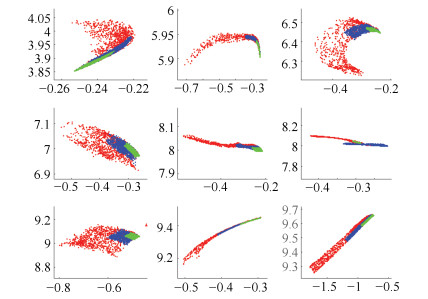

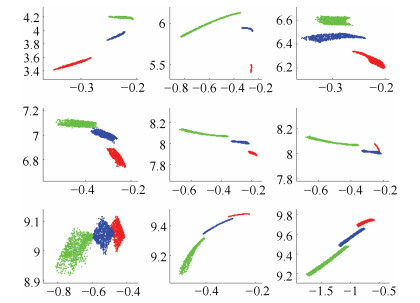

The probabilistic stability of power system integrated with six wind farms is investigated by performing the Monte Carlo simulations under different correlation models and different operating conditions scenarios.

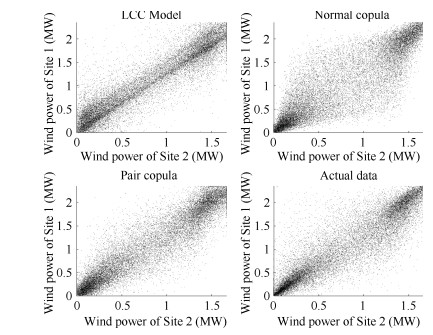

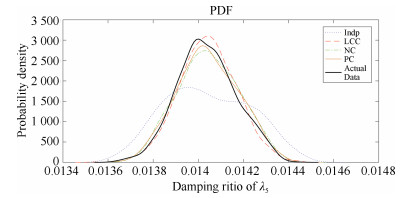

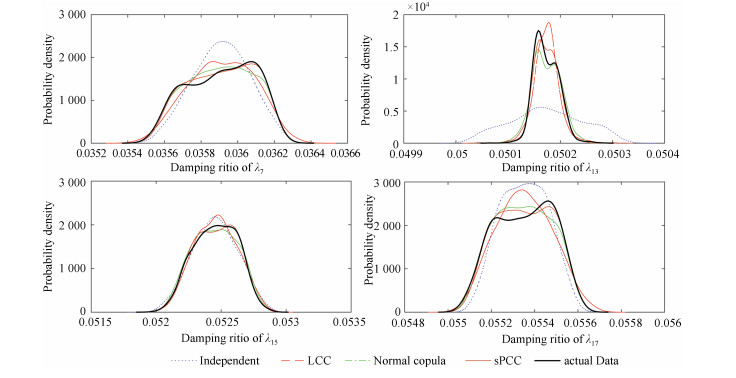

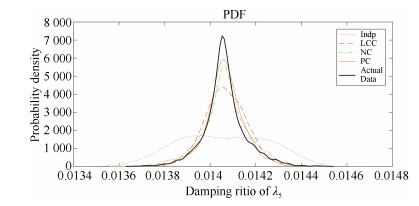

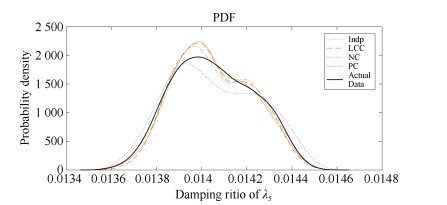

In the case study of a modified New England test system, the simplified pair copula construction (sPCC) with C-vine structure proves to have a better reflection of the actual dependence than the linear correlation coefficient (LCC) model and multivariate normal copula model.
