Anil K. Madhusudhanan and Xiaoxiang Na, "Effect of a Traffic Speed Based Cruise Control on an Electric Vehicle’s Performance and an Energy Consumption Model of an Electric Vehicle," IEEE/CAA J. Autom. Sinica, vol. 7, no. 2, pp. 386-394, Mar. 2020. doi: 10.1109/JAS.2020.1003030
Citation: Anil K. Madhusudhanan and Xiaoxiang Na, "Effect of a Traffic Speed Based Cruise Control on an Electric Vehicle’s Performance and an Energy Consumption Model of an Electric Vehicle," IEEE/CAA J. Autom. Sinica, vol. 7, no. 2, pp. 386-394, Mar. 2020. doi: 10.1109/JAS.2020.1003030
shu

Effect of a Traffic Speed Based Cruise Control on an Electric Vehicle’s Performance and an Energy Consumption Model of an Electric Vehicle

doi: 10.1109/JAS.2020.1003030
Funds:  This work was partly supported by the UK Engineering and Physical Sciences Research Council (EPSRC) (EP/R035199/1)
More Information
    Abstract
  • This paper proposes a cruise control system (CCS) to improve an electric vehicle’s range, which is a significant hurdle in market penetration of electric vehicles. A typical driver or a conventional adaptive cruise control (ACC) controls an electric vehicle (EV) such that it follows a lead vehicle or drives close to the speed limit. This driving behaviour may cause the EV to cruise significantly above the average traffic speed. It may later require the EV to slow down due to the traffic ripples, wasting a part of the EV’s kinetic energy. In addition, the EV will also waste higher speed dependent dissipative energies, which are spent to overcome the aerodynamic drag force and rolling resistance. This paper proposes a CCS to address this issue. The proposed CCS controls an EV’s speed such that it prevents the vehicle from speeding significantly above the average traffic speed. In addition, it maintains a safe inter-vehicular distance from the lead vehicle. The design and simulation analysis of the proposed CCS were in a MATLAB simulation environment. The simulation environment includes an energy consumption model of an EV, which was developed using data collected from an electric bus operation in London. In the simulation analysis, the proposed system reduced the EV’s energy consumption by approximately 36.6% in urban drive cycles and 15.4% in motorway drive cycles. Finally, the experimental analysis using a Nissan e-NV200 on two urban routes showed approximately 30.8% energy savings.



    • FullText(HTML)
  • loading
    • References(29)
  • [1]
    R. Edwards, V. Mahieu, J. Griesemann, J. Larivé, and D. J. Rickeard, “Well-to-wheels analysis of future automotive fuels and powertrains in the european context, ” in Proc. Spring Fuels and Lubricants Conf. and Exhibition, pp. 1–13, 2004.
    [2]
    N. Brinkman, M. Wang, T. Weber, and T. Darlington, “Well-to-wheels analysis of advanced fuel/vehicle systems – a north american study of energy use, greenhouse gas emissions, and criteria pollutant emissions,” Argonne National Laboratory, General Motors and Air Improvement Resource, Inc., May 2005.
    [3]
    J. Van Mierlo and G. Maggetto, “Fuel cell or battery: electric cars are the future,” Fuel Cells, no. 2, pp. 165–173, 2007.
    [4]
    D. Nicolaides, A. K. Madhusudhanan, X. Na, J. Miles and D. Cebon, “Technoeconomic analysis of charging and heating options for an electric bus service in London,” IEEE Trans. Transportation Electrification, vol. 5, no. 3, pp. 769–781, Sept. 2019. doi: 10.1109/TTE.2019.2934356
    [5]
    T. Wilberforce, Z. El-Hassan, F. N. Khatib, A. Al Makky, A. Baroutaji, J. G. Carton and A. G. Olabi, “Developments of electric cars and fuel cell hydrogen electric cars,” Int. J. Hydrogen Energy, vol. 42, no. 40, pp. 25695–25734, 2017. doi: 10.1016/j.ijhydene.2017.07.054
    [6]
    B. Heiẞing and M. Ersoy, Chassis Handbook: Fundamentals, Driving Dynamics, Components, Mechatronics, Perspectives, Springer Science & Business Media, 2011.
    [7]
    K. Reif, “Adaptive cruise control, ” Fundamentals of Automotive and Engine Technology, Bosch Professional Automotive Information, ISBN 978-3-658-03971-4, Springer Vieweg, Wiesbaden, 2014.
    [8]
    L. C. Davis, “Effect of adaptive cruise control systems on traffic flow,” Physical Review E, vol. 69, no. 6, pp. 066110, Jun. 2004. doi: 10.1103/PhysRevE.69.066110
    [9]
    Y. Huang, E. C. Y. Ng, J. L. Zhou, N. C. Surawski, E. F. C. Chan, and G. Hong, “Eco-driving technology for sustainable road transport: a review,” Renewable and Sustainable Energy Reviews, vol. 93, pp. 596–609, 2018. doi: 10.1016/j.rser.2018.05.030
    [10]
    Q. Jin, G. Wu, K. Boriboonsomsin, and M. J. Barth, “Power-based optimal longitudinal control for a connected eco-driving system,” IEEE Trans. Intelligent Transportation Systems, vol. 17, no. 10, pp. 2900–2910, 2016. doi: 10.1109/TITS.2016.2535439
    [11]
    J. Han, A. Sciarretta, L. L. Ojeda, G. De Nunzio, and L. Thibault, “Safe-and eco-driving control for connected and automated electric vehicles using analytical state-constrained optimal solution,” IEEE Trans. Intelligent Vehicles, vol. 3, no. 2, pp. 163–172, 2018. doi: 10.1109/TIV.2018.2804162
    [12]
    H. Yang, H. Rakha, and M. V. Ala, “Eco-cooperative adaptive cruise control at signalized intersections considering queue effects,” IEEE Trans. Intelligent Transportation Systems, vol. 18, no. 6, pp. 1575–1585, 2016.
    [13]
    L. Guo, B. Gao, Y. Gao, and H. Chen, “Optimal energy management for HEVs in eco-driving applications using bi-level MPC,” IEEE Trans. Intelligent Transportation Systems, vol. 18, no. 8, pp. 2153–2162, 2016.
    [14]
    G. De Nunzio, C. C. De Wit, P. Moulin, and D. Di Domenico, “Eco‐driving in urban traffic networks using traffic signals information,” Int. J. Robust and Nonlinear Control, vol. 26, no. 6, pp. 1307–1324, 2016. doi: 10.1002/rnc.3469
    [15]
    A. Sciarretta, G. De Nunzio, and L. L. Ojeda, “Optimal ecodriving control: energy-efficient driving of road vehicles as an optimal control problem,” IEEE Control Systems Magazine, vol. 35, no. 5, pp. 71–90, 2015. doi: 10.1109/MCS.2015.2449688
    [16]
    A. K. Madhusudhanan, “A method to improve an electric vehicle’s range: efficient cruise control,” European J. Control, vol. 48C, pp. 83–96, 2019.
    [17]
    B. L. Ye, W. Wu, K. Ruan, L. Li, T. Chen, H. Gao, and Y. Chen, “A survey of model predictive control methods for traffic signal control,” IEEE/CAA J. Autom. Sinica, vol. 6, no. 3, pp. 623–640, 2019. doi: 10.1109/JAS.2019.1911471
    [18]
    J. Hu, Y. Shao, Z. Sun, M. Wang, J. Bared, and P. Huang, “Integrated optimal eco-driving on rolling terrain for hybrid electric vehicle with vehicle-infrastructure communication,” Transportation Research Part C:Emerging Technologies, vol. 68, pp. 228–244, 2016. doi: 10.1016/j.trc.2016.04.009
    [19]
    Y. Zhao, Y. Cai, and Q. Song, “Energy control of plug-in hybrid electric vehicles using model predictive control with route preview,” IEEE/CAA J. Autom. Sinica, 2018. doi: 10.1109/JAS.2017.7510889
    [20]
    VD Doan, H. Fujimoto, T. Koseki, T. Yasuda, H. Kishi, and T. Fujita, “Iterative dynamic programming for optimal control problem with isoperimetric constraint and its application to optimal eco-driving control of electric vehicle,” IEEJ J. Industry Applications, vol. 7, no. 1, pp. 80–92, 2018. doi: 10.1541/ieejjia.7.80
    [21]
    C. Luo, Z. Shen, S. Evangelou, G. Xiong, and F. Y. Wang, “The combination of two control strategies for series hybrid electric vehicles,” IEEE/CAA J. Autom. Sinica, vol. 6, no. 2, pp. 596–608, 2019. doi: 10.1109/JAS.2019.1911420
    [22]
    X. M. Zhang, Q. L. Han, X. H. Ge, D. Ding, L. Ding, D. Yue, and C. Peng, “Networked control systems: a survey of trends and techniques,” IEEE/CAA J. Autom. Sinica, vol. 7, no. 1, pp. 1–17, 2020. doi: 10.1109/JAS.2019.1911651
    [23]
    L. Li, Y. Lv, and F. Y. Wang, “Traffic signal timing via deep reinforcement learning,” IEEE/CAA J. Autom. Sinica, vol. 3, no. 3, pp. 247–254, 2016. doi: 10.1109/JAS.2016.7508798
    [24]
    S.W. Hunt, A.M.C. Odhams, R.L. Roebuck, and D. Cebon, “Parameter measurement for heavy-vehicle fuel consumption modelling,” in Proc. the Institution of Mechanical Engineers, Part D: J. Automobile Engineering, vol. 225, no. 5, pp. 567–589, 2011. doi: 10.1177/2041299110394512
    [25]
    E. Grunditz and T. Thiringer, “Modelling and scaling procedure of a vehicle electric drive system,” Report, Chalmers University of Technology, Sweden, URL: https://research.chalmers.se/en/publication/?id=253488, 2017.
    [26]
    Driver and Vehicle Standards Agency, “The Official DVSA Theory Test for Car Drivers, ” The Stationery Office, UK, ISBN-13: 978-0115534652, 2016.
    [27]
    A. K. Madhusudhanan, M. Corno, and E. Holweg, “Vehicle yaw rate control using tyre force measurements, ” in Proc. 2015 European Control Conf., Linz, 2015, pp. 2577–2582.
    [28]
    A. K. Madhusudhanan, M. Corno, and E. Holweg, “Vehicle sideslip estimation using tyre force measurements, ” in Proc. 23rd Mediterranean Conf. Control and Automation, Torremolinos, 2015, pp. 88–93.
    [29]
    M. Alirezaei, S. T. H. Jansen, A. J. C. Schmeitz, and A. K. Madhusudhanan, “Collision avoidance system using state dependent Riccati equation technique: an experimental robustness evaluation, ” in Proc. 13th Int. Symp. Advanced Vehicle Control, Sept. 2016, Germany, pp. 127–132.
    • Related Articles
    • Supplements(0)

Catalog

    通讯作者: 陈斌, bchen63@163.com
    • 1.

      沈阳化工大学材料科学与工程学院 沈阳 110142

    1. 本站搜索
    2. 百度学术搜索
    3. 万方数据库搜索
    4. CNKI搜索

    Figures(13)  / Tables(4)

    Get Citation
    PDF
    XML

    Article Metrics

    Article views (2503) PDF downloads(95) Cited by()

    Highlights

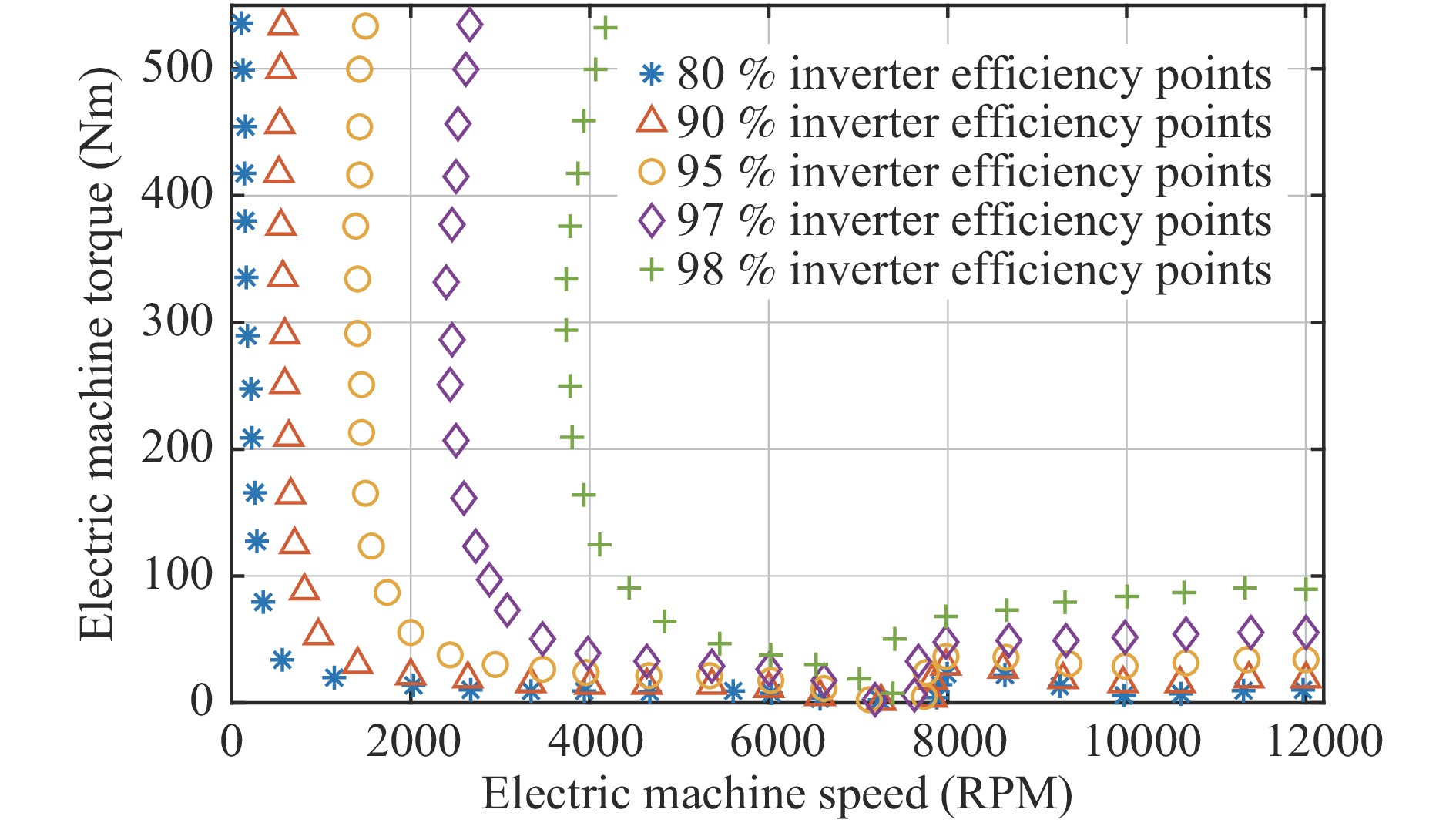

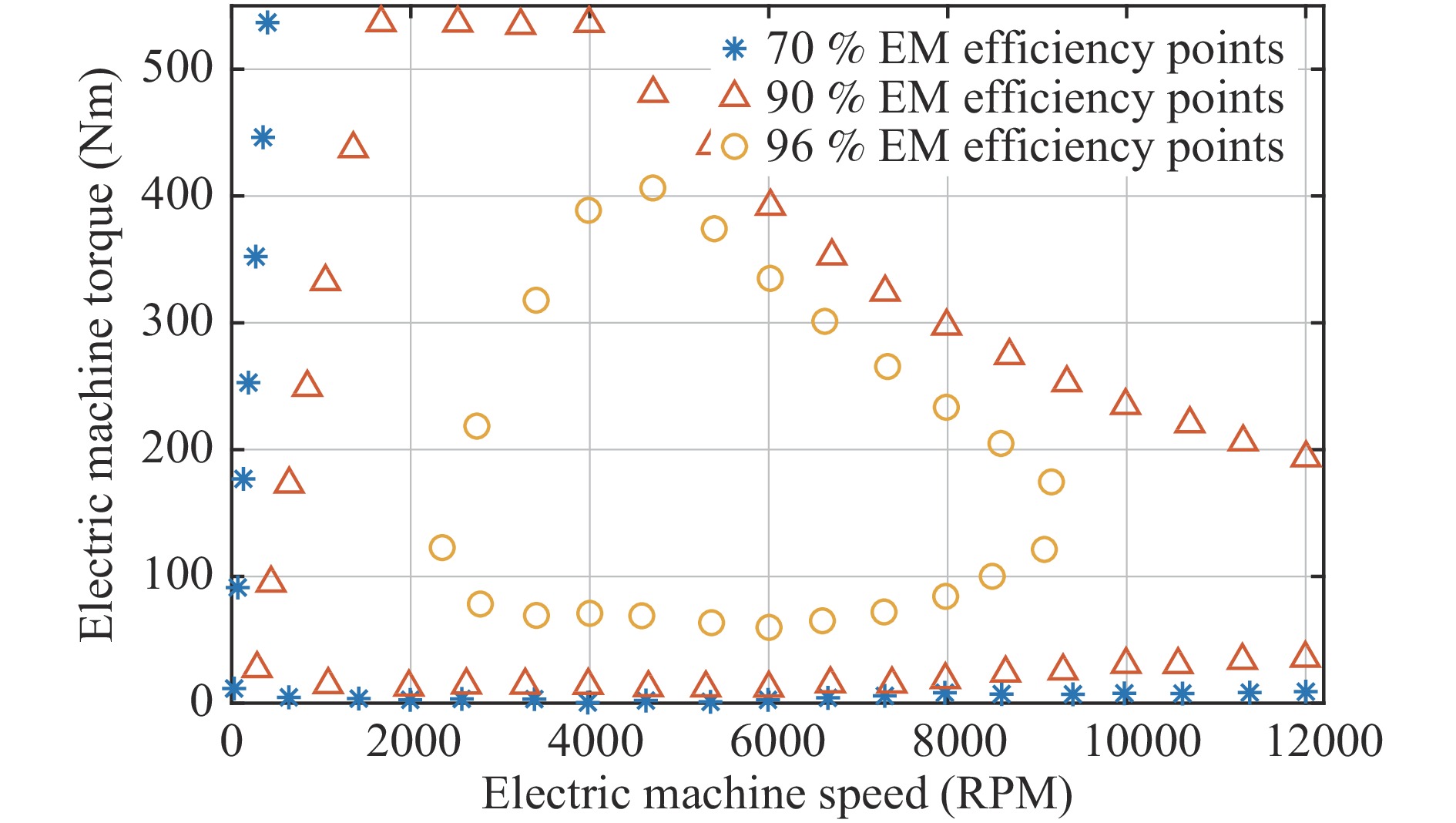

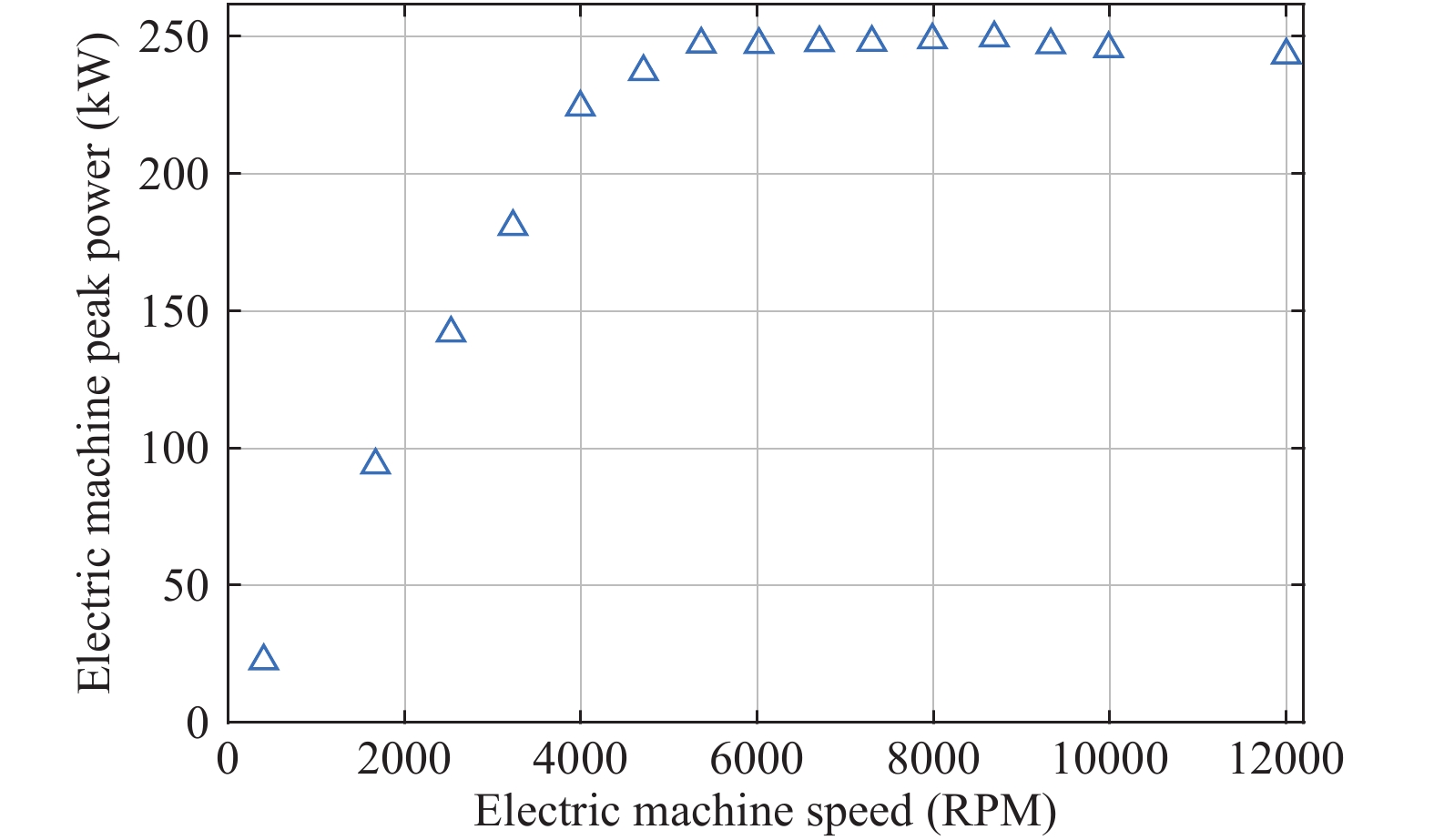

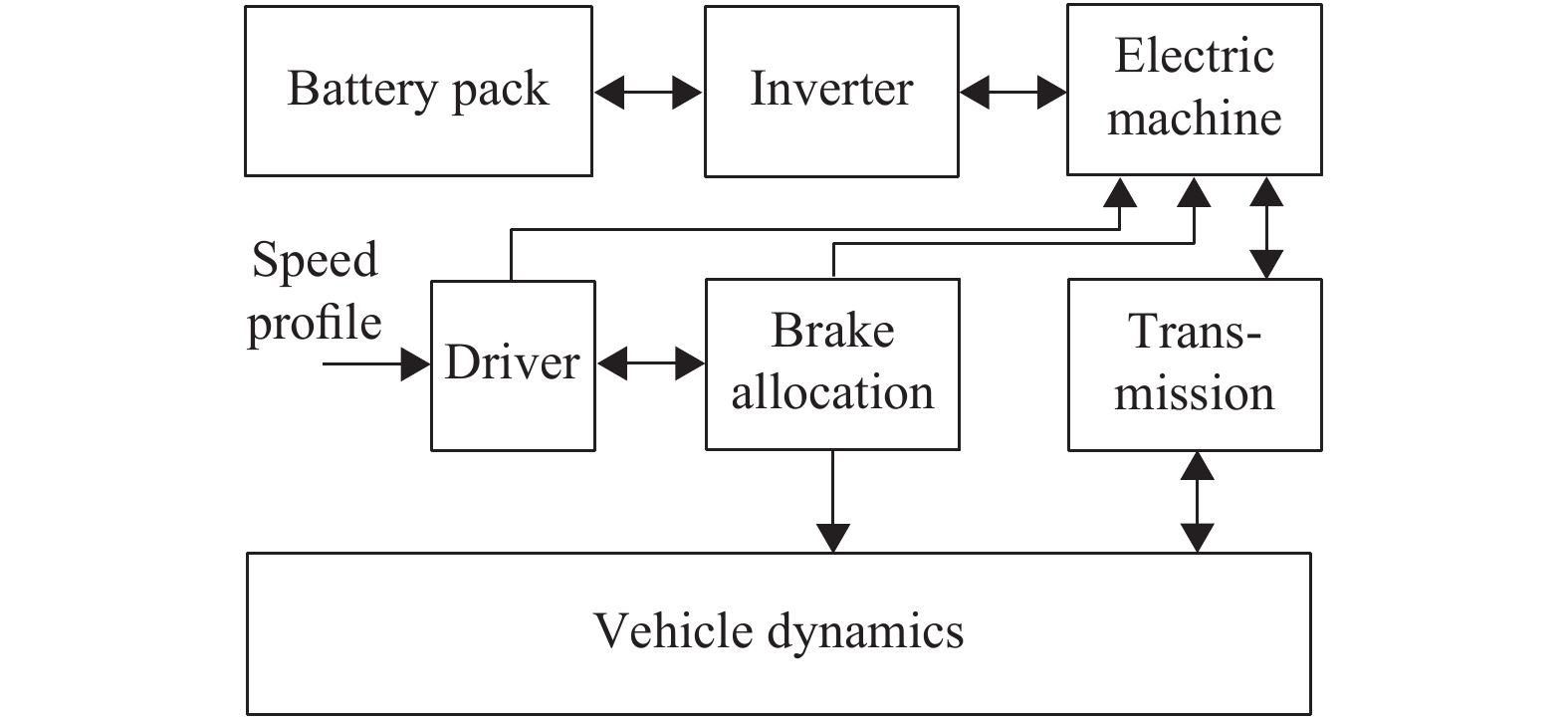

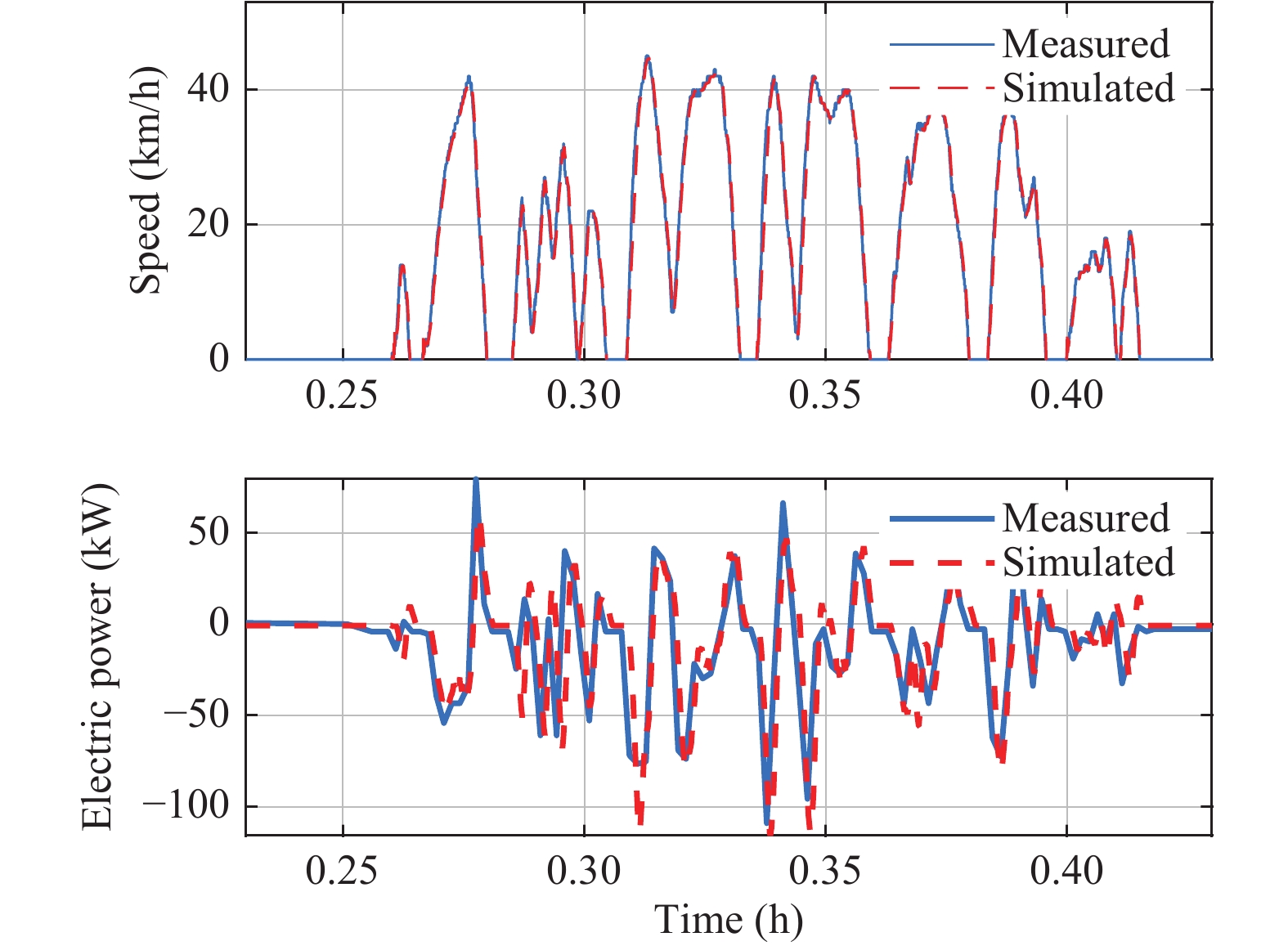

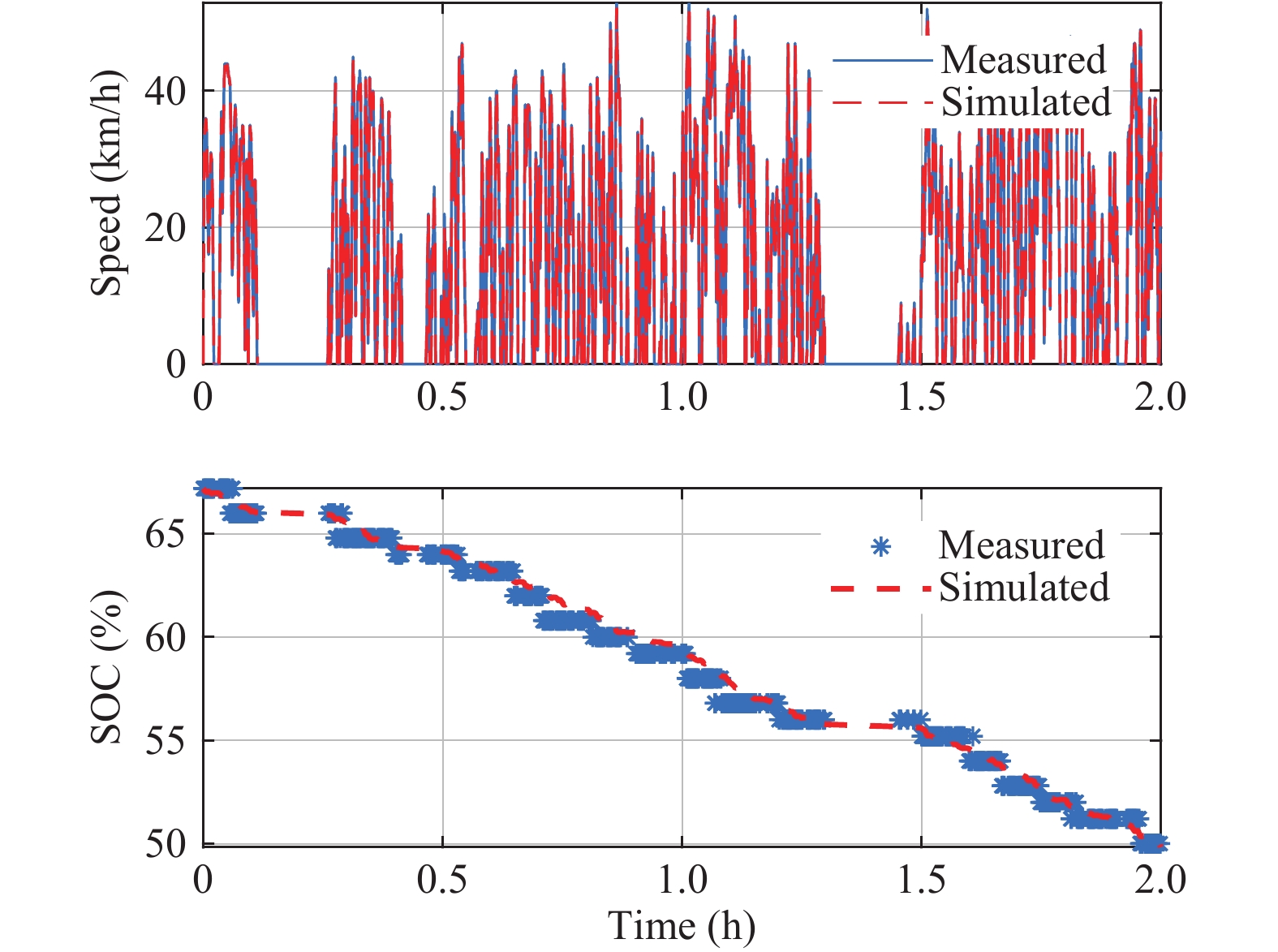

    • An EV energy consumption model using data from an electric bus operation in London.

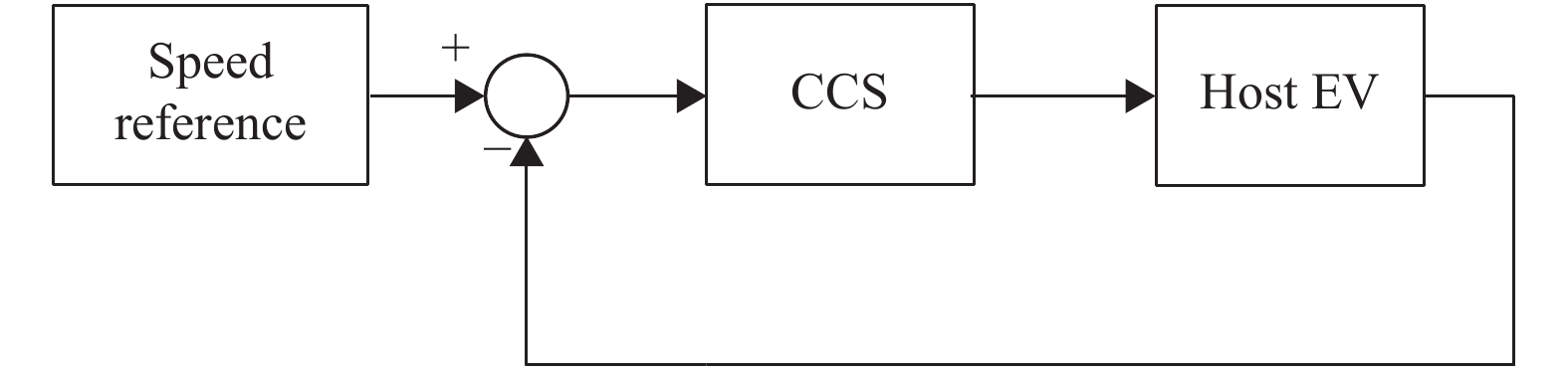

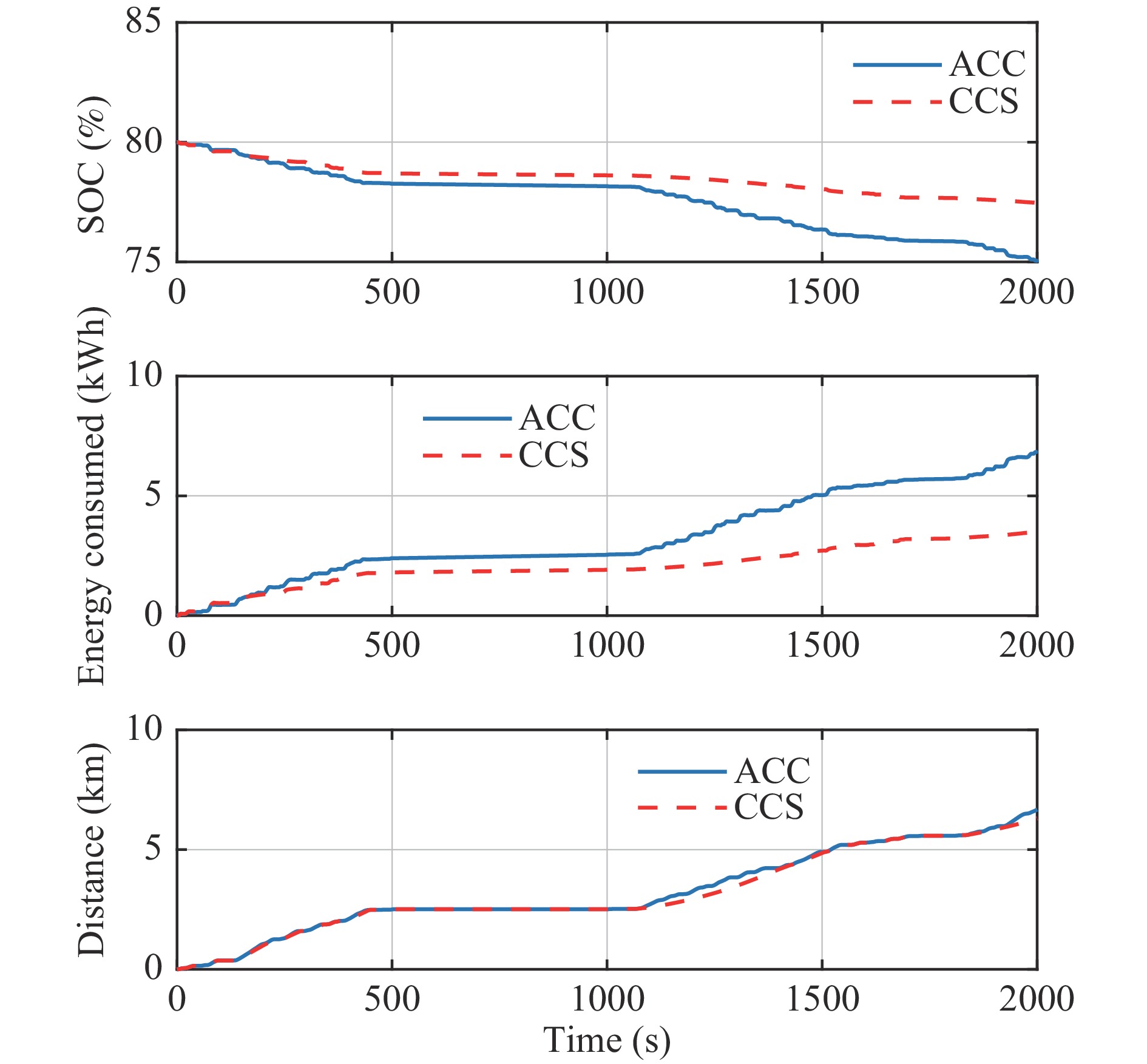

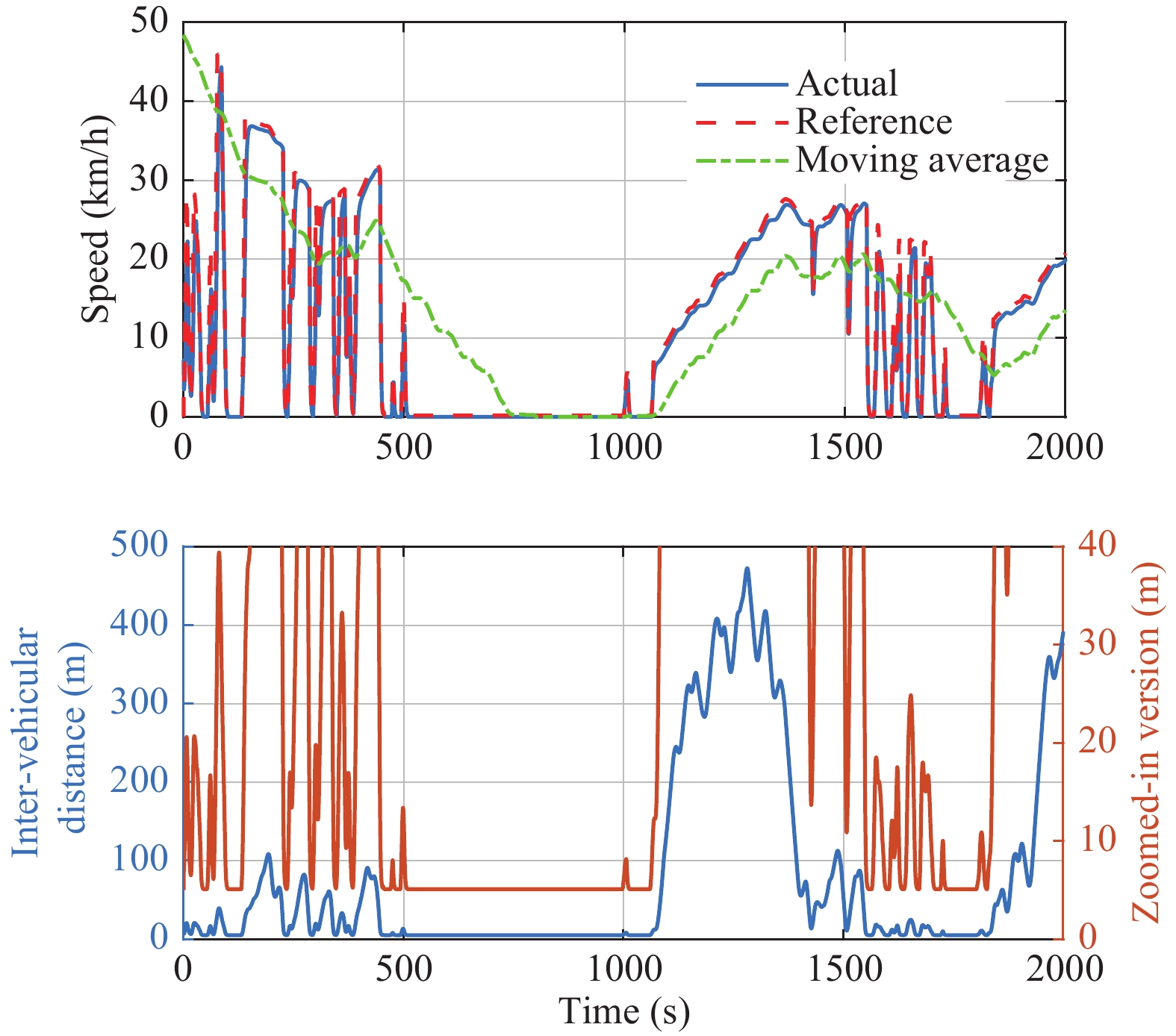

    • A cruise control design that uses average traffic speed to improve an EV’s range.

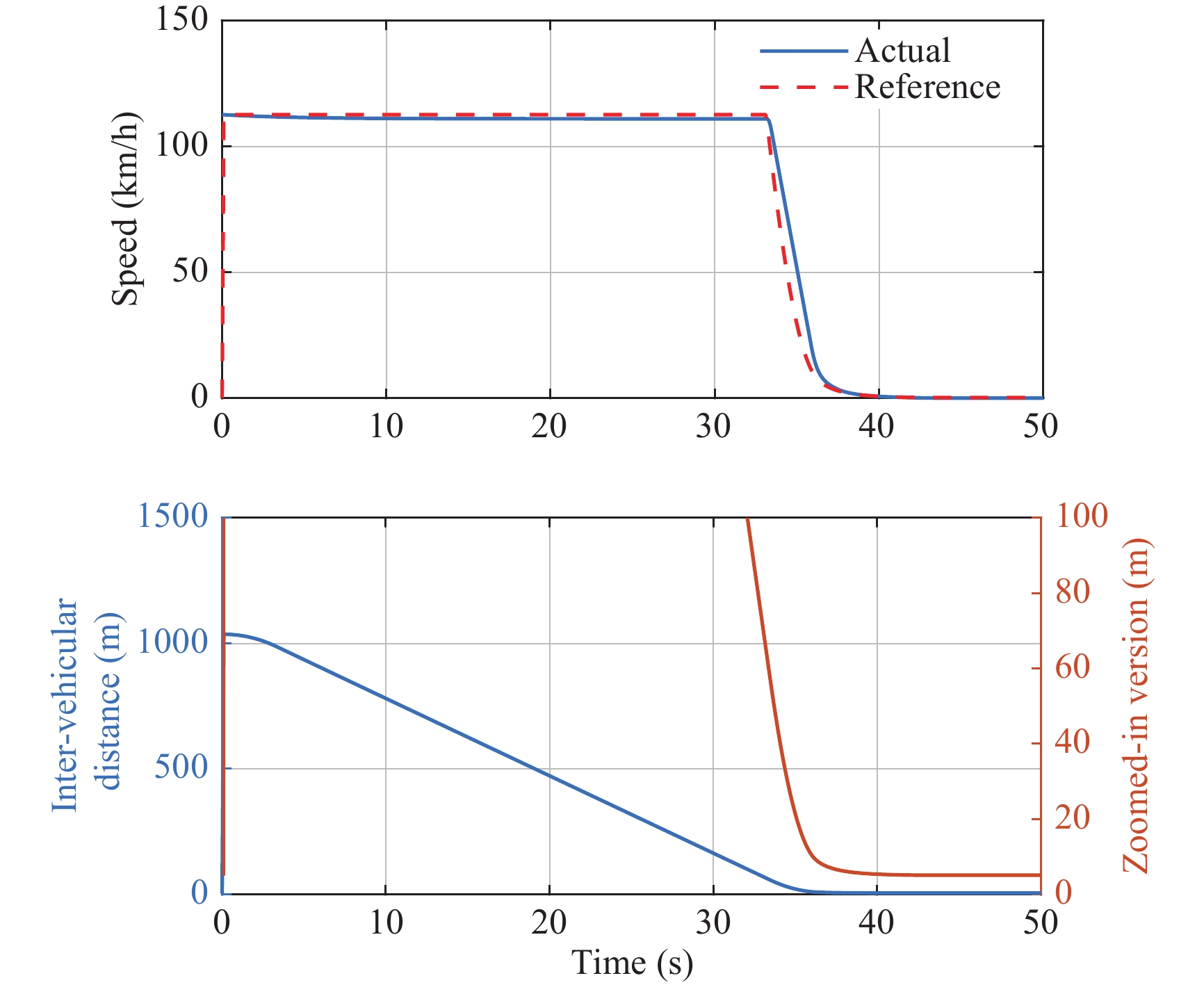

    • A safety analysis, considering the worst-case scenario involving the lead vehicle.

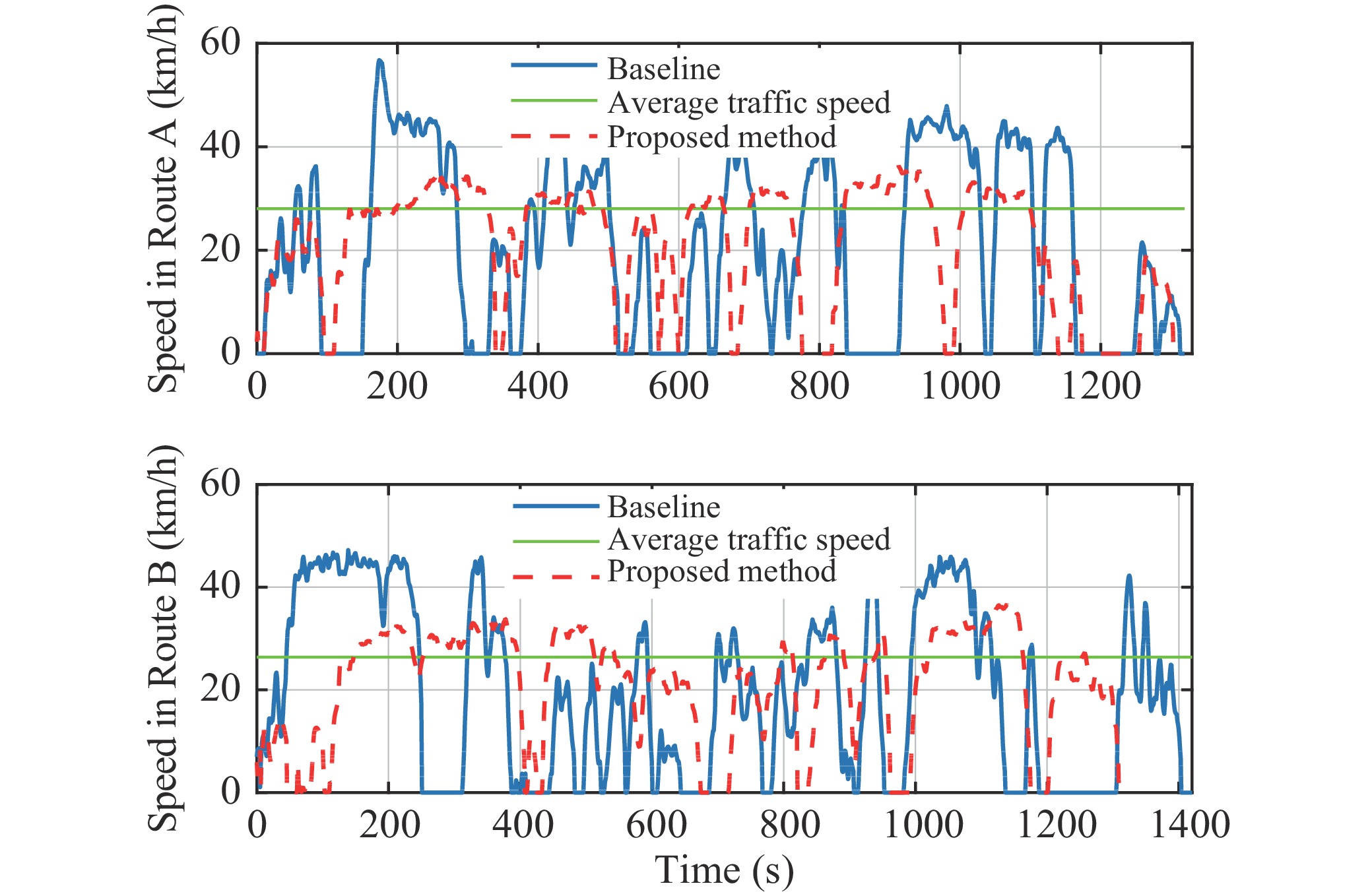

    • An experimental analysis using an EV on two urban routes in Cambridge.

    /
