Arbitrary-Order Fractance Approximation Circuits With High Order-Stability Characteristic and Wider Approximation Frequency Bandwidth

doi: 10.1109/JAS.2020.1003009
Funds:  This work was supported by the National Key Research and Development Program Foundation of China (2018YFC0830300) and National Natural Science Foundation of China (61571312)
More Information
  • This paper discusses a novel rational approximation algorithm of arbitrary-order fractances, which has high order-stability characteristic and wider approximation frequency bandwidth. The fractor has been exploited extensively in various scientific domains. The well-known shortcoming of the existing fractance approximation circuits, such as the oscillation phenomena, is still in great need of special research attention. Motivated by this need, a novel algorithm with high order-stability characteristic and wider approximation frequency bandwidth is introduced. In order to better understand the iterating process, the approximation principle of this algorithm is investigated at first. Next, features of the iterating function and frequency-domain characteristics of the impedance function calculated by this algorithm are researched, respectively. Furthermore, approximation performance comparisons have been made between the corresponding circuit and other types of fractance approximation circuits. Finally, a fractance approximation circuit with the impedance function of negative 2/3-order is designed. The high order-stability characteristic and wider approximation frequency bandwidth are fundamental important advantages, which make our proposed algorithm competitive in practical applications.



  • STUDIES show that the fractional calculus is now the most appropriate description for most phenomena and their intrinsic essence in nature, such as diffusion processes [1]–[3], electrolytic chemical analyses [4], [5], and biological systems [6], [7]. Owing to the properties of long-term memory, non-locality, and weak singularity, the fractional calculus has been widely used in various scientific fields, such as nonlinear control systems [8]–[20], fractional-order chaos systems [21]–[24], neural networks [25]–[30], and fractional-order circuits and systems [31]–[34].

    As the physical realization of fractional calculus, the fractor is a burgeoning new circuit element with characteristics of the fractance which is a portmanteau of the fractional-order impedance. The ideal fractor does not currently exist and its approximate physical realization is called a fractance approximation circuit (FAC) [35].

    FACs can be classified into two types. The first type is constructed directly or by modeling some phenomena of electrochemistry or other scientific fields, such as the 2h-type fractal tree FAC [35], the scaling fractal-lattice FAC [36], [37], the fractal-ladder FAC [38], , and fractal-chuan FAC [38]–[40]. The second is to design a rational function approximating to the irrational impedance function of the ideal fractor, then a circuit is synthesized to provide the corresponding rational function, such as the Oustaloup algorithm [41], the Carlson’s iterating rational approximation algorithm [42]–[44], etc. There are also some single type fractors [45], [46].

    There exist the operational oscillation phenomena in the frequency-domain characteristics of the above mentioned approximate realizations of the fractor except the Carlson’s iterating rational approximation algorithm. The Carlson’s iterating rational approximation algorithm, proposed by Carlson and Halijak, is that the rational approximation of the fractance of 1/n-order has been transformed into the iterating solution of the root of an n-th two-term equation [42]. The predistortion exponent δ=0 has been introduced to speed up the convergence of this iterating process [42]. In view of the high order-stability characteristic, the Carlson’s iterating rational approximation algorithm has been generalized to approximate to arbitrary-order fractances in [35], [43], [44]. Whether this kind of generalization is possible and what characteristics the impedance function Zk(s) should possess, have been explored in [43]. Characteristics of the generalized iterating function and approximation performance of this generalized iterating algorithm have been discussed and analyzed in detail in [44]. Both papers concentrate on the situation where the predistortion exponent δ equals zero. An algorithm with the value of the predistortion exponent in the range 1δ1, is investigated in this paper, including the design of the corresponding FACs. Compared to other algorithms, this algorithm has high order-stability charac-teristic and wider approximation frequency bandwidth (AHOSCWAFB).

    The paper is organized as follows. The backgrounds about fractors and FACs are introduced in Section II. The principle of the AHOSCWAFB is presented in Section III. Section IV deals with approximation performance comparisons and circuits realization. The summary is made in Section V.

    The impedance function of an ideal fractor of μ-order is represented by

    I(μ)(s)=F(μ)sμ,(μQ)
    (1)

    where s is the Laplace variable, or the complex frequency variable, or the operational variable, μ is referred to as the operational order, and F(μ) is named the lumped characteristics quantity of the fractor [35].

    According to (1), F(μ) can be expressed as F(μ)=I(μ)(s)/sμ. I(μ)(s) is measured in the unit of ohms, designated Ω, that is [I(μ)(s)]=Ω=m2kgs3A2. The dimension of I(μ)(s) is dimI(μ)(s)=L2MT3I2. The SI unit of the complex frequency variable s is [s]=rad/s=1/s. Therefore, the SI unit and corresponding dimension of F(μ) are [F(μ)]=Ωsμ=m2kgs3+μA2 and dimF(μ)=L2MT3+μI2, respectively.

    The second type FAC is to design a sequence of rational functions {Zk(s)} approximating to the irrational impedance function I(μ)(s) of the ideal fractor, which can be described in mathematical language by

    Zk(s)=nki=0βkisidki=0αkisikI(μ)(s)
    (2)

    where k is named the number of iterations whose value is a natural number, nk and dk are the highest powers of numerator and denominator polynomials, respectively, βki and αki are coefficients of numerator and denominator polynomials, respectively. Then a two-terminal circuit (FAC) is synthesized with electronic elements available, such as resistors and capacitors, to provide the corresponding rational function. As the approximate physical realization of the fractor, the FAC approximates to the ideal fractor over a certain frequency range.

    The aim of the rational approximation algorithm is to seek a rational function which satisfies (2). Let us assume that Zk(s) is directly equal to I(±m/n)(s)=s±m/n(n,mN,n2,1m n1), another special form of the irrational function of the ideal fractor. It is possible to substitute the rational function with an unknown x and replace s±1 by a positive number a, namely,

    Zk(s)=s±m/nx=am/nxnam=0
    (3)

    where the operational order μ is equal to ±m/n. Therefore, principle of the AHOSCWAFB is to turn the rational approximation problem of an ideal fractance into the solution of an arithmetic positive root of the following two-term equation about an unknown x:

    f(x)=xnam=0.
    (4)

    The root can be obtained with the classical Newton’s iterating function. The convergence order of this Newton’s iterating process is of second order. To speed up the convergence of this Newton’s iterating process, the predistortion exponent function

    p(x)=x(n1)(1+δ)/2,1δ1
    (5)

    is introduced to f(x) and then

    fH(x)=f(x)/p(x)=x[n+1(n1)δ]/2amx(n1)(1+δ)/2
    (6)

    where δ is called the predistortion exponent. Solving the arithmetic root r=am/n with the Newton’s iterating function, we have the following iterating formula:

    xk+1=FH(xk)=xkfH(xk)fH(xk)=xkr11(n,δ)xnk+r12(n,δ)amr21(n,δ)xnk+r22(n,δ)am
    (7)

    where

    r11(n,δ)=(n1)(1δ),    r12(n,δ)=n+1+(n1)δ,r21(n,δ)=n+1(n1)δ, r22(n,δ)=(n1)(1+δ).

    The corresponding iterating function is

    FH(x)=xr11(n,δ)xn+r12(n,δ)amr21(n,δ)xn+r22(n,δ)am.
    (8)

    There are some special iterating functions when the predistortion exponent δ takes some certain values. Substituting δ=1,1,0 into (8) yields the generalized Newton iterating function FGN(x), the generalized upper-limit iterating function FGU(x) and the generalized Carlson iterating function FGC(x), respectively.

    FGN(x)=x(n1)xn+amnxn
    (9)
    FGU(x)=xnamxn+(n1)am
    (10)
    FGC(x)=x(n1)xn+(n+1)am(n+1)xn+(n1)am.
    (11)

    Theoretically, xk converges to the arithmetic root r as k approaches infinity, that is

    xkkr=am/n.
    (12)

    If a=s1 is substituted into (8), the impedance function calculated through the AHOSCWAFB is

    Zk+1(s)=FH(Zk(s))=Zk(s)r11(n,δ)sm[Zk(s)]n+r12(n,δ)r21(n,δ)sm[Zk(s)]n+r22(n,δ),kN.
    (13)

    Ideally, the impedance function can approximate to the irrational function of the ideal fractor as k tends to be infinite, that is

    Zk(s)kI(μ)(s)=sm/n.
    (14)

    Whether the impedance function sequence {Zk(s)} possesses fractional-order operation characteristics of the ideal fractor and can be realized with existing electronic elements, it still needs to satisfy these basic properties: computational rationality, positive reality principle, and operational validity [35], [43], [44]. Computational rationality means that there only exist rational computations in Zk(s) and ensures that the impedance function is a rational function. From (13), we know that the impedance function calculated through the iterating formula satisfies computational rationality when choosing the rational initial impedance Z0(s). Positive reality principle requires zeros and poles of the impedance function placed in the left half plane or on the imaginary axis of s-plane, then the impedance function can be realized with a causal and stable network. The operational validity signifies that the impedance function takes on operational characteristics of the ideal fractor.

    Along with the amplitude-frequency and phase-frequency characteristics; the order-frequency and F-frequency characteristics introduced in [35], [47], all are used to represent frequency-domain characteristics of the impedance function Zk(s). For a fractional-order system, the operational order is a key issue. It is necessary to introduce the order-frequency characteristic to represent the operational order. The F-frequency characteristic denotes the lumped characteristics quantity of FACs and plays an important role in designing FACs. Therefore, the Laplace variable s is substituted with the Fourier frequency variable Ω or the frequency exponent variable ϖ, namely.

    s=jΩ=j2πf=j2π10ϖϖ=lg(Ω/2π),(ΩR+,ϖR)
    (15)

    then the frequency-domain characteristics of the ideal fractance I(μ)(j2π10ϖ) include

    Λ(μ)(ϖ)=lg|I(μ)(j2π10ϖ)|=μ[ϖ+lg(2π)]
    (16)
    Θ(μ)(ϖ)=πμ/2
    (17)
    M(μ)(ϖ)=dΛ(μ)(ϖ)/dϖ=μ
    (18)

    where Λ(μ)(ϖ), Θ(μ)(ϖ), and M(μ)(ϖ) are the amplitude-frequency, phase-frequency, and order-frequency characteristics of the ideal fractor, respectively.

    In the same way, the frequency-domain characteristics of the impedance function Zk(j2π10ϖ) can be represented as follows:

    Λk(ϖ)=lg|Zk(j2π10ϖ)|
    (19)
    Θk(ϖ)=arg{Zk(j2π10ϖ)}
    (20)
    Mk(ϖ)=dΛk(ϖ)/dϖ
    (21)

    where Λk(ϖ), Θk(ϖ), and Mk(ϖ) are the amplitude-frequency, phase-frequency, and order-frequency characteristics of the impedance function, respectively. The F-frequency characteristic of the impedance function is defined as

    Fk(ϖ)=|Zk(j2π10ϖ)||2π10ϖ|Mk(ϖ).
    (22)

    According to the frequency-domain characteristics of the impedance function Zk(j2π10ϖ), the operational validity falls into three parts.

    1) Validity of the amplitude-frequency characteristic

    Λk(ϖ)kΛ(μ)(ϖ).
    (23)

    2) Validity of the phase-frequency characteristic

    Θk(ϖ)kΘ(μ)(ϖ).
    (24)

    3) Validity of the order-frequency characteristic

    Mk(ϖ)kM(μ)(ϖ).
    (25)

    If the impedance function Zk(j2π10ϖ) can approximate to the irrational function of the ideal fractor, the frequency-domain characteristics of the impedance function satisfy (23)–(25) automatically.

    For the value of the operational order in the range 0<μ<1, the impedance function can be obtained by substituting a=s into (8) or making directly reciprocal transformation to (13). Therefore, the AHOSCWAFB can realize the rational approximation of fractances with values of the operational order in the range of 1<μ<0 and 0<μ<1.

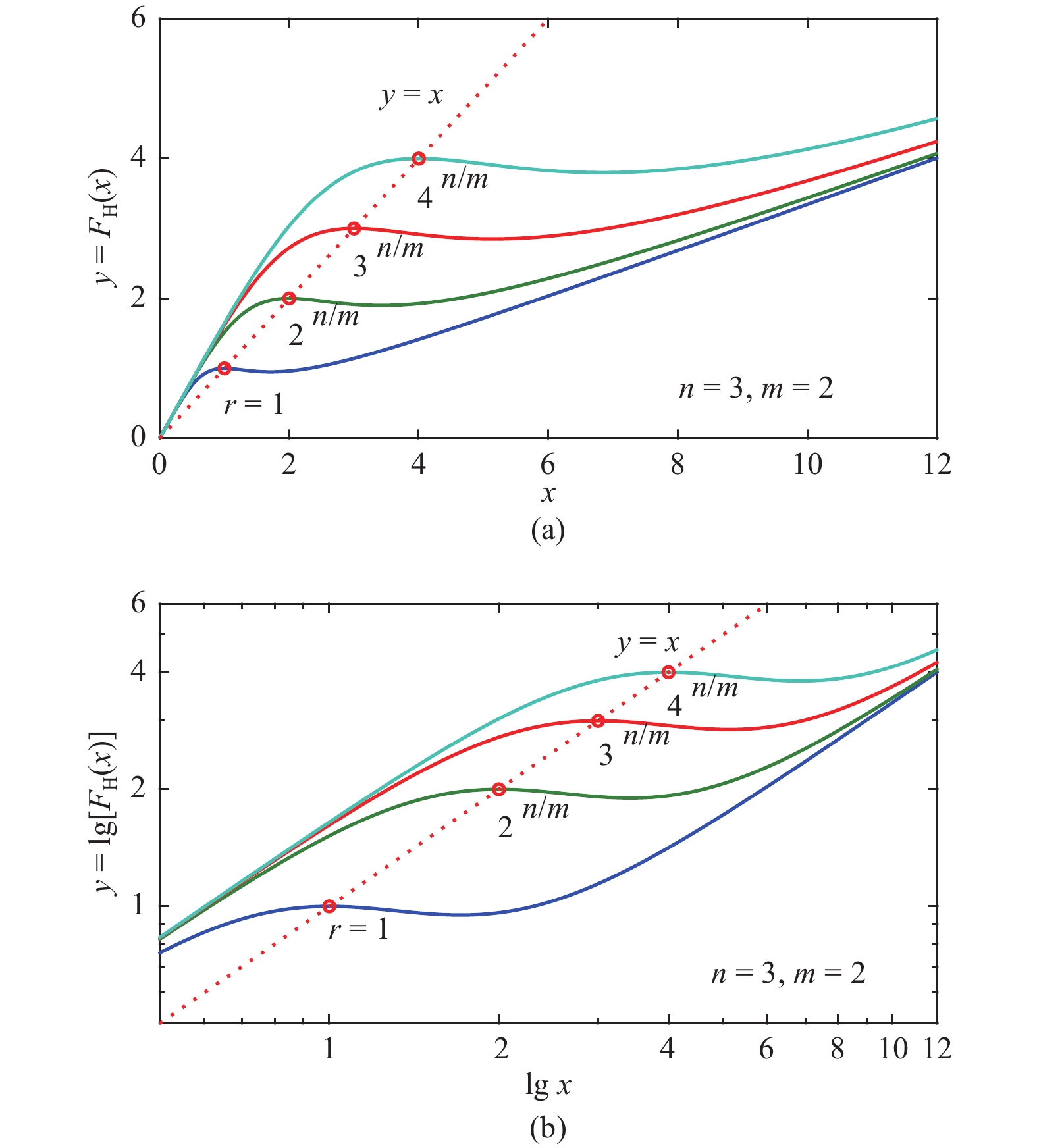

    Plots of the iterating function FH(x) for different predistortion exponents are shown in Fig. 1. All these iterating function curves take on uniqueness of the positive root and local convergence. The two properties state that these iterating processes can converge to the arithmetic root r as k approaches infinity. It is also noted that only when the predistortion exponent δ is equal to zero, does the iterating function FGC(x) possess strictly global regularity.

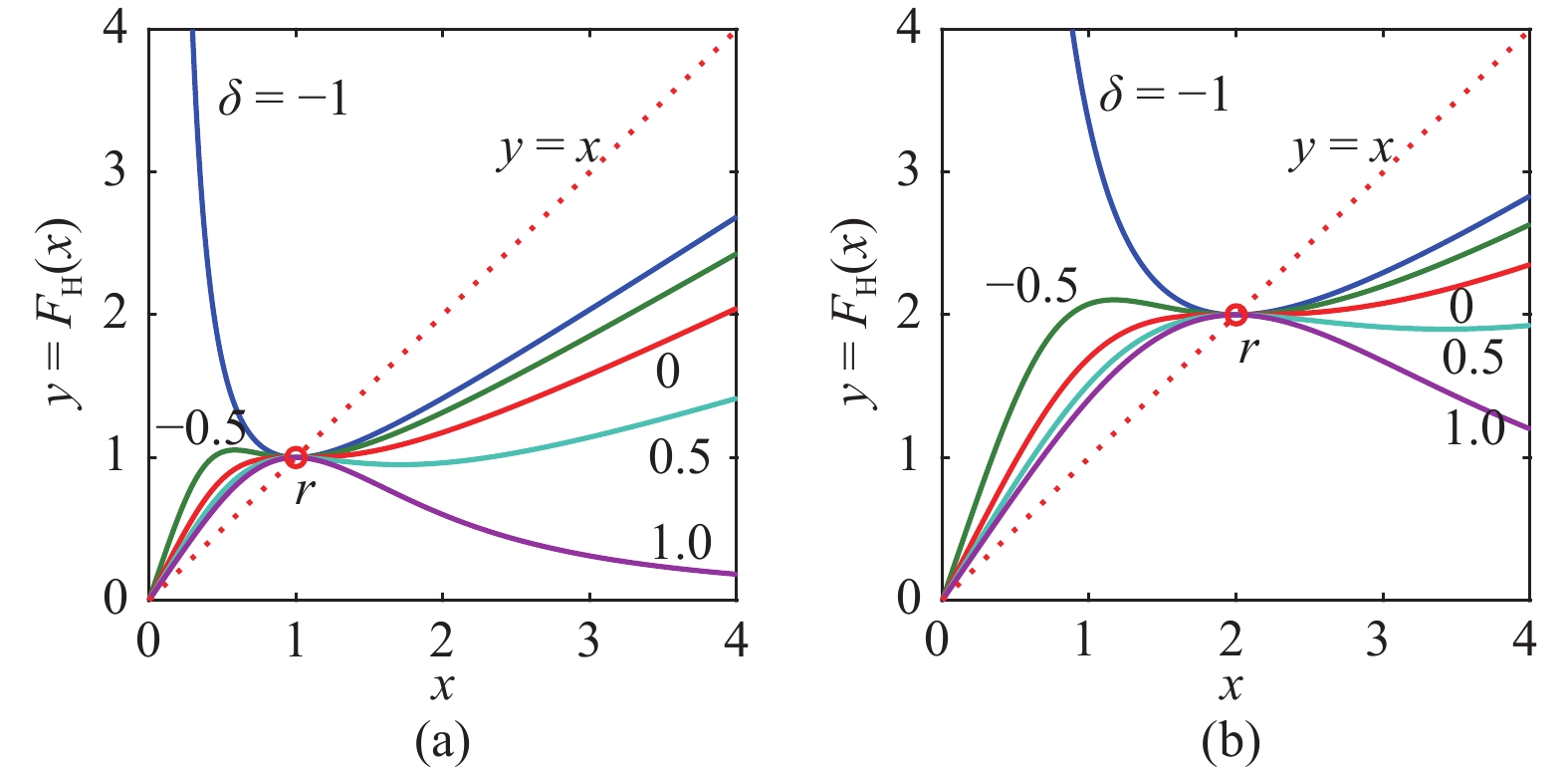

    Figure  1.  Plots of the iterating function for different predistortion exponents, n=3 and m=2: (a) a=1; (b) a=2n/m.

    For a given operational order μ and a certain predistortion exponent δ, these plots of the iterating function FH(x) for different positive real numbers a, shown in Fig. 2(a), are self-similar. Such property is specially obvious in the double logarithmic coordinate (Fig. 2(b)). Therefore, it is necessary to make normalization processing and double logarithmic transformation to the iterating function FH(x).

    Figure  2.  Plots of iterating functions with different positive real numbers a and δ=0.5: (a) double linear coordinate; (b) double logarithmic coordinate.

    Let

    x=r×10α,αR
    (26)

    where α is referred to as the normalized exponent variable. Making normalization processing and taking logarithmic operation on both sides of (8) produce

    lg[FH(r×10α)r]=lg[xr×r11(n,δ)rn10αn+r12(n,δ)amr21(n,δ)rn10αn+r22(n,δ)am].
    (27)

    Considering r=am/nam=rn, the normalized exponential form of FH(x) can be simplified as

    ηH(α)=α+lgr11(n,δ)10nα+r12(n,δ)r21(n,δ)10nα+r22(n,δ).
    (28)

    The left asymptote function of the normalized exponential function is expressed as follows:

    ηL(α)={α+lgn+1+(n1)δ(n1)(1+δ),1<δ1,(1n)αlg(n),δ=1.
    (29)

    Likewise, the right asymptote function of the normalized exponential function is represented as

    ηR(α)={α+lg(n1)(1δ)n+1(n1)δ,1δ<1,(1n)α+lg(n),δ=1.
    (30)

    Plots of the normalized exponential functions with different predistortion exponents δ are represented pictorially in Fig. 3. It is apparent that the plot of the normalized exponential function with δ can be obtained through the plot of the normalized exponential function with δ rotated 180 degrees.

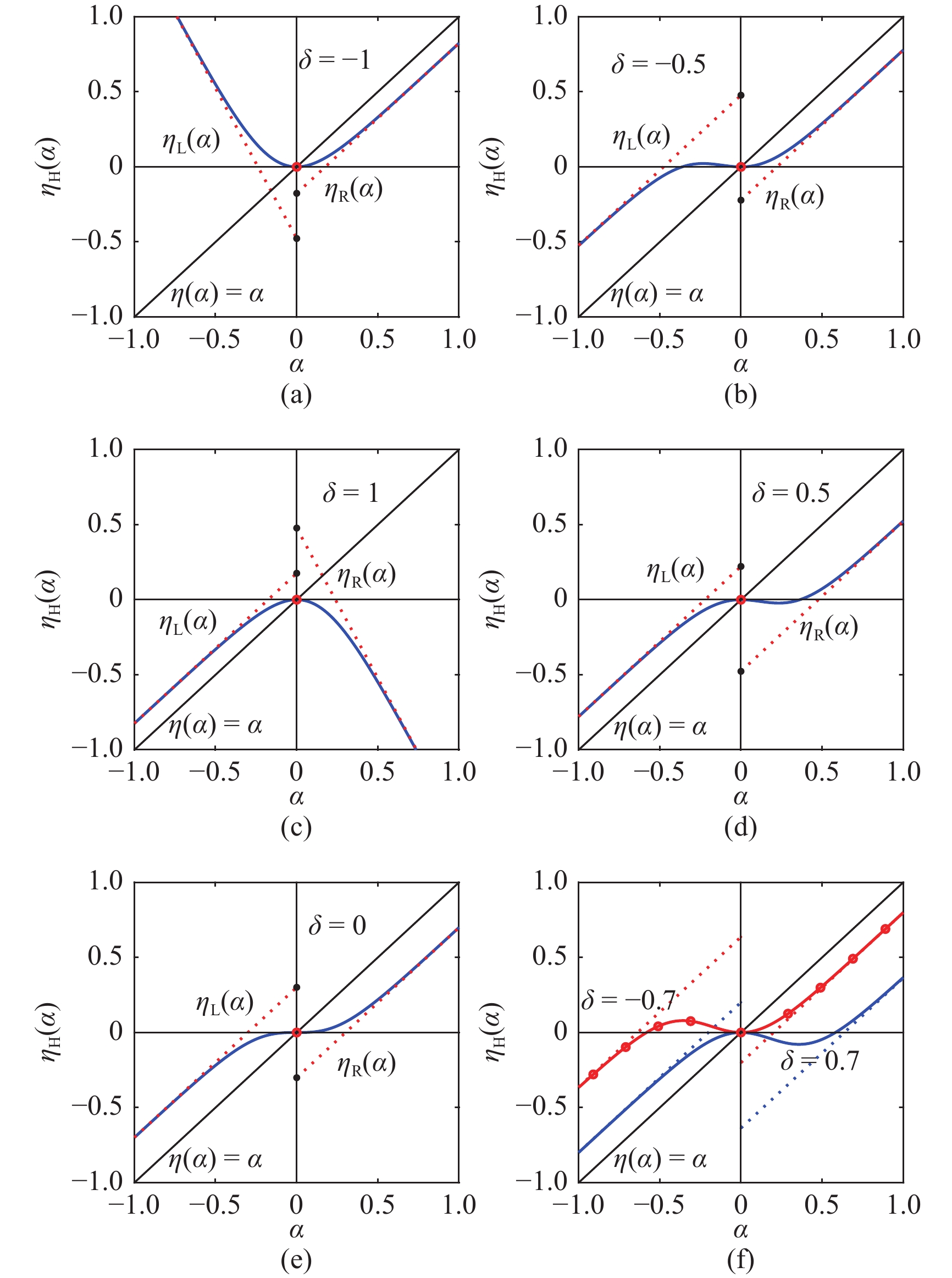

    Figure  3.  Plots of normalized exponential functions with different predistortion exponents δ and n=3: (a) δ=1; (b) δ=0.5; (c) δ=1; (d) δ=0.5; (e) δ=0; (f) δ=±0.7.

    For the AHOSCWAFB, it is already known that this initial impedance function should be a rational function according to the computational rationality. The selection of initial impedances for every operational order is tested by experiments. Some frequently encountered examples are included in Table I.

    Table  I.  Selection of Initial Impedances for Different Operational Orders
    Z0(s)μ
    1/21/32/31/43/41/52/53/54/51/65/6
    RYYNYNYNNNYN
    1/(Cs)YNYNYNNNYNY
    R+1/(Cs)YYYYYYYYYYY
    R/(RCs+1)YYYYYYYYYYY
    R1+R2/(R2C2s+1)YYYYNYYNNYN
    1/(C1s)+R/(RC2s+1)YYYNYNNYYNY
    (R1R2Cs+1)/((R1+R2)Cs+1)YYYYNYYNNYN
    (RC2s+1)/((R1C2s+1)C2s+1)YYYYYYNYYYY
    Note: for a certain operational order, “Y” means that Z0(s) can serve as the initial impedance, while “N” shows that Z0(s) can not be the initial impedance.
     | Show Table
    DownLoad: CSV

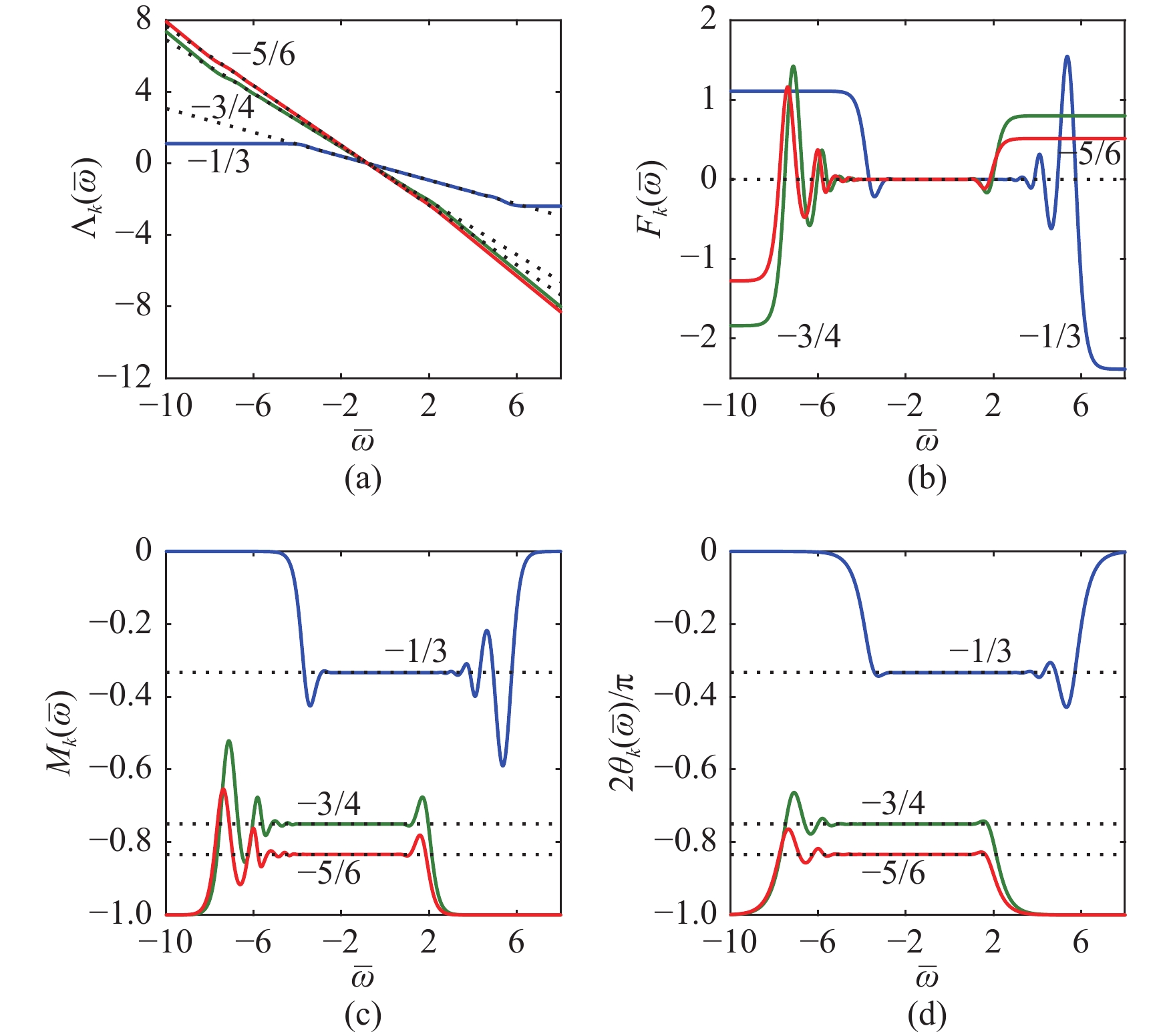

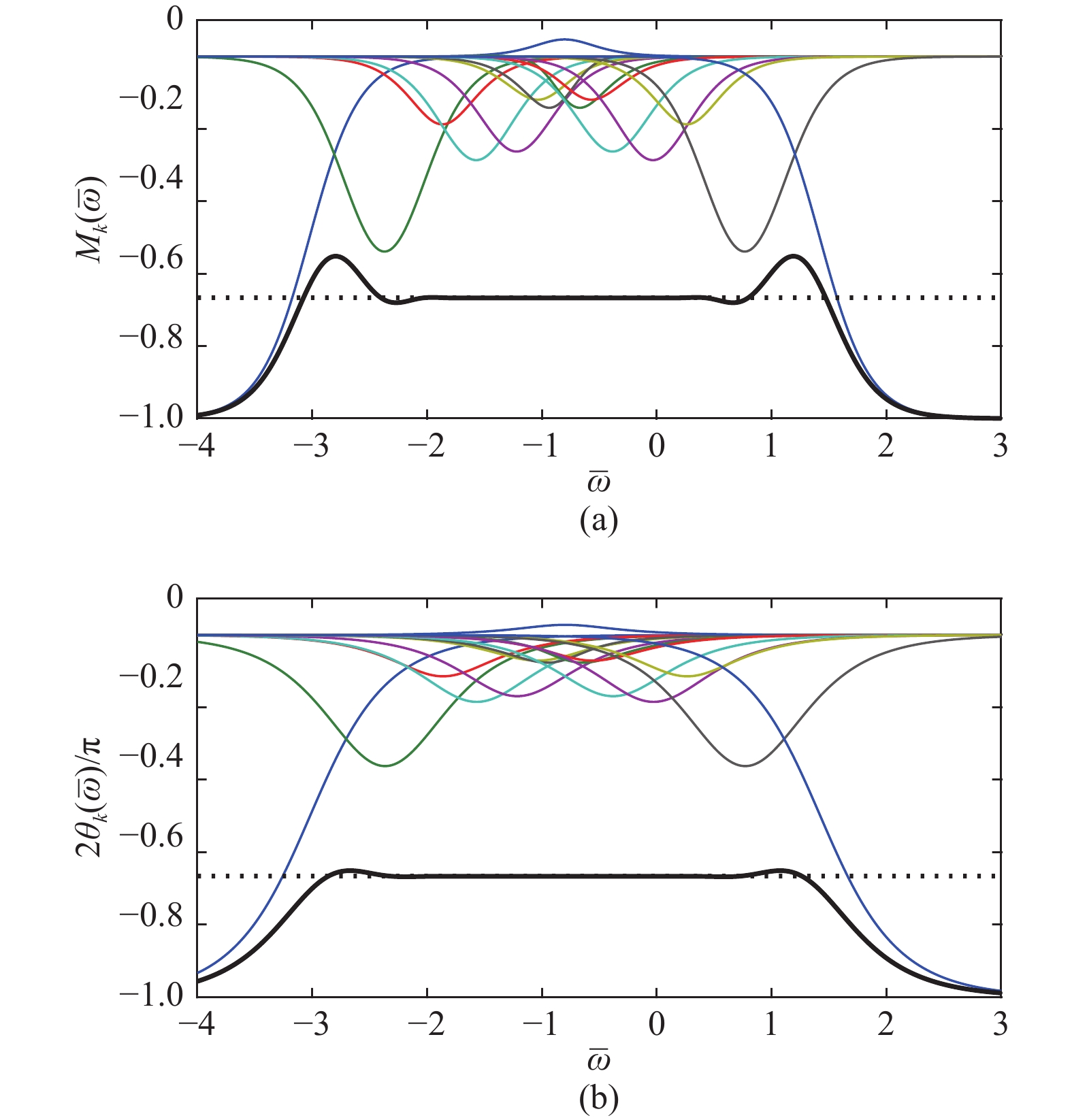

    1) High Order-Stability Characteristic: Taking μ=1/3, 3/4,5/6 as examples with Z0(s)=R,1/s,1/s, respectively, the impedance functions can be obtained by (13). The corresponding frequency-domain characteristics are displayed in Fig. 4, seeing the solid lines. The dotted lines typify the frequency-domain characteristics of the corresponding ideal fractor. The frequency-domain characteristics of these calculated impedance functions overlap with those of the corresponding ideal fractors in a certain frequency range. The calculated impedance functions take on operational characteristics of the ideal fractor in a certain frequency range and then the operational validity is satisfied. Since the initial impedance functions used are rational, the impedance functions possess the computational rationality. Because all zeros and poles of the impedance functions are placed in the left half plane or at the origin of s-plane, the positive reality principle is satisfied and then circuit networks can be synthesized according to the impedance functions. The impedance functions satisfy the three basic properties. In addition, there exist no oscillation phenomena in the valid frequency range. The impedance function calculated by the algorithm is with high order-stability characteristic.

    Figure  4.  Frequency-domain characteristics for different operational orders with k=5 and δ=0.5: (a) amplitude-frequency characteristic; (b) F-frequency characteristic; (c) order-frequency characteristic; (d) phase-frequency characteristic.

    In order to show the degree of approximation of the impedance function calculated by the AHOSCWAFB to the irrational function of the ideal fractor, the relative error functions are introduced to make approximation error analysis, as defined below:

    rMk(ϖ)=1Mk(ϖ)/μ
    (31)
    rΘk(ϖ)=12Θk(ϖ)/(πμ)
    (32)

    where rMk(ϖ) and rΘk(ϖ) denote the relative error functions of the order- and phase- frequency characteristics, respectively. Plots of relative errors of the frequency-domain characteristics in Fig. 4, are shown in Fig. 5. In the valid approximation frequency range, the relative errors are equal to zero, which also shows that the high order-stability characteristic of the AHOSCWAFB.

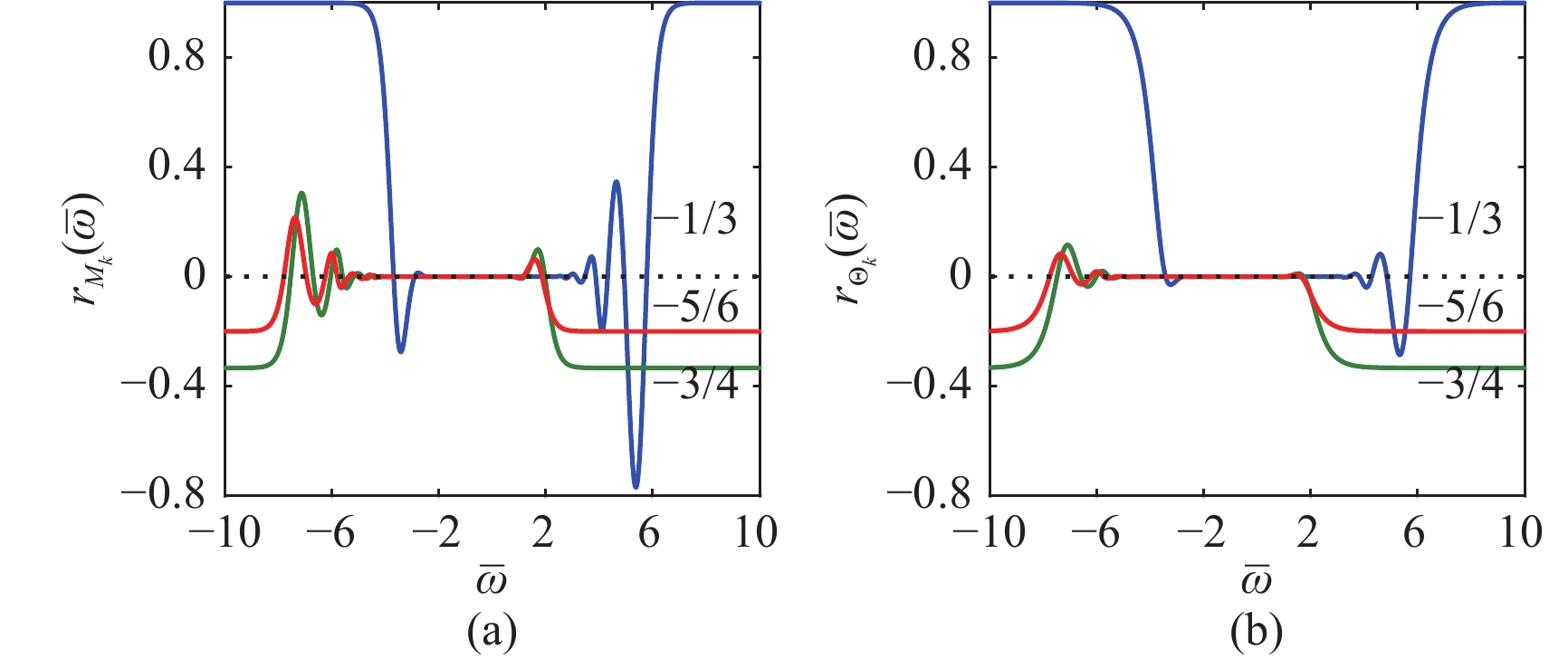

    Figure  5.  Relative errors of frequency-domain characteristics for different operational orders with k=5 and δ=0.5: (a) order-frequency characteristic; (b) phase-frequency characteristic.

    In addition, a brief analysis is made of the high order-stability characteristic of the AHOSCWAFB. We know the impedance function can be expressed in the form of zeros and poles, that is

    Zk(s)=r+ls+1cs+iszispi
    (33)

    where r,l, and c denote a resistance, an inductance, and a capacitance, respectively. zi and pi represents the ith zero and pole of the impedance function, respectively. A certain impedance function may vary and some items may be omitted. Generally, zeros and poles are negative real numbers or in the original point for most of FACs. While for the impedance function calculated by the AHOSCWAFB, there exist conjugate zeros and poles.

    A system with the impedance function can be divided into a series of subsystems based on (33). Taking μ=m/n=2/3 with the initial impedance Z0(s)=1/s as an example, the frequency-domain characteristics of each subsystem and the entire system are shown in Fig. 6. The bold black curve represents the frequency-domain characteristics of the entire system and the others represent those of each subsystem. The oscillation amplitude of the AHOSCWAFB is equal to 0, which shows the AHOSCWAFB is with the high order-stability characteristic.

    Figure  6.  Frequency-domain characteristics of the entire system and each subsystem with μ=2/3 and k=3: (a) order-frequency characteristic; (b) phase-frequency characteristic.

    2) Wider Approximation Frequency Bandwidth: Approximation frequency bandwidth B of an impedance function Zk(s) increases with the increase of value of k, as shown in Fig. 7. Ideally, as k tends to infinity, the impedance function Zk(s) can converge to the irrational function of fractor I(μ)(s) in the entire frequency range.

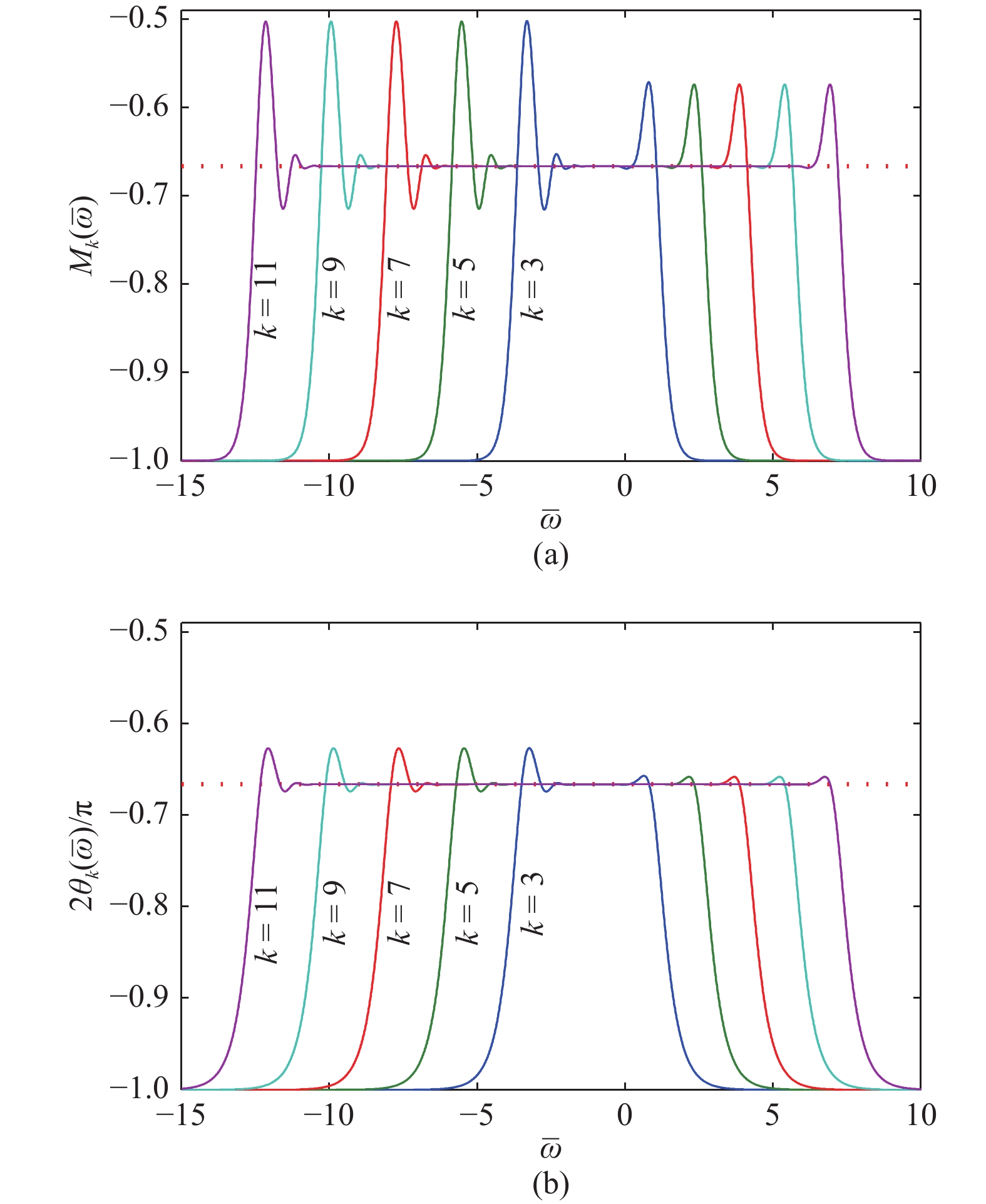

    Figure  7.  Frequency-domain characteristics for different values of k with μ=2/3 and Z0(s)=1/s: (a) order-frequency characteristic; (b) phase-frequency characteristic.

    The valid approximation frequency bandwidth B of an impedance function approximating to that of the ideal fractor is approximately equal to

    Bk×κ(n,δ)
    (34)

    where κ(n,δ) is the approaching rate which describes how the valid approximation frequency bandwidth changes over the number of iterations k and can be expressed as

    κ(n,δ)={nlg(n+1n1)2δ21δ2,1<δ<1,nlgnn1,δ=±1,n2,2nlgnn1,δ=±1,n=2.
    (35)

    The approaching rate is determined by both the predistortion exponent and n. For the same value of n, even for different operational orders, approaching rates are identical according to (35). The approaching rate tends towards 4lge as n approaches infinity. Therefore, considering different operational orders and the value of the predistortion exponent in the range |δ|<1, the approaching rates are portrayed in Fig. 8. As can be seen from this figure, when the predistortion exponent is equal to zero, the approaching rate is the smallest for every operational order. The value of the approaching rate increases as the absolute value of the predistortion exponent is increased. When the operational order and the value of k are chosen, the approximation frequency bandwidth increases with the increase of the absolute value of the predistortion exponent. When the predistortion exponent is equal to zero, the approximation frequency bandwidth is the smallest. This conclusion also explains why the impedance function calculated by the AHOSCWAFB is with wider approximation frequency bandwidth.

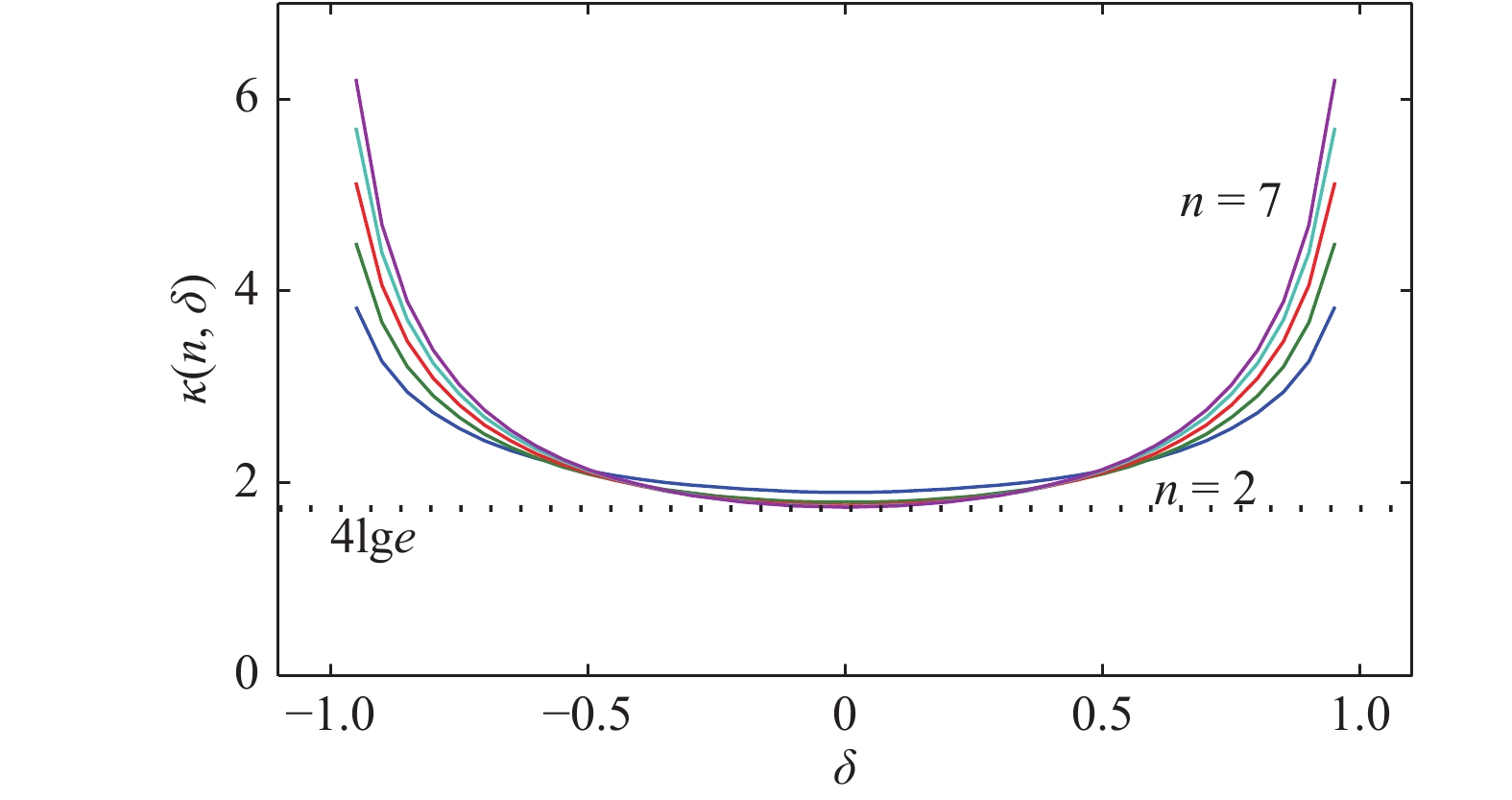

    Figure  8.  Approaching rates for different operational orders

    With the operational order μ=m/n=2/3 as an example, the frequency-domain characteristics of impedance functions for different predistortion exponents are depicted in Fig. 9, seeing the solid lines. The dotted lines typify the frequency-domain characteristics of the ideal fractor s2/3. Although there exist operational oscillation phenomena out of band when the predistortion exponent δ is not equal to 0, the approximation frequency bandwidths are wider, compared with the case of δ=0. According to the aforementioned discussion, we have already known that the iterating function FH(x) is not globally regular when the predistortion exponent δ is not equal to zero. The non-global regularity is the main reason why there exist operational oscillation phenomena out of band in frequency-domain characteristics.

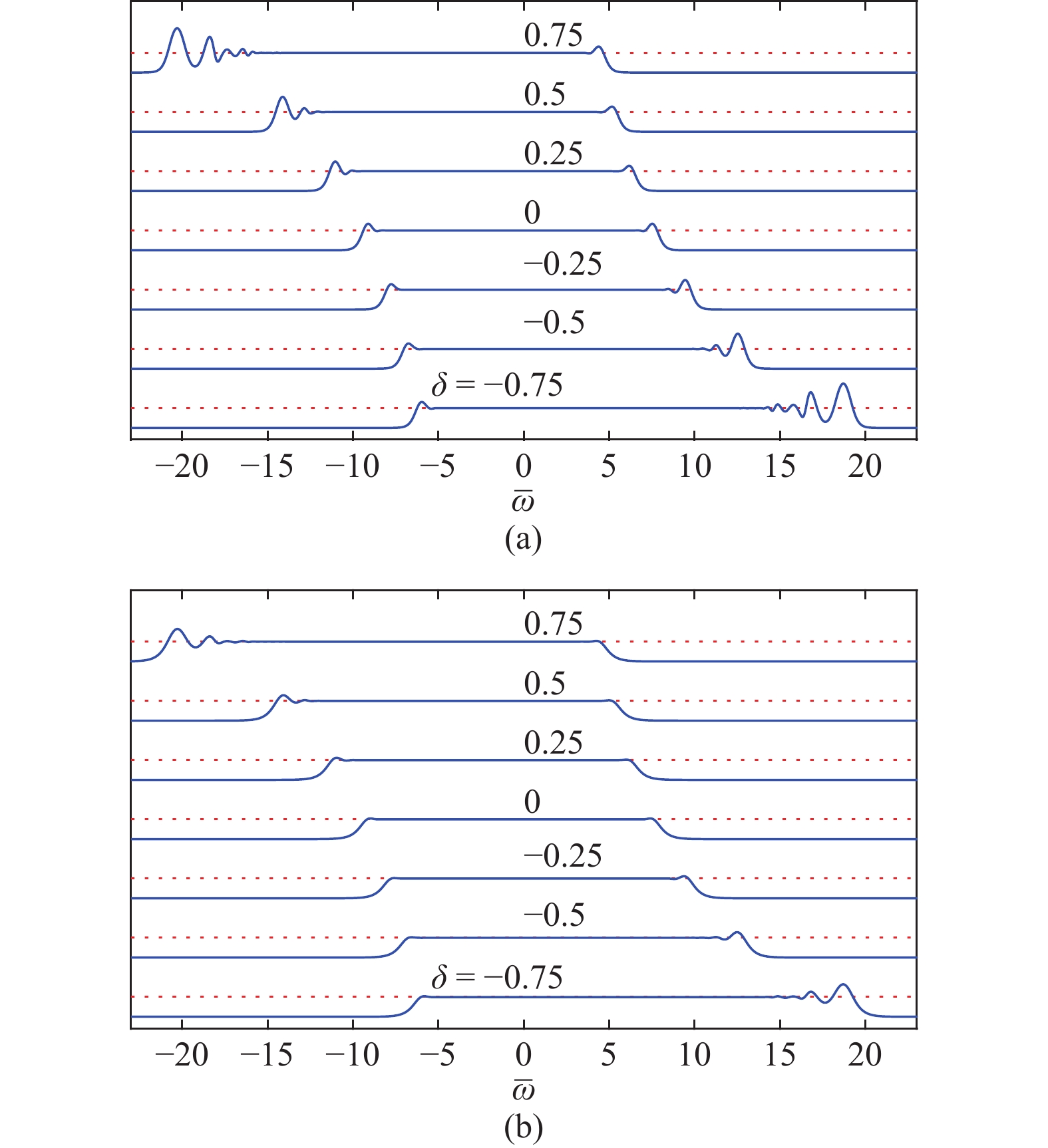

    Figure  9.  Frequency-domain characteristics for different predistortion exponents with μ=2/3, k=10, and Z0(s)=1/s: (a) order-frequency characteristic; (b) phase-frequency characteristic.

    Approaching rates of impedance functions with different predistortion exponents are included in Table II. Subscripts O and P correspond to the order- and phase-frequency characteristics, respectively. It is really that the approximation frequency bandwidth increases with the increase of the absolute value of the predistortion exponent.

    Table  II.  Approaching Rates of Impedance Functions With μ=2/3, Z0(s)=1/s and Different Predistortion Exponents
    δ0.750.50.2500.250.50.75
    κ(n,δ)2.68582.09691.86971.80621.86972.09692.6858
    κO(n,δ)2.68572.09691.86981.80621.86972.09702.6857
    κP(n,δ)2.68582.09691.86971.80621.86982.09692.6859
     | Show Table
    DownLoad: CSV

    Considering two different predistortion exponents δ=0.4 and δ=0.8, approaching rates of impedance functions with different operational orders are listed in Tables III and IV, respectively.

    Table  III.  Approaching Rates of Impedance Functions With δ=0.4 and Different Operational Orders
    μ1/21/32/31/43/41/54/5
    κ(n,0)1.90851.80621.80621.77481.77481.76091.7609
    κ(n,δ)2.04431.98021.98021.97461.97461.97931.9793
    κO(n,δ)2.04441.98031.98021.97461.97471.97931.9794
    κP(n,δ)2.04441.98011.98011.97461.97461.97931.9794
     | Show Table
    DownLoad: CSV
    Table  IV.  Approaching Rates of Impedance Functions With δ=0.8 and Different Operational Orders
    μ1/21/32/31/43/41/54/5
    κ(n,0)1.90851.80621.80621.77481.77481.76091.7609
    κ(n,δ)2.73182.91012.91013.09463.09463.25263.2526
    κO(n,δ)2.73172.91012.90983.09473.09453.25233.2527
    κP(n,δ)2.73172.91002.91013.09473.09463.25283.2526
     | Show Table
    DownLoad: CSV

    As can be seen from these tables, approaching rates are the same as the theoretical values according to (35). Given a predistortion exponent, approaching rates are identical for the same value of n, even for different operational orders. As we have discussed, the plot of the normalized exponential function with δ can be obtained through the plot of the normalized exponential function with δ rotated 180 degrees. Therefore, the approaching rate with the predistortion exponent δ is equal to the approaching rate with the opposite of this predistortion exponent, namely, κ(n,δ)=κ(n,δ). For the same operational order and values of the predistortion exponent δ in the range 0<|δ|<1, the approaching rate is greater than κ(n,0) and is getting larger and larger with the increase of the predistortion exponent. That is to say, the greater the absolute value of the predistortion exponent δ whose value in the range 0<|δ|<1, the wider the approximation frequency bandwidth.

    Comparisons about approximation performance between the AHOSCWAFB and other types of FACs are made in this section.

    The scaling fractal-ladder FACs (SFLFACs) and the scaling fractal-chuan FACs (SFCFACs) can achieve the rational approximation of fractances of arbitrary order and the corresponding optimized circuits have been discussed in, [40]. Another optimization method of SFCFACs has been proposed by Adhikary in [39]. The corresponding circuit is denoted by SFCFACs_A. The classical negative-half-order lattice-type FAC, denoted by LATTICE, also can realize the rational approximation of fractances of arbitrary order after making scaling extension [36], [37]. The Oustaloup algorithm, a matching algorithm of recursive distribution of zeros and poles, also can realize the rational approximation of fractances of arbitrary-order [41], [48], [49].

    Considering the roughly same approximation frequency bandwidth, the frequency-domain characteristics for different FACs are depicted in Fig. 10. Results of comparisons of approximation performance are summarized in Table V. In the valid approximation frequency range, the oscillation amplitudes of the frequency-domain characteristics obtained by other FACs are not equal to zero and there exist operational oscillation phenomena in band, whereas the frequency-domain characteristics of the impedance function calculated by the AHOSCWAFB are smooth and consistent with those of the irrational function of the ideal fractor and the oscillation amplitude is equal to zero. In addition, the F-frequency characteristic is a fixed value in the valid approximation frequency range, which makes the AHOSCWAFB more suitable for applications with high-order stability.

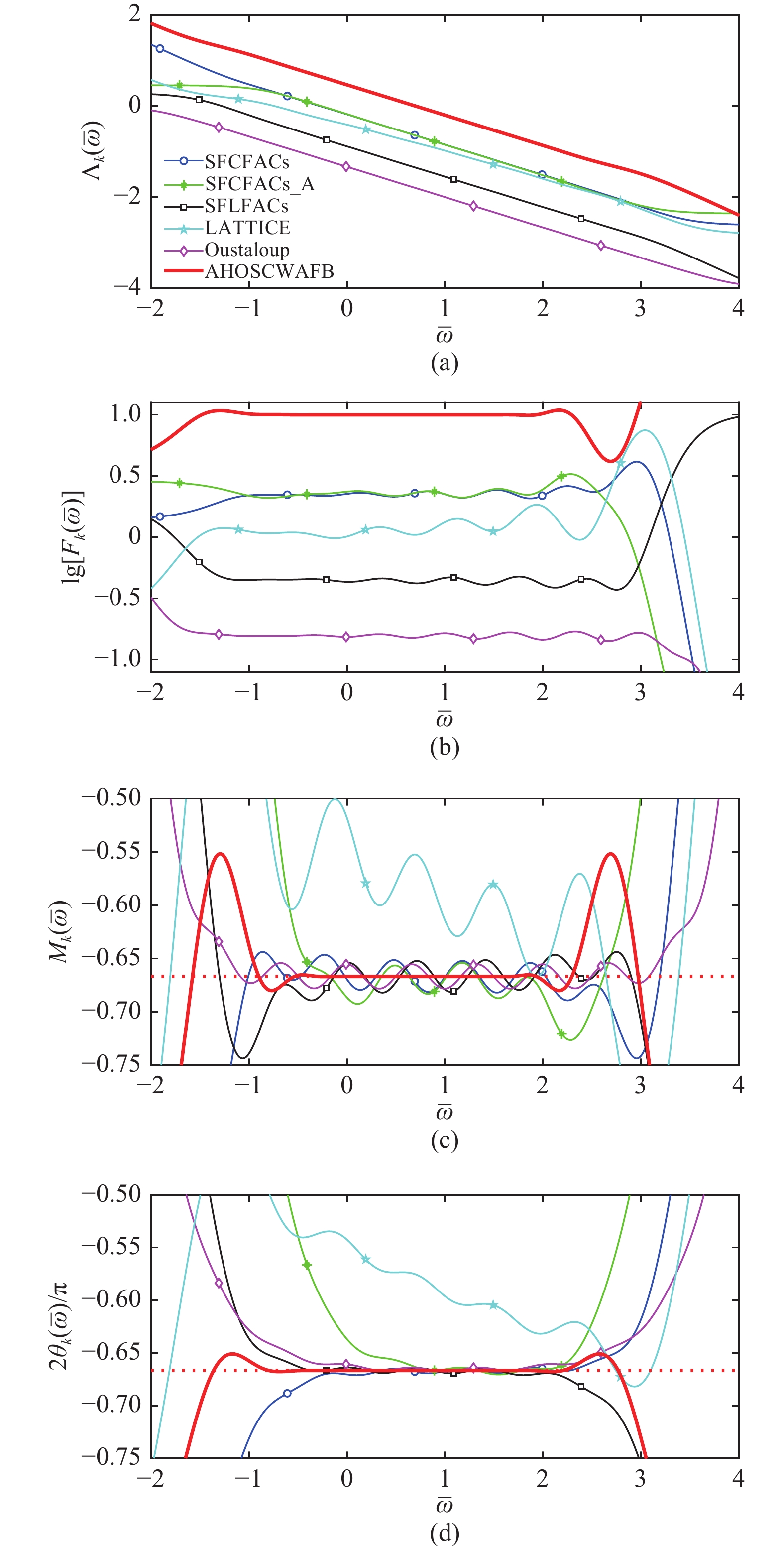

    Figure  10.  Approximation performance comparisons with the scaling factor equal to 1/5 for other FACs and the Oustaloup algorithm: (a) amplitude-frequency characteristic; (b) F-frequency characteristic; (c) order-frequency characteristic; (d) phase-frequency characteristic.
    Table  V.  Approximation Performance Comparison
    TypeBandwidth (orders of magnitude)Oscillation amplitudeComplexity of circuit
    Order-frequencyPhase-frequencyOrder-frequencyPhase-frequency
    SFCFACs2.852.160.01220.00317
    SFCFACs_A2.521.480.02560.00376
    SFLFACs2.842.150.0120.00307
    LATTICE1.980.510.09660.01516
    Oustaloup3.352.000.01270.00299
    AHOSCWAFB2.412.380022
     | Show Table
    DownLoad: CSV

    The highest power of the impedance function means the complexity of a circuit. The highest power of the impedance function Z3(s) acquired by the AHOSCWAFB is 22, while that of the impedance function obtained by the Oustaloup algorithm equals 9. The stages of SFLFACs, SFCFACs, SFCFACs_A, and LATTICE are equal to 7, 7, 6, and 6, respectively. Therefore, the complexity of circuit designed by the AHOSCWAFB is larger, compared with other FACs.

    For other FACs, oscillation phenomena of frequency-domain characteristics are inherent properties. Although the oscillation amplitude can be reduced by adjusting circuit parameters, the oscillation phenomena do not disappear and the circuit stage is increased. Despite the complexity of circuit is comparatively high, the excellent approximation performance shows that the AHOSCWAFB is also a good direction of the research.

    In this section, the aim is to design the FAC to provide the impedance function obtained through the AHOSCWAFB. This kind of circuit is called the FAC with high order-stability characteristic and wider approximation frequency bandwidth (FACHOSCWAFB).

    Given a certain operational order μ=m/n and choosing an appropriate initial impedance function, the impedance function can be calculated using (13). By using the partial fraction expansion, the impedance function can be rewritten in the following form:

    Zk(s)=dki=0ris+pi
    (36)

    where pi denotes the pole of the impedance function and ri represents the residue of the corresponding pole. Therefore, the impedance function can be realized with commercially available circuit elements.

    Take the operational order μ=2/3 with the predistortion exponent δ=0 and Z0(s)=1/s as an example. According to (13), the impedance function Zk(s) after iterating 2 times is

    Z2(s)=4s5+42s4+92s3+80s2+24s+1s6+24s5+80s4+92s3+42s2+4s.
    (37)

    Partial fraction expansion applied to (37) leads to the following relationship:

    Z2(s)=2.5918s+20.2726+0.75s+2+0.0788s+0.2112s2+1.6008s+0.7790+0.3294s+0.1267+0.25s.
    (38)

    For the first term on the right-hand side of (38), it can be realized with the 1/2.5918-F capacitor in parallel with the 2.5918/20.2726-Ω resistor. The second and fourth terms can be achieved in the same way. The third term can be obtained with a capacitor, a resistor and a series combination of an inductor and a resistor in parallel. The last term is a capacitor. All these terms are in series.

    If we use the calculation results in (38) as values of the used circuit elements directly, the approximation frequency is too small to measure. It is possible to measure circuit characteristics with resistance of each resistor magnified 105 times and capacitance of each capacitor reduced 1010 times. Such modifications shift the approximation frequency to high frequency with five orders of magnitude. However, the modifications make the lumped characteristics quantity too large and the current flowing through the circuit too weak to measure. A viable solution for this problem is that the impedance function is multiplied by a coefficient 1/70 without changing the order-frequency and phase-frequency characteristics. Such alterations make the amplitude of this impedance function be decreased 70 times. Therefore, the ultimate circuit parameters are displayed in Fig. 11.

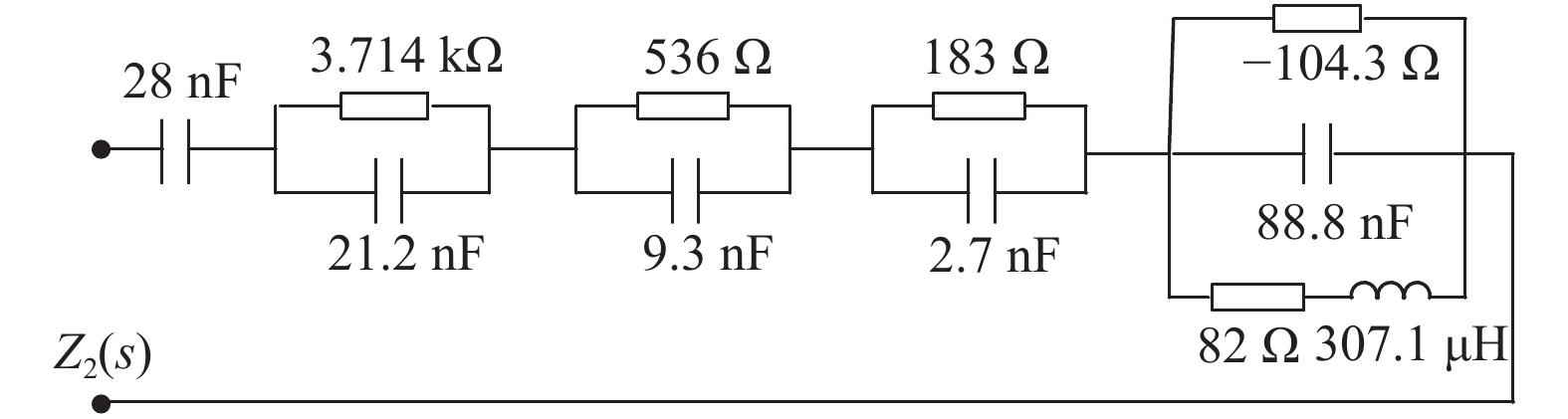

    Figure  11.  FACHOSCWAFB with μ=2/3.

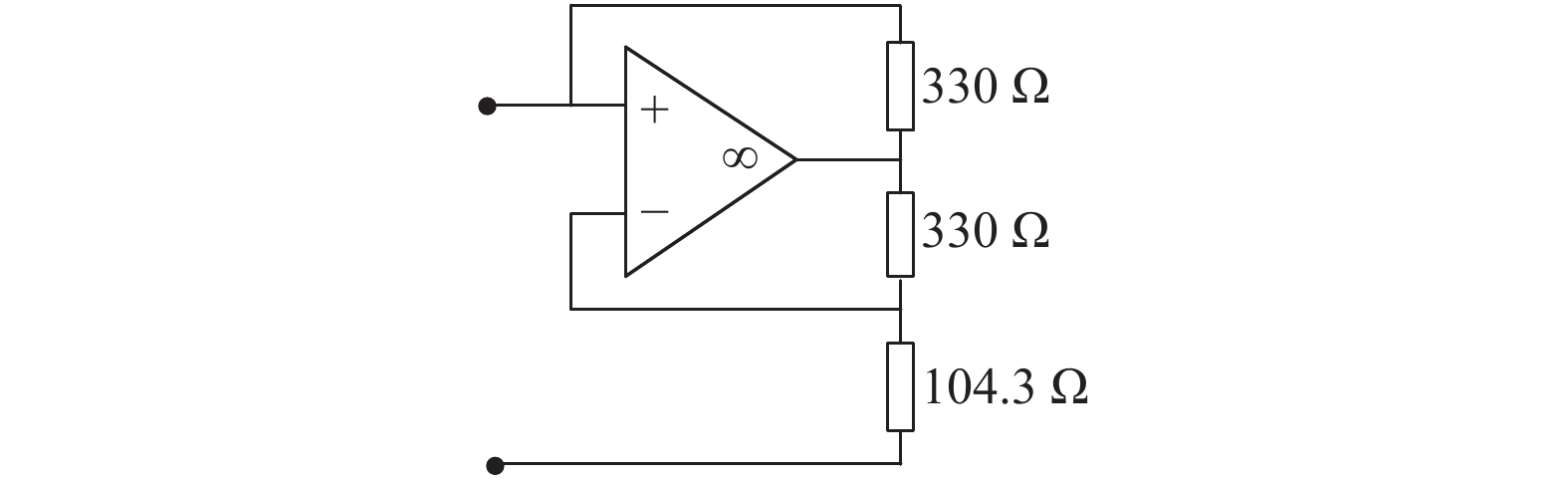

    The negative resistor in the FACHOSCWAFB is realized by the negative impedance converter shown in Fig. 12.

    Figure  12.  Negative impedance converter.

    These elements in Fig. 11 can be realized with resistors, capacitors, and active elements. All these circuit elements can be purchased at the market. The type of the operational amplifier used above is OP37. The practical testing system is represented in Fig. 13. The types of the signal generator, the oscilloscope, the current probe, and the current amplifier used in this experiment are NDY EE16330, Tektronix TDS 1012C-EDU, TCP312A, and TCPA300, respectively.

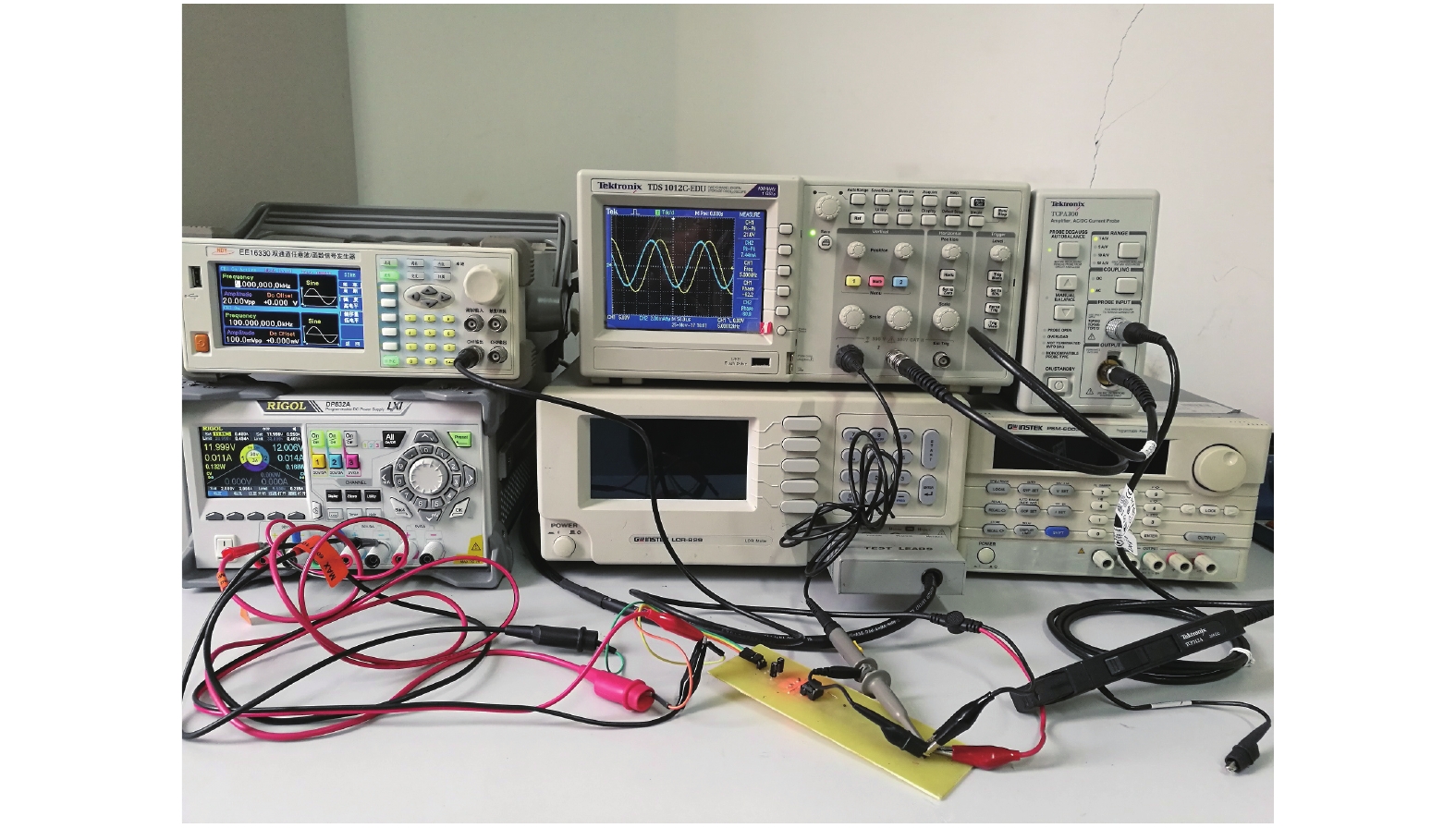

    Figure  13.  Testing system.

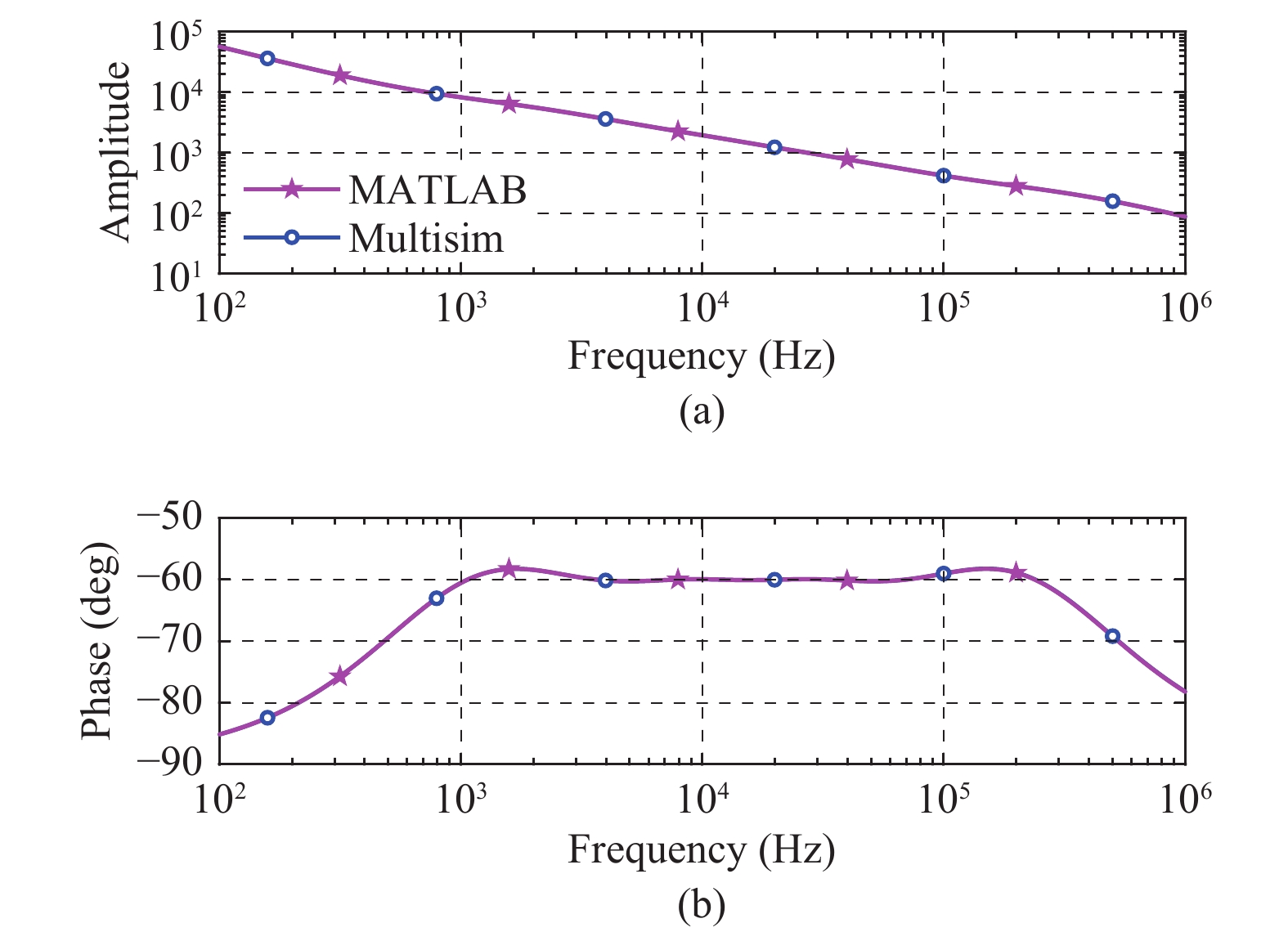

    Amplitude and phase spectra of the above FACHOSCWAFB through simulation by the Multisim are pictured in Fig. 14 and in accordance with those of the modified impedance function simulated by the MATLAB. As can be seen from this figure, the modified impedance function can approximate to the fractance of 2/3-order and the FACHOSCWAFB can be viewed as the approximate realization of the ideal fractor of 2/3-order in a certain frequency range.

    Figure  14.  Frequency spectrums of the FACHOSCWAFB: (a) amplitude spectrum; (b) phase spectrum.

    The input voltage U(s) and current I(s) are referred to as the Laplace transformations of time-domain voltage and current signals, respectively. Therefore, the relationship between the input voltage and current can be represented as follows:

    I(s)=U(s)Zk(s)U(s)F(μ)s(μ).
    (39)

    The input current can be viewed as the μ-order integration of the input voltage when the operational order is positive. Conversely, when the operational order is negative, the input current can be regarded as the μ-order differentiation of the input voltage. Fig. 15 shows the input current when applying a triangular-wave voltage of 21 V peak-to-peak and 6 kHz frequency as the input of the above FACHOSCWAFB of 2/3-order. As we can see, the input current is the 2/3-order differentiation of the input voltage. The practical testing results are in accordance with the simulation results obtained by the Multisim. When the rectangular- and sin-wave voltages are used as the input, respectively, the input current can be obtained in a similar way. The input current can also be viewed as the 2/3-order differentiation of the input voltage. The practical testing results are the same as those of simulation, shown in Figs. 16 and 17.

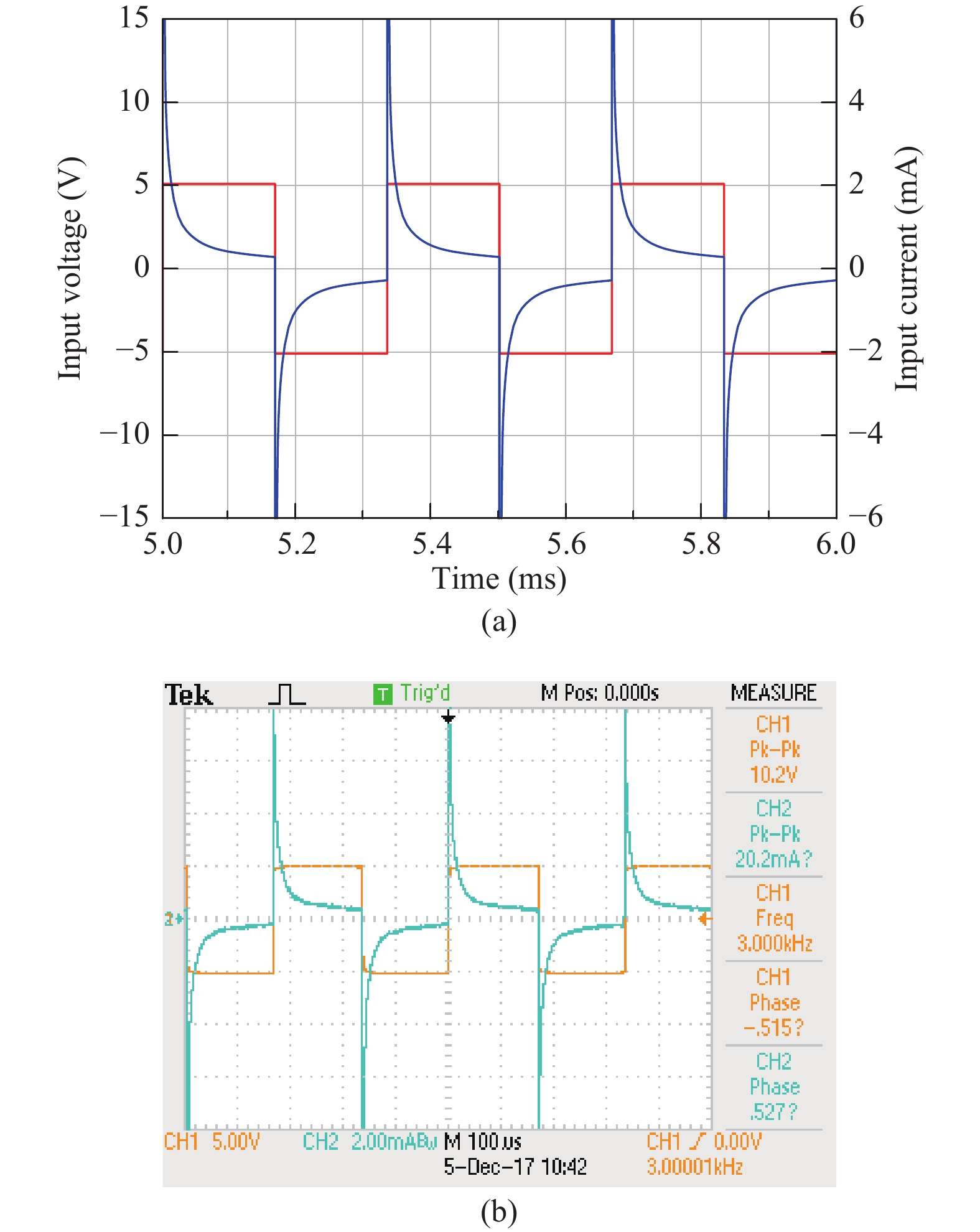

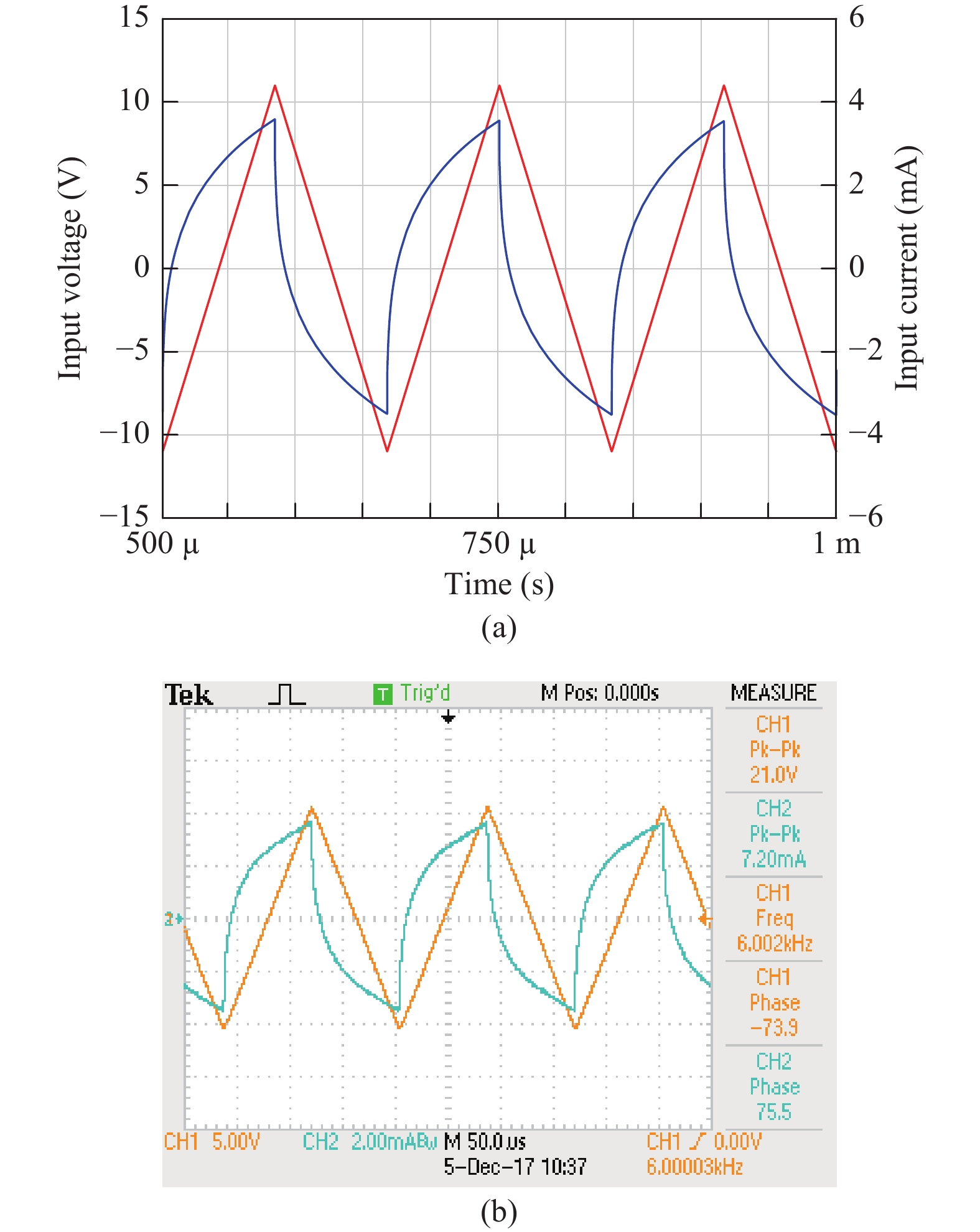

    Figure  15.  Experimental results with the triangular-wave voltage of 21 V peak-to-peak and 6 kHz frequency as the input: (a) simulation results of Multisim; (b) practical testing results.
    Figure  16.  Experimental results with the rectangular-wave voltage of 10.2 V peak-to-peak and 3 kHz frequency as the input: (a) simulation results of Multisim; (b) practical testing results.

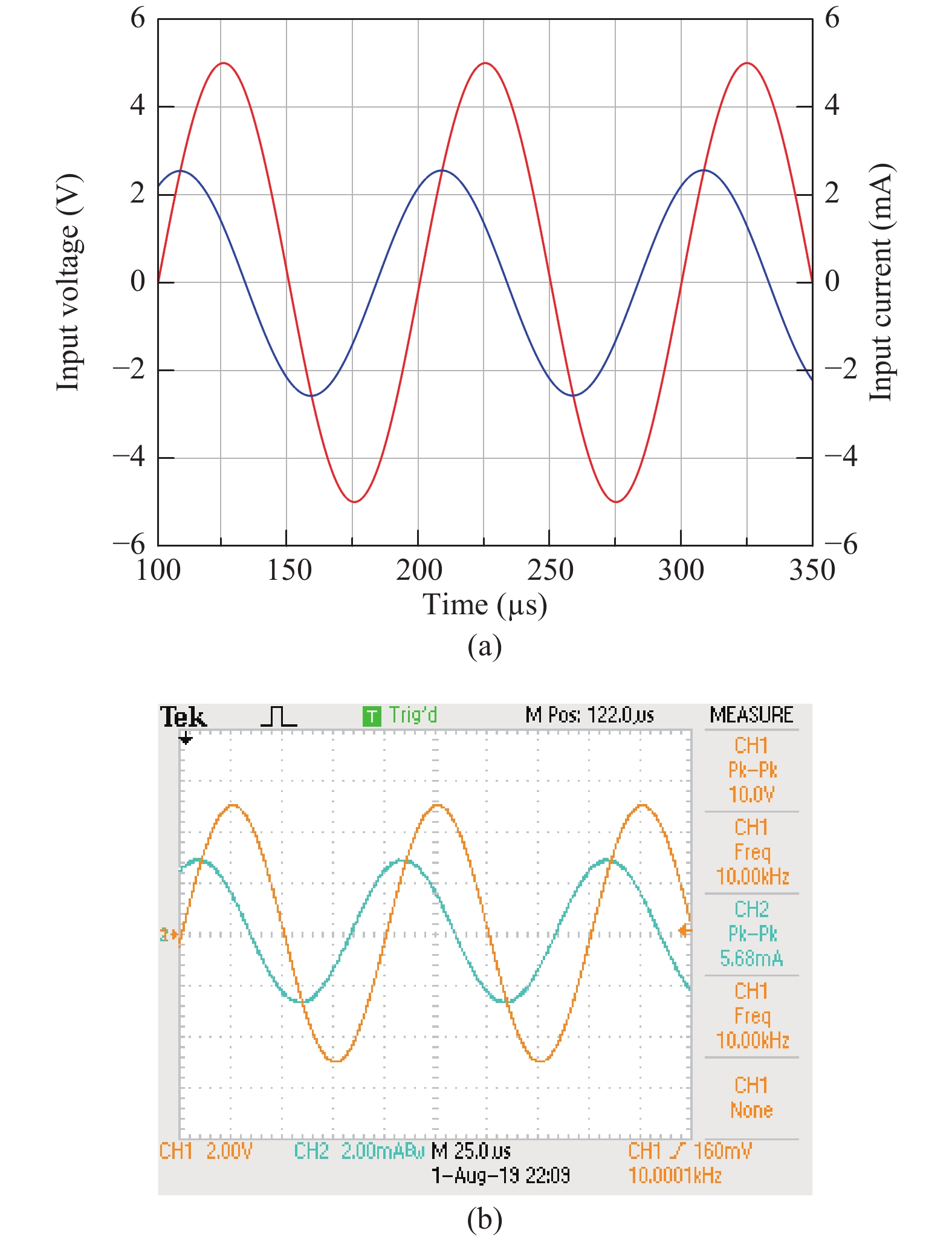

    Figure  17.  Experimental results with the sin-wave voltage of 10 V peak-to-peak and 10 kHz frequency as the input: (a) simulation results of Multisim; (b) practical testing results.

    The AHOSCWAFB is researched in detail in this paper. The predistortion exponent is not limited to be zero and has a value between –1 and 1. The AHOSCWAFB not only realizes the rational approximation of fractances with values of the operational order in the range 0<|μ|<1, but also obtain high order-stability characteristic and wider approximation frequency bandwidth. Approximation performance comparisons show that in the valid approximation frequency range there is no oscillation phenomenon in the frequency-domain characteristics of the impedance function calculated by the AHOSCWAFB. In addition, the approximation frequency bandwidth increases with the increase of the absolute value of the predistortion exponent. The design flow of the FACHOSCWAFB has also been described. As an example, a practical FACHOSCWAFB is designed and testified with electronic elements available on the market. Although operational amplifiers may be used, the FACHOSCWAFB shows excellent approximation performance and provides an alternative fractor in the future research.

  • [1]
    Y. Su and Y. Wang, “Parameter estimation for fractional diffusion process with discrete observations,” J. Function Spaces, 2019. doi: 10.1155/2019/9036285
    [2]
    W. Hamrouni and A. Abdennadher, “Random walk’s models for fractional diffusion equation,” Discrete and Continuous Dynamical Systems - Series B, vol. 21, no. 8, pp. 2509–2530, 2017.
    [3]
    G. C. Wu, D. Baleanu, Z. G. Deng, and S. D. Zeng, “Lattice fractional diffusion equation in terms of a rieszcaputo difference,” Physica A Statistical Mechanics and Its Applications, vol. 438, pp. 335–339, 2015. doi: 10.1016/j.physa.2015.06.024
    [4]
    G. Karamali, M. Dehghan, and M. Abbaszadeh, “Numerical solution of a time-fractional PDE in the electroanalytical chemistry by a local meshless method,” Engineering with Computers, vol. 35, no. 1, pp. 87–100, 2019. doi: 10.1007/s00366-018-0585-7
    [5]
    K. B. Oldham, “Interrelation of current and concentration at electrodes,” J. Applied Electrochemistry, vol. 21, no. 12, pp. 1068–1072, 1991. doi: 10.1007/BF01041448
    [6]
    C. Wu and W. Rui, “Method of separation variables combined with homogenous balanced principle for searching exact solutions of nonlinear time-fractional biological population model,” Communications in Nonlinear Science and Numerical Simulation, vol. 63, pp. 88–100, 2018. doi: 10.1016/j.cnsns.2018.03.009
    [7]
    D. Craiem and R. L. Magin, “Fractional order models of viscoelasticity as an alternative in the analysis of red blood cell (RBC) membrane mechanics,” Physical Biology, vol. 7, no. 1, pp. 13001, 2010. doi: 10.1088/1478-3975/7/1/013001
    [8]
    C. Izaguirre-Espinosa, A.-J. Muñoz-Vázquez, A. Sánchez-Orta, V. Parra-Vega, and I. Fantoni, “Fractional-order control for robust position/yaw tracking of quadrotors with experiments,” IEEE Trans. Control Systems Technology, vol. 27, no. 4, pp. 1645–1650, 2019. doi: 10.1109/TCST.2018.2831175
    [9]
    M. Shahvali, M.-B. Naghibi-Sistani, and H. Modares, “Distributed consensus control for a network of incommensurate fractional-order systems,” IEEE Control Systems Letters, vol. 3, no. 2, pp. 481–486, 2019. doi: 10.1109/LCSYS.2019.2903227
    [10]
    A. Chevalier, C. Francis, C. Copot, C. M. Ionescu, and R. De Keyser, “Fractional-order PID design: Towards trans. from state-of-art to state-of-use,” ISA Trans., vol. 84, pp. 178–186, 2019. doi: 10.1016/j.isatra.2018.09.017
    [11]
    R. De Keyser, C. I. Muresan, and C. M. Ionescu, “An efficient algorithm for low-order direct discrete-time implementation of fractional order transfer functions,” ISA Trans., vol. 74, pp. 229–238, 2018. doi: 10.1016/j.isatra.2018.01.026
    [12]
    R. De Keyser, C. I. Muresan, and C. M. Ionescu, “A novel auto-tuning method for fractional order PI/PD controllers,” ISA Trans., vol. 62, pp. 268–275, 2016. doi: 10.1016/j.isatra.2016.01.021
    [13]
    R. D. Keyser and C. I. Muresan, “Analysis of a new continuous-todiscrete-time operator for the approximation of fractional order systems,” in Proc. IEEE Int. Conf. Systems, Man, and Cybernetics, 2016, pp. 3211–3216.
    [14]
    L. Liu, S. Tian, D. Xue, T. Zhang, and Y. Chen, “Continuous fractional-order zero phase error tracking control,” ISA Trans., vol. 75, pp. 226–235, 2018. doi: 10.1016/j.isatra.2018.01.025
    [15]
    W. Zheng, Y. Luo, X. Wang, Y. Pi, and Y. Chen, “Fractional order PIλDμ controller design for satisfying time and frequency domain specifications simultaneously,” ISA Trans., vol. 68, pp. 212–222, 2017. doi: 10.1016/j.isatra.2017.02.016
    [16]
    A. Tepljakov, E. A. Gonzalez, E. Petlenkov, J. Belikov, C. A. Monje, and I. Petráš, “Incorporation of fractional-order dynamics into an existing PI/PID DC motor control loop,” ISA Trans., vol. 60, pp. 262–273, 2016. doi: 10.1016/j.isatra.2015.11.012
    [17]
    I. Dimeas, I. Petráš, and C. Psychalinos, “New analog implementation technique for fractional-order controller: a DC motor control,” AEÜ Int. J. Electronics and Communications, vol. 78, pp. 192–200, 2017. doi: 10.1016/j.aeue.2017.03.010
    [18]
    A. Oustaloup, F. Levron, B. Mathieu, and F. M. Nanot, “Frequencyband complex noninteger differentiator: Characterization and synthesis,” IEEE Trans. Circuits and Systems I:Fundamental Theory and Applications, vol. 47, no. 1, pp. 25–39, 2000. doi: 10.1109/81.817385
    [19]
    Y. Luo and Y. Chen, “Fractional order [proportional derivative] controller for a class of fractional order systems,” Automatica, vol. 45, no. 10, pp. 2446–2450, 2009. doi: 10.1016/j.automatica.2009.06.022
    [20]
    G. Fedele, “A fractional-order repetitive controller for periodic disturbance rejection,” IEEE Trans. Automatic Control, vol. 63, no. 5, pp. 1426–1433, 2018. doi: 10.1109/TAC.2017.2748346
    [21]
    O. Atan, “Implementation and simulation of fractional order chaotic circuits with time-delay,” Analog Integrated Circuits and Signal Processing, vol. 96, no. 3, pp. 485–494, 2018. doi: 10.1007/s10470-018-1189-2
    [22]
    T. C. Lin and T. Y. Lee, “Chaos synchronization of uncertain fractional-order chaotic systems with time delay based on adaptive fuzzy sliding mode control,” IEEE Trans. Fuzzy Systems, vol. 19, no. 4, pp. 623–635, 2011. doi: 10.1109/TFUZZ.2011.2127482
    [23]
    G. M. Mahmoud, T. M. Abed-Elhameed, and M. E. Ahmed, “Generalization of combination-combination synchronization of chaotic ndimensional fractional-order dynamical systems,” Nonlinear Dynamics, vol. 83, no. 4, pp. 1885–1893, 2016. doi: 10.1007/s11071-015-2453-y
    [24]
    H. Zhu, S. Zhou, and J. Zhang, “Chaos and synchronization of the fractional-order Chuas system,” Chaos Solitons and Fractals, vol. 26, no. 03, pp. 1595–1603, 2016.
    [25]
    S. Yang, J. Yu, C. Hu, and H. Jiang, “Quasi-projective synchronization of fractional-order complex-valued recurrent neural networks,” Neural Networks, vol. 104, pp. 104–113, 2018. doi: 10.1016/j.neunet.2018.04.007
    [26]
    G. Velmurugan and R. Rakkiyappan, “Hybrid projective synchronization of fractional-order memristor-based neural networks with time delays,” Nonlinear Dynamics, vol. 11, no. 3, pp. 1–14, 2015.
    [27]
    H. B. Bao and J. D. Cao, “Projective synchronization of fractional-order memristor-based neural networks,” Neural Networks the Official J. Int. Neural Network Society, vol. 63, pp. 1, 2015. doi: 10.1016/j.neunet.2014.10.007
    [28]
    R. Rakkiyappan, J. Cao, and G. Velmurugan, “Existence and uniform stability analysis of fractional-order complex-valued neural networks with time delays,” IEEE Trans. Neural Networks and Learning Systems, vol. 26, no. 1, pp. 84–97, 2015. doi: 10.1109/TNNLS.2014.2311099
    [29]
    Y. F. Pu, Z. Yi, and J. L. Zhou, “Fractional Hopfield neural networks: Fractional dynamic associative recurrent neural networks,” IEEE Trans. Neural Networks and Learning Systems, vol. 28, no. 10, pp. 2319–2333, 2017. doi: 10.1109/TNNLS.2016.2582512
    [30]
    Y. F. Pu, “Analog circuit realization of arbitrary-order fractional Hopfield neural networks: A novel application of fractor to defense against chip cloning attacks,” IEEE Access, vol. 4, no. 99, pp. 5417–5435, 2016.
    [31]
    G. S. Liang, Y. M. Jing, C. Liu, and L. Ma, “Passive synthesis of a class of fractional immittance function based on multivariable theory,” J. Circuits,Systems and Computers, vol. 27, no. 5, 2018. doi: 10.1142/S0218126618500743
    [32]
    A. Adhikary, S. Sen, and K. Biswas, “Practical realization of tunable fractional order parallel resonator and fractional order filters,” IEEE Trans. Circuits and Systems I:Regular Papers, vol. 63, no. 8, pp. 1142–1151, 2016. doi: 10.1109/TCSI.2016.2568262
    [33]
    S. L. Wu and M. Al-Khaleel, “Parameter optimization in waveform relaxation for fractional-order RC circuits,” IEEE Trans. Circuits and Systems I:Regular Papers, vol. 64, no. 7, pp. 1781–1790, 2017. doi: 10.1109/TCSI.2017.2682119
    [34]
    M. S. Sarafraz and M. S. Tavazoei, “Passive realization of fractionalorder impedances by a fractional element and RLC components: Conditions and procedure,” IEEE Trans. Circuits and Systems I Regular Papers, vol. 64, no. 3, pp. 585–595, 2017. doi: 10.1109/TCSI.2016.2614249
    [35]
    X. Yuan, Mathematical Principles of Fractance Approximation Circuits, Science Press, Beijing, 2015.
    [36]
    B. Yu, Q. Y. He, and X. Yuan, “Scaling fractal-lattice franctance approximation circuits of arbitrary order and irregular lattice type scaling equation,” Acta Physica Sinica, vol. 67, no. 7, 2018.
    [37]
    Y. F. Pu, X. Yuan, and B. Yu, “Analog circuit implementation of fractional-order memristor: Arbitrary-order lattice scaling fracmemristor,” IEEE Trans. Circuits and Systems I:Regular Papers, vol. 65, no. 9, pp. 2903–2916, 2018. doi: 10.1109/TCSI.2018.2789907
    [38]
    A. Charef, “Analogue realisation of fractional-order integrator, differentiator and fractional PIλDμ controller,” IEE Proceedings-Control Theory and Applications, vol. 153, no. 6, pp. 714–720, 2006. doi: 10.1049/ip-cta:20050019
    [39]
    A. Adhikary, P. Sen, S. Sen, and K. Biswas, “Design and performance study of dynamic fractors in any of the four quadrants,” Circuits Systems and Signal Processing, vol. 35, no. 6, pp. 1909–1932, 2016. doi: 10.1007/s00034-015-0213-3
    [40]
    Q. Y. He, Y. F. Pu, B. Yu, and X. Yuan, “Scaling fractal-chuan fractance approximation circuits of arbitrary order,” Circuits,Systems,and Signal Processing, vol. 38, no. 11, pp. 4933–4958, 2019.
    [41]
    A. Oustaloup, O. Cois, P. Lanusse, P. Melchior, X. Moreau, and J. Sabatier, “The crone aproach: Theoretical developments and major applications,” IFAC Proceedings Volumes, vol. 39, no. 11, pp. 324–354, 2006. doi: 10.3182/20060719-3-PT-4902.00059
    [42]
    G. Carlson and C. Halijak, “Approximation of fractional capacitors (1/s)1/n by a regular newton process,” IEEE Trans. Circuit Theory, vol. 11, no. 2, pp. 210–213, 1964. doi: 10.1109/TCT.1964.1082270
    [43]
    Q. Y. He and X. Yuan, “Carlson iteration and rational approximations of arbitrary order fractional calculus operator,” Acta Physica Sinica, vol. 65, no. 16, pp. 25–34, 2016.
    [44]
    Q. Y. He, B. Yu, and X. Yuan, “Carlson iterating rational approximation and performance analysis of fractional operator with arbitrary order,” Chin. Phys. B, vol. 26, no. 4, pp. 66–74, 2017.
    [45]
    K. Biswas, S. Sen, and P. K. Dutta, “Realization of a constant phase element and its performance study in a differentiator circuit,” IEEE Trans. Circuits and Systems II:Express Briefs, vol. 53, no. 9, pp. 802–806, 2006. doi: 10.1109/TCSII.2006.879102
    [46]
    D. Mondal and K. Biswas, “Performance study of fractional order integrator using single-component fractional order element,” IET Circuits Devices and Systems, vol. 5, no. 4, pp. 334–342, 2011. doi: 10.1049/iet-cds.2010.0366
    [47]
    B. Yu, Q. Y. He, X. Yuan, and L. X. Yang, “Approximation performance analyses and applications of F characteristics in fractance approximation circuit,” J. Sichuan University (Natural Science Edition), vol. 55, no. 2, pp. 301–306, 2018.
    [48]
    P. P. Liu, X. Yuan, L. Tao, and Z. Yi, “Operational characteristics and approximation performance analysis of oustaloup fractance circuits,” J. Sichuan University (Natural Science Edition), vol. 53, no. 2, 2016.
    [49]
    P. P. Liu and X. Yuan, “Approximation performance analysis of Oustaloup rational approximation of ideal fractance,” J. Sichuan University (Engineering Science Edition), no. s2, pp. 147–154, 2016.
  • Related Articles

    [1]Dingxin He, HaoPing Wang, Yang Tian, Yida Guo. A Fractional-Order Ultra-Local Model-Based Adaptive Neural Network Sliding Mode Control of n-DOF Upper-Limb Exoskeleton With Input Deadzone[J]. IEEE/CAA Journal of Automatica Sinica, 2024, 11(3): 760-781. doi: 10.1109/JAS.2023.123882
    [2]Majid Ghorbani, Mahsan Tavakoli-Kakhki, Aleksei Tepljakov, Eduard Petlenkov. Robust Stability Analysis of Smith Predictor Based Interval Fractional-Order Control Systems: A Case Study in Level Control Process[J]. IEEE/CAA Journal of Automatica Sinica, 2023, 10(3): 762-780. doi: 10.1109/JAS.2022.105986
    [3]Zhitao Li, Lixin Gao, Wenhai Chen, Yu Xu. Distributed Adaptive Cooperative Tracking of Uncertain Nonlinear Fractional-order Multi-agent Systems[J]. IEEE/CAA Journal of Automatica Sinica, 2020, 7(1): 292-300. doi: 10.1109/JAS.2019.1911858
    [4]Najeeb Alam Khan, Tooba Hameed. An Implementation of Haar Wavelet Based Method for Numerical Treatment of Time-fractional Schrodinger and Coupled Schrödinger Systems[J]. IEEE/CAA Journal of Automatica Sinica, 2019, 6(1): 177-187. doi: 10.1109/JAS.2016.7510193
    [5]Saliha Marir, Mohammed Chadli. Robust Admissibility and Stabilization of Uncertain Singular Fractional-Order Linear Time-Invariant Systems[J]. IEEE/CAA Journal of Automatica Sinica, 2019, 6(3): 685-692. doi: 10.1109/JAS.2019.1911480
    [6]Zhe Gao. Stable Model Order Reduction Method for Fractional-Order Systems Based on Unsymmetric Lanczos Algorithm[J]. IEEE/CAA Journal of Automatica Sinica, 2019, 6(2): 485-492. doi: 10.1109/JAS.2019.1911399
    [7]Dina Tavares, Ricardo Almeida, Delfim F. M. Torres. Constrained Fractional Variational Problems of Variable Order[J]. IEEE/CAA Journal of Automatica Sinica, 2017, 4(1): 80-88. doi: 10.1109/JAS.2017.7510331
    [8]Yang Zhao, Yan Li, Fengyu Zhou, Zhongkai Zhou, YangQuan Chen. An Iterative Learning Approach to Identify Fractional Order KiBaM Model[J]. IEEE/CAA Journal of Automatica Sinica, 2017, 4(2): 322-331. doi: 10.1109/JAS.2017.7510358
    [9]Qiang Xue, Haibin Duan. Robust Attitude Control for Reusable Launch Vehicles Based on Fractional Calculus and Pigeon-inspired Optimization[J]. IEEE/CAA Journal of Automatica Sinica, 2017, 4(1): 89-97.
    [10]Kai Chen, Junguo Lu, Chuang Li. The Ellipsoidal Invariant Set of Fractional Order Systems Subject to Actuator Saturation: The Convex Combination Form[J]. IEEE/CAA Journal of Automatica Sinica, 2016, 3(3): 311-319.
    [11]Mojtaba Naderi Soorki, Mohammad Saleh Tavazoei. Constrained Swarm Stabilization of Fractional Order Linear Time Invariant Swarm Systems[J]. IEEE/CAA Journal of Automatica Sinica, 2016, 3(3): 320-331.
    [12]YangQuan Chen, Dingyü Xue, Antonio Visioli. Guest Editorial for Special Issue on Fractional Order Systems and Controls[J]. IEEE/CAA Journal of Automatica Sinica, 2016, 3(3): 255-256.
    [13]Zeeshan Alam, Liguo Yuan, Qigui Yang. Chaos and Combination Synchronization of a New Fractional-order System with Two Stable Node-foci[J]. IEEE/CAA Journal of Automatica Sinica, 2016, 3(2): 157-164.
    [14]Xiaojuan Chen, Jun Zhang, Tiedong Ma. Parameter Estimation and Topology Identification of Uncertain General Fractional-order Complex Dynamical Networks with Time Delay[J]. IEEE/CAA Journal of Automatica Sinica, 2016, 3(3): 295-303.
    [15]Cuihong Wang, Huanhuan Li, YangQuan Chen. H Output Feedback Control of Linear Time-invariant Fractional-order Systems over Finite Frequency Range[J]. IEEE/CAA Journal of Automatica Sinica, 2016, 3(3): 304-310.
    [16]Bingsan Chen, Chunyu Li, Benjamin Wilson, Yijian Huang. Fractional Modeling and Analysis of Coupled MR Damping System[J]. IEEE/CAA Journal of Automatica Sinica, 2016, 3(3): 288-294.
    [17]Kecai Cao, YangQuan Chen, Daniel Stuart. A Fractional Micro-Macro Model for Crowds of Pedestrians Based on Fractional Mean Field Games[J]. IEEE/CAA Journal of Automatica Sinica, 2016, 3(3): 261-270.
    [18]Jiacai Huang, YangQuan Chen, Haibin Li, Xinxin Shi. Fractional Order Modeling of Human Operator Behavior with Second Order Controlled Plant and Experiment Research[J]. IEEE/CAA Journal of Automatica Sinica, 2016, 3(3): 271-280.
    [19]Bruce J. West, Malgorzata Turalska. The Fractional Landau Model[J]. IEEE/CAA Journal of Automatica Sinica, 2016, 3(3): 257-260.
    [20]Fudong Ge, YangQuan Chen, Chunhai Kou. Cyber-physical Systems as General Distributed Parameter Systems: Three Types of Fractional Order Models and Emerging Research Opportunities[J]. IEEE/CAA Journal of Automatica Sinica, 2015, 2(4): 353-357.

Catalog

    通讯作者: 陈斌, bchen63@163.com
    • 1.

      沈阳化工大学材料科学与工程学院 沈阳 110142

    1. 本站搜索
    2. 百度学术搜索
    3. 万方数据库搜索
    4. CNKI搜索

    Figures(17)  / Tables(5)

    Article Metrics

    Article views (1383) PDF downloads(54) Cited by()

    Highlights

    • Fractor is a burgeoning new circuit element with fractance (abbreviation of fractional-order impedance). The ideal fractor does not currently exist and its approximate physical realization is called a fractance approximation circuit. There are oscillation phenomena in the existing fractance approximation circuits. This paper discusses an improved rational approximation algorithm of arbitrary-order fractances, which has high order-stability characteristic and wider approximation frequency bandwidth.
    • Compared with the related algorithms, the predistortion exponent of this algorithm is not limited to be zero and has a value between -1 and 1. In order to better understand that why the algorithm is with high order-stability characteristic and wider approximation frequency bandwidth, features of the iterating function and frequency-domain characteristics of the impedance function calculated by this algorithm are researched in detail.
    • Approximation performance comparisons have been made between the corresponding circuit and other types of fractance approximation circuits. Moreover, a fractance approximation circuit with the impedance function of -2/3-order is designed to verify the practicality of the algorithm.

    /

    DownLoad:  Full-Size Img  PowerPoint
    Return
    Return
