A Method for Deploying the Minimal Number of UAV Base Stations in Cellular Networks

doi: 10.1109/JAS.2019.1911813

  • College of Information Science and Engineering, Northeastern University, Shenyang 110004, China

Funds:  This work was supported by the National Natural Science Foundation of China (61903076, 61773109) and Liaoning Revitalization Talents Program (XLYC1807009)
More Information
    Abstract
  • In this paper, we consider the scenario of using unmanned aerial vehicles base stations (UAV-BSs) to serve cellular users. In particular, we focus on finding the minimum number of UAV-BSs as well as their deployment. We propose an optimization model which minimizes the number of UAV-BSs and optimize their positions such that the user equipment (UE) covered ratio is no less than the expectation of network suppliers, the UEs receive acceptable downlink rates, and the UAV-BSs can work in a sustainable manner. We show the NP-hardness of this problem and then propose a method to address it. The method first estimates the range of the number of UAV-BSs and then converts the original problem to one which maximizes the UE served ratio, given the number of UAV-BSs within that range. We present a maximizing algorithm to solve it with the proof of convergence. Extensive simulations based on a realistic dataset have been conducted to demonstrate the effectiveness of the proposed method.



    • FullText(HTML)
  • loading
    • 1 A supplier defined constant.

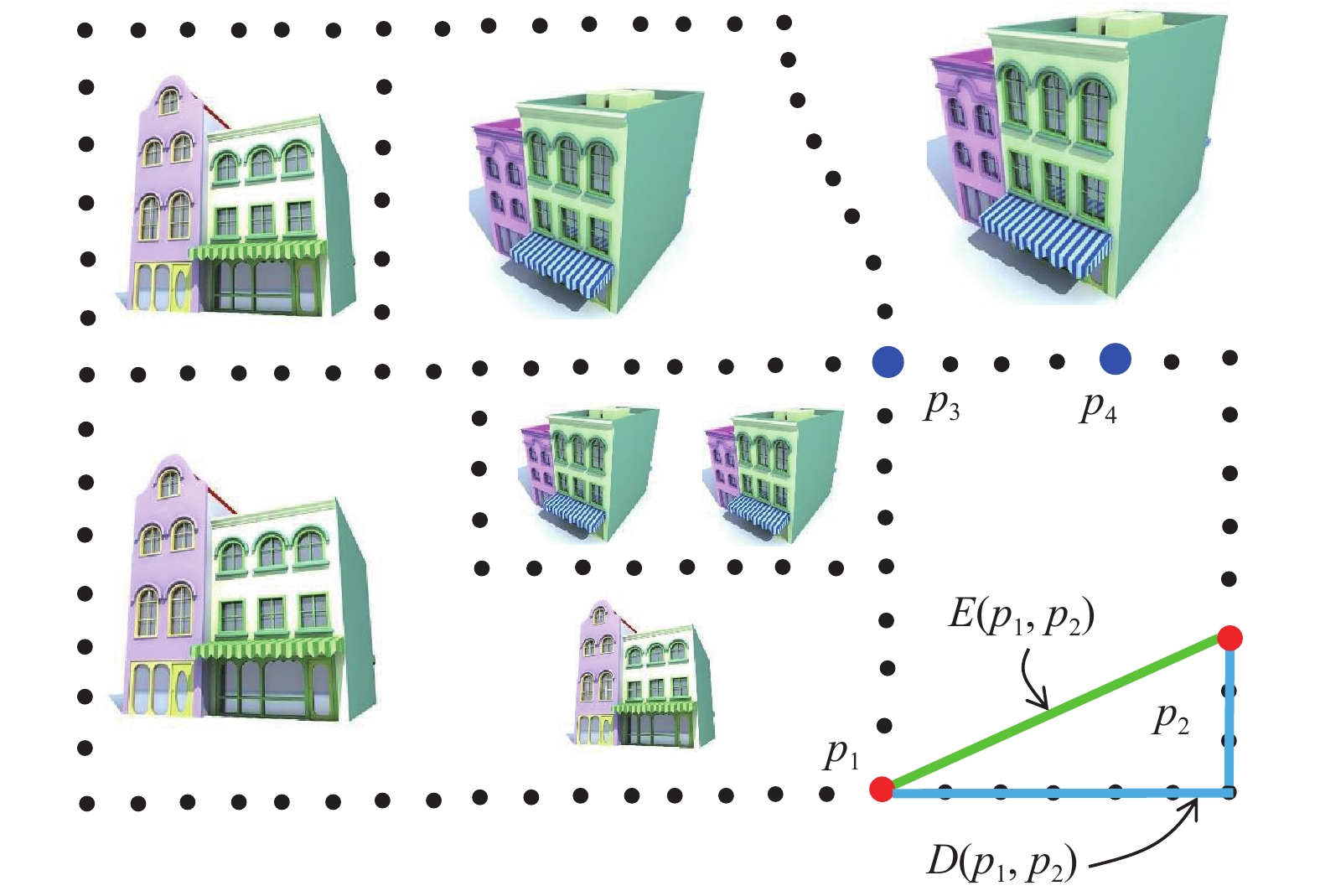

    2 The definition of vertex is provided in Fig. 1.
    3 It is worth noticing that the range of n shown in (5) is to cover M street points instead of $ \alpha $ percent of UEs in the area. Further, it is based on the Assumption 1, which does not always hold in practical street graphs. Thus, it is only a rough range. However, we claim that this rough estimation is still reasonable in our problem setting. Firstly, the lower and upper bounds are theoretical results and n is unlikely to take either of them. Secondly, in practice the network supplier may expect $ \alpha $ to be close to 100%, e.g., 98%, which does not influence the bounds significantly.
