Stabilization Parametric Region of Distributed PID Controllers for General First-Order Multi-Agent Systems With Time Delay

I. Introduction

IN recent years, the distributed cooperative control of multi-agent systems has attracted extensive attention due to their wide applications in many areas such as formation control [1], distributed computing [2] and sensor networks [3]. One critical issue arising from multi-agent systems is to design distributed control protocols based on local information that enable all agents to reach an agreement on certain quantities of interest, which is known as the consensus problem.

So far, increasing results of consensus problems for multi-agent systems have been obtained. In [4], the consensus problem of first-order integrator multi-agent system was discussed originally. The dynamical consensus algorithm for the second-order multi-agent system was proposed in [5], where all agents achieved the same dynamical value. Sampled-data consensus of the second-order multi-agent systems with time delay was investigated in [6]. The necessary and sufficient conditions for consensus in third order multi-agent systems were obtained in [7]. In addition, other work about the distributed consensus problem for multi-agent systems with different dynamics can be seen in [8]–[11]. In real applications, the agents are generally described by first-order dynamic model. In [12], the model predictive control scheme was applied for multi-agent systems with discrete-time single-integrator dynamics under switching directed interaction graphs. The cluster lag consensus for multi-agent systems with a time-varying communication topology and heterogeneous multi-agent systems with a directed topology was studied in [13]. Hence, the consensus problem of first-order multi-agent systems is very important. It was concluded that the condition for the single-integrator system to achieve consensus was that the network communication topology has a spanning tree. However, such the condition may not ensure the general first-order multi-agent systems to reach consensus.

In addition, in practical applications, time delays often appear when local information data travel along in a large-scale network. Delay effect is an important issue on consensus problems since it may affect the control performance and even its stability [14]. Therefore, it is desirable to design the distributed control protocol for the general first-order multi-agent systems with time delay. Up to date, some literatures have been presented to design distributed control protocols for multi-agent systems with time delay in time domain. In [15], the consensus protocol based on the low gain solution of a parametric algebraic Riccati equation was designed for the multi-agent systems with time-varying communication delay. The effect of quantized dwell times in solving consensus problems in time-delayed multi-agent systems was investigated in [16]. In [17], a predictive tracking controller is proposed to compensate the negative effects caused by bilateral time-delays in a wireless network. Recently, some researches have been devoted to multi-agent systems with time delay in frequency domain. The frequency domain method is proved to be effective for the time-delay issue because the time delay is a non-minimum phase term whose amplitude is always equal to 1. In [18], an analytical approach to design ${H_2}$ controller of multi-agent systems with time delays was presented. In [19], the ${H_2}$ disturbance rejection controller was proposed for synchronized output rejection of multi-agent systems with time delay. The above-mentioned consensus protocols are effective for small-scale multi-agent systems with time delay. When the number of the agents increases, these methods become complicated. Besides, these methods cannot be utilized to design multi-agent systems under directed topology graph since the Laplacian matrix has complex eigenvalues. For multi-agent systems with time delay under directed topology, the design of the distributed controllers is still challenging.

Due to the advantages of the proportional-integral-differential (PID) controllers in control engineering and application, it is desirable to introduce the distributed PID controller into the multi-agent system to improve the consensus performance. A distributed PID protocol was designed for the consensus of homogeneous and heterogeneous networks using appropriate state transformations and Lyapunov functions [20]. In [21], the ${H_\infty}$ PID feedback for arbitrary-order delayed multi-agent systems was investigated. In the actual engineering application, the distributed PID controllers are generally required to meet several performance criteria simultaneously. To reach this purpose, a natural idea is to first present the stabilizing regions of the distributed PID controllers and then design the PID controller by finding the intersection of the control parameters meeting each required criterion. Thus, the problem of determining the stabilizing PID region is important from a practical viewpoint. Some effective approaches on presenting the stabilizing region of the PID controller have been reported for linear systems with time delay [22], [23]. To the best of the authors’ knowledge, there are few literatures on presenting the stabilizing region of the distributed PID controllers for multi-agent systems under directed topology.

Motivated by the above-mentioned discussion, the stabilizing region of the distributed PID controllers is derived for the general first-order multi-agent systems with time delay under fixed topology. Firstly, a multi-input multi-output (MIMO) framework is introduced to uniformly describe the multi-agent systems with time delay in frequency domain. Then based on the matrix theory and graph theory, the multi-agent system is decoupled into several subsystems with respect to the eigenvalues of the Laplacian matrix. Since the eigenvalues may be complex numbers, the consensus problem of the multi-agent systems is transferred into the stabilizing problem of the subsystems with complex coefficients. For each subsystem, the range of admissible proportional gains (${k_{\rm{P}}}$) is analytically determined. Then, the stabilizing region with respect to the integral gain (${k_{\rm{I}}}$) and derivative gain (${k_{\rm{D}}}$) for a given ${k_{\rm{P}}}$ value in the range can be also obtained in an analytical form. By computing the intersection of the resultant regions for all the subsystems, the stabilizing (${k_{\rm{I}}}$, ${k_{\rm{D}}}$) region of the distributed PID controller is derived. The entire set can be determined by sweeping ${k_{\rm{P}}}$ in the allowable range. The parameters chosen in the resultant set can guarantee the consensus of the multi-agent system with time delay. The proposed method is conducted for general first-order multi-agent systems with time delay under arbitrary topology, including undirected and directed topologies. Further, the results in the paper solve the stabilization problem of the systems with complex coefficients and provide the basis for the design of distributed PID controllers satisfying different performance criteria.

The paper is organized as follows. In Section II, some basic concepts about the graph theory and the stabilization for the systems with time delay are introduced. The problem statement and the design objective are presented in Section III. The approach for determining the stabilizing set of distributed PID controllers is proposed in Section IV. Numerical examples are provided to demonstrate the validity of the main results in Section V. Finally, the conclusion is given in Section VI.

Notations: We denote the $n \times n$ dimensional identity matrix by ${I_n}$. $I_n^m$ refers to ${\rm diag}({I_m},{0_{n - m}})$. 1 represents a column vector with all entries equal to one. The symbols $\otimes$ and $\oplus$ denote the Kronecker product and direct sum, respectively. $\det A$ refers to the determinant of the matrix $A$. $\deg \left( {F(s)} \right)$ represents the degree of the polynomial ${F(s)}$.

II. Preliminaries

In this section, some basic concepts about the graph theory and the stabilization of time-delayed systems are introduced.

A Graph Theory

A multi-agent system is assumed to have ${n}$ agents. The communication topology between agents can be modeled by a graph $G(V,E)$, where $V = \{ {v_1},\ldots,{v_n}\}$ is the set of agents and $E \in V \times V$ is the edge set. For a given graph, its adjacency matrix is defined by $A = {({a_{ij}})_{n \times n}}$ where ${a_{ij}} = 1$ if $({v_i},{v_j}) \in E$ and ${a_{ij}} = 0$ otherwise. The Laplacian matrix of the graph is defined as $L = {({l_{ij}})_{n \times n}}$, where ${l_{ij}} = - {a_{ij}}$ if $i \ne j$ and ${{l_{ii}} = \sum\nolimits_{j = 1,\;j \ne i}^n {{a_{ij}}}}$. If ${a_{ij}} = {a_{ji}}$, the graph $G(V,E)$ is undirected, otherwise the graph is directed. If there exists a directed path from Node $i$ to any other node, the graph contains a directed spanning tree with the Node $i$ as the root, which is usually regarded as the leader in leader-following topology.

Lemma 1 [24]: The Laplacian matrix $L$ has a simple eigenvalue 0 with the vector 1 as the corresponding eigenvector, and all the other eigenvalues have positive parts if and only if the directed network has a spanning tree. Furthermore, the rank of the Laplacian matrix is $n-1$ if the network has a spanning tree.

B Stabilization of the System With Time Delay

Many problems in control engineering involve time delays. These time delays lead to dynamic models with characteristic equations of the form

where $D(s)$, ${N_i}(s)$ for $i = 1, 2,\ldots, p$ are the polynomials and $T_i$ for $i = 1, 2,\ldots, p$ represent the time delays. In this paper, we make the following assumption.

Assumption 1: For the characteristic equation (1), we assume that

1) $\deg (D(s)) = q$ and $\deg ({N_i}(s)) \le q\;{\rm{for}}\;i = 1,2, \ldots ,p$;

2) $0<{T_1}<{T_2}<\cdots<{T_p}$.

The following lemmas are presented to give sufficient and necessary conditions for the stability of $\delta(s)$.

Lemma 2 [25]: Let $\delta(s)$ be given by (1) and write

where ${\delta _{\rm{r}}}(\omega )$ and ${\delta_{\rm{i}}}(\omega)$ respectively represent the real and imaginary part of $\delta(j\omega)$. Under Assumption 1, $\delta(s)$ is stable if and only if

1) ${\delta _{\rm{r}}}(\omega)$ and ${\delta_{\rm{i}}}(\omega)$ have only simple real roots and they are interlaced;

2) ${\delta '_{\rm{i}}}({\omega _o}){\delta _{\rm{r}}}({\omega_o})-{\delta_{\rm{i}}}({\omega_o}){\delta'_{\rm{r}}}({\omega_o})>0$ for some ${\omega_o}\in(-\infty,+\infty)$, where ${\delta'_{\rm{r}}}(\omega)$ and ${\delta '_{\rm{i}}}(\omega)$ denote the first derivative with respect to $\omega$ of ${\delta_{\rm{r}}}(\omega)$ and ${\delta_{\rm{i}}}(\omega)$, respectively.

Lemma 3 [25]: Let $\xi$ and $\zeta$ denote the highest powers of $s$ and ${e^s}$ in $\delta(s)$. Let $\eta$ be an appropriate constant such that the coefficients of terms of the highest degree in ${\delta _{\rm{r}}}(\omega )$ and ${\delta_{\rm{i}}}(\omega)$ do not vanish at $\omega = \eta$. Then for the equations ${\delta _{\rm{r}}}(\omega ) = 0$ or ${\delta _{\rm{i}}}(\omega ) = 0$ to have only real roots, it is necessary and sufficient that in the intervals $- 2l\pi + \eta\le\omega\le 2l\pi + \eta ,\;\;\;l = 1,2,3, \ldots$, ${\delta _{\rm{r}}}(\omega )$ and ${\delta_{\rm{i}}}(\omega)$ have exactly $4l\zeta+\xi$ roots, starting with sufficiently large $l$.

III. Problem Statement

The topology structure of the multi-agent systems is shown in Fig. 1. We consider the consensus problem of $n$ identical first-order agents. The transfer function of each agent is

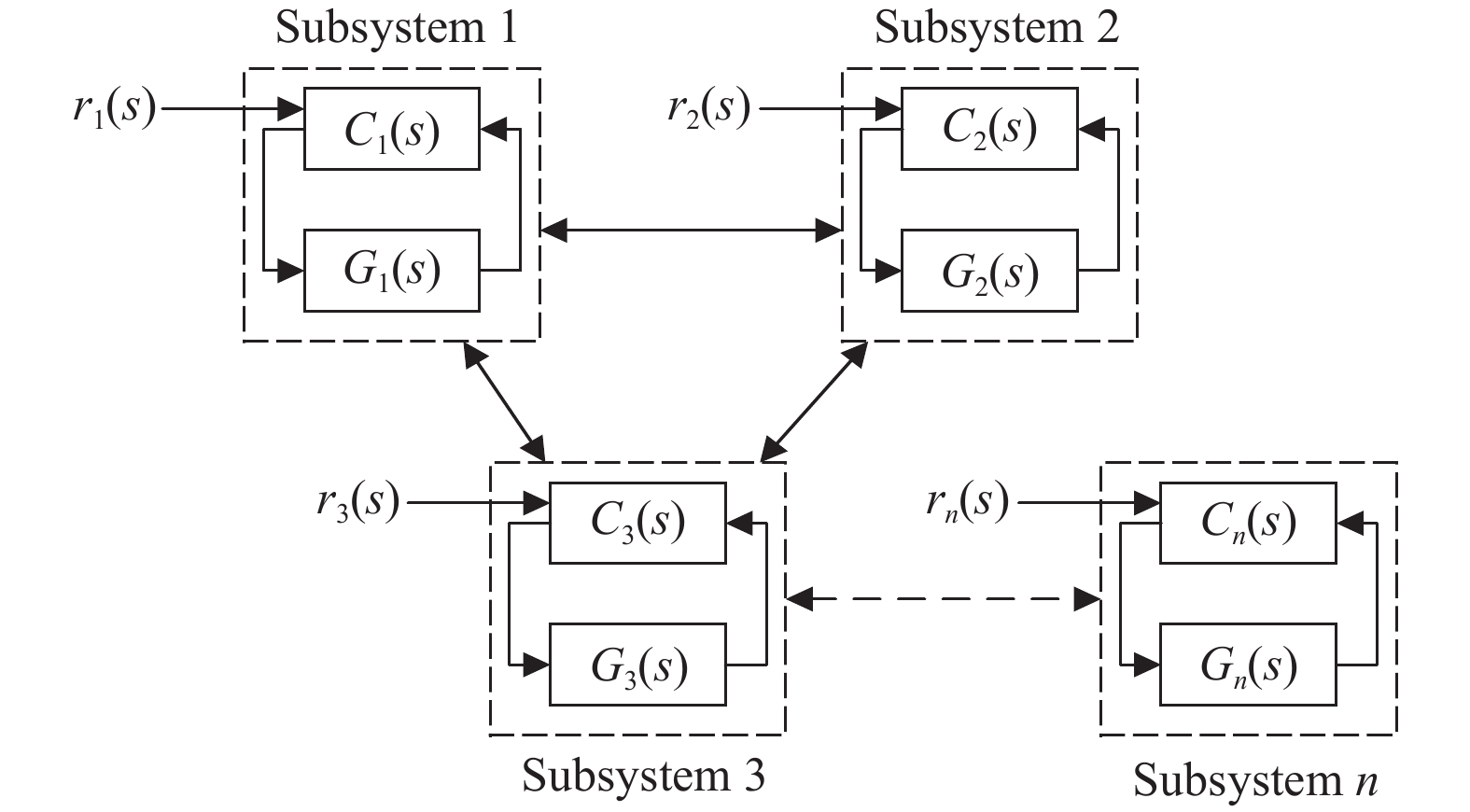

Figure  1.  The control block diagram for the subsystem

DownLoad: Full-Size Img PowerPoint

where $\theta$ is the input time delay of the agent, $K$ is the positive steady-state gain of the agent and $T$ represents the time constant of the agent. The distributed PID controllers imposed on each agent has the following form:

where $k_{\rm{P}}$, $k_{\rm{I}}$, $k_{\rm{D}}$ are the proportional, integral and differential gains, respectively. The agents are divided into two groups. The first $m$ agents have access to the same reference signal, ${r_1}(s) = \cdots = {r_m}(s) = r(s) \ne 0$. The external input can be regarded as the target state. The following $n-m$ agents are only accessible to the relative state errors with respect to their neighboring agents, ${r_{m + 1}}(s) = \cdots = {r_n}(s) = 0$. According to the definition in [10], the dynamic of each agent can be described as

where $y_i$, $u_i$ and $e_i$ are the state, the control input and the system error of Agent $i$, respectively. The coupling between the agents is caused via the communication channels:

From (6), we can rewrite $E(s)$ in the vector form,

where $R(s) = [{r_1}(s), \ldots ,{r_n}(s)]$ denote the respected consensus value, $L$ is the Laplacian matrix and $Y(s) = [{y_1}(s), \ldots ,{y_n}(s)]$ are the output states of $n$ agents. Now, the closed-loop MIMO representation of the networked multi-agent systems shown in Fig. 2 can be established, where $\hat G(s) = \oplus \sum\nolimits_{i = 1}^n {G(s)}$, $\hat C(s) = \oplus \sum\nolimits_{i = 1}^n {C(s)}$ imply that all the agents are identical and each controller has the same structure. The information exchange among these agents can be represented as the matrix $\tilde L = L + I_n^m$. The transfer function from $R(s)$ to $Y(s)$ is given by

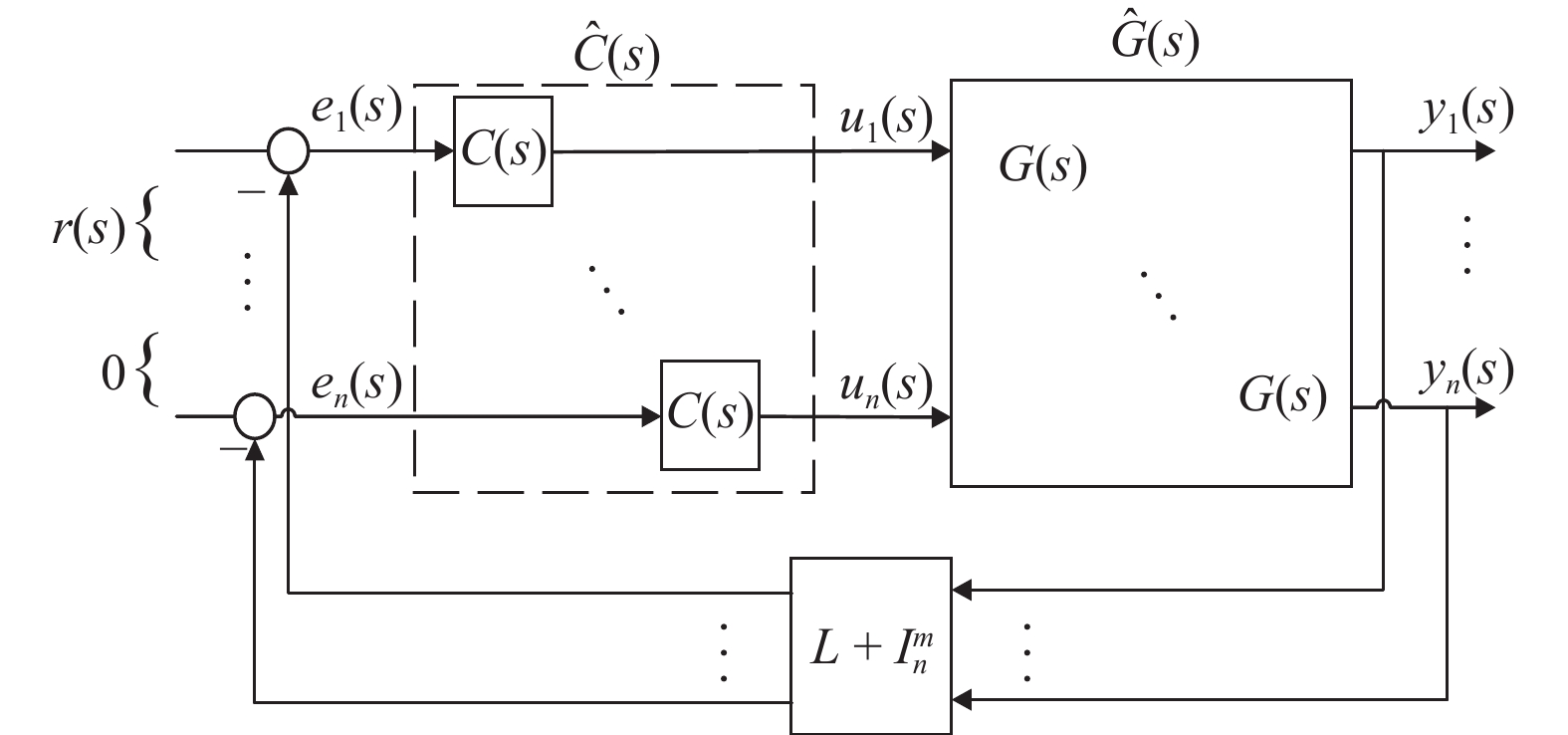

Figure  2.  The MIMO model of the multi-agent system

DownLoad: Full-Size Img PowerPoint

For the known agent dynamics and the fixed communication topology, the objective of the paper is to obtain the complete stabilizing set of the distributed PID controllers analytically for general first-order multi-agent systems.

IV. Stabilization Analysis of Distributed PID Controllers

From (8), it can be derived that the characteristic equation of the multi-agent systems is

Define a transform $V$ such that $\Lambda = {V^{ - 1}}\tilde LV$ is upper triangular with the eigenvalues ${\lambda _1},{\lambda _2}, \ldots ,{\lambda _n}$ of $\hat L$ on the diagonal. From Lemma 1, it can be derived that if the graph has a spanning tree, the corresponding Laplacian matrix is diagonalizable. Thus the following equation is presented:

It is seen that all the roots of the characteristic equation (9) are also the roots of the characteristic equation (10). In other word, in order to ensure the stability of the multi-agent systems, all the roots of the characteristic equation ${p_i}(s) = 1 + {\lambda _i}C(s)G(s)$ must locate on the open left-half complex plane. Therefore, the whole system in Fig. 2 can be decomposed into $n$ isolated subsystems with respect to the eigenvalues of $\tilde L$. The structure of each subsystem is shown in Fig. 3.

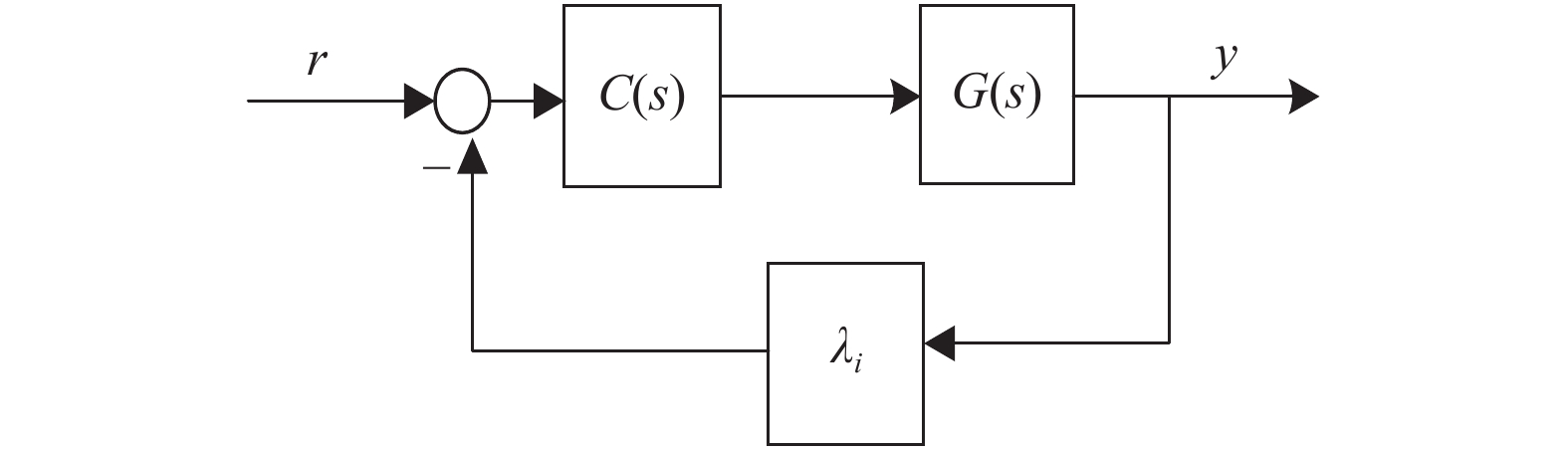

Figure  3.  The control block diagram for the subsystem

DownLoad: Full-Size Img PowerPoint

Next, we state the procedure to determine the stabilizing set of distributed PID controllers for the multi-agent system with time delay. The first step of the procedure is to determine the $k_{\rm{P}}$ range of the stabilizing distributed PID controller. Then for a fixed $k_{\rm{P}}$ within this range, the stabilizing ($k_{\rm{I}}$, $k_{\rm{D}}$) region is derived in the second step.

A Determination of Admissible $k_{\rm{P}}$ Range

Assume that the eigenvalues of the Laplacian matrix is

where $a_i$, $b_i$ respectively represent real and imaginary part of $\lambda_i$, $\left| {{\lambda _i}} \right|$ is the modulus of $\lambda_i$ and $\varphi_i$ is the argument. In following analysis, we suppose that the eigenvalues satisfy the following condition:

From (10), the stabilizing range of $k_{\rm{P}}$ can be determined for each decomposed subsystem. The intersection of all the resultant ranges is the stabilizing $k_{\rm{P}}$ range for the multi-agent system. The closed-loop characteristic equation of each decomposed subsystem is

For the multi-agent systems with undirected topology, all the eigenvalues $\lambda_i$ are real numbers. The admissible range of $k_{\rm{P}}$ values can be determined in terms of Theorem 2.1 in [15]. However, for the multi-agent systems with directed topology, the eigenvalues may be complex numbers. In this case, the subsystem will contain complex coefficients such that the stabilizing PID parameters cannot be directly determined.

Rewrite the quasipolynomial $p_i^*(s)$ as

Denote that

Suppose that there is a root $s = \sigma + j\omega$ for $p_i^*(s) = 0$. Substituting $s = \sigma + j\omega$ into (14), it can be derived that

where ${\mathop{\rm Re}\nolimits} \left[ {\hat p_i^*(\sigma + j\omega )} \right]$ and ${\mathop{\rm Im}\nolimits} \left[ {\hat p_i^*(\sigma + j\omega )} \right]$ are the real part and imaginary part of $\hat p_i^*(\sigma + j\omega )$, respectively. For the directed topology, it is known that ${\varphi _i} \ne 0$. Suppose that ${\mathop{\rm Re}\nolimits} \left[ {\hat p_i^*(\sigma + j\omega )} \right] \ne 0$ and ${\mathop{\rm Im}\nolimits} \left[ {\hat p_i^*(\sigma + j\omega )} \right] \ne 0$. In this case, if the characteristic equation $p_i^*(s) = 0$ has roots, we have

Combining (17) and (18), it can be derived that

However, from the definition of the argument, it is known that ${\sin ^2}{\varphi _i} + {\cos ^2}{\varphi _i} = 1$. Therefore, if ${\mathop{\rm Re}\nolimits} \left[ {\hat p_i^*(\sigma + j\omega )} \right] \ne 0$ and ${\mathop{\rm Im}\nolimits} \left[ {\hat p_i^*(\sigma + j\omega )} \right] \ne 0$, the equation $p_i^*(s)$ has no roots. To guarantee that $p_i^*(s) = 0$ has roots, the real part and the imaginary part of $\hat p_i^*(\sigma + j\omega )$ must be equal to zero. In other words, the stability of the characteristic equation $p_i^*(s)$ is equivalent to the stability of the equation $\hat p_i^*(s)$. In what follows, we will discuss the stability of $\hat p_i^*(s)$ based on Lemmas 2 and 3.

Substituting $s = j\omega$ into (15), we have

where

and

where, ${K_i} = \left| {{\lambda _i}} \right|K$. From (21) and (22), it is seen that the parameter $k_{\rm{P}}$ only affects the imaginary part of $\hat p_i^*(j\omega )$ whereas the parameters $k_{\rm{I}}$ and $k_{\rm{D}}$ affect the real part. We now have the following theorem.

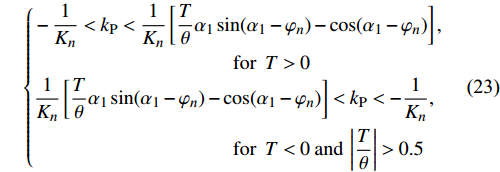

Theorem 1: The imaginary part of $\hat p_i^*(j\omega )$ has only simple real roots if and only if

where ${K_n} = K\left| {{\lambda _n}} \right|$ and ${\alpha _1}$ is the solution of the equation

in the interval $({\varphi _n},{\varphi _n} + 2\pi )$. For the $k_{\rm{P}}$ values outside the range provided in (23), there are no stabilizing PID controllers.

Proof: Two cases are considered as follows.

Case 1: $T>0$

Substituting $\textit{z} = \theta \omega$ into (21) and (22), we have

From (26), it is clear that ${\omega _0} = 0$ is one of the solutions of ${\mathop{\rm Im}\nolimits} \left[ {\hat p_i^*(\textit{z})} \right] = 0$. Then, we have

The other roots are difficult to find from (27). To overcome this problem, we can plot the terms involved in (27) and examine the nature of the solution graphically. Denote the positive root of (27) by ${\textit{z}_t},t = 1,2, \ldots$, arranged in increasing order of magnitude. Now use Lemma 3 to check if ${\mathop{\rm Im}\nolimits} \left[ {\hat p_i^*(\textit{z})} \right]$ has only real roots. From (22), it is derived that $\xi = 2$ and $\zeta = 1$. Next, choose $\eta = {\pi / 4}$ to satisfy that $\sin (\eta ) \ne 0$ and $\cos (\eta ) \ne 0$. If we take $l = 1$, ${\mathop{\rm Im}\nolimits} \left[ {\hat p_i^*(\textit{z})} \right]$ must satisfy the condition that there are 6 real roots in $[ - {{7\pi } / 4},{{9\pi } / 4}]$. Denote that

It can be easily obtained that $f(\textit{z})$ is a periodic function with a period of $2\pi$. Differentiating $f(\textit{z})$ with respect to $\textit{z}$, we have

There are three cases to consider according to the $k_{\rm{P}}$ values.

a) ${k_{\rm{P}}} < - {1 / {{K_i}}}$. In this case, there exists one root for $f'(\textit{z}) = 0$ in the interval $({\varphi _i},{\varphi _i} + \pi )$ and one root in $( - \pi + {\varphi _i},{\varphi _i})$. Considering the characteristic of $\cos (\textit{z} - {\varphi _i})$, it can be derived that there is a maximum in the interval $({\varphi _i},{\varphi _i} + \pi )$ and a minimum in $( - \pi + {\varphi _i},{\varphi _i})$. Thereby, the plots of $f(\textit{z})$ and $(T/\theta )\textit{z}$ are shown in Fig. 4.

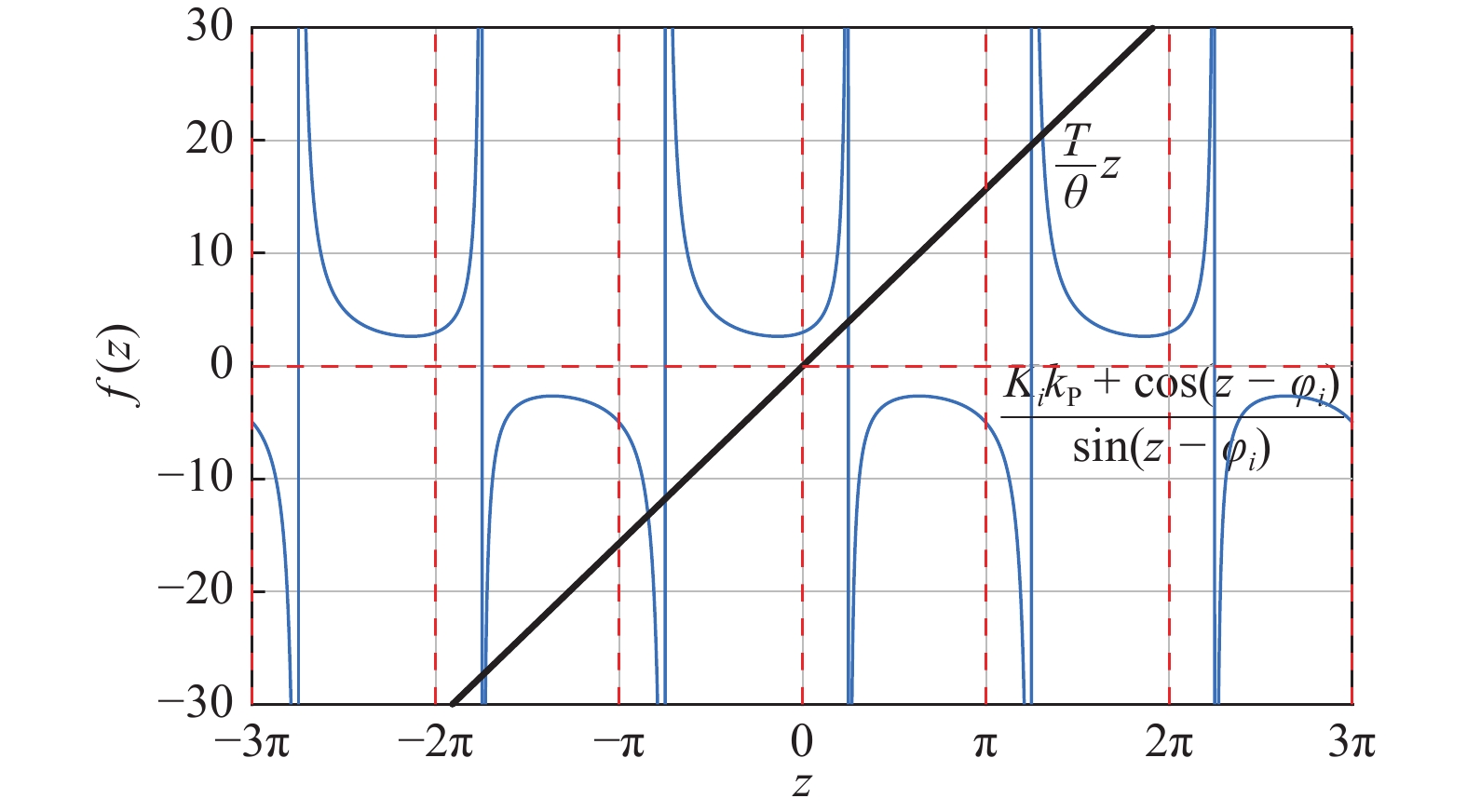

Figure  4.  Plots of terms involved in (27) for $k_{\rm P} < -(1/K_i)$

DownLoad: Full-Size Img PowerPoint

b) $- {1 / {{K_i}}} \le {k_{\rm{P}}} \le {1 / {{K_i}}}$. In this case, the value of (29) is always small than 0 in one period, which indicates that $f(\textit{z})$ is a decreasing function in one period. Hence, we can draw the plots of $f(\textit{z})$ and $(T/\theta )\textit{z}$ in Fig. 5.

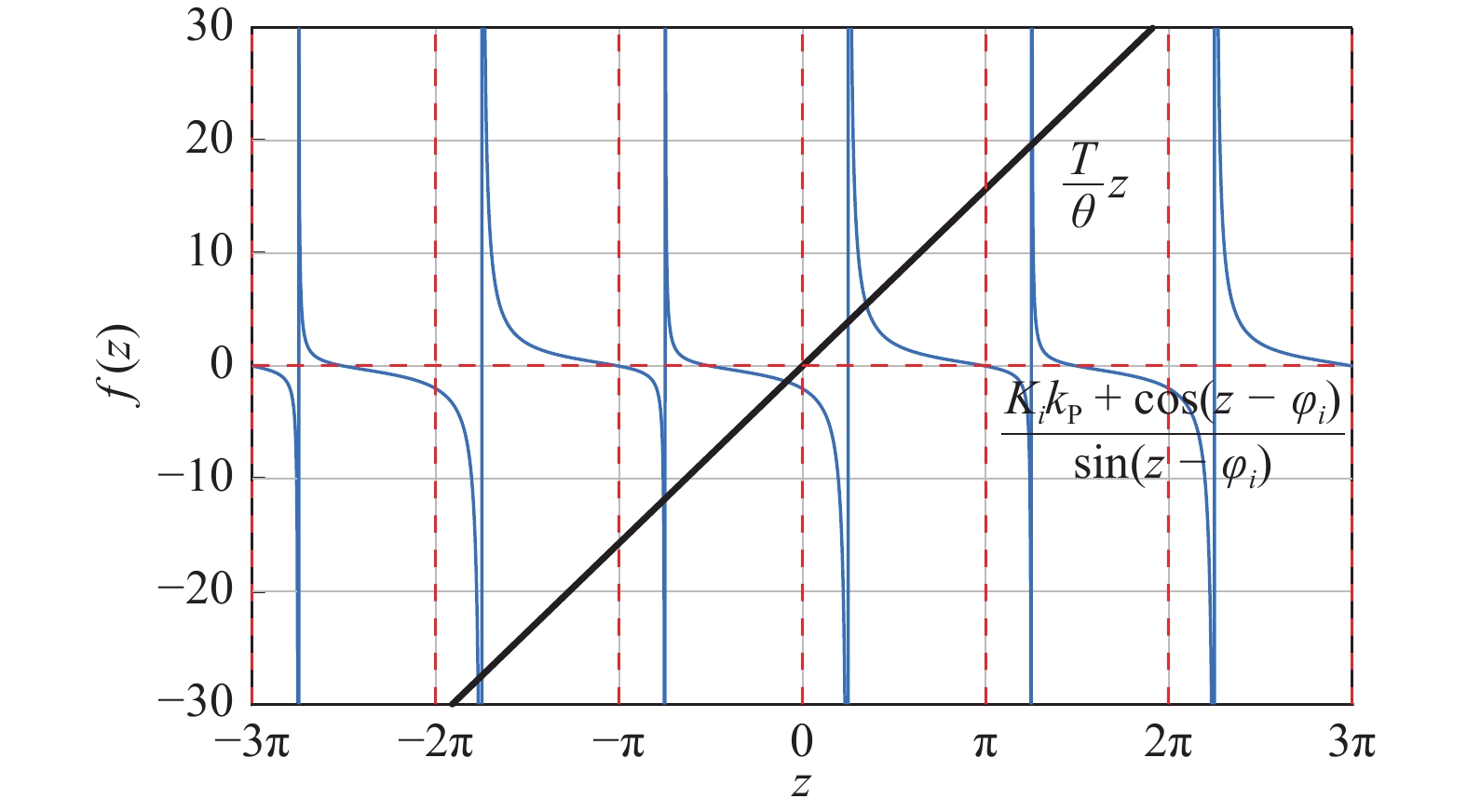

Figure  5.  Plots of terms involved in (27) for $-(1/K_i) \le k_{\rm P} \le (1/K_i)$

DownLoad: Full-Size Img PowerPoint

c) ${1 / {{K_i}}} < {k_{\rm{P}}}$. The characteristic of $f(\textit{z})$ is similar to that in the case a), that is, there is one root for $f'(\textit{z}) = 0$ in the interval $({\varphi _i},{\varphi _i} + \pi )$ and one root in $( - \pi + {\varphi _i},{\varphi _i})$. It is worth noting that, with the increase of $k_{\rm {P}}$, the maximum in the interval $( - \pi + {\varphi _i},{\varphi _i})$ also increases, which may lead to the result that the curve $f(\textit{z})$ will not intersect the line $(T/\theta)\textit{z}$ twice in this interval. Thus, there are two different plots of $f(\textit{z})$ and $(T/\theta)\textit{z}$ for ${1 / {{K_i}}} < {k_{\rm{P}}}$, which are shown in Fig. 6. The plot in Fig. 6(a) corresponds to the case where ${1 / {{K_i}}} < {k_{\rm{P}}} < {\bar K_i}$, and ${\bar K_i}$ is the largest number so that $f(\textit{z})tit{z})$ intersects $(T/\theta)\textit{z}$ twice in the interval $(-\pi+{\varphi_i},{\varphi_i})$. The plot in Fig. 6(b) corresponds to the case where ${k_{\rm{P}}} \ge {\bar K_i}$ and the plot of $f(\textit{z})$ intersects the line $(T/\theta)\textit{z}$ once in the interval $(-\pi+{\varphi_i},{\varphi_i})$.

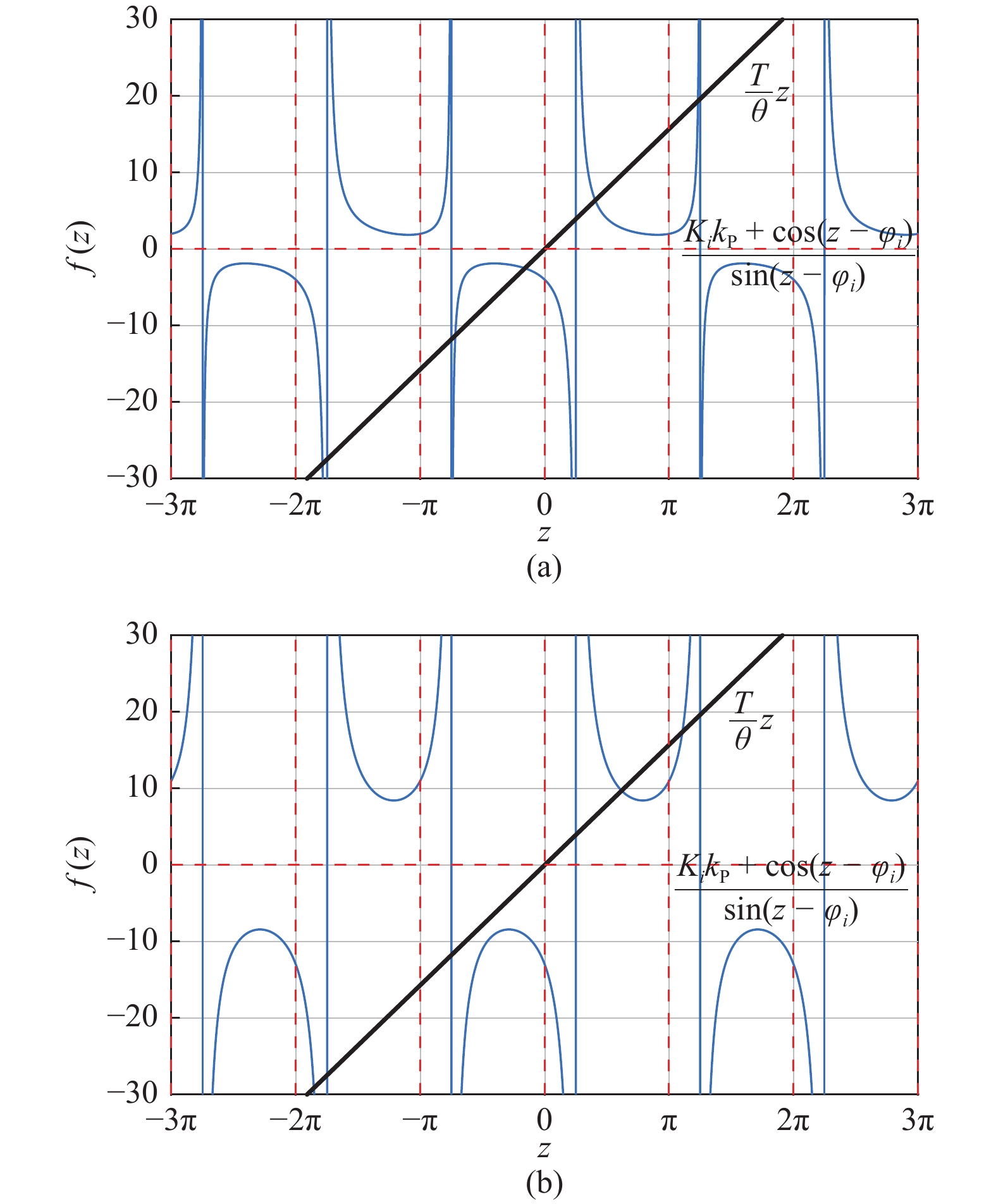

Figure  6.  Plots of terms involved in (27) for $(1/K_i) < k_{\rm P}$. (a) $(1/K_i) < k_{\rm P} < (1/\bar K_i)$; (b) $(1/\bar K_i) \le k_{\rm P}$

DownLoad: Full-Size Img PowerPoint

From Figs. 5 and 6(a), it is seen that for ${{ - 1} / {{K_i}}} < {k_{\rm{P}}} < {\bar K_i}$, ${\mathop{\rm Im}\nolimits} \left[ {\hat p_i^*(\textit{z})} \right]$ has 6 real roots in the interval $[ - {{7\pi } / 4},{{9\pi } / 4}]$. Moreover, it is clear from Figs. 5 and 6(a) that ${\mathop{\rm Im}\nolimits} \left[ {\hat p_i^*(\textit{z})} \right]$ has 4 real roots in each of the intervals $[2l\pi + {\pi / 4},2(l + 1)\pi + {\pi / 4}]$ and $[ - 2(l + 1)\pi + {\pi / 4}, - 2l\pi + {\pi / 4}]$ for $l = 1,2, \ldots$. Thus, from Lemma 3, we can conclude that for ${{ - 1} / {{K_i}}} < {k_{\rm{P}}} < {\bar K_i}$, ${\mathop{\rm Im}\nolimits} \left[ {\hat p_i^*(\textit{z})} \right]$ has only real roots. Besides, from Figs. 4 and 6(b), it is clear that all the roots of ${\mathop{\rm Im}\nolimits} \left[ {\hat p_i^*(\textit{z})} \right]$ will not be real for the cases ${{ - 1} / {{K_i}}} > {k_{\rm{P}}}$ and ${k_{\rm{P}}} > {\bar K_i}$. Next, we should determine the upper bound ${\bar K_i}$ on the allowable value of ${k_{\rm{P}}}$. From the definition of ${\bar K_i}$, it follows that if ${k_{\rm{P}}} = {\bar K_i}$, $f(\textit{z})$ intersects $(T/\theta )\textit{z}$ once in the interval $(0,\pi )$. Denote the value of $\textit{z}$ for which this intersection occurs by ${\alpha _1}$. Thus, we have the following equations:

Eliminating ${K_i}{\bar K_i}$ between (30) and (31), we conclude that ${\alpha _1}$ can be obtained as a solution of the following equation:

Once ${\alpha_1}$ is determined, the parameter ${\bar K_i}$ is determined by

Thus, for each decomposed subsystem of the multi-agent system, there is a corresponding admissible range of $k_{\rm{P}}$, i.e.,

From (12), the following inequality can be got

Therefore, when $T>0$, the stabilizing range of $k_{\rm {P}}$ values for a given first-order multi-agent system is given by

Case 2: $T<0$

In this case, the proof follows along the same lines as that of Case 1. The only nonobvious change is that in the case that $- 0.5 < {T / \theta } < 0$, the curves $({K_i}{k_{\rm{P}}} + \cos (\textit{z} - {\varphi _i}))/\sin (\textit{z} - {\varphi_i})$ and $(T/\theta )z$ do not intersect in the interval $(0,\pi )$ regardless of the value of $k_{\rm {P}}$ in $( - \infty , - ({1 / {{K_i}}}))$. ■

B Determination of the Stabilizing Set for the Distributed PID Controllers

From (25), for each subsystem, ${\mathop{\rm Re}\nolimits} \left[ {\hat p_i^*(\textit{z})} \right]$ can be rewritten as

where

To get the stabilizing set for the distributed PID controllers, we have the following theorem:

Theorem 2: When $k_{\rm {P}}$ is fixed, the stabilizing ($k_{\rm {I}}$, $k_{\rm {D}}$) region for the subsystem with respect to the eigenvalue $\lambda_i$ is determined by the following inequalities:

where ${\textit{z}_1}$ is the first solution of ${\mathop{\rm Im}\nolimits} \left[ {\hat p_i^*(\textit{z})} \right] = 0$ and $\textit{z}_2$ is the second solution of ${\mathop{\rm Im}\nolimits} \left[ {\hat p_i^*(\textit{z})} \right] = 0$ arranged in increasing order of magnitude.

Proof: According to different values of $T$, we now consider the following two cases.

Case 1: $T>0$

To ensure the stability of the quasipolynomial $\hat p_i^*(s)$, we need to check the two conditions given in Lemma 2.

Step 1: We first check Condition 2) of Lemma 2. Denote ${\mathop{\rm Re'}\nolimits} \left[ {\hat p_i^*(\omega )} \right]$ and ${\mathop{\rm Im'}\nolimits} \left[ {\hat p_i^*(\omega )} \right]$ as the first derivative with respect to $\omega$ of ${\mathop{\rm Re}\nolimits} \left[ {\hat p_i^*(\omega )} \right]$ and ${\mathop{\rm Im}\nolimits} \left[ {\hat p_i^*(\omega )} \right]$, respectively. If Condition 2) is satisfied, we have

for some $\omega_0$ in $( - \infty , + \infty )$. By taking ${\omega _0} = 0$, it is derived that ${\mathop{\rm Re}\nolimits} \left[ {\hat p_i^*(\omega )} \right] = {K_i}{k_{\rm{I}}}$ and ${\mathop{\rm Im}\nolimits} \left[ {\hat p_i^*(\omega )} \right] = 0$. We also have

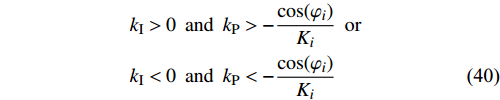

Recall that $K_i>0$ and $\theta>0$. Thus, if we pick

we have $E(0)>0$.

Step 2: Next, we check Condition 1) of Lemma 2, i.e., ${\mathop{\rm Re}\nolimits} \left[ {\hat p_i^*(\omega )} \right]$ and ${\mathop{\rm Im}\nolimits} \left[ {\hat p_i^*(\omega )} \right]$ have only simple real roots and these interlace. From Theorem 1, we know that the roots of ${\mathop{\rm Im}\nolimits} \left[ {\hat p_i^*(\omega )} \right]$ are all real if and only if the parameter $k_{\rm P}$ satisfies the inequality (23). Moreover, based on the results in [15], the necessary and sufficient condition on $k_{\rm I}$ and $k_{\rm D}$ for the roots of ${\mathop{\rm Re}\nolimits} \left[ {\hat p_i^*(\textit{z})} \right]$ and ${\mathop{\rm Im}\nolimits} \left[ {\hat p_i^*(\textit{z})} \right]$ to interlace is given by

where $\textit{z}_t$ is the $t$th solution of ${\mathop{\rm Im}\nolimits} \left[ {\hat p_i^*(\textit{z})} \right] = 0$ and $t = 1,2, \ldots$. It can be easily obtained that for a given value of $k_{\rm P}$, the value of ${M_i}({\textit{z}_t})$ satisfies

and the value of ${B_i}({\textit{z}_t})$ satisfies

1) If $- {1 / {{K_i}}} < {k_{\rm{P}}} < {1 / {{K_i}}}$, then

2) If ${1 / {{K_i}}} < {k_{\rm{P}}}$, then

From (43)–(45), one can draw a conclusion that for the subsystem with complex coefficients, the boundaries of the stabilizing ($k_{\rm I}$, $k_{\rm D}$) region for the subsystem are simplified as:

Case 2: $T<0$ and $\left| {T/\theta } \right| > 0.5$

From Theorem 1, it is seen that there is no admissible range for $k_{\rm P}$ in the case $T<0$ and $\left| {T/\theta } \right| > 0.5$. In other words, there is no stabilizing region for the distributed PID controller in this case. Hence, we assume that the system satisfies the condition that $T<0$ and $\left| {T/\theta } \right| > 0.5$. Following along the same lines as that of Case 1, the stabilizing region of the distributed PID controllers in this case can be calculated. ■

According to (38), when $k_{\rm P}$ is fixed, the stabilizing $({k_{\rm{I}}},{k_{\rm{D}}})$ region for each subsystem can be easily obtained. The stabilizing $({k_{\rm{I}}},{k_{\rm{D}}})$ region for the multi-agent system can be derived by intersecting the resultant stabilizing regions for all $\lambda_i$ values. The results reveal that the stabilizing $({k_{\rm{I}}},{k_{\rm{D}}})$ region has the linear programming characterization and is a union of convex sets for a fixed $k_{\rm P}$ gain. By sweeping over $k_{\rm P}$ in the allowable range, the entire stabilizing set of the distributed PID controllers can be derived.

Remark 1: From (23), it is seen that the range of $k_{\rm P}$ is given in terms of time delay $\theta$. For $\theta >0$, i.e., no time delay, one can solve (24) analytically to obtain $\alpha_1$. Using this value, the upper bound in (23) evaluates out to $\infty$, which means that there is no upper bound for the time-free case. Also, it is easy to see that as $T/\theta$ decreases, the value $\alpha_1$ approaches $\pi$. By substituting for $T/\theta$ from (24) into the upper bound in (23) and differentiating with respect to $\alpha$, it can be shown that as $\alpha$ approaches $\pi$, the upper bound in (23) monotonically decreases to ${1 / {{K_i}}}$. This shows that as $\theta$ increases, the range of $k_{\rm P}$ shrinks. When the time delay is sufficiently large, the range of $k_{\rm P}$ belongs to $( - {1 / {{K_i}}},{1 / {{K_i}}})$. However, although the admissible range of $k_{\rm P}$ can be obtained, the corresponding stabilizing $({k_{\rm{I}}},{k_{\rm{D}}})$ region can be quite tiny for $\theta \to \infty$.

Remark 2: The main results solve the stabilization problem of systems with complex coefficients. Besides, the resultant stabilizing region provides the basis for both the tuning of the distributed PID controller for multi-agent system in practice and the design of PID controller satisfying different performance criteria. For example, to get good tracking performance of the multi-agent system, one can choose integrated time absolute error (ITAE) index as the optimization function and search the optimal parameters in the resultant stabilizing region.

C Algorithm for Determining Stabilizing PID Parameters

In terms of Theorems 1–3, the algorithm to determine the complete set of the distributed PID controllers for the general first-order multi-agent system is shown as follows:

Step 1: Observe the topology structure of the multi-agent system and compute the eigenvalues ${\lambda _2},{\lambda _3}, \ldots ,{\lambda _n}$ of the corresponding Laplacian matrix.

Step 2: Determine the allowable range of $k_{\rm P}$ according to (23).

Step 3: Pick a $k_{\rm P}$ in the range and find the roots $\textit{z}_1$ and $\textit{z}_2$ of (27) for each eigenvalue $\lambda_i$.

Step 4: Compute the parameters ${M_i}(\textit{z})$ and ${B_i}(\textit{z})$ for each eigenvalue from (36) and (37).

Step 5: Determine the $({k_{\rm{I}}},{k_{\rm{D}}})$ region for each eigenvalue according to (38). The intersection of all the regions is the stabilizing $({k_{\rm{I}}},{k_{\rm{D}}})$ region for the multi-agent system.

Step 6: By sweeping over $k_{\rm P}$ in the allowable range, repeat Steps 3–5 to determine the complete set of the distributed PID controllers.

V. Simulation Examples

Example 1: Consider a multi-agent system with 10 identical vessels. The dynamic equation of each vessel with time delay is given as [26]

where $M$, $v$, $u$ and $\theta$ are the inertia term, velocity, external control force and input time delay, respectively. $c$ is the Coriolis and centripetal term including the damping constant. Obviously, the transfer function of each vessel is the typical first-order model if the velocity is regarded as the output state and the force is regarded as the control input

Set $M = c = 1$ and $\theta = 0.2$. The initial values of each vessel are randomly selected in the interval [–2, 2]. The information flow is shown in Fig. 7. The objective is to determine the complete set of the distributed PID controller for the stabilization of the multi-agent system.

From Fig. 7, the nonzero eigenvalues of the Laplacian matrix are: 0.8299, 2, 2.6889, 3.4796, 4.4812, 0.7322 + 0.7132j, 0.7322–0.7132j, 1.5281+0.645j and 1.5281–0.645j. According to Theorem 1, the admissible range of $k_{\rm P}$ is $( - 0.2232,2.1354)$. Then, for a fixed $k_{\rm P}$ value in the admissible range, such as ${k_{\rm{P}}} = 1$, the stabilizing $({k_{\rm{I}}},{k_{\rm{D}}})$ region can be determined based on Theorem 2, which is shown in Fig. 8. To check the effectiveness of the resultant stabilizing region, the step response curves of the multi-agent system are shown in Fig. 9 for different values of $k_{\rm I}$ and $k_{\rm D}$. From Fig. 9, it is seen that, when the value of $({k_{\rm{I}}},{k_{\rm{D}}})$ is chosen inside the stabilizing region, for example, (1, 0.1), the multi-agent system can reach consensus. When it is chosen to be (2.497, –0.05457), which is located on the boundary of the stabilizing region, the system is critically unstable. When it is chosen outside the stabilizing region, for example, (2, –0.1), the system becomes unstable.

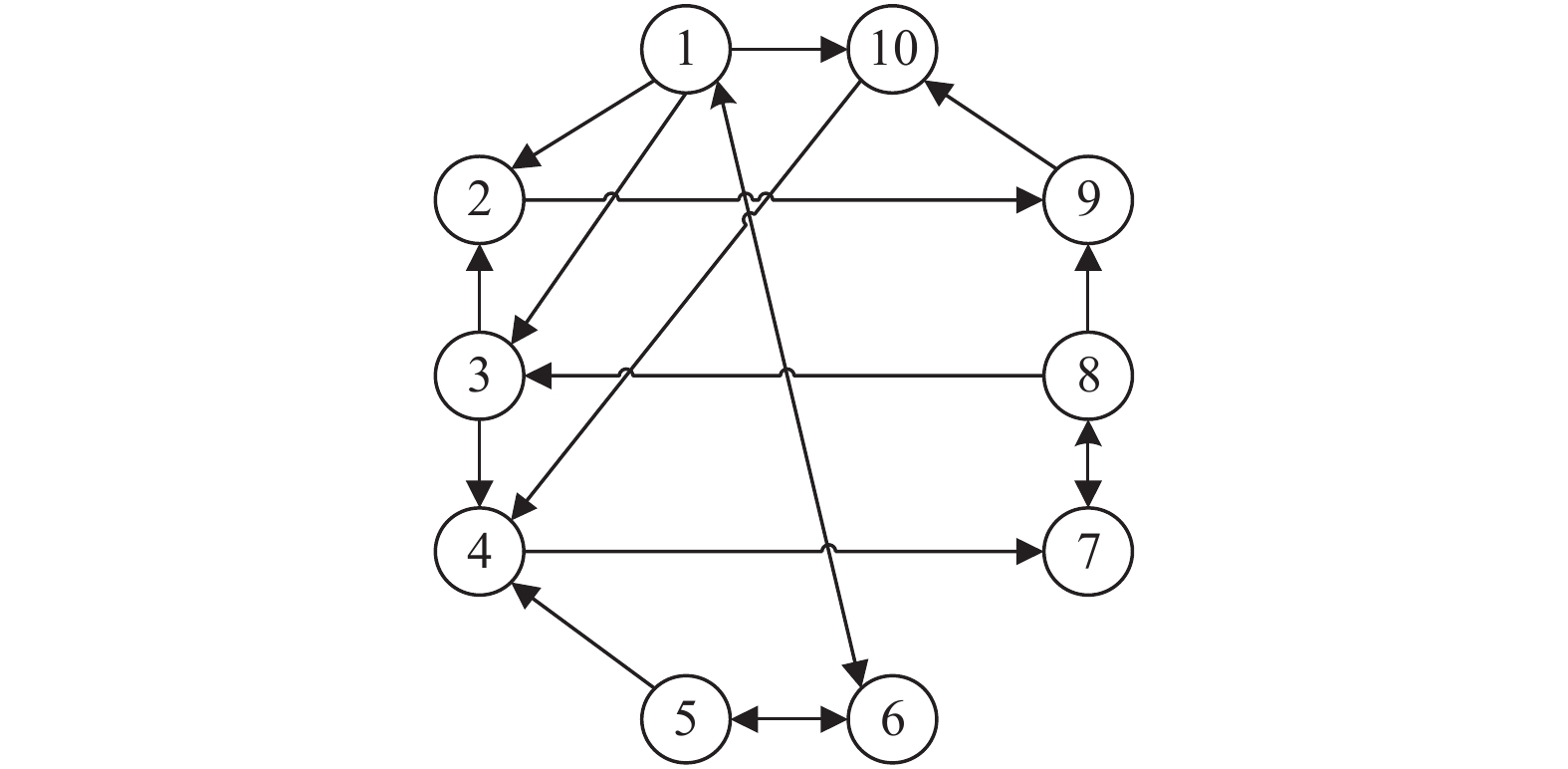

Figure  7.  The direct topology for Example 1

DownLoad: Full-Size Img PowerPoint

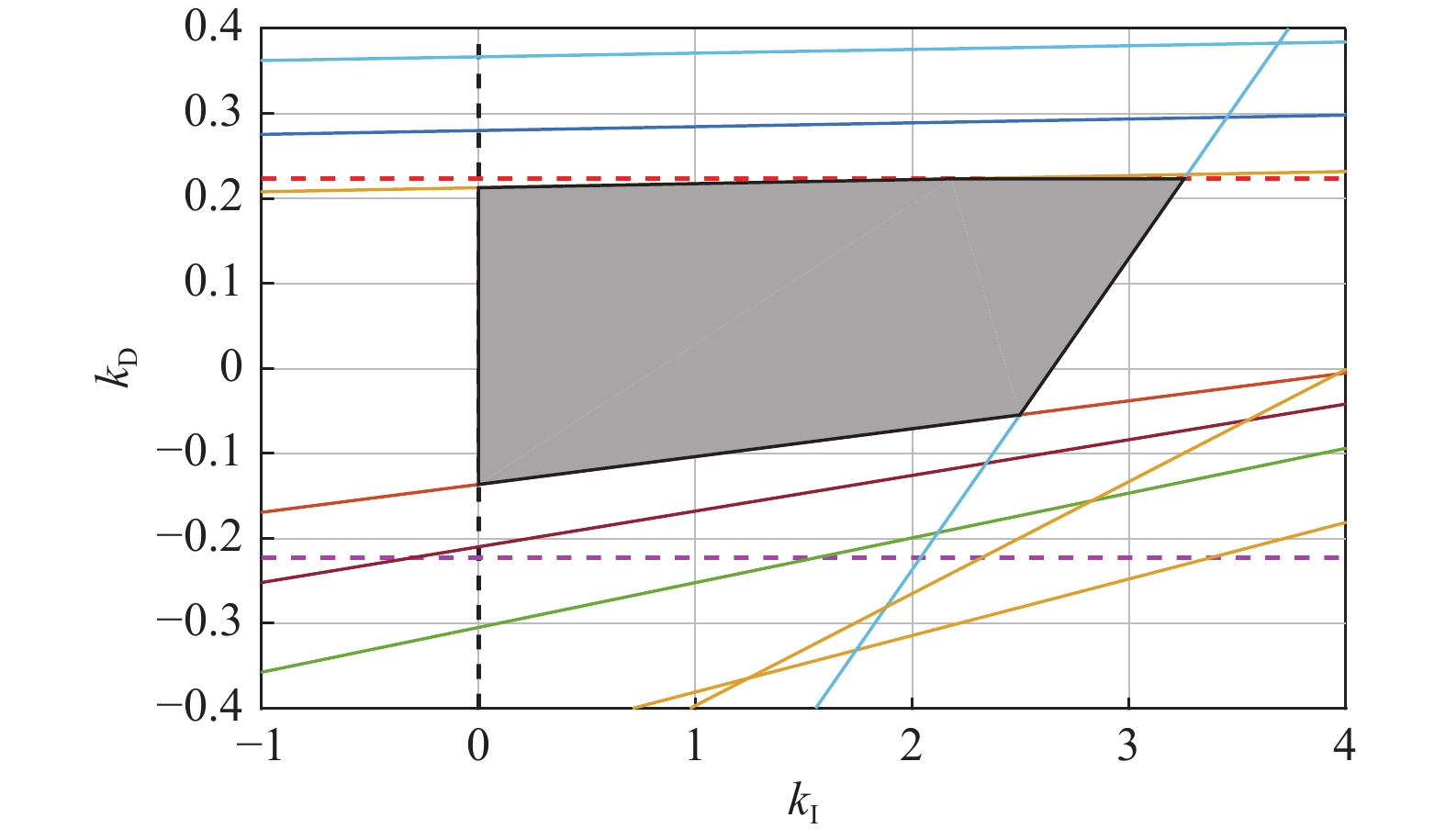

Figure  8.  The stabilizing $(k_{\rm I},k_{\rm D})$ region for $k_{\rm P} = 1$

DownLoad: Full-Size Img PowerPoint

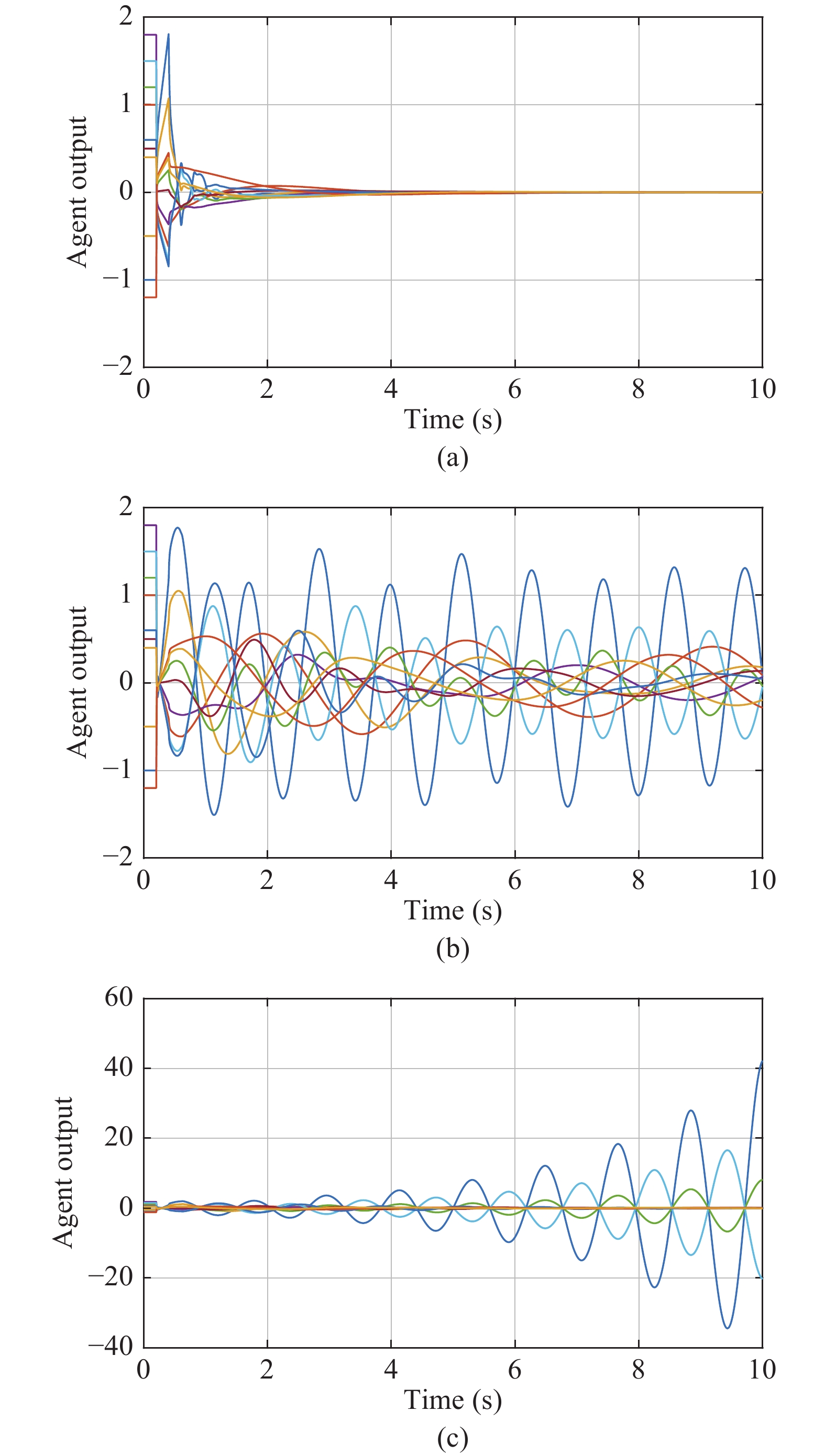

Figure  9.  The output response for $k_{\rm P} = 1$: (a) $(k_{\rm I},k_{\rm D}) = (1,0.1)$; (b) $(k_{\rm I},k_{\rm D}) = (2.497,-0.05457)$; (c) $(k_{\rm I},k_{\rm D}) = (2,-0.1)$

DownLoad: Full-Size Img PowerPoint

According to the algorithm in Section IV-C, the complete stabilizing set of the distributed PID controllers is presented as a 3D plot which is shown in Fig. 10.

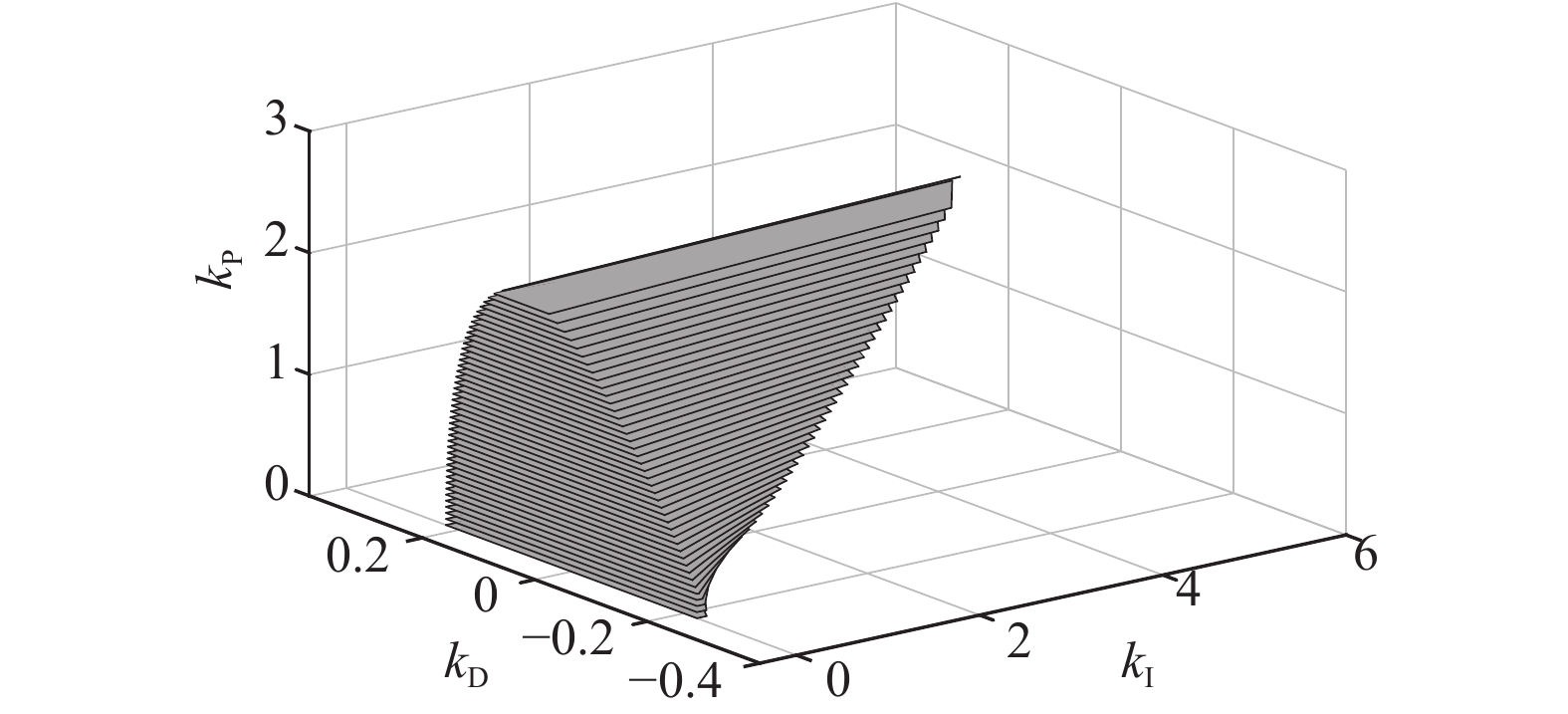

Figure  10.  The stabilizing parametric region for the multi-agent systems

DownLoad: Full-Size Img PowerPoint

Example 2: Consider a consensus tracking problem with 6 unstable agents studied in [16]. The topology is shown in Fig. 11. Only agent 1 is accessible to the target state $r(s) = 1$. By calculation, all the non-zero eigenvalues are 1. The agent dynamics are the first order unstable processes with time delays which can be found in pitch control of ship course control. The initial value for each agent is set randomly. The agent model is shown as follow:

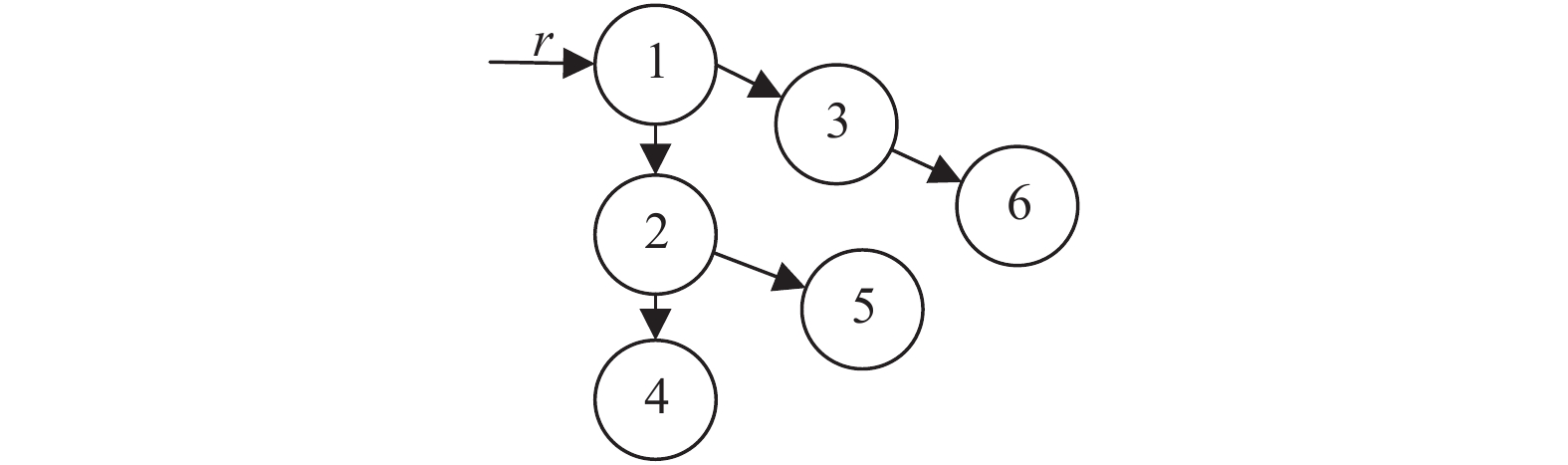

Figure  11.  The direct topology for Example 2

DownLoad: Full-Size Img PowerPoint

Obviously, although the topology has a spanning tree, the multi-agent system cannot achieve consensus. According to Theorem 1, the admissible range of $k_{\rm P}$ is (1, 17.7702). Then by fixing ${k_{\rm{P}}} = 2.9819$, based on (38), the boundaries of the stabilizing $({k_{\rm{I}}},{k_{\rm{D}}})$ region are calculated as

The stabilizing region is shown in Fig. 12. The step response curves shown in Fig. 13 for different $({k_{\rm{I}}},{k_{\rm{D}}})$ values demonstrate the validity of the proposed method. Note that the controller parameters $({k_{\rm{I}}},{k_{\rm{D}}}) = (2.538,0.724)$ derived in [11] are also located in the stabilizing region, which indicate that the proposed method can provide the basis for the tuning of the distributed PID controller. Furthermore, the stabilizing region makes it more flexible to choose the optimal controller parameters satisfying different performance criteria.

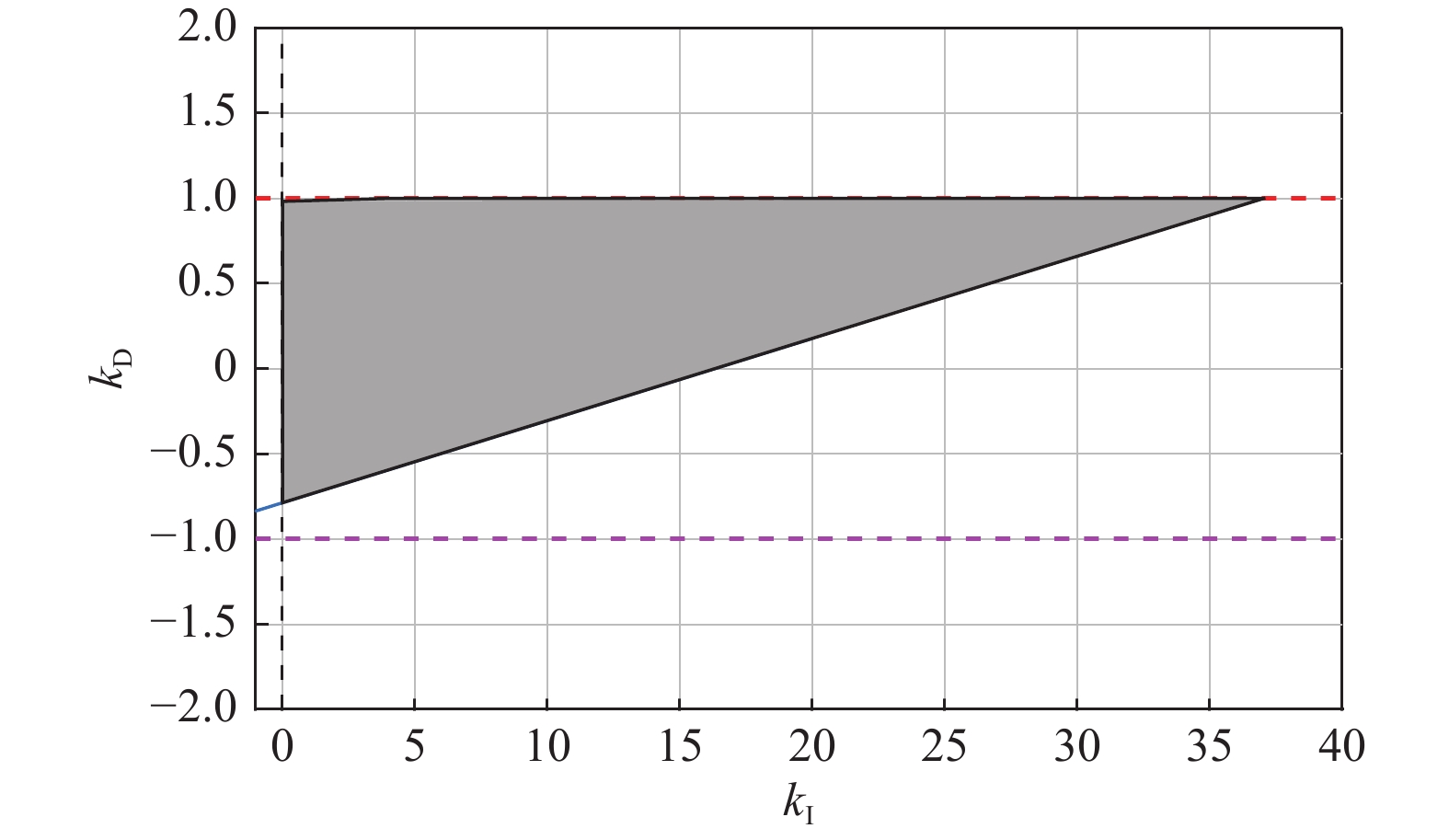

Figure  12.  The stabilizing $(k_{\rm I},k_{\rm D})$ region for $k_{\rm P} = 2.9819$

DownLoad: Full-Size Img PowerPoint

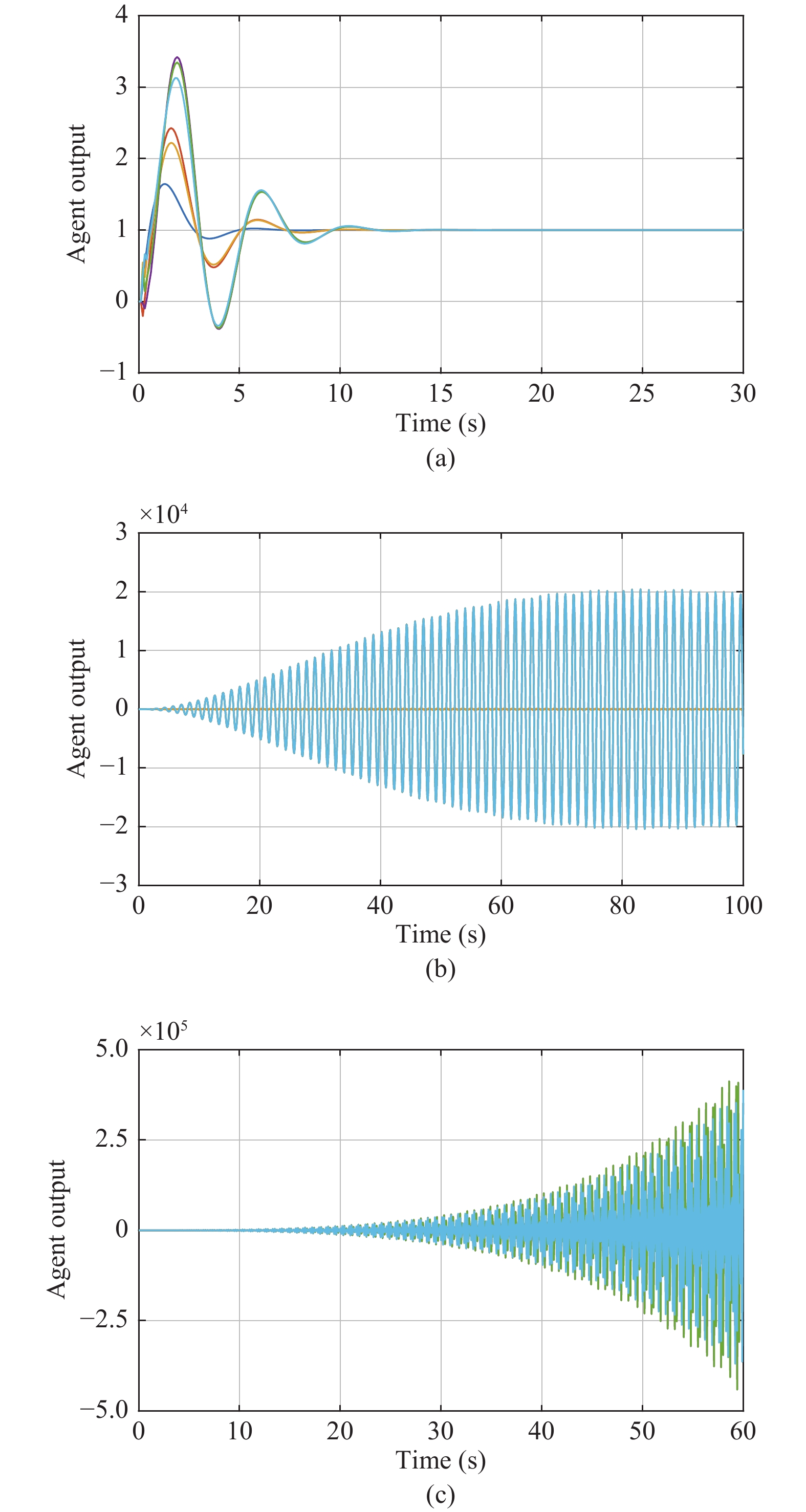

Figure  13.  The output response for $k_{\rm P} = 2.9819$: (a) $(k_{\rm I},k_{\rm D}) = (3,0.4)$; (b) $(k_{\rm I},k_{\rm D}) = (10,-0.335)$; (c) $(k_{\rm I},k_{\rm D}) = (3,1.01)$

DownLoad: Full-Size Img PowerPoint

VI. Conclusion

A comprehensive method to compute the entire set of stabilizing distributed PID controllers for general first-order multi-agent systems under arbitrary fixed topology is presented in this paper. All the parameters chosen in the resultant stabilizing region can guarantee the consensus of the given multi-agent system. The results of the paper provide insight into designing and analysing of the distributed PID controller for general first-order multi-agent systems under fixed topology including the undirected and directed topology. Further, the results in the paper solve the stabilization problem of the systems with complex coefficients.
