Ting Wang, Min Hu and Yanlong Zhao, "Consensus Control With a Constant Gain for Discrete-time Binary-valued Multi-agent Systems Based on a Projected Empirical Measure Method," IEEE/CAA J. Autom. Sinica, vol. 6, no. 4, pp. 1052-1059, July 2019. doi: 10.1109/JAS.2019.1911594
Citation: Ting Wang, Min Hu and Yanlong Zhao, "Consensus Control With a Constant Gain for Discrete-time Binary-valued Multi-agent Systems Based on a Projected Empirical Measure Method," IEEE/CAA J. Autom. Sinica, vol. 6, no. 4, pp. 1052-1059, July 2019. doi: 10.1109/JAS.2019.1911594
shu

Consensus Control With a Constant Gain for Discrete-time Binary-valued Multi-agent Systems Based on a Projected Empirical Measure Method

doi: 10.1109/JAS.2019.1911594
Funds:  This work was supported by the National Natural Science Foundation of China (61803370, 61622309), the China Postdoctoral Science Foundation (2018M630216), and the National Key Research and Development Program of China (2016YFB0901902)
More Information
    Abstract
  • This paper studies the consensus control of multi-agent systems with binary-valued observations. An algorithm alternating estimation and control is proposed. Each agent estimates the states of its neighbors based on a projected empirical measure method for a holding time. Based on the estimates, each agent designs the consensus control with a constant gain at some skipping time. The states of the system are updated by the designed control, and the estimation and control design will be repeated. For the estimation, the projected empirical measure method is proposed for the binary-valued observations. The algorithm can ensure the uniform boundedness of the estimates and the mean square error of the estimation is proved to be at the order of the reciprocal of the holding time (the same order as that in the case of accurate outputs). For the consensus control, a constant gain is designed instead of the stochastic approximation based gain in the existing literature for binary-valued observations. And, there is no need to make modification for control since the uniform boundedness of the estimates ensures the uniform boundedness of the agents’ states. Finally, the systems updated by the designed control are proved to achieve consensus and the consensus speed is faster than that in the existing literature. Simulations are given to demonstrate the theoretical results.



    • FullText(HTML)
  • loading
    • References(31)
  • [1]
    A. Jadbabaie, J. Lin, and A. S. Morse, " Coordination of groups of mobile autonomous agents using nearest neighbor rules,” IEEE Trans. Autom. Control, vol. 48, no. 6, pp. 988–1000, 2003. doi: 10.1109/TAC.2003.812781
    [2]
    H. G. Tanner, A. Jadbabaie, and G. J. Pappas, " Flocking in fixed and switching networks,” IEEE Trans. Autom. Control, vol. 52, no. 5, pp. 863–868, 2007. doi: 10.1109/TAC.2007.895948
    [3]
    H. Liang, Y. Zhang, T. Huang, and H. Ma, " Prescribed performance cooperative control for multiagent systems with input quantization,” IEEE Trans. Cybernetics, 2019. doi: 10.1109/TCYB.2019.2893645,2019
    [4]
    Z. Zhang, H. Liang, C. Wu, and C. K. Ahn, " Adaptive event-triggered output feedback fuzzy control for nonlinear networked systems with packet dropouts and actuator failure,” IEEE Trans. Fuzzy Systems, vol. 99, pp. 1–1, 2019.
    [5]
    Y. Jia and W. Zhang, " Distributed adaptive flocking of robotic fish system with a leader of bounded unknown input,” Int. J. Control,Automation and Systems, vol. 12, no. 5, pp. 1049–1058, 2014.
    [6]
    N. N. Jia and L. Wang, " Leader-follower flocking of multiple robotic fish,” IEEE-ASME Trans. Mechatronics, vol. 20, no. 3, pp. 1372–1383, 2015. doi: 10.1109/TMECH.2014.2337375
    [7]
    R. X. Cui, S. S. Ge, B. V. E. How, and Y. S. Choo, " Leader-follower formation control of underactuated autonomous underwater vehicles,” Ocean Engineering, vol. 37, no. 17, pp. 1491–1502, 2010.
    [8]
    J. Yang, X. Wang, and P. Bauer, " V-shaped formation control for robotic swarms constrained by field of view,” Applied Sciences-Basel, vol. 8, no. 11, pp. 401–420, 2004.
    [9]
    J. W. Cao, D. P. Spooner, S. A. Jarvis, and G. R. Nudd, " Grid load balancing using intelligent agents,” Future Generation Computer Systems, vol. 21, no. 1, pp. 135–149, 2005. doi: 10.1016/j.future.2004.09.032
    [10]
    W. C. Meng, X. Y. Wang, and S. C. Liu, " Distributed load sharing of an inverter-based microgrid with reduced communication,” IEEE Trans. Smart Grid, vol. 9, no. 2, pp. 1354–1364, 2018. doi: 10.1109/TSG.2016.2587685
    [11]
    R. W. Beard, J. Lawton, and F. Y. Hadaegh, " A coordination architecture for spacecraft formation control,” IEEE Trans. Control Systems Technology, vol. 9, pp. 777–790, 2001. doi: 10.1109/87.960341
    [12]
    W. Ren and R. W. Beard, " Decentralized scheme for spacecraft formation flying via the virtual structure approach,” J. Guidance,Control,and Dynamics, vol. 27, pp. 73–82, 2004. doi: 10.2514/1.9287
    [13]
    D. Bauso, L. Giarre, and R. Pesenti, " Attitude alignment of a team of UAVs under decentralized information structure”, in Proc. IEEE Internation Conf. Control Applications, 2003, pp. 486-491.
    [14]
    R. Olfati-Saber and R. M. Murray, " Consensus problems in networks of agents with switching topology and time-Delays,” IEEE Trans. Autom. Control, vol. 49, no. 9, pp. 1520–1533, 2004. doi: 10.1109/TAC.2004.834113
    [15]
    J. A. Fax and R. M. Murray, " Information flow and cooperative control of vehicle formations,” IEEE Trans. Autom. Control, vol. 49, no. 9, pp. 1465–1476, 2004. doi: 10.1109/TAC.2004.834433
    [16]
    W. Ren and Y. Cao, Distributed Coordination of Multi-agent Networks- Emergent Problems, Models, and Issues, London: Springer, 2011.
    [17]
    A. Kashyap, T. Basar, and R. Srikant, " Consensus with quantized information updates”, in Proc. 45th IEEE Conf. Decision Control, 2006, pp. 2728-2733.
    [18]
    A. Kashyap, T. Basar, and R. Srikant, " Quantized consensus,” Automatica, vol. 43, no. 7, pp. 1192–1203, 2007. doi: 10.1016/j.automatica.2007.01.002
    [19]
    P. Frasca, R. Carli, F. Fagnani, and S. Zampieri, " Average consensus on networkswith quantized communication,” Int. J. Nonlinear and Robust Control, vol. 19, no. 16, pp. 1787–1816, 2009. doi: 10.1002/rnc.v19:16
    [20]
    S. Liu, T. Li, L. Xie, M. Fu, and J. F. Zhang, " Continuous-time and sampled-data-based average consensus with logarithmic quantizers,” Automatica, vol. 49, no. 11, pp. 3329–3336, 2013. doi: 10.1016/j.automatica.2013.07.016
    [21]
    R. Carli, F. Bullo, and S. Zampieri, " Quantized average consensus via dynamic coding/decoding schemes,” Int. J. Nonlinear and Robust Control, vol. 20, no. 2, pp. 156–175, 2010. doi: 10.1002/rnc.v20:2
    [22]
    T. Li, M. Fu, L. Xie, and J. F. Zhang, " Distributed consensus with limited communication data rate,” IEEE Trans. Autom. Control, vol. 56, no. 2, pp. 279–292, 2011. doi: 10.1109/TAC.2010.2052384
    [23]
    L. Y. Wang, J. F. Zhang, and G. Yin, " System identification using binary sensors,” IEEE Trans. Autom. Control, vol. 48, no. 11, pp. 1892–1907, 2003. doi: 10.1109/TAC.2003.819073
    [24]
    J. C. Aguero, G. C. Goodwin, and J. I. Yuz, " System identification using quantized data”, in Proc. 46th IEEE Conf. Decision Control, 2007, pp. 4263-4268.
    [25]
    M. Casini, A. Garulli, and A. Vicino, " Time complexity and input design in worst-case identification using binary sensors”, in Proc. 46th IEEE Conf. Decision Control, 2007, pp. 5528-5533.
    [26]
    Y. L. Zhao, W. J. Bi, and T. Wang, " Iterative parameter estimate with batched binary-valued observations,” Science China Information Sciences, vol. 59, pp. 052201:1–052201:18, 2016.
    [27]
    Y. L. Zhao, T. Wang, and W. J. Bi, " Consensus protocol for multi-agent systems with undirected topologies and binary-valued communications,” IEEE Trans. Automatic Control, vol. 64, no. 1, pp. 206–221, 2019. doi: 10.1109/TAC.2018.2814632
    [28]
    T. Wang, H. Zhang, and Y. L. Zhao, " Average consensus of multi-agent systems under directed topologies and binary-valued communications,” IEEE Access, vol. 6, pp. 55995–56006, 2018. doi: 10.1109/ACCESS.2018.2872755
    [29]
    X. M. Wang, T. Wang, C. B. Xu, and Y. L. Zhao, " Average Consensus for multi-agent system with measurement noise and binaryvaluedcommunication,” Asian J. Control, vol. 21, no. 4, pp. 1–14, 2019.
    [30]
    P. H. Calamai and J. J. More, " Projected gradient methods for linearly constrained problems,” Mathematical Programming, vol. 39, no. 1, pp. 93–116, 1987. doi: 10.1007/BF02592073
    [31]
    M. Mesbahi and M. Egerstedt. Graph theoretic methods in multiagent networks. Princeton University Press, 2010.
    • Related Articles
    • Supplements(0)

Catalog

    通讯作者: 陈斌, bchen63@163.com
    • 1.

      沈阳化工大学材料科学与工程学院 沈阳 110142

    1. 本站搜索
    2. 百度学术搜索
    3. 万方数据库搜索
    4. CNKI搜索

    Figures(9)

    Get Citation
    PDF
    XML

    Article Metrics

    Article views (1320) PDF downloads(47) Cited by()

    Highlights

    • An algorithm alternating estimation and control is proposed. Each agent estimates the states of its neighbors based on a projected empirical measure method for a holding time. Based on the estimates, each agent designs the consensus control with a constant gain at some skipping time.
    • For the estimation, the projected empirical measure method is proposed for the binary-valued observations. The algorithm can ensure the uniform boundedness of the estimates and the mean square error of the estimation is proved to be at the order of the reciprocal of the holding time (the same order as that in the case of accurate outputs).

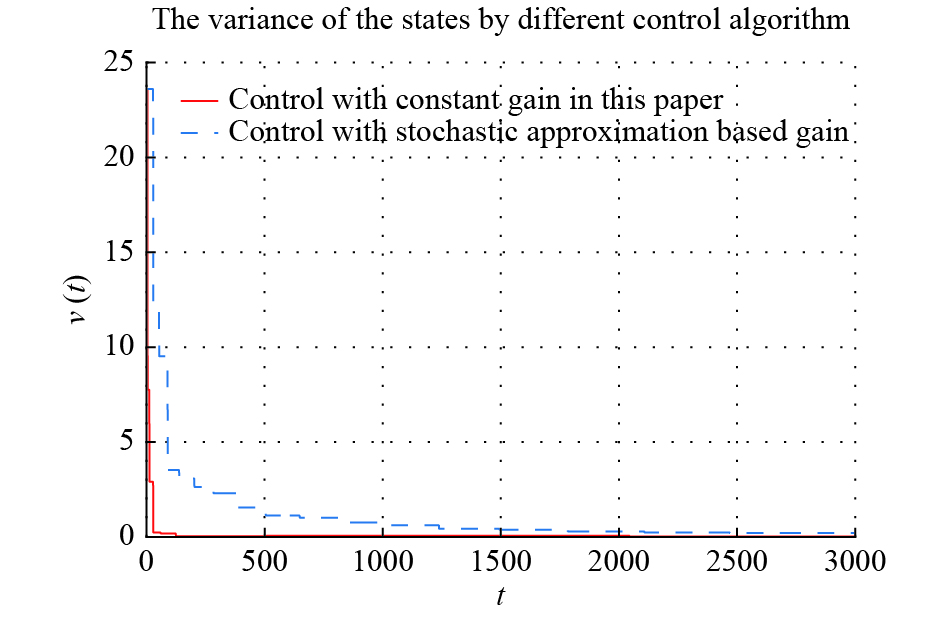

    • For the consensus control, a constant gain is designed instead of the stochastic approximation based gain in the existing literature for binary-valued observations. And, there is no need to make modification for control since the uniform boundedness of the estimates ensures the uniform boundedness of the agents' states. Finally, the systems updated by the designed control are proved to achieve consensus and the consensus speed is faster than that in the existing literature.

    /
