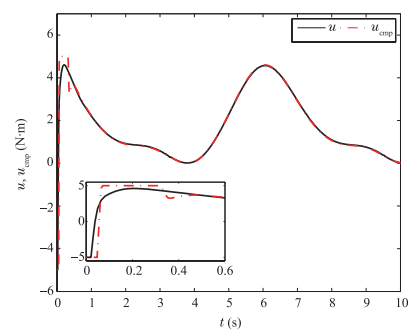

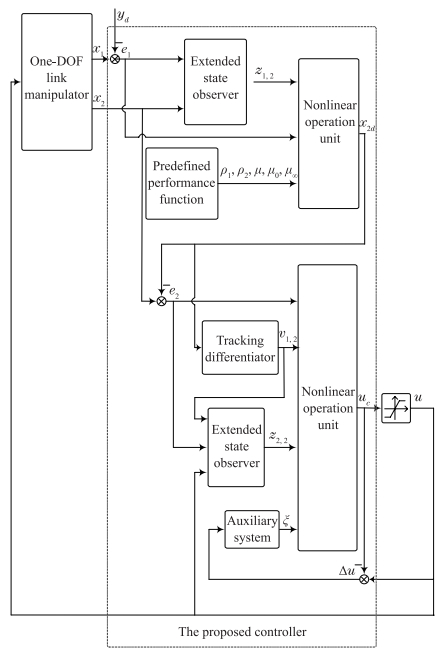

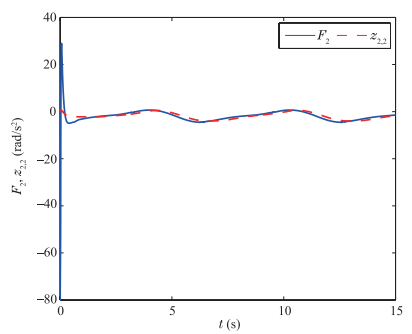

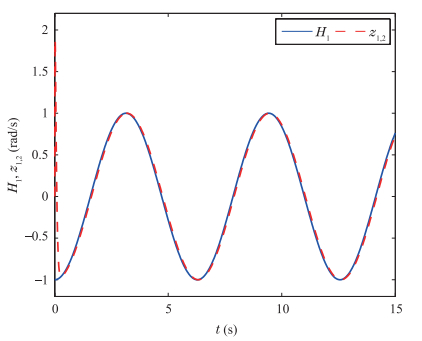

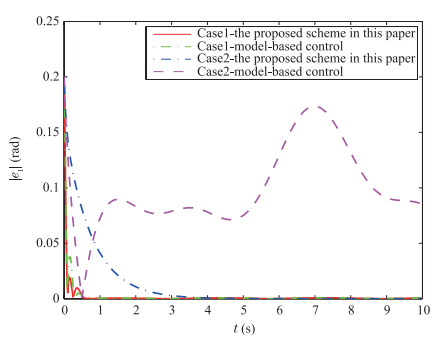

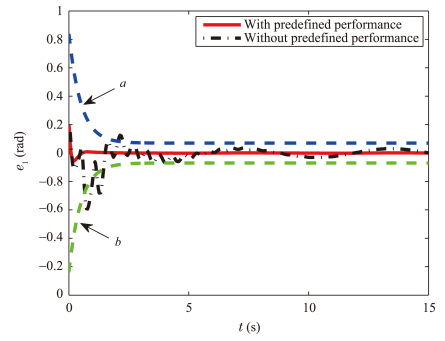

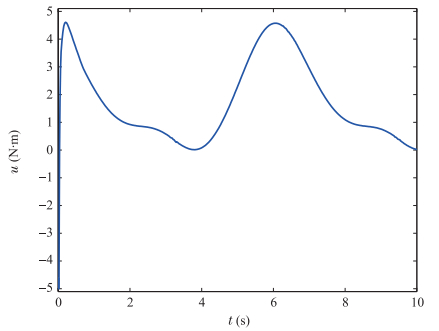

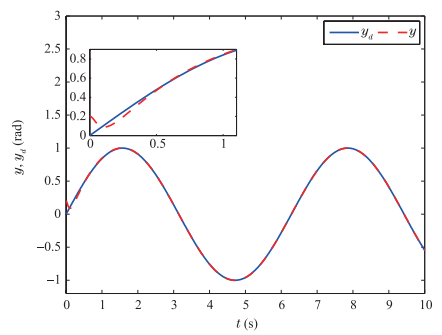

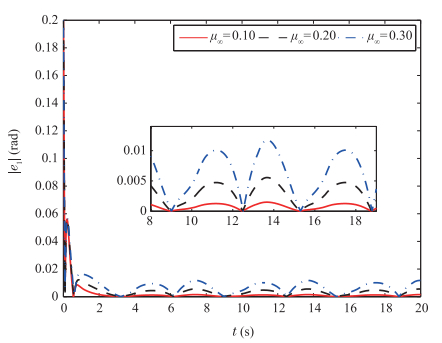

| Citation: | Yang Yang, Jie Tan and Dong Yue, "Prescribed Performance Control of One-DOF Link Manipulator With Uncertainties and Input Saturation Constraint," IEEE/CAA J. Autom. Sinica, vol. 6, no. 1, pp. 148-157, Jan. 2019. doi: 10.1109/JAS.2018.7511099
|
The energy consumption by large scale industrial process plants seriously influences and restricts the development of economics and environment. For example, subjected to the influence of the tropical hot and humid climate and overpopulation within a narrow territory, Singapore consumes a large amount of electricity and suffers from high environmental cost. In particular, one of the major factors is the electricity usage for running air-conditioning which accounts for more than 52% of the total electrical energy generated [1]. The vapor compression refrigeration cycle (VCC) is a core element in the heating, ventilation, and air-conditioning (HVAC) system which is composed of compressor, condenser, expansion valve, and evaporator. For the purpose of minimizing energy consumption while maintaining the demand of human comfort, the VCC system needs to be controlled more effectively.
The development of effective control scheme of VCC system has become a hot issue attracting the attention of researchers. Traditionally, for controller design, the PI or PID feedback control algorithm is widely used in air-conditioning fields due to its simplicity [2]-[5]. Usually, the process is identified to be a first order plus time-delay system in which the temperature of room is taken as the controlled variable and the damper opening degree as the manipulated variable [3], and step tests were conducted to determine the process parameters. Ziegler-Nichols vibration method or other methods were used to compute the PID control parameters for practical control systems [4], and then the superheat of evaporator was controlled by the regulation of expansion valve opening. Recently, artificial intelligence is introduced in air-conditioning systems [6]-[8]. In [7], artificial neural network (ANN) was used as a modeling tool for temperature and relative humidity of the automotive air conditioning system. Reference [9] proposed a gain-scheduled-control-based strategy with compressor speed and the opening of expansion valve to control superheat and pressure difference between condenser and evaporator at a fixed point. Since the model predictive control (MPC) is good at dealing with the constraints, it is widely used in different fields [10], [11]. The application of MPC can also be found in the research of the VCC systems, e.g., [12] developed an MPC, which used expansion valves and water flow valves to control the superheat of evaporator and cooling load, and the evaporator pressure regulation was performed by the compressor speed through a PI controller. Reference [13] presented a linear matrix inequality-based robust model predictive control strategy for temperature control of an air-conditioning system.
Previous researches were mostly dedicated to stabilize the operating conditions (state parameters) of the VCC system, while taking the system efficiency into consideration has become a new focus of research [14], [15]. Reference [16] identified a single-input single-output (SISO) model to control the evaporator superheat with expansion valve, and obtained energy saving of about 2% by experiment. Although some of these researches have been validated for the effectiveness of the energy saving, considering the nonlinear relationship between the changes of cooling load and superheat, meanwhile they also deal with the strong coupling between the control variables, and that is where further researches are still needed to be done.
In this paper, a novel energy efficient control strategy based on the MPC method is proposed to regulate system efficiency while meeting changing demands for cooling load. To improve the measure of system efficiency called COP, a model to describe the measured relationship between superheat and cooling load is presented firstly to obtain in real-time the minimum setting value of superheat which can produce the maximal effect on the system performance. Then an MPC is employed to track the pressure difference and superheat when the cooling loads change. Experiments are carried out to verify the effectiveness of the proposed control strategy.
The remainder of the paper is organized as follows. Section Ⅱ details the VCC system. Section Ⅲ proposes a control strategy which is used to optimize the coefficient of performance (COP). Experimental results are presented in Section Ⅳ which justify the effectiveness of the proposed controllers. Section Ⅴ summarizes the main conclusions.
A typical single vapor compression cycle system shown in Fig. 1 has four components: a compressor, a condenser, an expansion valve, and an evaporator. The circulating refrigerant as saturated vapors enters the compressor and is compressed into superheated vapors which have a higher pressure and higher temperature. The compressed, superheated refrigerant vapor is then routed through the condenser, in which the refrigerant is cooled and condensed into a liquid phase by flowing through a coil or tubes with cool fluid flowing across the coil or tubes. This process called condensation finishes the energy transformation from refrigerant to outside. After being condensed, the refrigerant as a sub-cooled liquid at a high pressure enters the expansion valve where the pressure is reduced abruptly. At the exit of the expansion valve the refrigerant is generally in two-phase flow state with a low pressure. The cold fluid then enters the evaporator, where the fluid evaporates and the heat of ambient air is transferred to the fluid. After the evaporation process, the refrigerant as saturated vapors is routed back into the compressor to complete the refrigeration cycle.
The parameters describing the system characteristics include the superheat of evaporator ($T_{\rm esh} $), the pressures of evaporator and condenser ($P_e $, $P_c $), the superheat and supercooling degrees of condenser ($T_{\rm csh} $, $T_{\rm csc }$), and the temperatures of refrigerant and air at outlets of evaporator and condenser ($T_{\rm ero} $, $T_{\rm eao} $, $T_{\rm cro} $, $T_{\rm cao} $). In addition, the compressor speed ($F_{\rm com} $), the air flow rates of evaporator and condenser ($\dot {m}_{ea} $, $\dot {m}_{ca} $), and the expansion valve opening ($v_o $) are adjustable.
The pressure-enthalpy relation of VCC system which is useful to describe the system from the point of view of energy consumption is shown in Fig. 2. The process from point 1 to point 2 in Fig. 2 is the compression which is an isentropic process, the process from point 2 to point 3 is the condensation with a constant condensation pressure, the expansion from point 3 to point 4 is an isenthalpic process, and the process from point 4 to point 1 is the evaporation with a constant evaporation pressure. Enthalpy is a thermodynamic potential, which is the preferred expression of system energy changes. The difference between the enthalpy of point 1 and point 4 represents the energy absorbed by the refrigerant across the evaporator.
As mentioned, this paper focuses on maximizing system efficiency with varying cooling demands. It is significant to ensure that superheated refrigerant exits the evaporator preventing physical damage in the VCC. However, minimized superheat of evaporator can improve the heat exchanging efficiency of two-phase region so that COP could be increased. Therefore, the superheat ($T_{\rm esh} $) should be regulated to a reasonably lower setting value, while ensuring safe and stable operation. When the pressure of condenser ($P_c $) is reduced, the pressure of evaporator ($P_e $) is increased, which means the pressure difference between condenser and evaporator ($P_d $) is decreased, the energy saving of compressor could be achieved effectively. Therefore, the pressure difference between condenser and evaporator ($P_d $) is also an important variable to be controlled, which is better shown to be disturbance rejection and noise attenuation as a feedback variable than evaporator pressure alone [9]. The superheat and pressure difference during the whole refrigerant cycle are affected by the compressor speed and the opening of expansion valve. The process variables chosen in this research are defined in Table Ⅰ.
| System variables | Quantity |
| Manipulated variable $u_1$ | $F_{\rm com}$ the compressor speed |
| Manipulated variable $u_2$ | $v_o$ the opening of expansion valve |
| Controlled variable $y_1$ | $P_d$ the pressure difference between condenser and evaporator |
| Controlled variable $y_2$ | $T_{\rm esh}$ the superheat of evaporator |
| Measurable disturbances $d$ | $T_{\rm amb}$ the ambient temperature |
DownLoad:
CSV
Fig. 3 presents the block diagram of the proposed control structure used in this research. The inner loop is composed of a stand-alone MPC and the VCC system, the outputs of which as feedback signals enter the inner loop controller. The outer loop consists of a PI controller and a model of nonlinear relationship between the cooling load and superheat. According to the demands of cooling load, the setting value of superheat is determined, and the differences between the setting values and actual values enter the MPC as the controller inputs, via which the outer loop is connected to the inner loop. After solving the proposed optimization problem in the MPC formulation, the optimized compressor speed and the opening of expansion valve as controller outputs enter the VCC system. Thus a closed-loop cascade control circuit has been realized.
In order to meet the different cooling and comfort demands, the VCC system is operated over a wide temperature and pressure range while the superheat is kept at low values, which is an important and necessary factor to achieve energy efficiency and safe operation. Minimal stable superheat (MSS) is defined as a critical minimal degree of stable refrigerant superheat which can be used for the proposed controller design [17]. The refrigerant exiting the evaporator in superheated vapors state is important to avoid the entry of liquid refrigerant into the compressor. The set point of superheat could not be too low, otherwise it will lead to the system hunting. Further research on the MSS shows that MSS is an inherent characteristic of evaporator, which is related to the current cooling load of experimental systems. The analysis in [17] indicates that the MSS increases to some extent with the increase of cooling load. In this section, a model for describing the nonlinear relationship between the cooling load $Q_e $ and MSS is constructed.
According to the state of refrigerant, the evaporator of VCC system can be divided into two regions, i.e., a two-phase region with a mean void fraction, and a superheated vapor region. In order to simplify the nonlinear and complex nature of the proposed model, some assumptions are adopted first. Assume the refrigerant density in the superheat region is essentially constant, which can practically be approximated by the saturated vapor, $\rho _{eg} $. While based on the concept of mean void fraction $\gamma _e $, the refrigerant density in the two-phase region can be expressed as
| ρe2=ρegγe+ρef(1−γe). | (1) |
Assume the length of superheat region can be calculated by a function of its respective outlet and inlet enthalpy difference
| Le1(t)=βe1(hero−heg) | (2) |
where the coefficient $\beta _{e1} $ can be obtained by parameter identification. $h_{\rm eg} $ is the enthalpy of refrigerant in the saturated vapor condition which can be simplified as a function of the corresponding pressure, namely $h_{\rm eg} =h_g \left( {P_e } \right)$.
The length of the two-phase region can be obtained by the difference between the total length of evaporator and the length of the superheat region
| Le2(t)=Le−Le1(t). | (3) |
Since the enthalpy can be described as a function of the corresponding pressure and refrigerant temperature, the enthalpy of refrigerant at evaporator outlet $h_{\rm ero} $ can be approximated by a function of evaporator pressure $P_e $ and temperature at evaporator outlet $T_{\rm ero} $. The superheat degree of evaporator $T_{\rm esh} $ equals the refrigerant temperature at evaporator outlet $T_{\rm ero} $ minus its saturated temperature $T_{\rm ersat} $. The MSS is the minimum value of superheat under the condition of corresponding evaporating pressure and cooling load. Then the enthalpy $h_{\rm ero} $ can be transformed into the function of MSS and $P_e $
| hero=fero(Pe,MSS). | (4) |
As the evaporator pressure $P_e $ is controlled to be constant, the refrigerant temperature at evaporator outlet $T_{\rm eri} $ can be considered as essentially constant. The saturated enthalpies $h_{eg} $ and $h_{ef} $, and the enthalpy of refrigerant at evaporator inlet $h_{\rm eri} $ can be assumed to be constant.
The time derivative of $L_{e1} \left( t \right)$ can be written as
| ˙Le1(t)=βe1dherodMSSM˙SS. | (5) |
Under the proper simplified condition mentioned above, the dynamic equations of two regions are established by using the conservation of mass principle, which can be expressed as follows:
| ddt(ρegAeLe1(t))=˙mero−˙meg | (6) |
| ddt(ρe2AeLe2(t))=˙meg−˙meri. | (7) |
Substituting (1), (3) and (5) into (6) and (7), and rearranging them yield
| dherodMSSM˙SS=˙mero−˙meriβe1(ρeg−ρef)(1−γe)Ae. | (8) |
According to the conservation of the energy principle, the energy absorbed by the refrigerant of the two regions can be written as
| ˙merohero−˙megheg=Qe1 | (9) |
| ˙megheg−˙meriheri=Qe2. | (10) |
Adding (9) and (10), and substituting (4), yield
| ˙merofero(Pe,MSS)−˙meriheri=Qe. | (11) |
Consequently, combining (8) and (11), the model between cooling load $Q_e $ and $MSS$ can be practically expressed as follows:
| M˙SS=˙mero−˙meriβe1(ρeg−ρef)(1−γe)AedherodMSSQe=˙merofero(Pe,MSS)−˙meriheri. | (12) |
According to this proposed model, experimental work can be carried out in the nonlinear VCC experimental test stand, and the setting values of $MSS$ for the proposed inner loop controller can be obtained according to the different demands of cooling capacity.
To improve the energy efficiency of VCC system under different demands of cooling capacity, an MPC-based controller is designed in this section, which is accomplished by the appropriate superheat setting value via the inner loop based on the current cooling load.
1) VCC Modeling: In order to make a trade-off between the modeling accuracy and the energy-efficient control in controller design, a dynamic response based on input-output data of a VCC system, closely related to the COP, is identified using a time-domain-system identification procedure. The model identification procedure adopted in this research is numerical algorithm for subspace state space system identification (N4SID) method [18]-[20] which is a commonly used black-box algorithm for setting up a linear state space model directly from input-output data for the complicated system. A linear nth-order state-space formulation looks as follows:
| xk+1=A×xk+Bu×uk+Bd×dkyk=C×xk+D×uk+dk | (13) |
where $x_k \in \mathbb{R}^n$ is the state vector, $u_k \in \mathbb{R}^l$ and $y_k \in \mathbb{R}^m$ are the process input and output vectors at sampling instant $k$, respectively, $d_k $ is a vector of measurable disturbances, $A$, $B_u $, $B_d $, $C$ and $D$ are model coefficient matrices, which are identified by a subspace-based state space system identification method.
In this section, a state-space model based on the N4SID method is first identified using simulation data. For the VCC system, the outputs, inputs and measurable disturbances are defined as follows:
| y=[PdTesh]T,u=[Fcomvo]Td=[Tamb],Pd=Pc−Pe. | (14) |
2) MPC Formulation: To improve the energy efficiency of VCC system under different demands of cooling capacity, a model predictive controller is designed in this section, which is accomplished by using the outer loop for determining appropriate setting value of superheat based on the current cooling load. The proposed controller design is based on the MPC algorithm, which is a control algorithm computing a sequence of control inputs based on an explicit prediction of outputs within some future horizon. The objective function $J(k)$ of MPC in this research is defined as
| minΔu(k)J(k)= ny∑j=1Py∑i=1‖˜ysp,j(k+i|k)−yj(k+i|k)‖qj +nmv∑j=1M∑i=1‖Δuj(k+i|k)‖rj +M∑i=1‖1COP(k+i|k)‖ | (15) |
where $ {1}/{COP}={W_{\rm com} }/{Q_e }$, and $k$, $k+i$, $P_y $, $n_y $, $q_j $, $r_j $, $M$, $n_{mv} $ are the current sampling interval, the future sampling interval, prediction horizon, the number of plant outputs, the weighting matrix of outputs and input increments, control horizon, and the number of the inputs, respectively. $\tilde {y}_{sp} \left( {k+i\left| k \right.} \right)$ is the desired output at instant $k+i$; $y_j (k)$ is the actual output at instant $k$.
Equation (15) computes the weighted sum of squared deviations for the deviation of the outputs from the setting values, the incremental manipulated variables, and the energy consumption of system. The $\Delta u_j (k+i\left| k \right.)$ is the increment of manipulated variables, and defined as
| Δuj(k+i|k)= {uj(k|k)−uj(k−1),for i=0uj(k+i|k)−uj(k+i−1|k),for i=1,…,M−1 | (16) |
where $\Delta u_j (k+i-1)$ is the predicted adjustment of input $u_j $ at future instant $k+i-1$.
One of the most important advantages of MPC is that it accounts for the constraints of input and output variables that can be inherent to the real industrial systems, e.g., a valve cannot open past 100% open or close past 0% open. Another advantage of MPC is that additional constraints can be defined by the user to keep the system operating in a safe range, e.g., keeping evaporator superheat above a desired minimum in order to prevent any refrigerant liquid from reaching the compressor. Input and output values have a limited range for actually operating, therefore $\Delta u$, $u$, and $y$ are subjected to constraints as
| Δuj_min≤Δuj(k)≤Δuj_maxuj_min≤uj(k)≤uj_maxyj_min≤yj(k)≤yj_max. | (17) |
The experimental platform used in this research is developed at the process instrumentation laboratory of Nanyang Technological University of Singapore. The photograph of the experimental platform is shown in Fig. 4. It includes a variable speed compressor, an electronic expansion valve, an air-cooled condenser and evaporator, a liquid receiver after the condenser, an accumulator after the evaporator, and the fans of condenser and evaporator with variable frequency. In addition, the pressure measurement devices are installed on the system, the measurement range and measuring error limits of which are 0-1600 kPa and ±0.5%, respectively. The temperature sensors are also installed with the measurement range of -40°-200° and measuring error limits of ±0.3°. The R134a is used as the working fluid in this research. The measuring error limits of the refrigerant mass flow in this system are ±1.6%.
Experimental analysis is carried out to verify the accuracy and effectiveness of the proposed energy efficient control strategy. The system parameters needing to be operated during limited ranges are shown in Table Ⅱ.
| System variables | Units | Range |
| $P_e$ | bar | 2~5 |
| $P_c$ | bar | 7~15 |
| $P_d$ | bar | 2~13 |
| $T_{\rm esh}$ | ℃ | 2~10 |
| $F_{\rm com}$ | Hz | 5~60 |
| EEV opening | 0~100% | |
| $\dot{m}_r$ | kg/s | 0.008~0.03 |
DownLoad:
CSV
The varying weather conditions can increase or decrease the cooling capacity of the VCC system. In order to describe the relationship between MSS and cooling load, a first-order plus time delay model for outer loop is first identified according to (11), in which the enthalpies of different states are completely determined by the corresponding pressure and temperature, which can be approximated by linear functions [21]
| harb=farb(Pa,Tarb)=kab1Pa+kab2Tarb+kab3 | (18) |
where $a=c$, $b=i$ retrieves the refrigerant enthalpy at condenser inlet $h_{\rm cri} $; whereas $a=e$, $b=o$ and $a=e$, $b=i$ retrieve the refrigerant enthalpy at evaporator outlet $h_{\rm ero} $ and inlet $h_{\rm eri} $, respectively; $P_c $, $P_e $, $T_{\rm cri} $ and $T_{\rm ero} $ are the pressures of condenser and evaporator, the refrigerant temperature at condenser inlet and evaporator outlet, respectively. The coefficients $k_{ab1} $, $k_{ab2} $ and $k_{ab3} $ can be obtained by curve fitting for given refrigerant. Given the measuring range of pressure and temperature at the given refrigerant, the parameters are fitted in Table Ⅲ.
| Parameters | Value |
| $k_{eo1}$ | 0.89185211 |
| $k_{eo2}$ | -2.4239021 |
| $k_{eo3}$ | 405.64751 |
| $k_{ei1}$ | 0.0079980 |
| $k_{ei2}$ | 1.4631463 |
| $k_{ei3}$ | 197.79521 |
| $k_{ci1}$ | -1.7405306 |
| $k_{ci2}$ | 1.10381169 |
| $k_{ci3}$ | 392.246402 |
DownLoad:
CSV
The outer loop model is shown as (1). Then a PI controller is developed in this section and fine-tuned to determine the setting value of superheat for inner loop based on the MSS under current cooling load. The parameters of PI controller are shown in Table Ⅳ.
| Control loop | $K_c$ | $\tau_I$ |
| $O_e-MSS$ | 20.492 | 0.96731 |
DownLoad:
CSV
| G(s)=Kp1+Tpsexp(−Tds) | (19) |
with $K_p =1.0338$, $T_p =21.185$, $T_d =8.6178$.
For the inner loop, an N4SID model is first identified. The random inputs shown in Fig. 5 are generated around a set of nominal operating conditions and subsequently implemented on the nonlinear VCC experimental platform. Fig. 6 shows the identified N4SID model compared against the experimental data from the rig system, demonstrating the prediction capability of the identified inner loop model.
Based on the identified models, the MPC is designed, and the parameters and constraints are given in Table Ⅴ. Experimental analyses and the performance comparison for the proposed energy efficient control (PI-MPC) and a normal control strategy (PI-PI) are carried out, both of which are under the same outer loop control structure.
| Parameters | Description | Value |
| $n_y$ | Number of output | 2 |
| $n_mv$ | Number of inputs | 2 |
| $P_y$ | Prediction horizon | 30 |
| $M$ | Control horizon | 15 |
| $q$ | Weight of outputs | diag{25, 4} |
| $r$ | Weight of inputs | diag{0.1, 0.01} |
| $\{y_{\rm min}, y_{\rm max}\}$ | Constraints of outputs | $\{[6.3~3.8]^{T}, [6.7~6.2]^{T}\}$ |
| $\{u_{\rm min}, u_{\rm max}\}$ | Constraints of inputs | $\{[20~20]^{T}, [43~80]^{\rm }\}$ |
| $\{\Delta u_{\rm min}, \Delta u_{\rm max}\}$ | Constrains of input increments | $\{[-4~-2]^{T}, [4~2]^{T}\}$ |
DownLoad:
CSV
In order to prove the energy efficiency of the proposed control strategy, the performances of the proposed PI-MPC structure and a normal PI-PI control structure are compared in this section. The normal PI-PI control structure consists of inner loop which has a VCC system model and a PI controller, and outer loop which is identical with the outer loop of the proposed control structure. Based on the identified inner loop model, a PI controller for performance evaluation of inner loop in normal control structure is designed first. By applying relative gain array (RGA) analysis, the I/O pairings, the fine-tuned gain, and integral time values are all included in Table Ⅵ. The experiment is carried out on the basis of the same outer loop structure in which the outer loop provides the same setting values for both MPC and PI controllers of inner loop. The external environmental conditions are assumed to be consistent during the experiment period. The parameters of MPC are shown in Table Ⅴ.
| Control loop | $K_c$ | $\tau_I$ |
| $P_d-F_{\rm com}$ | -421.65 | -50.0939 |
| $T_{\rm esh}-v_{o}$ | -3.4903 | -0.20695 |
DownLoad:
CSV
In this research, an increase in cooling demand occurred at time $t=3180$ s from 2 kw to 3 kw, and then it further increased from 3 kw to 4 kw at time $t=6480$ s. The PI controller of outer loop regulates rapidly the set point of superheat to new values. Then the controllers of inner loop drive both pressure difference and superheat towards the desired references shown in Figs. 7 and 8, respectively. The PI controller shows better rising time while larger overshoot performance than MPC, which is because the proposed MPC has the capability to deal with the constraints and coupling issue. By analyzing the experiment results in this case, although the MPC controller needs longer response time than PI controller, low overshoot performance of the proposed MPC controller is demonstrated which ensures the safe operation of the VCC system.
Figs. 9 and 10 display the input variable response curves for the two controllers. The cooling demands are satisfied by wider opening of expansion valve and lower compressor speed of MPC controller than PI controller. For the purpose of stable and safe operation, an operating range of the system variables is considered in Table Ⅱ. The compressor speed of the PI controller at time $t=6500$ s exceeds 43 Hz, which demonstrates that MPC controller has more distinct advantage than PI controller does in respect of dealing with constraints (Fig. 9).
The COP curves of two controllers are shown in Fig. 11 which verifies the effectiveness of the controllers. By comparing the MPC controller with PI controller, the COP for MPC controller is increased by 8%. This is because lower compressor speed for MPC controller is required than that for PI controller according to the optimization of energy consumption in (15), which reduces the energy consumption as much as possible. In this case the proposed control strategy offers better tracking performance with constraints and energy efficiency of VCC system than the PI-PI control strategy.
This paper develops a multi-input multi-output energy efficiency control architecture to improve energy efficiency while meeting changing demands for cooling capacity. The architecture consists of inner loop and outer loop in which an analysis on the nonlinear relationship between MSS and cooling load is firstly carried out to obtain the setting value of superheat for the inner loop which can produce the maximal effect on the system performance. In the inner loop, the proposed MPC controller is applied to track the setting value of pressure difference and the superheat of the evaporator determined by the outer loop so that minimum energy consumption of VCC system is ensured. Experimental results confirm the energy efficiency and good trajectory tracking characteristics of the proposed control strategy.
| [1] |
S. Li, J. B. He, Y. M. Li, and M. U. Rafique, "Distributed recurrent neural networks for cooperative control of manipulators: a game-theoretic perspective, " IEEE Trans. Neural Networks Learning Syst., vol. 28, no. 2, pp. 415-426, Feb. 2017. http://dynamicsystems.asmedigitalcollection.asme.org/article.aspx?articleid=1406231
|
| [2] |
F. Y. Wang and Y. Q. Gao, "On frequency sensitivity and mode orthogonality of flexible robotic manipulators, " IEEE/CAA J. Autom. Sinica, vol. 3, no. 4, pp. 394-397, Oct. 2016. http://en.cnki.com.cn/Article_en/CJFDTOTAL-ZDHB201604006.htm
|
| [3] |
W. He, Y. T. Dong, and C. Y. Sun, "Adaptive neural impedance control of a robotic manipulator with input saturation, " IEEE Trans. Syst. Man Cybern. Syst., vol. 46, no. 3, pp. 334-344, Mar. 2016. https://www.researchgate.net/publication/279164692_Adaptive_Neural_Impedance_Control_of_a_Robotic_Manipulator_With_Input_Saturation
|
| [4] |
R. Muradore and P. Fiorini, "A PLS-based statistical approach for fault detection and isolation of robotic manipulators, " IEEE Trans. Ind. Electron., vol. 59, no. 8, pp. 3167-3175, Aug. 2012. https://www.researchgate.net/publication/254057578_A_PLS-Based_Statistical_Approach_for_Fault_Detection_and_Isolation_of_Robotic_Manipulators?ev=auth_pub
|
| [5] |
N. Nikdel, M. Badamchizadeh, V. Azimirad, and M. A. Nazari, "Fractional-order adaptive backstepping control of robotic manipulators in the presence of model uncertainties and external disturbances, " IEEE Trans. Ind. Electron., vol. 63, no. 10, pp. 6249-6256, Oct. 2016. https://www.researchgate.net/publication/303847192_Fractional-Order_Adaptive_Backstepping_Control_of_Robotic_Manipulators_in_the_Presence_of_Model_Uncertainties_and_External_Disturbances
|
| [6] |
M. Ertugrul and O. Kaynak, "Neuro sliding mode control of robotic manipulators, " Mechatronics, vol. 10, no. 1-2, pp. 239-263, Feb.-Mar. 2000. https://www.sciencedirect.com/science/article/abs/pii/S0957415899000574
|
| [7] |
Y. Z. Guo and P. Y. Woo, "An adaptive fuzzy sliding mode controller for robotic manipulators, " IEEE Trans. Syst. Man Cybern. Part A Syst. Humans, vol. 33, no. 2, pp. 149-159, Mar. 2003. https://www.researchgate.net/publication/3412268_An_adaptive_fuzzy_sliding_mode_controller_for_robotic_manipulators?_sg=RoyauK7807l1-WRJ-ZdMlxAMtQW2KuEHt5OZTLOqEPAZdWFBU_8lRTRutMtqqoObzefXjzTuhDEkgF2tJ_ZVew
|
| [8] |
B. Xiao, S. Yin, and O. Kaynak, "Tracking control of robotic manipulators with uncertain kinematics and dynamics, " IEEE Trans. Ind. Electron., vol. 63, no. 10, pp. 6439-6449, Oct. 2016. http://www.tandfonline.com/servlet/linkout?suffix=cit0020&dbid=16&doi=10.1080%2F00207179.2017.1299944&key=10.1109%2FTIE.2016.2569068
|
| [9] |
H. F. Ho, Y. K. Wong, and A. B. Rad, "Robust fuzzy tracking control for robotic manipulators, " Simul. Modell. Pract. Theory, vol. 15, no. 7, pp. 801-816, Aug. 2007. https://www.sciencedirect.com/science/article/pii/S1569190X07000500
|
| [10] |
M. Zeinali and L. Notash, "Adaptive sliding mode control with uncertainty estimator for robot manipulators, " Mechan. Mach. Theory, vol. 45, no. 1, pp. 80-90, Jan. 2010. https://www.sciencedirect.com/science/article/pii/S0094114X09001530
|
| [11] |
N. Wang, S. F. Su, J. C. Yin, Z. J. Zheng, and M. J. Er, "Global asymptotic model-free trajectory-independent tracking control of an uncertain marine vehicle: an adaptive universe-based fuzzy control approach, " IEEE Trans. Fuzzy Syst., Aug. 2017, doi: 10.1109/TFUZZ.2017.2737405.
|
| [12] |
N. Wang, C. J. Qian, J. C. Sun, and Y. C. Liu, "Adaptive robust finite-time trajectory tracking control of fully actuated marine surface vehicles, " IEEE Trans. on Control Systems Technology, vol. 24, no. 4, pp. 1454-1462, Jul. 2016. https://www.researchgate.net/publication/284205610_Adaptive_Robust_Finite-Time_Trajectory_Tracking_Control_of_Fully_Actuated_Marine_Surface_Vehicles?ev=auth_pub
|
| [13] |
N. Wang and M. J. Er, "Direct adaptive fuzzy tracking control of marine vehicles with fully unknown parametric dynamics and uncertainties, " IEEE Trans. Control Syst. Technol., vol. 24, no. 5, pp. 1845-1852, Sep. 2016. https://www.researchgate.net/publication/289570222_Direct_Adaptive_Fuzzy_Tracking_Control_of_Marine_Vehicles_With_Fully_Unknown_Parametric_Dynamics_and_Uncertainties
|
| [14] |
N. Wang, M. J. Er, J. C. Sun, and Y. C. Liu, "Adaptive robust online constructive fuzzy control of a complex surface vehicle system, " IEEE Trans. Cybern., vol. 46, no. 7, pp. 1511-1523, Jul. 2016. https://www.ncbi.nlm.nih.gov/pubmed/26219099
|
| [15] |
N. Wang and M. J. Er, "Self-constructing adaptive robust fuzzy neural tracking control of surface vehicles with uncertainties and unknown disturbances, " IEEE Trans. Control Syst. Technol., vol. 23, no. 3, pp. 991-1002, May 2015. https://www.researchgate.net/publication/275280441_Self-Constructing_Adaptive_Robust_Fuzzy_Neural_Tracking_Control_of_Surface_Vehicles_With_Uncertainties_and_Unknown_Disturbances?ev=auth_pub
|
| [16] |
N. Bertrand, J. Sabatier, O. Briat, and J. Vinassa, "Embedded fractional nonlinear supercapacitor model and its parametric estimation method, " IEEE Trans. Ind. Electron., vol. 57, no. 12, pp. 3991-4000, Dec. 2010. Embedded fractional nonlinear supercapacitor model and its parametric estimation method,
|
| [17] |
S. Sondhi and Y. V. Hote, "Fractional order PID controller for perturbed load frequency control using Kharitonovś theorem, " Int. J. Electrical Power Energy Syst., vol. 78, pp. 884-896, Jun. 2016. https://www.sciencedirect.com/science/article/pii/S0142061515005347
|
| [18] |
H. Q. Wang, B. Chen, X. P. Liu, K. F. Liu, and C. Lin, "Adaptive neural tracking control for stochastic nonlinear strict-feedback systems with unknown input saturation, " Inf. Sci., vol. 269, pp. 300-315, Jun. 2014. https://www.sciencedirect.com/science/article/pii/S0020025513006919
|
| [19] |
V. Santiba#241;ez, K. Camarillo, J. Moreno-Valenzuela, and R. Campa, "A practical PID regulator with bounded torques for robot manipulators, " Int. J. Control Autom. Syst., vol. 8, no. 3, pp. 544-555, Jun. 2010. doi: 10.1007/s12555-010-0307-4
|
| [20] |
J. S. Huang, C. Y. Wen, W. Wang, and Z. P. Jiang, "Adaptive stabilization and tracking control of a nonholonomic mobile robot with input saturation and disturbance, " Syst. Control Lett., vol. 62, no. 3, pp. 234-241, Mar. 2013. https://www.sciencedirect.com/science/article/pii/S0167691112002447
|
| [21] |
Z. J. Liu and J. K. Liu, "Boundary control of a flexible robotic manipulator with output constraints, " Asian J. Control, vol. 19, no. 1, pp. 332-345, Jan. 2017. https://www.researchgate.net/publication/305451859_Boundary_Control_of_a_Flexible_Robotic_Manipulator_With_Output_Constraints_Boundary_Control_of_a_Flexible_Robotic_Manipulator_With_Output_Constraints
|
| [22] |
Q. Zheng and Z. Q. Gao, "Active disturbance rejection control: between the formulation in time and the understanding in frequency, " Control Theory Technol., vol. 14, no. 3, pp. 250-259, Aug. 2016. http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=kzllyyy-e201603008
|
| [23] |
Y. Y. Guo, B. Jiang, and Y. M. Zhang, "A novel robust attitude control for quadrotor aircraft subject to actuator faults and wind gusts, " IEEE/CAA J. Autom. Sinica, vol. 5, no. 1, pp. 292-300, Jan. 2018. http://www.cnki.com.cn/Article/CJFDTotal-ZDHB201801029.htm
|
| [24] |
C. H. Cheng, Y. A. Hu, and J. H. Wu, "Auto disturbance controller of non-affine nonlinear pure feedback systems, " Acta Autom. Sinica, vol. 40, no. 7, pp. 1528-1536, Jul. 2014. https://www.researchgate.net/publication/286572373_Auto_disturbance_rejection_controller_for_non-affine_nonlinear_systems_with_adaptive_observers
|
| [25] |
J. Q. Han, "Auto-disturbances-rejection controller and its applications, " Control Decis., vol. 13, no. 1, pp. 19-23, Jan. 1998. http://en.cnki.com.cn/Article_en/CJFDTOTAL-KZYC801.003.htm
|
| [26] |
Z. Q. Gao, "On the foundation of active disturbance rejection control, " Control Theory Appl., vol. 30, no. 12, pp. 1498-1510, Dec. 2013. http://en.cnki.com.cn/Article_en/CJFDTOTAL-KZLY201312006.htm
|
| [27] |
B. Z. Gao and Z. L. Zhao, "On the convergence of an extended state observer for nonlinear systems with uncertainty, " Syst. Control Lett., vol. 60, no. 6, pp. 420-430, Jun. 2011. https://www.sciencedirect.com/science/article/pii/S016769111100065X
|
| [28] |
Z. Q. Gao, "Active disturbance rejection control: from an enduring idea to an emerging technology, " in Proc. 10th Int. Workshop on Robot Motion and Control, Poznan, Poland, 2015, pp. 269-282. https://www.researchgate.net/publication/308735181_Active_disturbance_rejection_control_From_an_enduring_idea_to_an_emerging_technology
|
| [29] |
Y. Huang and J. Q. Han, "Analysis and design for the second order nonlinear continuous extended states observer, " Chin. Sci. Bull., vol. 45, no. 21, pp. 1938-1944, Nov. 2000. doi: 10.1007/BF02909682
|
| [30] |
J. Q. Han, Active Disturbance Rejection Control Technique: the Technique for Estimating and Compensating the Uncertainties. Beijing, China: National Defence Industry Press, 2008.
|
| [31] |
G. Feng, Y. F. Liu, and L. P. Huang, "A new robust algorithm to improve the dynamic performance on the speed control of induction motor drive, " IEEE Trans. Power Electron., vol. 19, no. 6, pp. 1614-1627, Nov. 2004. http://www.researchgate.net/publication/3280627_A_new_robust_algorithm_to_improve_the_dynamic_performance_on_the_speed_control_of_induction_motor_drive
|
| [32] |
S. H. Li and Z. G. Liu, "Adaptive speed control for permanent-magnet synchronous motor system with variations of load inertia, " IEEE Trans. Ind. Electron., vol. 56, no. 8, pp. 3050-3059, Aug. 2009. https://ieeexplore.ieee.org/document/5071291/
|
| [33] |
Y. Huang, K. K. Xu, J. Q. Han, and J. Lam, "Flight control design using extended state observer and non-smooth feedback, " in Proc. 40th IEEE Conf. Control and Decision, Orlando, FL, USA, 2001, pp. 223-228. https://www.researchgate.net/publication/3934041_Flight_control_design_using_extended_state_observer_and_non-smoothfeedback?ev=auth_pub
|
| [34] |
Y. Q. Xia, Z. Zhu, M. Y. Fu, and S. Wang, "Attitude tracking of rigid spacecraft with bounded disturbances, " IEEE Trans. Ind. Electron., vol. 58, no. 2, pp. 647-659, Feb. 2011. https://www.researchgate.net/publication/224127974_Attitude_Tracking_of_Rigid_Spacecraft_With_Bounded_Disturbances
|
| [35] |
J. B. Su, H. Y. Ma, W. B. Qiu, and Y. G. Xi, "Task-independent robotic uncalibrated hand-eye coordination based on the extended state observer, " IEEE Trans. Syst. Man Cybern. Part B Cybern., vol. 34, no. 4, pp. 1917-1922, Aug. 2004. https://www.ncbi.nlm.nih.gov/pubmed/15462456
|
| [36] |
S. E. Talole, J. P. Kolhe, and S. B. Phadke, "Extended-state-observer-based control of flexible-joint system with experimental validation, " IEEE Trans. Ind. Electron., vol. 57, no. 4, pp. 1411-1419, Apr. 2010. https://www.researchgate.net/publication/224580716_Extended-State-Observer-Based_Control_of_Flexible-Joint_System_With_Experimental_Validation
|
| [37] |
Q. Zheng and Z. Q. Gao, "On practical applications of active disturbance rejection control, " in Proc. 29th Chinese Control Conf., Beijing, China, 2010, pp. 6095-6100. http://cpfd.cnki.com.cn/Article/CPFDTOTAL-KZLL2010070010GU.htm
|
| [38] |
L. A. Casta#241;eda, A. Luviano-Juárez, and I. Chairez, "Robust trajectory tracking of a delta robot through adaptive active disturbance rejection control, " IEEE Trans. Control Syst. Technol., vol. 23, no. 4, pp. 1387- 1398, Jul. 2015. http://www.researchgate.net/publication/279865740_Robust_Trajectory_Tracking_of_a_Delta_Robot_Through_Adaptive_Active_Disturbance_Rejection_Control
|
| [39] |
X. Y. Chang, Y. L. Li, W. Y. Zhang, N. Wang, and W. Xue, "Active disturbance rejection control for a flywheel energy storage system, " IEEE Trans. Ind. Electron., vol. 62, no. 2, pp. 991-1001, Feb. 2015. http://www.researchgate.net/publication/273170470_active_disturbance_rejection_control_for_a_flywheel_energy_storage_system
|
| [40] |
J. Li, Y. Q. Xia, X. H. Qi, and Z. Q. Gao, "On the necessity, scheme, and basis of the linear-nonlinear switching in active disturbance rejection control, " IEEE Trans. Ind. Electron., vol. 64, no. 2, pp. 1425-1435, Feb. 2017. http://www.researchgate.net/publication/308385118_On_the_necessity_scheme_and_basis_of_the_linear-nonlinear_switching_in_active_disturbance_rejection_control
|
| [41] |
M. P. Ran, Q. Wang, and C. Y. Dong, "Active disturbance rejection control for uncertain nonaffine-in-control nonlinear systems, " IEEE Trans. Autom. Control, vol. 62, no. 11, pp. 5830-5836, Nov. 2017. http://www.researchgate.net/publication/312287819_Active_Disturbance_Rejection_Control_for_Uncertain_Nonaffine-in-control_Nonlinear_Systems
|
| [42] |
I. Kanellakopoulos, P. V. Kokotovic, and A. S. Morse, "Systematic design of adaptive controllers for feedback linearizable systems, " IEEE Trans. Autom. Control, vol. 36, no. 11, pp. 1241-1253, Nov. 1991. https://ieeexplore.ieee.org/document/4791451
|
| [43] |
M. Krstic, I. Kanellakopoulos, and P. V. Kokotovic, Nonlinear and Adaptive Control Design. New York, NY, USA: Wiley, 1995.
|
| [44] |
X. L. Shao and H. L. Wang, "Back-stepping active disturbance rejection control design for integrated missile guidance and control system via reduced-order ESO, " ISA Trans., vol. 57, pp. 10-22, Jul. 2015. https://www.sciencedirect.com/science/article/abs/pii/S0019057815000506
|
| [45] |
C. Y. Sun, W. He, and J. Hong, "Neural network control of a flexible robotic manipulator using the lumped spring-mass model, " IEEE Trans. Syst. Man Cybern. Syst., vol. 47, no. 8, pp. 1863-1874, Aug. 2017. https://www.researchgate.net/publication/303905689_Neural_Network_Control_of_a_Flexible_Robotic_Manipulator_Using_the_Lumped_Spring-Mass_Model
|
| [46] |
H. T. Liu and T. Zhang, "Adaptive neural network finite-time control for uncertain robotic manipulators, " J. Intell. Rob. Syst., vol. 75, no. 3-4, pp. 363-377, Sep. 2014. doi: 10.1007/s10846-013-9888-5
|
| [47] |
C. G. Yang, T. Teng, B. Xu, Z. J. Li, J. Na, and C. Y. Su, "Global adaptive tracking control of robot manipulators using neural networks with finite-time learning convergence, " Int. J. Control Autom. Syst., vol. 15, no. 4, pp. 1916-1924, Aug. 2017. doi: 10.1007%2Fs12555-016-0515-7
|
| [48] |
J. Q. Han, "From PID to active disturbance rejection control, " IEEE Trans. Ind. Electron., vol. 56, no. 3, pp. 900-906, Mar. 2009. https://www.researchgate.net/publication/224392576_From_PID_to_Active_Disturbance_Rejection_Control
|
| [49] |
Z. Q. Gao, Y. Huang, and J. Q. Han, "An alternative paradigm for control system design, " in Proc. 40th IEEE Conf. Decision and Control, Orlando, FL, USA, 2001, pp. 4578-4585. https://www.researchgate.net/publication/3934667_An_alternative_paradigm_for_control_system_design
|
| [50] |
L. Cheng, Z. G. Hou, and M. Tan, "Adaptive neural network tracking control for manipulators with uncertain kinematics, dynamics and actuator model, " Automatica, vol. 45, no. 10, pp. 2312-2318, Oct. 2009. https://www.sciencedirect.com/science/article/pii/S0005109809002982
|
| [51] |
Q. L. Hu, L. Xu, and A. H. Zhang, "Adaptive backstepping trajectory tracking control of robot manipulator, " J. Franklin Inst., vol. 349, no. 3, pp. 1087-1105, Apr. 2012. https://www.sciencedirect.com/science/article/pii/S0016003212000026
|
| [52] |
K. P. Tee, S. S. Ge, and E. H. Tay, "Barrier Lyapunov functions for the control of output-constrained nonlinear systems, " Automatica, vol. 45, no. 4, pp. 918-927, Apr. 2009. https://dl.acm.org/citation.cfm?id=1517844.1517876
|
| [53] |
M. Wang, C. Wang, P. Shi, and X. P. Liu, "Dynamic learning from neural control for strict-feedback systems with guaranteed predefined performance, " IEEE Trans. Neural Networks Learning Syst., vol. 27, no. 12, pp. 2564-2576, Dec. 2016. https://www.ncbi.nlm.nih.gov/pubmed/26595930
|
| [54] |
S. I. Han and J. M. Lee, "Recurrent fuzzy neural network backstepping control for the prescribed output tracking performance of nonlinear dynamic systems, " ISA Trans., vol. 53, no. 1, pp. 33-43, Jan. 2014. https://www.sciencedirect.com/science/article/abs/pii/S0019057813001420
|
| [55] |
M. Chen and S. Zhang, "Predictive performance robust controller for nonlinear system based on backstepping, " IEEE Trans. Neural Networks Learning Syst., vol. 30, no. 5, pp. 877-881, 2015.
|
| [56] |
C. P. Bechlioulis and G. A. Rovithakis, "Robust adaptive control of feedback linearizable MIMO nonlinear systems with prescribed performance, " IEEE Trans. Autom. Control, vol. 53, no. 9, pp. 2090-2099, Oct. 2008. http://www.researchgate.net/publication/224333120_Robust_Adaptive_Control_of_Feedback_Linearizable_MIMO_Nonlinear_Systems_With_Prescribed_Performance
|
| [57] |
S. J. Yoo, "Fault-tolerant control of strict-feedback non-linear time-delay systems with prescribed performance, " IET Control Theory Appl., vol. 7, no. 11, pp. 1553-1561, Jul. 2013. http://openurl.ebscohost.com/linksvc/select.aspx?stitle=Iet+Control+Theory+and+Applications&volume=7&issue=11&spage=1553&atitle=Fault-tolerant+control+of+strict-feedback+non-linear+time-delay+systems+with+prescribed+performance.&title=IET+Control+Theory+%26amp%3b+Applications&aulast=Sung+Jin+Yoo&issn=17518644&isbn=17518644&date=2013--
|
| [58] |
M. Chen, S. S. Ge, and B. B. Ren, "Adaptive tracking control of uncertain MIMO nonlinear systems with input constraints, " Automatica, vol. 47, no. 3, pp. 452-465, Mar. 2011. https://www.sciencedirect.com/science/article/pii/S0005109811000409
|
| [59] |
T. S. Li, D. Wang, G. Feng, and S. C. Tong, "A DSC approach to robust adaptive NN tracking control for strict-feedback nonlinear systems, " IEEE Trans. Syst. Man Cybern. Part B Cybern., vol. 40, no. 3, pp. 915-927, Jun. 2010. http://med.wanfangdata.com.cn/Paper/Detail/PeriodicalPaper_PM19887321
|
| [60] |
T. L. Shen, Robot Robust Control Foundation. Beijing, China: Tsinghua University Press, 2000.
|
| [61] |
N. Wang, C. J. Qian, and Z. Y. Sun, "Global asymptotic output tracking of nonlinear second-order systems with power integrators, " Automatica, vol. 80, pp. 1156-161, Jun. 2017. https://www.sciencedirect.com/science/article/pii/S0005109817301000
|
| [62] |
N. Wang, J. C. Qian, M. Han, Z. J. Zheng, and M. J. Er, "Adaptive approximation-based regulation control for a class of uncertain nonlinear systems without feedback linearizability, " IEEE Trans. Neural Networks Learning Syst., 2017, doi: 10.1109/TNNLS.2017.2738918.
|
| [63] |
N. Wang, J. C. Sun, and M. J. Er, "Tracking-error-based universal adaptive fuzzy control for output tracking of nonlinear systems with completely unknown dynamics, " IEEE Trans. Fuzzy Syst., 2017, doi: 10.1109/TFUZZ.2017.2697399.
|
| [1] | Hongxing Xiong, Guangdeng Chen, Hongru Ren, Hongyi Li. Broad-Learning-System-Based Model-Free Adaptive Predictive Control for Nonlinear MASs Under DoS Attacks[J]. IEEE/CAA Journal of Automatica Sinica, 2025, 12(2): 381-393. doi: 10.1109/JAS.2024.124929 |
| [2] | Chenxi Gu, Xinli Wang, Kang Li, Xiaohong Yin, Shaoyuan Li, Lei Wang. Enhanced Tube-Based Event-Triggered Stochastic Model Predictive Control With Additive Uncertainties[J]. IEEE/CAA Journal of Automatica Sinica, 2025, 12(3): 596-605. doi: 10.1109/JAS.2024.124974 |
| [3] | Luigi D’Alfonso, Francesco Giannini, Giuseppe Franzè, Giuseppe Fedele, Francesco Pupo, Giancarlo Fortino. Autonomous Vehicle Platoons In Urban Road Networks: A Joint Distributed Reinforcement Learning and Model Predictive Control Approach[J]. IEEE/CAA Journal of Automatica Sinica, 2024, 11(1): 141-156. doi: 10.1109/JAS.2023.123705 |
| [4] | Xiongbo Wan, Chaoling Zhang, Fan Wei, Chuan-Ke Zhang, Min Wu. Hybrid Dynamic Variables-Dependent Event-Triggered Fuzzy Model Predictive Control[J]. IEEE/CAA Journal of Automatica Sinica, 2024, 11(3): 723-733. doi: 10.1109/JAS.2023.123957 |
| [5] | Bing Zhu, Xiaozhuoer Yuan, Li Dai, Zhiwen Qiang. Finite-Time Stabilization for Constrained Discrete-time Systems by Using Model Predictive Control[J]. IEEE/CAA Journal of Automatica Sinica, 2024, 11(7): 1656-1666. doi: 10.1109/JAS.2024.124212 |
| [6] | A. Daniel Carnerero, Daniel R. Ramirez, Daniel Limon, Teodoro Alamo. Kernel-Based State-Space Kriging for Predictive Control[J]. IEEE/CAA Journal of Automatica Sinica, 2023, 10(5): 1263-1275. doi: 10.1109/JAS.2023.123459 |
| [7] | Yang Xu, Yuan Yuan, Zhen Wang, Xuelong Li. Noncooperative Model Predictive Game With Markov Jump Graph[J]. IEEE/CAA Journal of Automatica Sinica, 2023, 10(4): 931-944. doi: 10.1109/JAS.2023.123129 |
| [8] | Henglai Wei, Yang Shi. MPC-based Motion Planning and Control Enables Smarter and Safer Autonomous Marine Vehicles: Perspectives and a Tutorial Survey[J]. IEEE/CAA Journal of Automatica Sinica, 2023, 10(1): 8-24. doi: 10.1109/JAS.2022.106016 |
| [9] | Ramij Raja Hossain, Ratnesh Kumar. Machine Learning Accelerated Real-Time Model Predictive Control for Power Systems[J]. IEEE/CAA Journal of Automatica Sinica, 2023, 10(4): 916-930. doi: 10.1109/JAS.2023.123135 |
| [10] | Xubin Ping, Jianchen Hu, Tingyu Lin, Baocang Ding, Peng Wang, Zhiwu Li. A Survey of Output Feedback Robust MPC for Linear Parameter Varying Systems[J]. IEEE/CAA Journal of Automatica Sinica, 2022, 9(10): 1717-1751. doi: 10.1109/JAS.2022.105605 |
| [11] | Teng Li, Xiaodong Sun, Gang Lei, Zebin Yang, Youguang Guo, Jianguo Zhu. Finite-Control-Set Model Predictive Control of Permanent Magnet Synchronous Motor Drive Systems — An Overview[J]. IEEE/CAA Journal of Automatica Sinica, 2022, 9(12): 2087-2105. doi: 10.1109/JAS.2022.105851 |
| [12] | Ting Bai, Shaoyuan Li, Yuanyuan Zou. Distributed MPC for Reconfigurable Architecture Systems via Alternating Direction Method of Multipliers[J]. IEEE/CAA Journal of Automatica Sinica, 2021, 8(7): 1336-1344. doi: 10.1109/JAS.2020.1003195 |
| [13] | Yang Zhao, Yanguang Cai, Qiwen Song. Energy Control of Plug-In Hybrid Electric Vehicles Using Model Predictive Control With Route Preview[J]. IEEE/CAA Journal of Automatica Sinica, 2021, 8(12): 1948-1955. doi: 10.1109/JAS.2017.7510889 |
| [14] | Ting Bai, Shaoyuan Li, Yi Zheng. Distributed Model Predictive Control for Networked Plant-wide Systems With Neighborhood Cooperation[J]. IEEE/CAA Journal of Automatica Sinica, 2019, 6(1): 108-117. doi: 10.1109/JAS.2019.1911333 |
| [15] | Xiaoxiao Mi, Shaoyuan Li. Event-triggered MPC Design for Distributed Systems With Network Communications[J]. IEEE/CAA Journal of Automatica Sinica, 2018, 5(1): 240-250. doi: 10.1109/JAS.2016.7510154 |
| [16] | Lantao Xie, Lei Xie, Hongye Su, Jingdai Wang. Polyhedral Feasible Set Computation of MPC-Based Optimal Control Problems[J]. IEEE/CAA Journal of Automatica Sinica, 2018, 5(4): 765-770. doi: 10.1109/JAS.2018.7511126 |
| [17] | Zhang Yi, Liu Xiangjie, Qu Bin. Distributed Model Predictive Load Frequency Control of Multi-area Power System with DFIGs[J]. IEEE/CAA Journal of Automatica Sinica, 2017, 4(1): 125-135. |
| [18] | Magdi S. Mahmoud, Mohammad T. Nasir. Robust Control Design of Wheeled Inverted Pendulum Assistant Robot[J]. IEEE/CAA Journal of Automatica Sinica, 2017, 4(4): 628-638. doi: 10.1109/JAS.2017.7510613 |
| [19] | Yan Song, Haifeng Lou, Shuai Liu. Distributed Model Predictive Control with Actuator Saturation for Markovian Jump Linear System[J]. IEEE/CAA Journal of Automatica Sinica, 2015, 2(4): 374-381. |
| [20] | Xiaohua Xia, Jiangfeng Zhang. Operation Efficiency Optimisation Modelling and Application of Model Predictive Control[J]. IEEE/CAA Journal of Automatica Sinica, 2015, 2(2): 166-172. |
Figures(9) / Tables(1)
Xiaohong Yin and Shaoyuan Li, "Energy Efficient Predictive Control for Vapor Compression Refrigeration Cycle Systems," IEEE/CAA J. Autom. Sinica, vol. 5, no. 5, pp. 953-960, Sept. 2018. doi: 10.1109/JAS.2016.7510250
| System variables | Quantity |
| Manipulated variable $u_1$ | $F_{\rm com}$ the compressor speed |
| Manipulated variable $u_2$ | $v_o$ the opening of expansion valve |
| Controlled variable $y_1$ | $P_d$ the pressure difference between condenser and evaporator |
| Controlled variable $y_2$ | $T_{\rm esh}$ the superheat of evaporator |
| Measurable disturbances $d$ | $T_{\rm amb}$ the ambient temperature |
DownLoad:
CSV
| System variables | Units | Range |
| $P_e$ | bar | 2~5 |
| $P_c$ | bar | 7~15 |
| $P_d$ | bar | 2~13 |
| $T_{\rm esh}$ | ℃ | 2~10 |
| $F_{\rm com}$ | Hz | 5~60 |
| EEV opening | 0~100% | |
| $\dot{m}_r$ | kg/s | 0.008~0.03 |
DownLoad:
CSV
| Parameters | Value |
| $k_{eo1}$ | 0.89185211 |
| $k_{eo2}$ | -2.4239021 |
| $k_{eo3}$ | 405.64751 |
| $k_{ei1}$ | 0.0079980 |
| $k_{ei2}$ | 1.4631463 |
| $k_{ei3}$ | 197.79521 |
| $k_{ci1}$ | -1.7405306 |
| $k_{ci2}$ | 1.10381169 |
| $k_{ci3}$ | 392.246402 |
DownLoad:
CSV
| Control loop | $K_c$ | $\tau_I$ |
| $O_e-MSS$ | 20.492 | 0.96731 |
DownLoad:
CSV
| Parameters | Description | Value |
| $n_y$ | Number of output | 2 |
| $n_mv$ | Number of inputs | 2 |
| $P_y$ | Prediction horizon | 30 |
| $M$ | Control horizon | 15 |
| $q$ | Weight of outputs | diag{25, 4} |
| $r$ | Weight of inputs | diag{0.1, 0.01} |
| $\{y_{\rm min}, y_{\rm max}\}$ | Constraints of outputs | $\{[6.3~3.8]^{T}, [6.7~6.2]^{T}\}$ |
| $\{u_{\rm min}, u_{\rm max}\}$ | Constraints of inputs | $\{[20~20]^{T}, [43~80]^{\rm }\}$ |
| $\{\Delta u_{\rm min}, \Delta u_{\rm max}\}$ | Constrains of input increments | $\{[-4~-2]^{T}, [4~2]^{T}\}$ |
DownLoad:
CSV
| Control loop | $K_c$ | $\tau_I$ |
| $P_d-F_{\rm com}$ | -421.65 | -50.0939 |
| $T_{\rm esh}-v_{o}$ | -3.4903 | -0.20695 |
DownLoad:
CSV
| System variables | Quantity |
| Manipulated variable $u_1$ | $F_{\rm com}$ the compressor speed |
| Manipulated variable $u_2$ | $v_o$ the opening of expansion valve |
| Controlled variable $y_1$ | $P_d$ the pressure difference between condenser and evaporator |
| Controlled variable $y_2$ | $T_{\rm esh}$ the superheat of evaporator |
| Measurable disturbances $d$ | $T_{\rm amb}$ the ambient temperature |
| System variables | Units | Range |
| $P_e$ | bar | 2~5 |
| $P_c$ | bar | 7~15 |
| $P_d$ | bar | 2~13 |
| $T_{\rm esh}$ | ℃ | 2~10 |
| $F_{\rm com}$ | Hz | 5~60 |
| EEV opening | 0~100% | |
| $\dot{m}_r$ | kg/s | 0.008~0.03 |
| Parameters | Value |
| $k_{eo1}$ | 0.89185211 |
| $k_{eo2}$ | -2.4239021 |
| $k_{eo3}$ | 405.64751 |
| $k_{ei1}$ | 0.0079980 |
| $k_{ei2}$ | 1.4631463 |
| $k_{ei3}$ | 197.79521 |
| $k_{ci1}$ | -1.7405306 |
| $k_{ci2}$ | 1.10381169 |
| $k_{ci3}$ | 392.246402 |
| Control loop | $K_c$ | $\tau_I$ |
| $O_e-MSS$ | 20.492 | 0.96731 |
| Parameters | Description | Value |
| $n_y$ | Number of output | 2 |
| $n_mv$ | Number of inputs | 2 |
| $P_y$ | Prediction horizon | 30 |
| $M$ | Control horizon | 15 |
| $q$ | Weight of outputs | diag{25, 4} |
| $r$ | Weight of inputs | diag{0.1, 0.01} |
| $\{y_{\rm min}, y_{\rm max}\}$ | Constraints of outputs | $\{[6.3~3.8]^{T}, [6.7~6.2]^{T}\}$ |
| $\{u_{\rm min}, u_{\rm max}\}$ | Constraints of inputs | $\{[20~20]^{T}, [43~80]^{\rm }\}$ |
| $\{\Delta u_{\rm min}, \Delta u_{\rm max}\}$ | Constrains of input increments | $\{[-4~-2]^{T}, [4~2]^{T}\}$ |
| Control loop | $K_c$ | $\tau_I$ |
| $P_d-F_{\rm com}$ | -421.65 | -50.0939 |
| $T_{\rm esh}-v_{o}$ | -3.4903 | -0.20695 |
DownLoad:
DownLoad:
